semanticseg

Semantic image segmentation using deep learning

Description

example

C = semanticseg(I,network) returns a semantic segmentation of the input image using deep learning. The input network must be either a SeriesNetwork (Deep Learning Toolbox) or DAGNetwork (Deep Learning Toolbox) object.

[C,score,allScores] = semanticseg(I,network) returns a semantic segmentation of the input image with the classification scores for each categorical label in C. The function returns the scores in an array that corresponds to each pixel or voxel in the input image. allScores contains the scores for all label categories that the input network can classify.

[___] = semanticseg(I,network,roi) returns a semantic segmentation for a rectangular subregion of the input image.

pxds = semanticseg(ds,network) returns the semantic segmentation for a collection of images in ds, a datastore object ds.

The function supports parallel computing using multiple MATLAB® workers. You can enable parallel computing using the Computer Vision Toolbox Preferences dialog.

[___] = semanticseg(___,Name,Value) returns semantic segmentation with additional options specified by one or more name-value pair arguments.

Examples

collapse all

Overlay segmentation results on an image and display the results.

Load a pretrained network.

data = load('triangleSegmentationNetwork');
net = data.net
net =
  SeriesNetwork with properties:

         Layers: [10x1 nnet.cnn.layer.Layer]
     InputNames: {'imageinput'}
    OutputNames: {'classoutput'}

List the network layers.

net.Layers
ans =
  10x1 Layer array with layers:

     1   'imageinput'        Image Input                  32x32x1 images with 'zerocenter' normalization
     2   'conv_1'            Convolution                  64 3x3x1 convolutions with stride [1  1] and padding [1  1  1  1]
     3   'relu_1'            ReLU                         ReLU
     4   'maxpool'           Max Pooling                  2x2 max pooling with stride [2  2] and padding [0  0  0  0]
     5   'conv_2'            Convolution                  64 3x3x64 convolutions with stride [1  1] and padding [1  1  1  1]
     6   'relu_2'            ReLU                         ReLU
     7   'transposed-conv'   Transposed Convolution       64 4x4x64 transposed convolutions with stride [2  2] and cropping [1  1  1  1]
     8   'conv_3'            Convolution                  2 1x1x64 convolutions with stride [1  1] and padding [0  0  0  0]
     9   'softmax'           Softmax                      softmax
    10   'classoutput'       Pixel Classification Layer   Class weighted cross-entropy loss with classes 'triangle' and 'background'

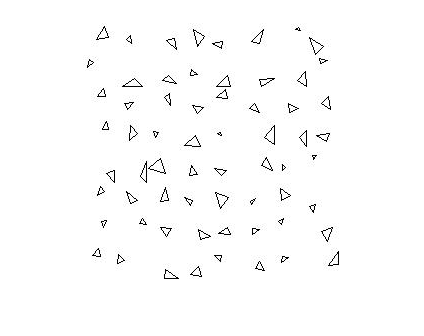

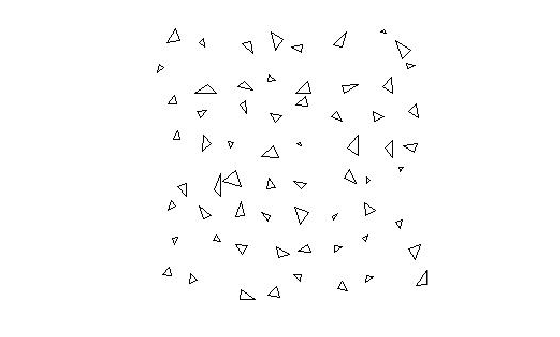

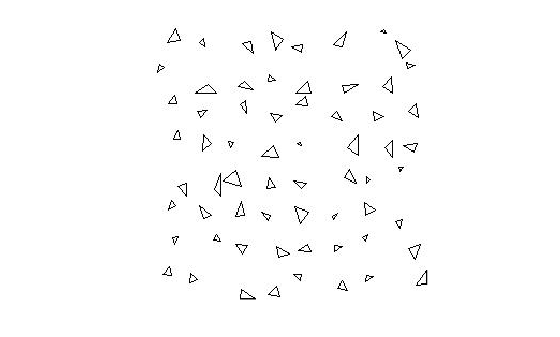

Read and display the test image.

I = imread('triangleTest.jpg');
figure
imshow(I)

Perform semantic image segmentation.

[C,scores] = semanticseg(I,net,'MiniBatchSize',32);

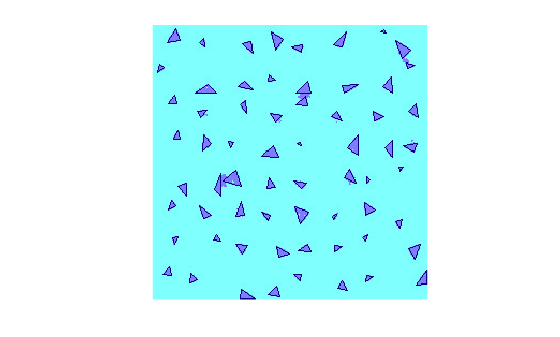

Overlay segmentation results on the image and display the results.

B = labeloverlay(I, C);
figure
imshow(B)

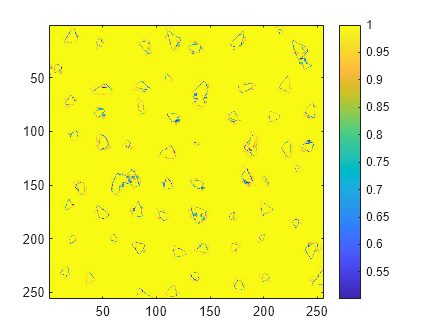

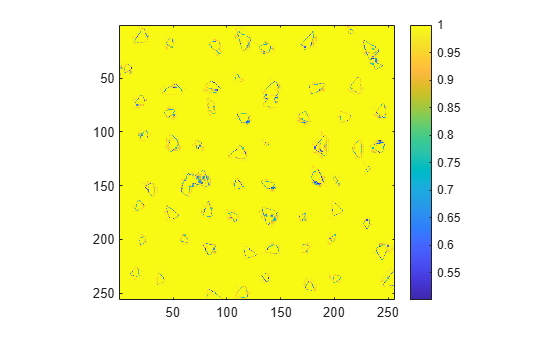

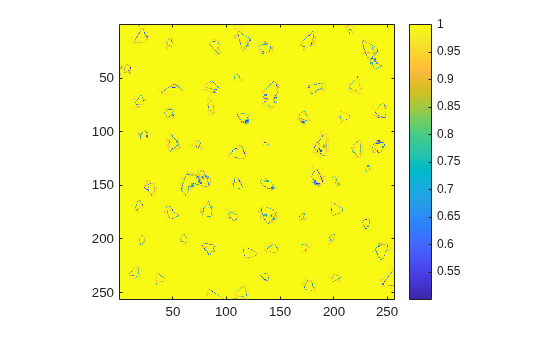

Display the classification scores.

figure
imagesc(scores)
axis square
colorbar

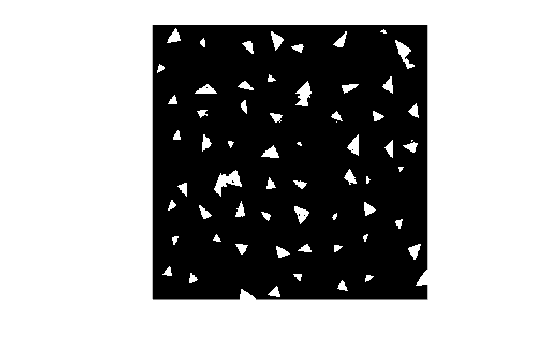

Create a binary mask with only the triangles.

BW = C == 'triangle';
figure
imshow(BW)

Run semantic segmentation on a test set of images and compare the results against ground truth data.

Load a pretrained network.

data = load('triangleSegmentationNetwork');
net = data.net;

Load test images using imageDatastore.

dataDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
testImageDir = fullfile(dataDir,'testImages');
imds = imageDatastore(testImageDir)
imds =
  ImageDatastore with properties:

                       Files: {
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_001.jpg';
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_002.jpg';
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_003.jpg'
                               ... and 97 more
                              }
                     Folders: {
                              ' .../build/matlab/toolbox/vision/visiondata/triangleImages/testImages'
                              }
    AlternateFileSystemRoots: {}
                    ReadSize: 1
                      Labels: {}
      SupportedOutputFormats: ["png"    "jpg"    "jpeg"    "tif"    "tiff"]
         DefaultOutputFormat: "png"
                     ReadFcn: @readDatastoreImage

Load ground truth test labels.

testLabelDir = fullfile(dataDir,'testLabels');
classNames = ["triangle" "background"];
pixelLabelID = [255 0];
pxdsTruth = pixelLabelDatastore(testLabelDir,classNames,pixelLabelID);

Run semantic segmentation on all of the test images with a batch size of 4. You can increase the batch size to increase throughput based on your systems memory resources.

pxdsResults = semanticseg(imds,net,'MiniBatchSize',4,'WriteLocation',tempdir);
Running semantic segmentation network
-------------------------------------
* Processed 100 images.

Compare the results against the ground truth.

metrics = evaluateSemanticSegmentation(pxdsResults,pxdsTruth)
Evaluating semantic segmentation results
----------------------------------------
* Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score.
* Processed 100 images.
* Finalizing... Done.
* Data set metrics:

    GlobalAccuracy    MeanAccuracy    MeanIoU    WeightedIoU    MeanBFScore
    ______________    ____________    _______    ___________    ___________

       0.90624          0.95085       0.61588      0.87529        0.40652
metrics =
  semanticSegmentationMetrics with properties:

              ConfusionMatrix: [2x2 table]
    NormalizedConfusionMatrix: [2x2 table]
               DataSetMetrics: [1x5 table]
                 ClassMetrics: [2x3 table]
                 ImageMetrics: [100x5 table]

This example shows how to define and create a custom pixel classification layer that uses Tversky loss.

This layer can be used to train semantic segmentation networks. To learn more about creating custom deep learning layers, see Define Custom Deep Learning Layers (Deep Learning Toolbox).

Tversky Loss

The Tversky loss is based on the Tversky index for measuring overlap between two segmented images [1]. The Tversky index TIc between one image Y and the corresponding ground truth T is given by

TIc=m=1MYcmTcmm=1MYcmTcm+αm=1MYcmTcm+βm=1MYcmTcm

  • c corresponds to the class and ccorresponds to not being in class c.

  • M is the number of elements along the first two dimensions of Y.

  • α and β are weighting factors that control the contribution that false positives and false negatives for each class make to the loss.

The loss Lover the number of classes C is given by

L=c=1C1-TIc

Classification Layer Template

Copy the classification layer template into a new file in MATLAB®. This template outlines the structure of a classification layer and includes the functions that define the layer behavior. The rest of the example shows how to complete the tverskyPixelClassificationLayer.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer

   properties
      % Optional properties
   end

   methods

        function loss = forwardLoss(layer, Y, T)
            % Layer forward loss function goes here
        end

    end
end

Declare Layer Properties

By default, custom output layers have the following properties:

  • Name – Layer name, specified as a character vector or a string scalar. To include this layer in a layer graph, you must specify a nonempty unique layer name. If you train a series network with this layer and Name is set to '', then the software automatically assigns a name at training time.

  • Description – One-line description of the layer, specified as a character vector or a string scalar. This description appears when the layer is displayed in a Layer array. If you do not specify a layer description, then the software displays the layer class name.

  • Type – Type of the layer, specified as a character vector or a string scalar. The value of Type appears when the layer is displayed in a Layer array. If you do not specify a layer type, then the software displays 'Classification layer' or 'Regression layer'.

Custom classification layers also have the following property:

  • Classes – Classes of the output layer, specified as a categorical vector, string array, cell array of character vectors, or 'auto'. If Classes is 'auto', then the software automatically sets the classes at training time. If you specify a string array or cell array of character vectors str, then the software sets the classes of the output layer to categorical(str,str). The default value is 'auto'.

If the layer has no other properties, then you can omit the properties section.

The Tversky loss requires a small constant value to prevent division by zero. Specify the property, Epsilon, to hold this value. It also requires two variable properties Alpha and Beta that control the weighting of false positives and false negatives, respectively.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer

    properties(Constant)
       % Small constant to prevent division by zero.
       Epsilon = 1e-8;
    end

    properties
       % Default weighting coefficients for false positives and false negatives
       Alpha = 0.5;
       Beta = 0.5;
    end

    ...
end

Create Constructor Function

Create the function that constructs the layer and initializes the layer properties. Specify any variables required to create the layer as inputs to the constructor function.

Specify an optional input argument name to assign to the Name property at creation.

function layer = tverskyPixelClassificationLayer(name, alpha, beta)
    % layer =  tverskyPixelClassificationLayer(name) creates a Tversky
    % pixel classification layer with the specified name.

    % Set layer name
    layer.Name = name;

    % Set layer properties
    layer.Alpha = alpha;
    layer.Beta = beta;

    % Set layer description
    layer.Description = 'Tversky loss';
end

Create Forward Loss Function

Create a function named forwardLoss that returns the weighted cross entropy loss between the predictions made by the network and the training targets. The syntax for forwardLoss is loss = forwardLoss(layer,Y,T), where Y is the output of the previous layer and T represents the training targets.

For semantic segmentation problems, the dimensions of T match the dimension of Y, where Y is a 4-D array of size H-by-W-by-K-by-N, where K is the number of classes, and N is the mini-batch size.

The size of Y depends on the output of the previous layer. To ensure that Y is the same size as T, you must include a layer that outputs the correct size before the output layer. For example, to ensure that Y is a 4-D array of prediction scores for K classes, you can include a fully connected layer of size K or a convolutional layer with K filters followed by a softmax layer before the output layer.

function loss = forwardLoss(layer, Y, T)
    % loss = forwardLoss(layer, Y, T) returns the Tversky loss between
    % the predictions Y and the training targets T.

    Pcnot = 1-Y;
    Gcnot = 1-T;
    TP = sum(sum(Y.*T,1),2);
    FP = sum(sum(Y.*Gcnot,1),2);
    FN = sum(sum(Pcnot.*T,1),2);

    numer = TP + layer.Epsilon;
    denom = TP + layer.Alpha*FP + layer.Beta*FN + layer.Epsilon;

    % Compute Tversky index
    lossTIc = 1 - numer./denom;
    lossTI = sum(lossTIc,3);

    % Return average Tversky index loss
    N = size(Y,4);
    loss = sum(lossTI)/N;

end

Backward Loss Function

As the forwardLoss function fully supports automatic differentiation, there is no need to create a function for the backward loss.

For a list of functions that support automatic differentiation, see List of Functions with dlarray Support (Deep Learning Toolbox).

Completed Layer

The completed layer is provided in tverskyPixelClassificationLayer.m.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer
    % This layer implements the Tversky loss function for training
    % semantic segmentation networks.

    % References
    % Salehi, Seyed Sadegh Mohseni, Deniz Erdogmus, and Ali Gholipour.
    % "Tversky loss function for image segmentation using 3D fully
    % convolutional deep networks." International Workshop on Machine
    % Learning in Medical Imaging. Springer, Cham, 2017.
    % ----------


    properties(Constant)
        % Small constant to prevent division by zero.
        Epsilon = 1e-8;
    end

    properties
        % Default weighting coefficients for False Positives and False
        % Negatives
        Alpha = 0.5;
        Beta = 0.5;
    end


    methods

        function layer = tverskyPixelClassificationLayer(name, alpha, beta)
            % layer =  tverskyPixelClassificationLayer(name, alpha, beta) creates a Tversky
            % pixel classification layer with the specified name and properties alpha and beta.

            % Set layer name.
            layer.Name = name;

            layer.Alpha = alpha;
            layer.Beta = beta;

            % Set layer description.
            layer.Description = 'Tversky loss';
        end


        function loss = forwardLoss(layer, Y, T)
            % loss = forwardLoss(layer, Y, T) returns the Tversky loss between
            % the predictions Y and the training targets T.

            Pcnot = 1-Y;
            Gcnot = 1-T;
            TP = sum(sum(Y.*T,1),2);
            FP = sum(sum(Y.*Gcnot,1),2);
            FN = sum(sum(Pcnot.*T,1),2);

            numer = TP + layer.Epsilon;
            denom = TP + layer.Alpha*FP + layer.Beta*FN + layer.Epsilon;

            % Compute tversky index
            lossTIc = 1 - numer./denom;
            lossTI = sum(lossTIc,3);

            % Return average tversky index loss.
            N = size(Y,4);
            loss = sum(lossTI)/N;

        end
    end
end

GPU Compatibility

The MATLAB functions used in forwardLoss in tverskyPixelClassificationLayer all support gpuArray inputs, so the layer is GPU compatible.

Check Output Layer Validity

Create an instance of the layer.

layer = tverskyPixelClassificationLayer('tversky',0.7,0.3);

Check the validity of the layer by using checkLayer (Deep Learning Toolbox). Specify the valid input size to be the size of a single observation of typical input to the layer. The layer expects a H-by-W-by-K-by-N array inputs, where K is the number of classes, and N is the number of observations in the mini-batch.

numClasses = 2;
validInputSize = [4 4 numClasses];
checkLayer(layer,validInputSize, 'ObservationDimension',4)
Skipping GPU tests. No compatible GPU device found.

Skipping code generation compatibility tests. To check validity of the layer for code generation, specify the 'CheckCodegenCompatibility' and 'ObservationDimension' options.

Running nnet.checklayer.TestOutputLayerWithoutBackward
........
Done nnet.checklayer.TestOutputLayerWithoutBackward
__________

Test Summary:
	 8 Passed, 0 Failed, 0 Incomplete, 2 Skipped.
	 Time elapsed: 1.8745 seconds.

The test summary reports the number of passed, failed, incomplete, and skipped tests.

Use Custom Layer in Semantic Segmentation Network

Create a semantic segmentation network that uses the tverskyPixelClassificationLayer.

layers = [
    imageInputLayer([32 32 1])
    convolution2dLayer(3,64,'Padding',1)
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(2,'Stride',2)
    convolution2dLayer(3,64,'Padding',1)
    reluLayer
    transposedConv2dLayer(4,64,'Stride',2,'Cropping',1)
    convolution2dLayer(1,2)
    softmaxLayer
    tverskyPixelClassificationLayer('tversky',0.3,0.7)]
layers =
  11x1 Layer array with layers:

     1   ''          Image Input              32x32x1 images with 'zerocenter' normalization
     2   ''          Convolution              64 3x3 convolutions with stride [1  1] and padding [1  1  1  1]
     3   ''          Batch Normalization      Batch normalization
     4   ''          ReLU                     ReLU
     5   ''          Max Pooling              2x2 max pooling with stride [2  2] and padding [0  0  0  0]
     6   ''          Convolution              64 3x3 convolutions with stride [1  1] and padding [1  1  1  1]
     7   ''          ReLU                     ReLU
     8   ''          Transposed Convolution   64 4x4 transposed convolutions with stride [2  2] and cropping [1  1  1  1]
     9   ''          Convolution              2 1x1 convolutions with stride [1  1] and padding [0  0  0  0]
    10   ''          Softmax                  softmax
    11   'tversky'   Classification Output    Tversky loss

Load training data for semantic segmentation using imageDatastore and pixelLabelDatastore.

dataSetDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
imageDir = fullfile(dataSetDir,'trainingImages');
labelDir = fullfile(dataSetDir,'trainingLabels');

imds = imageDatastore(imageDir);

classNames = ["triangle" "background"];
labelIDs = [255 0];
pxds = pixelLabelDatastore(labelDir, classNames, labelIDs);

Associate the image and pixel label data by using pixelLabelImageDatastore.

ds = pixelLabelImageDatastore(imds,pxds);

Set the training options and train the network.

options = trainingOptions('adam', ...
    'InitialLearnRate',1e-3, ...
    'MaxEpochs',100, ...
    'LearnRateDropFactor',5e-1, ...
    'LearnRateDropPeriod',20, ...
    'LearnRateSchedule','piecewise', ...
    'MiniBatchSize',50);

net = trainNetwork(ds,layers,options);
Training on single CPU.
Initializing input data normalization.
|========================================================================================|
|  Epoch  |  Iteration  |  Time Elapsed  |  Mini-batch  |  Mini-batch  |  Base Learning  |
|         |             |   (hh:mm:ss)   |   Accuracy   |     Loss     |      Rate       |
|========================================================================================|
|       1 |           1 |       00:00:02 |       50.32% |       1.2933 |          0.0010 |
|      13 |          50 |       00:00:36 |       98.83% |       0.0987 |          0.0010 |
|      25 |         100 |       00:01:06 |       99.33% |       0.0547 |          0.0005 |
|      38 |         150 |       00:01:31 |       99.37% |       0.0473 |          0.0005 |
|      50 |         200 |       00:01:53 |       99.48% |       0.0401 |          0.0003 |
|      63 |         250 |       00:02:16 |       99.48% |       0.0384 |          0.0001 |
|      75 |         300 |       00:02:37 |       99.54% |       0.0348 |          0.0001 |
|      88 |         350 |       00:02:57 |       99.51% |       0.0352 |      6.2500e-05 |
|     100 |         400 |       00:03:14 |       99.56% |       0.0330 |      6.2500e-05 |
|========================================================================================|

Evaluate the trained network by segmenting a test image and displaying the segmentation result.

I = imread('triangleTest.jpg');
[C,scores] = semanticseg(I,net);

B = labeloverlay(I,C);
montage({I,B})

References

[1] Salehi, Seyed Sadegh Mohseni, Deniz Erdogmus, and Ali Gholipour. "Tversky loss function for image segmentation using 3D fully convolutional deep networks." International Workshop on Machine Learning in Medical Imaging. Springer, Cham, 2017.

Train a semantic segmentation network using dilated convolutions.

A semantic segmentation network classifies every pixel in an image, resulting in an image that is segmented by class. Applications for semantic segmentation include road segmentation for autonomous driving and cancer cell segmentation for medical diagnosis. To learn more, see Getting Started with Semantic Segmentation Using Deep Learning.

Semantic segmentation networks like DeepLab [1] make extensive use of dilated convolutions (also known as atrous convolutions) because they can increase the receptive field of the layer (the area of the input which the layers can see) without increasing the number of parameters or computations.

Load Training Data

The example uses a simple dataset of 32-by-32 triangle images for illustration purposes. The dataset includes accompanying pixel label ground truth data. Load the training data using an imageDatastore and a pixelLabelDatastore.

dataFolder = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
imageFolderTrain = fullfile(dataFolder,'trainingImages');
labelFolderTrain = fullfile(dataFolder,'trainingLabels');

Create an imageDatastore for the images.

imdsTrain = imageDatastore(imageFolderTrain);

Create a pixelLabelDatastore for the ground truth pixel labels.

classNames = ["triangle" "background"];
labels = [255 0];
pxdsTrain = pixelLabelDatastore(labelFolderTrain,classNames,labels)
pxdsTrain =
  PixelLabelDatastore with properties:

                       Files: {200x1 cell}
                  ClassNames: {2x1 cell}
                    ReadSize: 1
                     ReadFcn: @readDatastoreImage
    AlternateFileSystemRoots: {}

Create Semantic Segmentation Network

This example uses a simple semantic segmentation network based on dilated convolutions.

Create a data source for training data and get the pixel counts for each label.

pximdsTrain = pixelLabelImageDatastore(imdsTrain,pxdsTrain);
tbl = countEachLabel(pximdsTrain)
tbl=2×3 table
         Name         PixelCount    ImagePixelCount
    ______________    __________    _______________

    {'triangle'  }         10326       2.048e+05
    {'background'}    1.9447e+05       2.048e+05

The majority of pixel labels are for background. This class imbalance biases the learning process in favor of the dominant class. To fix this, use class weighting to balance the classes. You can use several methods to compute class weights. One common method is inverse frequency weighting where the class weights are the inverse of the class frequencies. This method increases the weight given to under represented classes. Calculate the class weights using inverse frequency weighting.

numberPixels = sum(tbl.PixelCount);
frequency = tbl.PixelCount / numberPixels;
classWeights = 1 ./ frequency;

Create a network for pixel classification by using an image input layer with an input size corresponding to the size of the input images. Next, specify three blocks of convolution, batch normalization, and ReLU layers. For each convolutional layer, specify 32 3-by-3 filters with increasing dilation factors and pad the inputs so they are the same size as the outputs by setting the 'Padding' option to 'same'. To classify the pixels, include a convolutional layer with K 1-by-1 convolutions, where K is the number of classes, followed by a softmax layer and a pixelClassificationLayer with the inverse class weights.

inputSize = [32 32 1];
filterSize = 3;
numFilters = 32;
numClasses = numel(classNames);

layers = [
    imageInputLayer(inputSize)

    convolution2dLayer(filterSize,numFilters,'DilationFactor',1,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(filterSize,numFilters,'DilationFactor',2,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(filterSize,numFilters,'DilationFactor',4,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(1,numClasses)
    softmaxLayer
    pixelClassificationLayer('Classes',classNames,'ClassWeights',classWeights)];

Train Network

Specify the training options.

options = trainingOptions('sgdm', ...
    'MaxEpochs', 100, ...
    'MiniBatchSize', 64, ...
    'InitialLearnRate', 1e-3);

Train the network using trainNetwork.

net = trainNetwork(pximdsTrain,layers,options);
Training on single CPU.
Initializing input data normalization.
|========================================================================================|
|  Epoch  |  Iteration  |  Time Elapsed  |  Mini-batch  |  Mini-batch  |  Base Learning  |
|         |             |   (hh:mm:ss)   |   Accuracy   |     Loss     |      Rate       |
|========================================================================================|
|       1 |           1 |       00:00:00 |       91.62% |       1.6825 |          0.0010 |
|      17 |          50 |       00:00:22 |       88.56% |       0.2393 |          0.0010 |
|      34 |         100 |       00:00:49 |       92.08% |       0.1672 |          0.0010 |
|      50 |         150 |       00:01:08 |       93.17% |       0.1472 |          0.0010 |
|      67 |         200 |       00:01:29 |       94.15% |       0.1313 |          0.0010 |
|      84 |         250 |       00:01:52 |       94.47% |       0.1167 |          0.0010 |
|     100 |         300 |       00:02:15 |       95.04% |       0.1100 |          0.0010 |
|========================================================================================|

Test Network

Load the test data. Create an imageDatastore for the images. Create a pixelLabelDatastore for the ground truth pixel labels.

imageFolderTest = fullfile(dataFolder,'testImages');
imdsTest = imageDatastore(imageFolderTest);
labelFolderTest = fullfile(dataFolder,'testLabels');
pxdsTest = pixelLabelDatastore(labelFolderTest,classNames,labels);

Make predictions using the test data and trained network.

pxdsPred = semanticseg(imdsTest,net,'MiniBatchSize',32,'WriteLocation',tempdir);
Running semantic segmentation network
-------------------------------------
* Processed 100 images.

Evaluate the prediction accuracy using evaluateSemanticSegmentation.

metrics = evaluateSemanticSegmentation(pxdsPred,pxdsTest);
Evaluating semantic segmentation results
----------------------------------------
* Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score.
* Processed 100 images.
* Finalizing... Done.
* Data set metrics:

    GlobalAccuracy    MeanAccuracy    MeanIoU    WeightedIoU    MeanBFScore
    ______________    ____________    _______    ___________    ___________

       0.95237          0.97352       0.72081      0.92889        0.46416

For more information on evaluating semantic segmentation networks, see evaluateSemanticSegmentation.

Segment New Image

Read and display the test image triangleTest.jpg.

imgTest = imread('triangleTest.jpg');
figure
imshow(imgTest)

Segment the test image using semanticseg and display the results using labeloverlay.

C = semanticseg(imgTest,net);
B = labeloverlay(imgTest,C);
figure
imshow(B)

Input Arguments

collapse all

Input image, specified as one of the following.

Image TypeData Format
Single 2-D grayscale image2-D matrix of size H-by-W
Single 2-D color image or 2-D multispectral image3-D array of size H-by-W-by-C. The number of color channels C is 3 for color images.
Series of P 2-D images4-D array of size H-by-W-by-C-by-P. The number of color channels C is 1 for grayscale images and 3 for color images.
Single 3-D grayscale image with depth D3-D array of size H-by-W-by-D
Single 3-D color image or 3-D multispectral image4-D array of size H-by-W-by-D-by-C. The number of color channels C is 3 for color images.
Series of P 3-D images5-D array of size H-by-W-by-D-by-C-by-P

The input image can also be a gpuArray (Parallel Computing Toolbox) containing one of the preceding image types (requires Parallel Computing Toolbox™).

Data Types: uint8 | uint16 | int16 | double | single | logical

Network, specified as either a SeriesNetwork (Deep Learning Toolbox) or a DAGNetwork (Deep Learning Toolbox) object.

Region of interest, specified as one of the following.

Image TypeROI Format
2-D image4-element vector of the form [x,y,width,height]
3-D image6-element vector of the form [x,y,z,width,height,depth]

The vector defines a rectangular or cuboidal region of interest fully contained in the input image. Image pixels outside the region of interest are assigned the <undefined> categorical label. If the input image consists of a series of images, then semanticseg applies the same roi to all images in the series.

Collection of images, specified as a datastore. The read function of the datastore must return a numeric array, cell array, or table. For cell arrays or tables with multiple columns, the function processes only the first column.

For more information, see Datastores for Deep Learning (Deep Learning Toolbox).

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'ExecutionEnvironment','gpu'

Returned segmentation type, specified as 'categorical', 'double', or 'uint8'. When you specify 'double' or 'uint8', the function returns the segmentation results as a label array containing label IDs. The IDs are integer values that correspond to the class names defined in the classification layer used in the input network.

You cannot use the OutputType property with an ImageDatastore object input.

Group of images, specified as an integer. Images are grouped and processed together as a batch. Batches are used for processing a large collection of images and they improve computational efficiency. Increasing the 'MiniBatchSize' value increases the efficiency, but it also takes up more memory.

Hardware resource for processing images with a network, specified as 'auto', 'gpu', or 'cpu'.

ExecutionEnvironmentDescription
'auto'Use a GPU if available. Otherwise, use the CPU. The use of GPU requires Parallel Computing Toolbox and a CUDA® enabled NVIDIA® GPU with compute capability 3.0 or higher.
'gpu'Use the GPU. If a suitable GPU is not available, the function returns an error message.
'cpu'Use the CPU.

Performance optimization, specified as 'auto', 'mex', or 'none'.

AccelerationDescription
'auto'Automatically apply a number of optimizations suitable for the input network and hardware resource.
'mex'Compile and execute a MEX function. This option is available when using a GPU only. Using a GPU requires Parallel Computing Toolbox and a CUDA enabled NVIDIA GPU with compute capability 3.0 or higher. If Parallel Computing Toolbox or a suitable GPU is not available, then the function returns an error.
'none'Disable all acceleration.

The default option is 'auto'. If you use the 'auto' option, MATLAB does not ever generate a MEX function.

Using the 'Acceleration' options 'auto' and 'mex' can offer performance benefits, but at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using new input data.

The 'mex' option generates and executes a MEX function based on the network and parameters used in the function call. You can have several MEX functions associated with a single network at one time. Clearing the network variable also clears any MEX functions associated with that network.

The 'mex' option is only available when you are using a GPU. You must also have a C/C++ compiler installed. For setup instructions, see MEX Setup (GPU Coder).

'mex' acceleration does not support all layers. For a list of supported layers, see Supported Layers (GPU Coder).

Folder location, specified as pwd (your current working folder), a string scalar, or a character vector. The specified folder must exist and have write permissions.

This property applies only when using an ImageDatastore object input.

Prefix applied to output file names, specified as a string scalar or character vector. The image files are named as follows:

  • prefix_N.png, where N corresponds to the index of the input image file, imds.Files(N).

This property applies only when using an ImageDatastore object input.

Display progress information, specified as 'true' or 'false'.

This property applies only when using an ImageDatastore object input.

Output Arguments

collapse all

Categorical labels, returned as a categorical array. The categorical array relates a label to each pixel or voxel in the input image. The images returned by readall(datastore) have a one-to-one correspondence with the categorical matrices returned by readall(pixelLabelDatastore). The elements of the label array correspond to the pixel or voxel elements of the input image. If you select an ROI, then the labels are limited to the area within the ROI. Image pixels and voxels outside the region of interest are assigned the <undefined> categorical label.

Image TypeCategorical Label Format
Single 2-D image2-D matrix of size H-by-W. Element C(i,j) is the categorical label assigned to the pixel I(i,j).
Series of P 2-D images3-D array of size H-by-W-by-P. Element C(i,j,p) is the categorical label assigned to the pixel I(i,j,p).
Single 3-D image3-D array of size H-by-W-by-D. Element C(i,j,k) is the categorical label assigned to the voxel I(i,j,k).
Series of P 3-D images4-D array of size H-by-W-by-D-by-P. Element C(i,j,k,p) is the categorical label assigned to the voxel I(i,j,k,p).

Confidence scores for each categorical label in C, returned as an array of values between 0 and 1. The scores represents the confidence in the predicted labels C. Higher score values indicate a higher confidence in the predicted label.

Image TypeScore Format
Single 2-D image2-D matrix of size H-by-W. Element score(i,j) is the classification score of the pixel I(i,j).
Series of P 2-D images3-D array of size H-by-W-by-P. Element score(i,j,p) is the classification score of the pixel I(i,j,p).
Single 3-D image3-D array of size H-by-W-by-D. Element score(i,j,k) is the classification score of the voxel I(i,j,k).
Series of P 3-D images4-D array of size H-by-W-by-D-by-P. Element score(i,j,k,p) is the classification score of the voxel I(i,j,k,p).

Scores for all label categories that the input network can classify, returned as a numeric array. The format of the array is described in the following table. L represents the total number of label categories.

Image TypeAll Scores Format
Single 2-D image3-D array of size H-by-W-by-L. Element allScores(i,j,q) is the score of the qth label at the pixel I(i,j).
Series of P 2-D images4-D array of size H-by-W-by-L-by-P. Element allScores(i,j,q,p) is the score of the qth label at the pixel I(i,j,p).
Single 3-D image4-D array of size H-by-W-by-D-by-L. Element allScores(i,j,k,q) is the score of the qth label at the voxel I(i,j,k).
Series of P 3-D images5-D array of size H-by-W-by-D-by-L-by-P. Element allScores(i,j,k,q,p) is the score of the qth label at the voxel I(i,j,k,p).

Semantic segmentation results, returned as a pixelLabelDatastore object. The object contains the semantic segmentation results for all the images contained in the ds input object. The result for each image is saved as separate uint8 label matrices of PNG images. You can use read(pxds) to return the categorical labels assigned to the images in ds.

The images in the output of readall(ds) have a one-to-one correspondence with the categorical matrices in the output of readall(pxds).

Extended Capabilities

Introduced in R2017b
