visionhdl.FrameToPixels
Convert frame-based video to pixel stream
Description
The visionhdl.FrameToPixels
System object™ converts color or grayscale frame-based video to a pixel stream and control
structure. The control structure indicates the validity of each pixel and its location in the
frame. The pixel stream format can include padding pixels around the active frame. You can
configure the frame and padding dimensions by selecting a common video format or by specifying
custom dimensions. For details about the pixel stream format, see Streaming Pixel Interface.
Use this object to generate input for a function targeted for HDL code generation. This object itself does not support HDL code generation.
If your design converts frames to a pixel stream and later converts the stream back to
frames, specify the same video format for the FrameToPixels
object and the PixelsToFrame
object.
To convert frame-based video to a pixel stream:
Create the
visionhdl.FrameToPixels
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
returns a
System object that serializes input frames into a pixel stream. Set properties using one
or more name-value pairs. Enclose each property name in single quotes. F2P
= visionhdl.FrameToPixels(Name
,Value
)
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
NumComponents
— Number of values used to represent each pixel
1
(default) | 3
| 4
Number of values used to represent each pixel, specified as 1
,
3
, or 4
components.
For grayscale video, set this property to
1
.For color video, for example, {R,G,B} or {Y,Cb,Cr}, set this property to
3
.For color video with an alpha channel for transparency, set this property to
4
.
The visionhdl.FrameToPixels
object returns a
P-by-NumComponents
matrix, where
P is the total number of pixels in the padded frame.
Dependencies
When NumComponents
is greater than 1, you must set the
NumPixels
property to 1
.
NumPixels
— Number of pixels streamed per time step
1
(default) | 2
| 4
| 8
Number of pixels transferred on the streaming interface for each cycle, specified as
1
, 2
, 4
, or
8
. To enable multipixel streaming and increase throughput for
high-resolution or high-frame-rate video, set this property to 2
,
4
, or 8
. The
visionhdl.FrameToPixels
object returns a
P-by-NumPixels
matrix, where
P is the total number of pixels in the padded frame.
Note
You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink® blocks.
Dependencies
When NumPixels
is greater than 1, you must set the
NumComponents
property to 1
.
VideoFormat
— Dimensions of active and inactive regions in video frame
'1080p'
(default) | '240p'
| '480p'
| '480pH'
| '576p'
| '720p'
| '768p'
| '1024p'
| '1200p'
| '2KCinema'
| '4KUHDTV'
| '8KUHDTV'
| 'Custom'
Dimensions of active and inactive regions of a video frame. To select a predefined
format, specify the VideoFormat
property as one of the options in
the first column of the table. For a custom format, set VideoFormat
to 'Custom'

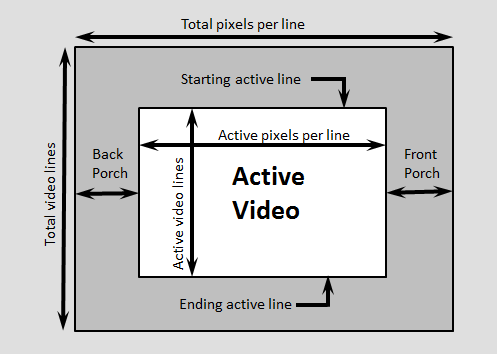

, and specify the dimension properties as integers. The
frame dimensions are indicated in the diagram.
Video Format | Active Pixels Per Line | Active Video Lines | Total Pixels Per Line | Total Video Lines | Starting Active Line | Ending Active Line | Front Porch | Back Porch |
---|---|---|---|---|---|---|---|---|
240p | 320 | 240 | 402 | 324 | 1 | 240 | 44 | 38 |
480p | 640 | 480 | 800 | 525 | 36 | 515 | 16 | 144 |
480pH | 720 | 480 | 858 | 525 | 33 | 512 | 16 | 122 |
576p | 720 | 576 | 864 | 625 | 47 | 622 | 12 | 132 |
720p | 1280 | 720 | 1650 | 750 | 25 | 744 | 110 | 260 |
768p | 1024 | 768 | 1344 | 806 | 10 | 777 | 24 | 296 |
1024p | 1280 | 1024 | 1688 | 1066 | 42 | 1065 | 48 | 360 |
1080p (default) | 1920 | 1080 | 2200 | 1125 | 42 | 1121 | 88 | 192 |
1200p | 1600 | 1200 | 2160 | 1250 | 50 | 1249 | 64 | 496 |
2KCinema | 2048 | 1080 | 2750 | 1125 | 42 | 1121 | 639 | 63 |
4KUHDTV | 3840 | 2160 | 4400 | 2250 | 42 | 2201 | 88 | 472 |
8KUHDTV | 7680 | 4320 | 8800 | 4500 | 42 | 4361 | 88 | 1032 |
Custom | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined | User- defined |
Note
When using a custom format, the properties you enter for the active and inactive dimensions of the image must add up to the total frame dimensions.
For the horizontal direction, TotalPixelsPerLine
must be
greater than or equal to FrontPorch
+
ActivePixelsPerLine
. The object calculates
BackPorch
= TotalPixelsPerLine
−
FrontPorch
− ActivePixelsPerLine
.
For the vertical direction, TotalVideoLines
must be greater
than or equal to StartingActiveLine
+
ActiveVideoLines
− 1. The object calculates
EndingActiveLine
= StartingActiveLine
+
ActiveVideoLines
− 1.
If you specify a format that does not conform to these rules, the object reports an error.
Note
When using a custom format, ActivePixelsPerLine
must be
greater than 1. Also, set the horizontal blanking interval, or
BackPorch
+ FrontPorch
, according to these
guidelines.
The total of
BackPorch
+FrontPorch
must be at least 2 times the largest kernel size of the algorithm in the objects following thevisionhdl.FrameToPixels
object. If the kernel size is greater than 4, the total porch must be at least 8 pixels.The
BackPorch
property value must be at least 6 pixels. This property is the number of inactive pixels before the first valid pixel in a frame.
For more information on blanking intervals, see Configure Blanking Intervals.
Note
When using multipixel streaming (NumPixels
> 1), these
requirements apply.
The video format must have horizontal dimensions divisible by the
NumPixels
property value. The horizontal dimensions are set by these properties:ActivePixelsPerLine
,TotalPixelsPerLine
,FrontPorch
, andBackPorch
. Standard video protocols 480p, 768p, 1024p, 1080p, 1200p, 4k UHD, and 8k UHD supportNumPixels
equal to 4 or 8.The minimum input frame size for multipixel streaming is 18 rows by 32 columns.
Choose your kernel size and
ActivePixelsPerLine
such thatActivePixelsPerLine
/NumPixels
is at least the kernel width.
Usage
Description
[
converts the input image matrix, pixels
,ctrlOut
] = F2P(frm
)frm
, to a
vector
of pixel values, pixels
, and an associated vector of control
structures, ctrlOut
. The control structure indicates the validity of
each pixel and its location in the frame. The output pixels include padding around the
active image, specified by the VideoFormat
property.
For details about the pixel stream format, see Streaming Pixel Interface.
Input Arguments
frm
— Input image
matrix
Input image, specified as an
ActiveVideoLines
-by-ActivePixelsPerLine
-by-NumComponents
matrix, where:
ActiveVideoLines
is the height of the active image.ActivePixelsPerLine
is the width of the active image.NumComponents
is the number of components used to express a single pixel.
Set the size of the active image using the
VideoFormat
property. If the dimensions of
frm
do not match the dimensions specified by
VideoFormat
, the object returns a warning.
Data Types: uint
| int
| logical
| fi
| double
| single
Output Arguments
pixels
— Pixel values
matrix
Pixel values, returned as a
P-by-NumComponents
matrix or
P-by-NumPixels
matrix, where:
P is the total number of pixels in the padded image, which is
TotalPixelsPerLine
×TotalVideoLines
.NumComponents
is the number of components used to express a single pixel.NumPixels
is the number of pixels transferred on the streaming interface per cycle. WhenNumPixels
is greater than 1, you must setNumComponents
to1
.Note
You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink blocks.
Set the size of the padded image using the
VideoFormat
property. The data type of the pixel values is the
same as im
.
ctrlOut
— Pixel stream control signals
vector of structures
Control structures associated with the output pixels, returned as a
P-by-1 vector. P is the total number of pixels
in the padded image, which is TotalPixelsPerLine
×
TotalVideoLines
. Each structure contains five control signals
indicating the validity of the pixel and its location in the frame. For multipixel
streaming, the control signals apply to each set of NumPixels
values. See Pixel Control Structure.
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Examples
Convert Between Full-Frame and Pixel-Streaming Data
This example converts a custom-size grayscale image to a pixel stream. It uses the visionhdl.LookupTable
object to obtain the negative image. Then it converts the pixel stream back to a full-frame image.
Load the source image from a file. Select a portion of the image matching the desired test size.
frmOrig = imread('rice.png'); frmActivePixels = 64; frmActiveLines = 48; frmInput = frmOrig(1:frmActiveLines,1:frmActivePixels); figure imshow(frmInput,'InitialMagnification',300) title 'Input Image'
Create a serializer object and specify the size of the inactive pixel regions.
frm2pix = visionhdl.FrameToPixels( ... 'NumComponents',1, ... 'VideoFormat','custom', ... 'ActivePixelsPerLine',frmActivePixels, ... 'ActiveVideoLines',frmActiveLines, ... 'TotalPixelsPerLine',frmActivePixels+10, ... 'TotalVideoLines',frmActiveLines+10, ... 'StartingActiveLine',6, ... 'FrontPorch',5);
Create a lookup table (LUT) object to generate the negative of the input image.
tabledata = linspace(255,0,256); inverter = visionhdl.LookupTable(tabledata);
Serialize the test image by calling the serializer object. pixIn
is a vector of intensity values. ctrlIn
is a vector of control signal structures.
[pixIn,ctrlIn] = frm2pix(frmInput);
Prepare to process pixels by preallocating output vectors.
[~,~,numPixelsPerFrame] = getparamfromfrm2pix(frm2pix);
pixOut = zeros(numPixelsPerFrame,1,'uint8');
ctrlOut = repmat(pixelcontrolstruct,numPixelsPerFrame,1);
For each pixel in the stream, look up the negative of the pixel value.
for p = 1:numPixelsPerFrame [pixOut(p),ctrlOut(p)] = inverter(pixIn(p),ctrlIn(p)); end

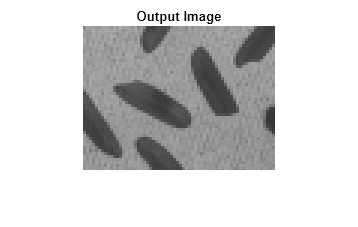

Create a deserializer object with a format that matches the format of the serializer. Convert the pixel stream to an image frame by calling the deserializer object. Display the resulting image.
pix2frm = visionhdl.PixelsToFrame( ... 'NumComponents',1, ... 'VideoFormat','custom', ... 'ActivePixelsPerLine',frmActivePixels, ... 'ActiveVideoLines',frmActiveLines, ... 'TotalPixelsPerLine',frmActivePixels+10); [frmOutput,frmValid] = pix2frm(pixOut,ctrlOut); if frmValid figure imshow(frmOutput,'InitialMagnification',300) title 'Output Image' end
Version History
Introduced in R2015aR2022a: Change in default frame dimensions
The default values of the custom format have changed. In previous releases, the default dimensions matched the 1080p format. Starting in this release, the default values match the default values of the Frame To Pixels and Pixels To Frame blocks, which define a small custom frame as shown in this code.
a = visionhdl.FrameToPixels('VideoFormat','Custom')
a = visionhdl.FrameToPixels with properties: NumComponents: 1 NumPixels: 1 VideoFormat: 'Custom' ActivePixelsPerLine: 32 ActiveVideoLines: 18 TotalPixelsPerLine: 42 TotalVideoLines: 28 StartingActiveLine: 6 FrontPorch: 5
The object now updates frame dimension properties when you select a standard format. This change means you can refer to the object properties to determine the dimensions being used by the format.
a = visionhdl.FrameToPixels('VideoFormat','480p')
a = visionhdl.FrameToPixels with properties: NumComponents: 1 NumPixels: 1 VideoFormat: '480p'
TPPL480 = a.TotalPixelsPerLine
ans = 800
R2022a: Two pixels-per-clock streaming
The object can now generate multipixel streams that have 2 pixels per clock cycle.
You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink blocks.
R2020a: Multipixel-multicomponent streaming
The object can now generate multipixel-multicomponent streams.
You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink blocks.
R2019b: Multipixel streaming
The object can now generate multipixel streams. These streams have 4 or 8 pixels per
clock cycle. You can set the NumPixels
property to
4
or 8
. With this setting, the
output of the object is a vector of 4 or 8 pixel values on each time step.
Video formats for multipixel streams must have horizontal dimensions divisible by the
NumPixels
property value. These horizontal dimensions are set by the
following properties: ActivePixelsPerLine
,
TotalPixelsPerLine
, FrontPorch
, and
BackPorch
. Standard video protocols 480p, 720p, 1080p, and 4k UHD
support either 4 or 8 pixels at a time.
You can simulate System objects with a multipixel streaming interface, but you cannot generate HDL code for System objects that use multipixel streams. To generate HDL code for multipixel algorithms, use the equivalent Simulink blocks.
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
