labeledSignalSet
Create labeled signal set
Description
Use labeledSignalSet
to store labeled signals along with label
definitions. Create signal label definitions using signalLabelDefinition
.
Creation
Syntax
Description
creates an empty
labeled signal set. Use lss
= labeledSignalSetaddMembers
to add
signals to the set. Use addLabelDefinitions
to add label definitions to the set.
creates a labeled signal set for the input data source lss
= labeledSignalSet(src
)src
. Use
addLabelDefinitions
to add label definitions to the set.
creates a labeled signal set for the input data source lss
= labeledSignalSet(src
,lbldefs
)src
using
the signal label definitions lbldefs
. Use signalLabelDefinition
to create
signal label definitions.
creates a labeled signal set for the input data source lss
= labeledSignalSet(src
,lbldefs
,'MemberNames',mnames
)src
and
specifies names for the members of the set. Use setMemberNames
to
modify the member names. lbldefs
is optional.
sets Properties using name-value arguments.
You can specify multiple name-value arguments. Enclose each property name in quotes.
lss
= labeledSignalSet(src
,lbldefs
,Name,Value
)lbldefs
is optional.
Input Arguments
src
— Input data source
matrix | cell array | timetable | signalDatastore
object | audioDatastore
object
Input data source, specified as a matrix, a cell array, a timetable, a signalDatastore
(Signal Processing Toolbox) object, or an audioDatastore
(Audio Toolbox) object. src
implicitly specifies the
number of members of the set, the number of signals in each member, and the data in
each signal.
Example: {
has two members. The first member contains three 10-sample signals. The second member
contains nine 17-sample signals.randn
(10,3),randn
(17,9)}
Example: {{
has two members. The first member contains one 10-sample signal. The second member
contains a 17-sample signal and a 27-sample signal.randn
(10,1)},{randn
(17,1),randn
(27,1)}}
Example: {{
has two members. The first member contains three signals sampled at 1 Hz for 10
seconds and two signals sampled at 1 Hz for 7 seconds. The second member contains one
signal sampled at 1 Hz for 3 seconds.timetable
(seconds
(1:10)',randn
(10,3)),timetable
(seconds
(1:7)',randn
(7,2))},{timetable
(seconds
(1:3)',randn
(3,1))}}
Example: signalDatastore
Object Pointing to Files
Specify the path to a set of sample sound signals included as MAT files with MATLAB®. Each file contains a signal variable and a sample rate. List the names of the files.
folder = fullfile(matlabroot,"toolbox","matlab","audiovideo"); lst = dir(append(folder,"/*.mat")); nms = {lst(:).name}'
nms = 7x1 cell
{'chirp.mat' }
{'gong.mat' }
{'handel.mat' }
{'laughter.mat'}
{'mtlb.mat' }
{'splat.mat' }
{'train.mat' }
Create a signal datastore that points to the specified folder. Set the sample rate variable name to Fs
, which is common to all files. Generate a subset of the datastore that excludes the file mtlb.mat
, which differs from the other files in that the signal variable is not called y
.
sds = signalDatastore(folder,"SampleRateVariableName","Fs"); sdss = subset(sds,~strcmp(nms,"mtlb.mat"));
Use the subset datastore as the source for a labeledSignalSet
object.
lss = labeledSignalSet(sdss)
lss = labeledSignalSet with properties: Source: [1x1 signalDatastore] NumMembers: 6 TimeInformation: "inherent" Labels: [6x0 table] Description: "" Use labelDefinitionsHierarchy to see a list of labels and sublabels. Use setLabelValue to add data to the set.
lbldefs
— Label definitions
vector of signalLabelDefinition
objects
Label definitions, specified as a vector of signalLabelDefinition
objects.
mnames
— Member names
character vector | string scalar | cell array of character vectors | string array
Member names, specified as a character vector, a string scalar, a cell array of character vectors, or a string array.
Example: labeledSignalSet({randn(100,1) randn(10,1)},'MemberNames',{'llama'
'alpaca'})
specifies a set of random signals with two members,
'llama'
and 'alpaca'
.
Properties
Description
— Labeled signal set description
character vector | string scalar
Labeled signal set description, specified as a character vector or string scalar.
Example: 'Description','Sleep test patients by sex and
age'
Data Types: char
| string
SampleRate
— Sample rate values
positive scalar | vector
This property is read-only after object creation.
Sample rate values, specified as a positive scalar or a vector. This property is valid only when the data source does not contain inherent time information.
Set
SampleRate
to a positive numeric scalar to specify the same sample rate for all signals in the labeled set.Set
SampleRate
to a vector to specify that each member of the labeled set has signals sampled at the same rate, but the sample rates differ from member to member. The vector must have a number of elements equal to the number of members of the set. If a member of a set has signals with different sample rates, then specify the sample rates using timetables.
Example: 'SampleRate',[1e2 1e3]
specifies that the signals in the
first member of a set are sampled at a rate of 100 Hz and the signals in the second
member are sampled at 1 kHz.
SampleTime
— Sample time values
positive scalar | vector | duration
scalar | duration
vector
This property is read-only after object creation.
Sample time values, specified as a positive scalar, a vector, a duration
scalar, or a duration
vector. This property is valid only when the data source does not
contain inherent time information.
Set
SampleTime
to a numeric orduration
scalar to specify the same sample time for all signals in the labeled set.Set
SampleTime
to a numeric orduration
vector to specify that each member of the labeled set has signals with the same time interval between samples, but the intervals differ from member to member. The vector must have a number of elements equal to the number of members of the set. If a member of a set has signals with different sample times, then specify the sample times using timetables.
Example: 'SampleTime',seconds([1e-2 1e-3])
specifies that the
signals in the first member of a set have 0.01 second between samples, and the signals
in the second member have 1 millisecond between samples.
TimeValues
— Time values
vector | duration
vector | matrix | cell array
This property is read-only after object creation.
Time values, specified as a vector, a duration
vector, a matrix, or a cell array. This property is valid only
when the data source does not contain inherent time information. Time values must be
unique and increasing.
Set
TimeValues
to a numeric orduration
vector to specify the same time values for all signals in the labeled set. The vector must have the same length as all the signals in the set.Set
TimeValues
to a numeric orduration
matrix or cell array to specify that each member of the labeled set has signals with the same time values, but the time values differ from member to member.If
TimeValues
is a matrix, then it must have a number of columns equal to the number of members of the set. All signals in the set must have a length equal to the number of rows of the matrix.If
TimeValues
is a cell array, then it must contain a number of vectors equal to the number of members of the set. All signals in a member must have a length equal to the number of elements of the corresponding vector in the cell array.
If a member of a set has signals with different time values, then specify the time values using timetables.
Example: 'TimeValues',[1:1000;0:1/500:2-1/500]'
specifies that the
signals in the first member of a set are sampled 1 Hz for 1000 seconds. The signals in
the second member are sampled at 500 Hz for 2 seconds.
Example: 'TimeValues',seconds([1:1000;0:1/500:2-1/500]')
specifies
that the signals in the first member of a set are sampled 1 Hz for 1000 seconds. The
signals in the second member are sampled at 500 Hz for 2 seconds.
Example: 'TimeValues',{1:1000,0:1/500:2-1/500}
specifies that the
signals in the first member of a set are sampled 1 Hz for 1000 seconds. The signals in
the second member are sampled at 500 Hz for 2 seconds.
Example: 'TimeValues',{seconds(1:1000),seconds(0:1/500:2-1/500)}
specifies that the signals in the first member of a set are sampled 1 Hz for 1000
seconds. The signals in the second member are sampled at 500 Hz for 2
seconds.
NumMembers
— Number of members in set
positive integer
This property is read-only.
Number of members in set, returned as a positive integer.
Labels
— Labels table
table
This property is read-only.
Labels table, returned as a MATLAB® table. Each variable of Labels
corresponds to a label
defined for the set. Each row of Labels
corresponds to a member of
the data source. The row names of Labels
are the member
names.
Data Types: table
TimeInformation
— Time information of source
'none'
| 'sampleRate'
| 'sampleTime'
| 'timeValues'
| 'inherent'
Time information of source, specified as one of the following:
'none'
— The signals in the source have no time information.'sampleRate'
— The signals in the source are sampled at a specified rate.'sampleTime'
— The signals in the source have a specified time interval between samples.'timeValues
— The signals in the source have a time value corresponding to each sample.'inherent'
— The signals in the source contain inherent time information. MATLAB timetables are an example of such signals.
Data Types: char
| string
Source
— Data source of labeled signal set
matrix | cell array | timetable
This property is read-only after object creation.
Data source of labeled signal set, specified as a matrix, a timetable, a cell array, or an audio datastore.
If
Source
is a numeric matrix, then the labeled signal set has one member that contains a number of signals equal to the number of matrix columns.Example:
labeledSignalSet(randn(10,3))
has one member that contains three 10-sample signals.If
Source
is a cell array of matrices, then the labeled signal set has a number of members equal to the number of matrices in the cell array. Each member contains a number of signals equal to the number of columns of the corresponding matrix.Example:
labeledSignalSet({randn(10,3),randn(17,9)})
has two members. The first member contains three 10-sample signals. The second member contains nine 17-sample signals.If
Source
is a cell array, and each element of the cell array is a cell array of numeric vectors, then the labeled signal set has a number of members equal to the number of cell array elements. Each signal within a member can have any length.Example:
labeledSignalSet({{randn(10,1)},{randn(17,1),randn(27,1)}})
has two members. The first member contains one 10-sample signal. The second member contains a 17-sample signal and a 27-sample signal.If
Source
is a timetable with variables containing numeric values, then the labeled signal set has one member that contains a number of signals equal to the number of variables. The time values of the timetable must be of typeduration
, unique, and increasing.Example:
labeledSignalSet(timetable(seconds(1:10)',randn(10,3)))
has one member that contains three signals sampled at 1 Hz for 10 seconds.If
Source
is a cell array of timetables, and each timetable has an arbitrary number of variables with numeric values, then the labeled signal set has a number of members equal to the number of timetables. Each member contains a number of signals equal to the number of variables in the corresponding timetable.Example:
labeledSignalSet({timetable(seconds(1:10)',randn(10,3)),timetable(seconds(1:5)',randn(5,13))})
has two members. The first member contains three signals sampled at 1 Hz for 10 seconds. The second member contains 13 signals sampled at 1 Hz for 5 seconds.If
Source
is a cell array, and each element of the cell array is a cell array of timetables, then the labeled signal set has a number of members equal to the number of cell array elements. Each member can have any number of timetables, and each timetable within a member can have any number of variables.Example:
labeledSignalSet({{timetable(seconds(1:10)',randn(10,3)),timetable(seconds(1:7)',randn(7,2))},{timetable(seconds(1:3)',randn(3,1))}})
has two members. The first member contains three signals sampled at 1 Hz for 10 seconds and two signals sampled at 1 Hz for 7 seconds. The second member contains one signal sampled at 1 Hz for 3 seconds.If the input data source,
src
, is an audio datastore, then the labeled signal set has a number of members equal to the number of files to which the datastore points. TheSource
property contains a cell array of character vectors with the file names. Each member contains all the signals returned by the read of the corresponding datastore file.
Object Functions
addLabelDefinitions | Add label definitions to labeled signal set |
addMembers | Add members to labeled signal set |
countLabelValues | Count label values |
createDatastores | Create datastores pointing to signal and label data |
createFeatureData (Signal Processing Toolbox) | Create feature table or matrix and response vectors |
editLabelDefinition | Edit label definition properties |
getAlternateFileSystemRoots (Signal Processing Toolbox) | Get alternate file system roots when data source of labeled signal set is a datastore |
getLabelDefinitions | Get label definitions in labeled signal set |
getLabeledSignal | Get labeled signals from labeled signal set |
getLabelIndices (Signal Processing Toolbox) | Get label indices pointing to label definitions in labeled signal set |
getLabelNames | Get label names in labeled signal set |
getLabelValues | Get label values from labeled signal set |
getMemberNames | Get member names in labeled signal set |
getSignal | Get signals from labeled signal set |
head | Get top rows of labels table |
labelDefinitionsHierarchy | Get hierarchical list of label and sublabel names |
labelDefinitionsSummary | Get summary table of signal label definitions |
merge | Merge two or more labeled signal sets |
removeLabelDefinition | Remove label definition from labeled signal set |
removeMembers | Remove members from labeled signal set |
removePointValue | Remove row from point label |
removeRegionValue | Remove row from ROI label |
resetLabelValues | Reset labels to default values |
setAlternateFileSystemRoots (Signal Processing Toolbox) | Set alternate file system roots when data source of labeled signal set is a datastore |
setLabelValue | Set label value in labeled signal set |
setMemberNames | Set member names in labeled signal set |
subset | Get new labeled signal set with subset of members |
Examples

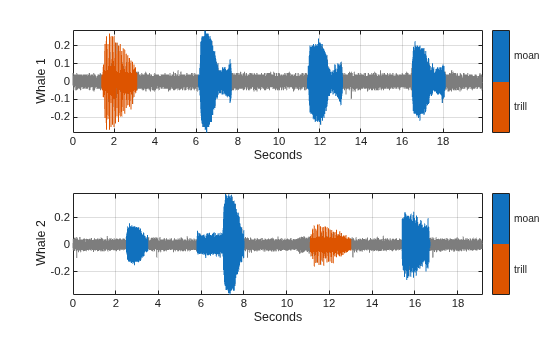

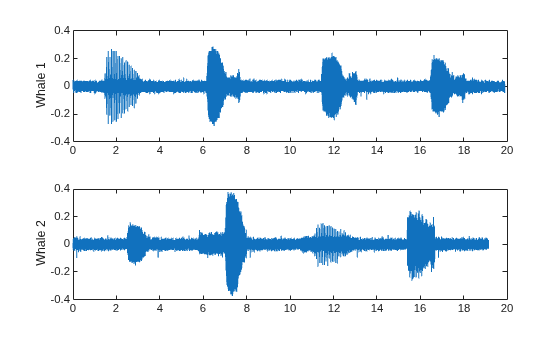

Label Definitions for Whale Songs
Consider a set of whale sound recordings. The recorded whale sounds consist of trills and moans. Trills sound like series of clicks. Moans are low-frequency cries similar to the sound made by a ship's horn. You want to look at each signal and label it to identify the whale type, the trill regions, and the moan regions. For each trill region, you also want to label the signal peaks higher than a certain threshold.
Signal Label Definitions
Define an attribute label to store whale types. The possible categories are blue whale, humpback whale, and white whale.
dWhaleType = signalLabelDefinition("WhaleType", ... LabelType="attribute", ... LabelDataType="categorical", ... Categories=["blue" "humpback" "white"], ... Description="Whale type");
Define a region-of-interest (ROI) label to capture moan regions. Define another ROI label to capture trill regions.
dMoans = signalLabelDefinition("MoanRegions", ... LabelType="roi", ... LabelDataType="logical", ... Description="Regions where moans occur"); dTrills = signalLabelDefinition("TrillRegions", ... LabelType="roi", ... LabelDataType="logical", ... Description="Regions where trills occur");
Finally, define a point label to capture the trill peaks. Set this label as a sublabel of the dTrills
definition.
dTrillPeaks = signalLabelDefinition("TrillPeaks", ... LabelType="point", ... LabelDataType="numeric", ... Description="Trill peaks"); dTrills.Sublabels = dTrillPeaks;
Labeled Signal Set
Create a labeledSignalSet
with the whale signals and the label definitions. Add label values to identify the whale type, the moan and trill regions, and the peaks of the trills.
load labelwhalesignals lbldefs = [dWhaleType dMoans dTrills]; lss = labeledSignalSet({whale1 whale2},lbldefs, ... MemberNames=["Whale1" "Whale2"], ... SampleRate=Fs,Description="Characterize whale song regions");
Visualize the label hierarchy and label properties using labelDefinitionsHierarchy
and labelDefinitionsSummary
.
labelDefinitionsHierarchy(lss)
ans = 'WhaleType Sublabels: [] MoanRegions Sublabels: [] TrillRegions Sublabels: TrillPeaks '
labelDefinitionsSummary(lss)
ans=3×9 table
LabelName LabelType LabelDataType Categories ValidationFunction DefaultValue Sublabels Tag Description
______________ ___________ _____________ ____________ __________________ ____________ ___________________________ ___ ____________________________
"WhaleType" "attribute" "categorical" {3x1 string} {["N/A" ]} {0x0 double} {0x0 double } "" "Whale type"
"MoanRegions" "roi" "logical" {["N/A" ]} {0x0 double} {0x0 double} {0x0 double } "" "Regions where moans occur"
"TrillRegions" "roi" "logical" {["N/A" ]} {0x0 double} {0x0 double} {1x1 signalLabelDefinition} "" "Regions where trills occur"
The signals in the loaded data correspond to songs of two blue whales. Set the "WhaleType"
values for both signals.
setLabelValue(lss,1,"WhaleType","blue"); setLabelValue(lss,2,"WhaleType","blue");
Visualize the Labels
property. The table has the newly added "WhaleType"
values for both signals.
lss.Labels
ans=2×3 table
WhaleType MoanRegions TrillRegions
_________ ___________ ____________
Whale1 blue {0x2 table} {0x3 table}
Whale2 blue {0x2 table} {0x3 table}
Visualize Region Labels
Visualize the whale songs to identify the trill and moan regions.
subplot(2,1,1) plot((0:length(whale1)-1)/Fs,whale1) ylabel("Whale 1") subplot(2,1,2) plot((0:length(whale2)-1)/Fs,whale2) ylabel("Whale 2")
Moan regions are sustained low-frequency wails.
whale1
has moans centered at about 7 seconds, 12 seconds, and 17 seconds.whale2
has moans centered at about 3 seconds, 7 seconds, and 16 seconds.
Add the moan regions to the labeled set. Specify the ROI limits in seconds and the label values.
moanRegionsWhale1 = [6.1 7.7; 11.4 13.1; 16.5 18.1]; mrsz1 = [size(moanRegionsWhale1,1) 1]; setLabelValue(lss,1,"MoanRegions",moanRegionsWhale1,true(mrsz1)); moanRegionsWhale2 = [2.5 3.5; 5.8 8; 15.4 16.7]; mrsz2 = [size(moanRegionsWhale2,1) 1]; setLabelValue(lss,2,"MoanRegions",moanRegionsWhale2,true(mrsz2));
Trill regions have distinct bursts of sound punctuated by silence.
whale1
has a trill centered at about 2 seconds.whale2
has a trill centered at about 12 seconds.
Add the trill regions to the labeled set.
trillRegionWhale1 = [1.4 3.1]; trsz1 = [size(trillRegionWhale1,1) 1]; setLabelValue(lss,1,"TrillRegions",trillRegionWhale1,true(trsz1)); trillRegionWhale2 = [11.1 13]; trsz2 = [size(trillRegionWhale1,1) 1]; setLabelValue(lss,2,"TrillRegions",trillRegionWhale2,true(trsz2));
Create a signalMask
(Signal Processing Toolbox) object for each whale song and use it to visualize and label the different regions. For better visualization, change the label values from logical to categorical.
mr1 = getLabelValues(lss,1,"MoanRegions"); mr1.Value = categorical(repmat("moan",mrsz1)); tr1 = getLabelValues(lss,1,"TrillRegions"); tr1.Value = categorical(repmat("trill",trsz1)); msk1 = signalMask([mr1;tr1],"SampleRate",Fs); subplot(2,1,1) plotsigroi(msk1,whale1) ylabel("Whale 1") hold on mr2 = getLabelValues(lss,2,"MoanRegions"); mr2.Value = categorical(repmat("moan",mrsz2)); tr2 = getLabelValues(lss,2,"TrillRegions"); tr2.Value = categorical(repmat("trill",trsz2)); msk2 = signalMask([mr2;tr2],"SampleRate",Fs); subplot(2,1,2) plotsigroi(msk2,whale2) ylabel("Whale 2") hold on
Visualize Point Labels
Label three peaks for each trill region. For point labels, you specify the point locations and the label values. In this example, the point locations are in seconds.
peakLocsWhale1 = [1.553 1.626 1.7]; peakValsWhale1 = [0.211 0.254 0.211]; setLabelValue(lss,1,["TrillRegions" "TrillPeaks"], ... peakLocsWhale1,peakValsWhale1,LabelRowIndex=1); subplot(2,1,1) plot(peakLocsWhale1,peakValsWhale1,"v") hold off peakLocsWhale2 = [11.214 11.288 11.437]; peakValsWhale2 = [0.119 0.14 0.15]; setLabelValue(lss,2,["TrillRegions" "TrillPeaks"], ... peakLocsWhale2,peakValsWhale2,LabelRowIndex=1); subplot(2,1,2) plot(peakLocsWhale2,peakValsWhale2,"v") hold off
Explore Label Values
Explore the label values using getLabelValues
.
getLabelValues(lss)
ans=2×3 table
WhaleType MoanRegions TrillRegions
_________ ___________ ____________
Whale1 blue {3x2 table} {1x3 table}
Whale2 blue {3x2 table} {1x3 table}
Retrieve the moan regions for the first member of the labeled set.
getLabelValues(lss,1,"MoanRegions")
ans=3×2 table
ROILimits Value
____________ _____
6.1 7.7 {[1]}
11.4 13.1 {[1]}
16.5 18.1 {[1]}
Use a second output argument to list the sublabels of a label.
[value,valueWithSublabel] = getLabelValues(lss,1,"TrillRegions")
value=1×2 table
ROILimits Value
__________ _____
1.4 3.1 {[1]}
valueWithSublabel=1×3 table
ROILimits Value Sublabels
__________ _____ ___________
TrillPeaks
___________
1.4 3.1 {[1]} {3x2 table}
To retrieve the values in a sublabel, express the label name as a two-element array.
getLabelValues(lss,1,["TrillRegions","TrillPeaks"])
ans=3×2 table
Location Value
________ __________
1.553 {[0.2110]}
1.626 {[0.2540]}
1.7 {[0.2110]}
Find the value of the third trill peak corresponding to the second member of the set.
getLabelValues(lss,2,["TrillRegions" "TrillPeaks"], ... LabelRowIndex=1,SublabelRowIndex=3)
ans=1×2 table
Location Value
________ __________
11.437 {[0.1500]}
Count Label Values and Create Datastores
Specify the path to a set of audio signals included as MAT files with MATLAB®. Each file contains a signal variable and a sample rate. List the names of the files.
folder = fullfile(matlabroot,"toolbox","matlab","audiovideo"); lst = dir(append(folder,"/*.mat")); nms = {lst(:).name}'
nms = 7x1 cell
{'chirp.mat' }
{'gong.mat' }
{'handel.mat' }
{'laughter.mat'}
{'mtlb.mat' }
{'splat.mat' }
{'train.mat' }
Create a signal datastore that points to the specified folder. Set the sample rate variable name to Fs
, which is common to all files. Generate a subset of the datastore that excludes the file mtlb.mat
. Use the subset datastore as the source for a labeledSignalSet
object.
sds = signalDatastore(folder,SampleRateVariableName="Fs"); sds = subset(sds,~strcmp(nms,"mtlb.mat")); lss = labeledSignalSet(sds);
Create three label definitions to label the signals:
Define a logical attribute label that is true for signals that contain human voices.
Define a numeric point label that marks the location and amplitude of the maximum of each signal.
Define a categorical region-of-interest (ROI) label to pick out nonoverlapping, uniform-length random regions of each signal.
Add the signal label definitions to the labeled signal set.
vc = signalLabelDefinition("Voice",LabelType="attribute", ... LabelDataType="logical",DefaultValue=false); mx = signalLabelDefinition("Maximum",LabelType="point", ... LabelDataType="numeric"); rs = signalLabelDefinition("RanROI",LabelType="ROI", ... LabelDataType="categorical",Categories=["ROI" "other"]); addLabelDefinitions(lss,[vc mx rs])
Label the signals:
Label
'handel.mat'
and'laughter.mat'
as having human voices.Use the
islocalmax
function to find the maximum of each signal. Label its location and value.Use the
randROI
function to generate as many regions of length N/10 samples as can fit in a signal of length N given a minimum separation of N/6 samples between regions. Label their locations and assign them to theROI
category.
When labeling points and regions, convert sample values to time values. Subtract 1 to account for MATLAB array indexing and divide by the sample rate.
kj = 1; while hasdata(sds) [sig,info] = read(sds); fs = info.SampleRate; [~,fn] = fileparts(info.FileName); if fn=="handel" || fn=="laughter" setLabelValue(lss,kj,"Voice",true) end xm = find(islocalmax(sig,MaxNumExtrema=1)); setLabelValue(lss,kj,"Maximum",(xm-1)/fs,sig(xm)) N = length(sig); rois = randROI(N,round(N/10),round(N/6)); setLabelValue(lss,kj,"RanROI",(rois-1)/fs, ... repelem("ROI",size(rois,1))) kj = kj+1; end
Verify that only two signals contain voices.
countLabelValues(lss,"Voice")
ans=2×3 table
Voice Count Percent
_____ _____ _______
false 4 66.667
true 2 33.333
Verify that two signals have a maximum amplitude of 1.
countLabelValues(lss,"Maximum")
ans=5×4 table
Maximum Count Percent MemberCount
______________________ _____ _______ ___________
0.80000000000000004441 1 16.667 1
0.89113331915798421612 1 16.667 1
0.94730769230769229505 1 16.667 1
1 2 33.333 2
1.0575668990330560071 1 16.667 1
Verify that each signal has four nonoverlapping random regions of interest.
countLabelValues(lss,"RanROI")
ans=2×4 table
RanROI Count Percent MemberCount
______ _____ _______ ___________
ROI 24 100 6
other 0 0 0
Create two datastores with the data in the labeled signal set:
The
signalDatastore
(Signal Processing Toolbox) objectsd
contains the signal data.The
arrayDatastore
objectld
contains the labeling information. Specify that you want to include the information corresponding to all the labels you created.
[sd,ld] = createDatastores(lss,["Voice" "RanROI" "Maximum"]);

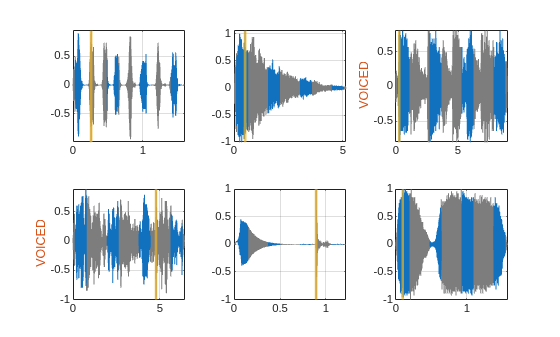

Use the information in the datastores to plot the signals and display their labels.
Use a
signalMask
(Signal Processing Toolbox) object to highlight the regions of interest in blue.Plot yellow lines to mark the locations of the maxima.
Add a red axis label to the signals that contain human voices.
tiledlayout flow while hasdata(sd) [sg,nf] = read(sd); lbls = read(ld); nexttile msk = signalMask(lbls{:}.RanROI{:},SampleRate=nf.SampleRate); plotsigroi(msk,sg) colorbar off xlabel('') xline(lbls{:}.Maximum{:}.Location, ... LineWidth=2,Color="#EDB120") if lbls{:}.Voice{:} ylabel("VOICED",Color="#D95319") end end
function roilims = randROI(N,wid,sep) num = floor((N+sep)/(wid+sep)); hq = histcounts(randi(num+1,1,N-num*wid-(num-1)*sep),(1:num+2)-1/2); roilims = (1 + (0:num-1)*(wid+sep) + cumsum(hq(1:num)))' + [0 wid-1]; end
Version History
Introduced in R2018b
See Also
Apps
- Signal Labeler (Signal Processing Toolbox)
Objects
signalLabelDefinition
|signalMask
(Signal Processing Toolbox)
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
