basebandTransceiver
Add-On Required: This feature requires the Wireless Testbench™ Support Package for NI™ USRP™ Radios add-on.
Description
Use the basebandTransceiver
object to configure the
specified software-defined radio (SDR) as a baseband transceiver to
simultaneously transmit and capture IQ waveforms over the
air.
This diagram shows a conceptual overview of capturing and transmitting radio signals in Wireless Testbench™ using a radio that you configure with this object. The onboard data buffering ensures contiguous data capture and transmit. The transmission controller enables you to specify continuous or single-shot transmissions.
Creation
Description
creates a baseband transceiver object for the specified radio
bbtrx
= basebandTransceiver(radio
)radio
.
Note
The object requires exclusive access to radio hardware resources. Before creating this object, clear any existing Wireless Testbench object associated with the specified radio from the workspace.
sets properties using one
or more name-value arguments. For example, bbtrx
= basebandTransceiver(radio
,Name=Value
)CaptureDataType="double"
sets the data type of the returned captured data to double
.
Input Arguments
radio
— Radio setup configuration
string scalar
Radio setup configuration, specified as a string scalar. To create a radio setup
configuration, set up your radio and save your radio setup configuration using the Radio Setup
wizard. To list all saved radio setup configurations, call the radioConfigurations
function.
For a list of supported radios, see Supported Radio Devices.
Example: "MyRadio"
indicates that you saved a radio setup
configuration under the name MyRadio in the Radio Setup wizard.
Properties
TransmitCenterFrequency
— Transmit center frequency in Hz
2.4e9
(default) | positive numeric scalar | numeric array
Transmit center frequency in Hz, specified as a one of these options.
Positive numeric scalar — The object applies this value by scalar expansion to each antenna in the
TransmitAntennas
property.Numeric array — The object applies the ith array element value to the ith antenna in the
TransmitAntennas
property.
The valid center frequency range depends on the radio device.
Radio Device | Center Frequency |
---|---|
USRP™ N300 | 1 MHz to 6 GHz |
USRP N310 | 1 MHz to 6 GHz |
USRP N320 | 1 MHz to 6 GHz |
USRP N321 | 1 MHz to 6 GHz |
USRP X300 | 10 MHz to 6 GHz |
USRP X310 | 10 MHz to 6 GHz |
USRP X410 | 1 MHz to 8 GHz |
Note
When setting this property for multiple antennas on a USRP N300 or USRP N310 radio, consider these hardware characteristics.
The antenna ports on the RF0 and RF1 radio channels use the same center frequency. Therefore, set identical center frequency values for the antennas specified as
"RF0:TX/RX"
and"RF1:TX/RX"
.The antenna ports on the RF2 and RF3 radio channels use the same center frequency. Therefore, set identical center frequency values for the antennas specified as
"RF2:TX/RX"
and"RF3:TX/RX"
. These antennas are available only on a USRP N310 radio.
TransmitAntennas
— Transmit radio antenna
string scalar | string array
Transmit radio antenna, specified as one of these options.
String constant — Specifies single antenna use.
String array — Specifies multiple antenna use. (since R2024b)
Use this table to identify the supported radio antenna ports on your radio device and the corresponding string constants that you can specify for this property. The default value depends on the radio.
Radio Device | Supported Antenna Port | String Scalar |
---|---|---|
USRP N300 | RF0 channel: TX/RX port | "RF0:TX/RX" (default) |
RF1 channel: TX/RX port | "RF1:TX/RX" | |
USRP N310 | RF0 channel: TX/RX port | "RF0:TX/RX" (default) |
RF1 channel: TX/RX port | "RF1:TX/RX" | |
RF2 channel: TX/RX port | "RF2:TX/RX"
| |
RF3 channel: TX/RX port | "RF3:TX/RX" | |
USRP N320 | RF0 channel: TX/RX port | "RF0:TX/RX" (default) |
RF1 channel: TX/RX port | "RF1:TX/RX" | |
USRP N321 | RF0 channel: TX/RX port | "RF0:TX/RX" (default) |
RF1 channel: TX/RX port | "RF1:TX/RX" | |
USRP X300 | RFA channel: TX/RX port |
|
RFB channel: TX/RX port |
| |
USRP X310 | RFA channel: TX/RX port |
|
RFB channel: TX/RX port |
| |
USRP X410 | DB0 RF0 channel: TX/RX 0 port |
|
DB0 RF1 channel: TX/RX 0 port |
| |
DB1 RF0 channel: TX/RX 0 port |
| |
DB1 RF1 channel: TX/RX 0 port |
|
The maximum number of antenna connections available depends on the radio.
Use this table to determine the maximum combined number of antennas you can specify with
the TransmitAntennas
and CaptureAntennas
properties.
Radio Device | Maximum Number of Antennas |
---|---|
USRP N300 | 2 |
USRP N310 | 4 |
USRP N320 | 4 |
USRP N321 | 4 |
USRP X300 | 2 |
USRP X310 | 2 |
USRP X410 | 4 |
Note
When you update this property, the execution time of the next object function call increases by a few seconds.
Example: TransmitAntennas=["RF0:TX/RX","RF1:TX/RX"]
specifies two
transmit antennas.
Data Types: string
TransmitRadioGain
— Transmit radio gain in dB
10
(default) | positive numeric scalar | numeric array
Transmit radio gain in dB, specified as one of these options.
Positive numeric scalar — The object applies this value by scalar expansion to each antenna that you specify in the
TransmitAntennas
property.Numeric array — The object applies the ith array element value to the ith antenna in the
TransmitAntennas
property.
The valid gain range depends on the radio device.
Radio Device | Transmit Radio Gain |
---|---|
USRP N300 | 0 dB to 65 dB |
USRP N310 | 0 dB to 65 dB |
USRP N320 | 0 dB to 60 dB |
USRP N321 | 0 dB to 60 dB |
USRP X300 | 0 dB to 31.5 dB |
USRP X310 | 0 dB to 31.5 dB |
USRP X410 | 0 dB to 60 dB |
Data Types: double
CaptureCenterFrequency
— Capture center frequency in Hz
2.4e9
(default) | positive numeric scalar | numeric array
Capture center frequency in Hz, specified as one of these options.
Positive numeric scalar — The object applies this value by scalar expansion to each antenna in the
CaptureAntennas
property.Numeric array — The object applies the ith array element value to the ith antenna in the
CaptureAntennas
property.
The valid center frequency range depends on the radio device.
Radio Device | Center Frequency |
---|---|
USRP N300 | 1 MHz to 6 GHz |
USRP N310 | 1 MHz to 6 GHz |
USRP N320 | 1 MHz to 6 GHz |
USRP N321 | 1 MHz to 6 GHz |
USRP X300 | 10 MHz to 6 GHz |
USRP X310 | 10 MHz to 6 GHz |
USRP X410 | 1 MHz to 8 GHz |
Note
When setting this property for multiple antennas on a USRP N300 or USRP N310 radio, consider these hardware characteristics.
The antenna ports on the RF0 and RF1 radio channels use the same center frequency. Therefore, set identical center frequency values for the antennas specified as
"RF0:RX2"
and"RF1:RX2"
.The antenna ports on the RF2 and RF3 radio channels use the same center frequency. Therefore, set identical center frequency values for the antennas specified as
"RF2:RX2"
and"RF3:RX2"
. These antennas are available only on a USRP N310 radio.
Data Types: double
CaptureAntennas
— Capture radio antenna
string scalar | string array
Capture radio antenna, specified as one of these options.
String constant — Specifies single antenna use.
String array — Specifies multiple antenna use. (since R2024b)
Use this table to identify the supported radio antenna ports on the radio device and the corresponding string constants that you can specify for this property. The default value depends on the radio.
Radio Device | Supported Antenna Port | String Scalar |
---|---|---|
USRP N300 | RF0 channel: RX2 port | "RF0:RX2" (default) |
RF1 channel: RX2 port | "RF1:RX2" | |
USRP N310 | RF0 channel: RX2 port | "RF0:RX2" (default) |
RF1 channel: RX2 port | "RF1:RX2" | |
RF2 channel: RX2 port | "RF2:RX2"
| |
RF3 channel: RX2 port | "RF3:RX2" | |
USRP N320 | RF0 channel: RX2 port | "RF0:RX2" (default) |
RF1 channel: RX2 port | "RF1:RX2" | |
USRP N321 | RF0 channel: RX2 port | RF0 channel: RX2 port |
RF0 channel: RX2 port | RF0 channel: RX2 port | |
USRP X300 | RFA channel: RX2 port |
|
RFB channel: RX2 port |
| |
USRP X310 | RFA channel: RX2 port |
|
RFB channel: RX2 port |
| |
USRP X410 | DB0 RF0 channel: RX 1 port |
|
DB0 RF1 channel: RX 1 port |
| |
DB1 RF0 channel: RX 1 port |
| |
DB1 RF1 channel: RX 1 port |
|
The maximum number of antenna connections available depends on the radio. Use this
table to determine the maximum combined number of antennas you can specify with the
CaptureAntennas
and TransmitAntennas
properties.
Radio Device | Maximum Number of Antennas |
---|---|
USRP N300 | 2 |
USRP N310 | 4 |
USRP N320 | 4 |
USRP N321 | 4 |
USRP X300 | 2 |
USRP X310 | 2 |
USRP X410 | 4 |
Note
When you update this property, the execution time of the next object function call increases by a few seconds.
Example: CaptureAntennas=["RF0:RX2","RF1:RX2"]
specifies two
capture antennas.
Data Types: string
CaptureRadioGain
— Capture radio gain in dB
10
(default) | positive numeric scalar | numeric array
Capture radio gain in dB, specified as one of these options.
Positive numeric scalar — The object applies this value by scalar expansion to each antenna in the
CaptureAntennas
property.Numeric array — The object applies the ith array element value to the ith antenna in the
CaptureAntennas
property.
The valid gain range depends on the radio device.
Radio Device | Capture Radio Gain |
---|---|
USRP N300 | 0 dB to 75 dB |
USRP N310 | 0 dB to 75 dB |
USRP N320 | 0 dB to 60 dB |
USRP N321 | 0 dB to 60 dB |
USRP X300 | 0 dB to 31.5 dB |
USRP X310 | 0 dB to 31.5 dB |
USRP X410 | 0 dB to 60 dB |
Data Types: double
CaptureDataType
— Data type of captured data
"int16"
(default) | "double"
| "single"
Data type of the captured data, specified as "int16"
,
"double"
, or "single"
. Use this property to
set the data type of the captured data that the capture
object function returns.
Note
When you update this property, the execution time of the next object function call increases by a few seconds.
Data Types: string
SampleRate
— Baseband sample rate in Hz
highest device sample rate (default) | positive numeric scalar
Baseband sample rate in Hz, specified as a positive numeric scalar. For more information on how the radio achieves the specified sample rate, see Baseband Sample Rate in NI USRP Radios.
The sample rate depends on the radio device.
Radio Device | Sample Rate |
---|---|
USRP N300 |
|
USRP N310 | |
USRP N320 |
|
USRP N321 | |
USRP X300 |
|
USRP X310 | |
USRP X410 |
|
Note
To update this property, you must stop any ongoing transmission by calling the stopTransmission
function on the object. When you update this property, the execution time of the next object
function call increases by a few seconds.
Data Types: double
DroppedSamplesAction
— Behavior upon dropped samples
"error"
(default) | "warning"
| "none"
Behavior of the capture
object function upon dropped samples,
specified as one of these values.
"error"
— The object function stops with an error message."warning"
— The object function displays a warning message."none"
— The object function ignores dropped samples.
Data Types: string
Object Functions
capture | Capture IQ data using baseband receiver or transceiver |
transmit | Transmit waveform using baseband transmitter or transceiver |
stopTransmission | Stop transmission from baseband transmitter or transceiver |
Examples
Configure Baseband Transceiver to Transmit and Capture Data
Create a baseband transceiver object, specifying a radio setup configuration previously saved in the Radio Setup wizard.
bbtrx = basebandTransceiver("MyRadio")
bbtrx = basebandTransceiver with properties: TransmitRadioGain: 10 TransmitCenterFrequency: 2.4000e+09 TransmitAntennas: "RF0:TX/RX" CaptureRadioGain: 10 CaptureCenterFrequency: 2.4000e+09 CaptureAntennas: "RF0:RX2" CaptureDataType: "int16" DroppedSamplesAction: "error" SampleRate: 250000000
Set the baseband sample rate.
bbtrx.SampleRate = 122.88e6;
Set the transmit and capture center frequencies.
bbtrx.TransmitCenterFrequency = 2.2e9; bbtrx.CaptureCenterFrequency = 2.2e9;
Generate random transmit waveform.
txWaveform = complex(randn(1000,1),randn(1000,1));
Transmit the generated waveform continuously with the radio associated with the baseband transceiver object using the default transmit antenna.
transmit(bbtrx,txWaveform,"continuous");
Capture IQ data with the radio associated with the baseband transceiver object using the default capture antenna.
[data,~] = capture(bbtrx,milliseconds(3));
Stop the continuous transmission after data capture is complete.
stopTransmission(bbtrx);
Transmit and Capture Data on Multiple Antennas with Baseband Transceiver
Create a baseband transceiver object, specifying a radio setup configuration previously saved in the Radio Setup wizard. Specify two transmit antennas and two capture antennas, each with a different center frequency.
bbtrx = basebandTransceiver("MyRadio", ... TransmitAntennas=["RF0:TX/RX","RF1:TX/RX"], ... TransmitCenterFrequency=[2.2e9,2.4e9], ... CaptureAntennas=["RF0:RX2","RF1:RX2"], ... CaptureCenterFrequency=[2.2e9,2.4e9])
bbtrx = basebandTransceiver with properties: TransmitRadioGain: 10 TransmitCenterFrequency: [2.2000e+09 2.4000e+09] TransmitAntennas: ["RF0:TX/RX" "RF1:TX/RX"] CaptureRadioGain: 10 CaptureCenterFrequency: [2.2000e+09 2.4000e+09] CaptureAntennas: ["RF0:RX2" "RF1:RX2"] CaptureDataType: "int16" DroppedSamplesAction: "error" SampleRate: 153600000
Generate two random complex transmit waveforms with a length of 1000 samples.
length = 1000;
txWaveform = [complex(randn(length,1),randn(length,1)),...
complex(randn(length,1),randn(length,1))];
Transmit the generated waveform continuously with the radio associated with the baseband transceiver object.
transmit(bbtrx,txWaveform,"continuous");
Capture IQ data with the radio associated with the baseband transceiver object.
[data,~] = capture(bbtrx,length);
The output data is a 1000 x 2 array. Each column contains the data captured on one antenna, in the order that they are specified.

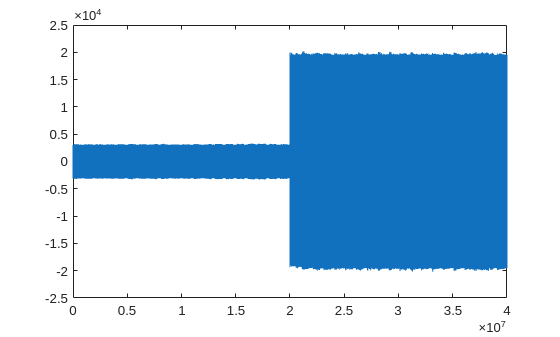

Stop the continuous transmission when the capture is complete.
stopTransmission(bbtrx);
Tips
You
cannot use save
and load
to store and reload
Wireless Testbench objects. Instead, you can
re-create the object with these steps:
Write code to create a
basebandTransceiver
object with a saved radio setup configurationradio
and set the properties.Save the code to a script.
Run the script in a new MATLAB® session with the same saved radio setup configuration.
Version History
Introduced in R2022aR2024b: Specify multiple transmit and capture antennas
You can now specify multiple antennas using the TransmitAntennas
and CaptureAntennas
properties. This enables you to transmit and capture IQ data on multiple antennas using the
transmit
and
capture
functions.
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
