New in R2021a: Capture disp() output as a string

Adam Danz on 15 Mar 2021 (Edited on 29 Apr 2021)
Latest activity Edit by Hans Scharler on 29 Apr 2021

We've all been there. You've got some kind of output that displays perfectly in the command window and you just want to capture that display as a string so you can use it again somewhere else. Maybe it's a multidimensional array, a table, a structure, or a fit object that perfectly displays the information you need in a neat and tidy format but when you try to recreate the display in a string variable it's like reconstructing the Taj Mahal out of legos.

Enter Matlab r2021a > formattedDisplayText()

Use str=formattedDisplayText(var) the same way you use disp(var) except instead of displaying the output, it's stored as a string as it would appear in the command window.

Additional name-value pairs allow you to

  • Specify a numeric format
  • Specify loose|compact line spacing
  • Display true|false instead of 1|0 for logical values
  • Include or suppress markup formatting that may appear in the display such as the bold headers in tables.

Demo: Record the input table and results of a polynomial curve fit

load census
[fitobj, gof] = fit(cdate, pop, 'poly3', 'normalize', 'on')

Results printed to the command window:

fitobj =
     Linear model Poly3:
     fitobj(x) = p1*x^3 + p2*x^2 + p3*x + p4
       where x is normalized by mean 1890 and std 62.05
     Coefficients (with 95% confidence bounds):
       p1 =       0.921  (-0.9743, 2.816)
       p2 =       25.18  (23.57, 26.79)
       p3 =       73.86  (70.33, 77.39)
       p4 =       61.74  (59.69, 63.8)
gof =
  struct with fields:
             sse: 149.77
         rsquare: 0.99879
             dfe: 17
      adjrsquare: 0.99857
            rmse: 2.9682

Capture the input table, the printed fit object, and goodness-of-fit structure as strings:

rawDataStr = formattedDisplayText(table(cdate,pop),'SuppressMarkup',true)
fitStr = formattedDisplayText(fitobj)
gofStr = formattedDisplayText(gof)

Display the strings:

rawDataStr =
    "    cdate     pop
         _____    _____
         1790       3.9
         1800       5.3
         1810       7.2
         1820       9.6
         1830      12.9
         1840      17.1
         1850      23.1
         1860      31.4
         1870      38.6
         1880      50.2
         1890      62.9
         1900        76
         1910        92
         1920     105.7
         1930     122.8
         1940     131.7
         1950     150.7
         1960       179
         1970       205
         1980     226.5
         1990     248.7
     "
fitStr =
    "     Linear model Poly3:
          ary(x) = p1*x^3 + p2*x^2 + p3*x + p4
            where x is normalized by mean 1890 and std 62.05
          Coefficients (with 95% confidence bounds):
            p1 =       0.921  (-0.9743, 2.816)
            p2 =       25.18  (23.57, 26.79)
            p3 =       73.86  (70.33, 77.39)
            p4 =       61.74  (59.69, 63.8)
     "
gofStr =
    "           sse: 149.77
            rsquare: 0.99879
                dfe: 17
         adjrsquare: 0.99857
               rmse: 2.9682
     "

Combine the strings into a single string and write it to a text file in your temp directory:

txt =  strjoin([rawDataStr; fitStr; gofStr],[newline newline]);
file = fullfile(tempdir,'results.txt');
fid = fopen(file,'w+');
cleanup = onCleanup(@()fclose(fid));
fprintf(fid, '%s', txt);
clear cleanup

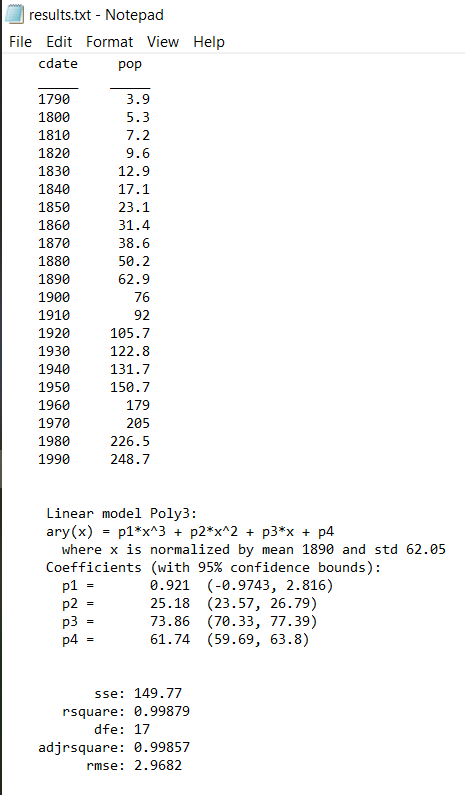

Open results.txt.

winopen(file) % for Windows platforms

Yvan Lengwiler
Yvan Lengwiler on 20 Apr 2021

Well that seems a bit superfluous.

str = evalc('disp(table(cdate,pop))');

And if you want to remove html tags from the output, do this:

str = regexprep(str,'<.*?>','');

1 Reply
Adam Danz
Adam Danz on 22 Apr 2021 (Edited on 22 Apr 2021)

Almost... you need to wrap the output in a string to match the output of formattedDisplayText. Also, no need to call regexprep to remove the hotlinks and markup. You could do this instead,

str = string(evalc('feature(''hotlinks'',''off'');disp(table(cdate,pop))'))

or, of course, just call this line which is a bit more readable IMO

formattedDisplayText(table(cdate,pop),'SuppressMarkup', true)

formattedDisplayText has some other features that set it apart from using a simple evalc.

Let's look at a table of exchange rates with bank number formatting

c = {'USD', 1; 'EURO', 0.830213; 'Pound', 0.716957; 'Rupee', 75.299172};
string(evalc('disp(c)'))
formattedDisplayText(c,'NumericFormat','bank')
|evalc                          formattedDisplayText
"    {'USD'  }    {[      1]}   "    {'USD'  }    {[ 1.00]}
     {'EURO' }    {[0.83021]}        {'EURO' }    {[ 0.83]}
     {'Pound'}    {[0.71696]}        {'Pound'}    {[ 0.72]}
     {'Rupee'}    {[ 75.299]}        {'Rupee'}    {[75.30]}
 "                               "|

or displaying values as fractions or ratios

r = randi(20,1,5)./randi(40,1,5);
string(evalc('disp(r)'))
formattedDisplayText(r,'NumericFormat','rational')
evalc
  "  0.35294   0.42857   0.025   0.67857   0.71429
   "
formattedDisplayText
  "  6/17      3/7       1/40    19/28      5/7
   "

How about differentiating between numeric and logical values?

b = num2cell(randi(2,5,5)-1);
ri = randperm(25,12);
b(ri(1:6)) = {false};
b(ri(7:12)) = {true};
string(evalc('disp(b)'))
formattedDisplayText(b,'UseTrueFalseForLogical',true)
evalc:
  "    {[0]}    {[0]}    {[1]}    {[1]}    {[0]}
       {[0]}    {[1]}    {[1]}    {[0]}    {[0]}
       {[0]}    {[1]}    {[0]}    {[1]}    {[0]}
       {[0]}    {[1]}    {[0]}    {[1]}    {[0]}
       {[1]}    {[1]}    {[1]}    {[1]}    {[1]}
   "
formattedDisplayText:
  "    {[    0]}    {[   0]}    {[   1]}    {[    1]}    {[false]}
       {[false]}    {[   1]}    {[true]}    {[false]}    {[    0]}
       {[false]}    {[true]}    {[   0]}    {[    1]}    {[    0]}
       {[false]}    {[true]}    {[   0]}    {[    1]}    {[false]}
       {[ true]}    {[true]}    {[true]}    {[    1]}    {[    1]}
   "

Of course, all of these options can be implemented using evalc with a bit of finesse. In fact, formattedDisplayText uses evalc and should come with the same security warning in the evalc documentation .


goc3
goc3 on 15 Mar 2021

This seems like a reliable alternative to diary, which doesn't always turn on and off when intended. Thanks for pointing this out, Adam.
