Forklift Design with Simscape

Test forklift stability. Vary load and mast position and find stability limit in static and dynamic tests.

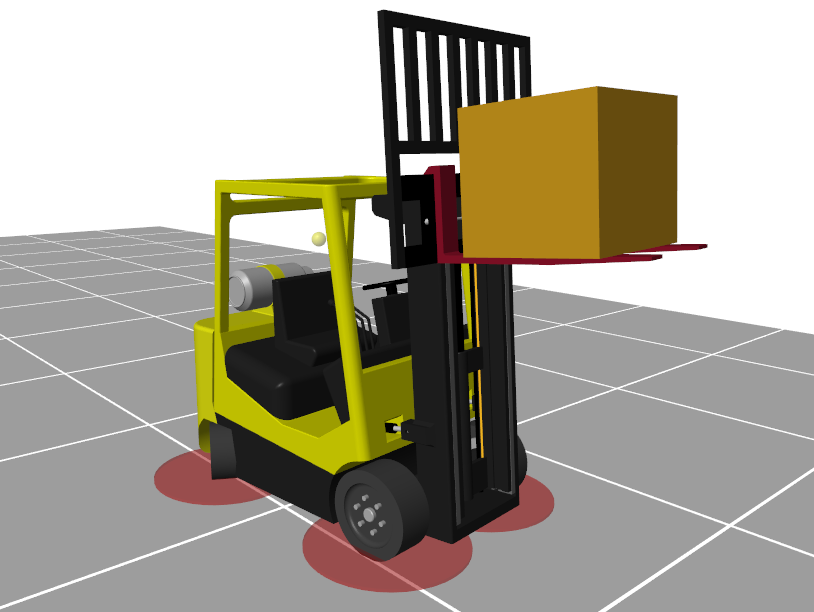

This example models a forklift with three-stage mast. You can use this model to perform stability analyses by sweeping design parameters and test conditions. The mechanical model of the lift was created in CAD software and imported into Simscape Multibody.

• CAD geometry is imported to accurately represent masses, inertias, and joint locations.
• Mechanical effects are incorporated into the design, including ground contact and cables in the lift mast
• Stability analyses are performed by sweeping design parameters in a range of test test scenarios
• Actuator requirements are refined using dynamic simulation with abstract actuator models
• Test configurations are automated using a MATLAB® App

See Heavy Equipment Design with Simscape to learn more.

Use the "Download" button above to get files compatible with the latest release of MATLAB.

You can also test in MATLAB Online

For earlier MATLAB releases, use "Version History" tab above or these links:

• R2025b, R2025a, R2024b

Forklift Model - Animation

Forklift Model - Overview

Learn how to use Simscape with

• Self-paced tutorials, including multi-domain systems, 3D mechanical systems, circuits, motors, and battery packs.
• Searching posts for the keyword "physical modeling".
• Stories from users: https://www.mathworks.com/solutions/physical-modeling.html
