transform

Transform audio datastore

Description

example

transformDatastore = transform(ADS,@fcn) creates a new datastore that transforms output from the read function.

example

transformDatastore = transform(ADS,@fcn,Name,Value) specifies options using one or more Name,Value pair arguments.

Examples

collapse all

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Call transform to create a new datastore that mixes multichannel signals to mono.

ADSnew = transform(ADS,@(x)mean(x,2));

Read from the new datastore and confirm that it only outputs mono signals.

while hasdata(ADSnew)
    audio = read(ADSnew);
    fprintf('Number of channels = %d\n',size(audio,2))
end
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1

The audio samples included with Audio Toolbox™ have varying durations. Use the transform function to customize the read function so that it outputs a random five second segment of the audio samples.

Specify the file path to the audio samples included with Audio Toolbox. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function to take as input the output of the read function. Make the function extract five seconds worth of data from the audio signal.

function [dataOut,info] = extractSegment(audioIn,info)
    [N,numChan] = size(audioIn);
    newN = round(info.SampleRate*5);
    if newN > N                                % signal length < 5 seconds
        numPad = newN - N + 1;
        dataOut = [audioIn;zeros(numPad,numChan,'like',audioIn)];
    elseif newN < N                            % signal length > 5 seconds
        start = randi(N - newN + 1);
        dataOut = audioIn(start:start+newN-1,:);
    else                                       % signal length == 5 seconds
        dataOut = audioIn;
    end
end

Call transform to create a TransformedDatastore with Transforms set to the function you defined.

ADSnew = transform(ADS,@extractSegment,'IncludeInfo',true)
ADSnew =
  TransformedDatastore with properties:

    UnderlyingDatastore: [1x1 audioDatastore]
             Transforms: {@extractSegment}
            IncludeInfo: 1

Read the first three audio files and verify that the outputs are five second segments.

for i = 1:3
    [audio,info] = read(ADSnew);
    fprintf('Duration = %d seconds\n',size(audio,1)/info.SampleRate)
end
Duration = 5 seconds
Duration = 5 seconds
Duration = 5 seconds

Use transform to create an audio datastore that returns a mel spectrogram representation from the read function.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function that transforms audio data from a time-domain representation to a log mel spectrogram. The function adds the additional outputs from the melSpectrogram function to the info struct output from reading the audio datastore.

function [dataOut,infoOut] = extractMelSpectrogram(audioIn,info)

    [S,F,T] = melSpectrogram(audioIn,info.SampleRate);

    dataOut = 10*log10(S+eps);
    infoOut = info;
    infoOut.CenterFrequencies = F;
    infoOut.TimeInstants = T;
end

Call transform to create a TransformedDatastore with Transforms set to extractMelSpectrogram.

ADSnew = transform(ADS,@extractMelSpectrogram,'IncludeInfo',true)
ADSnew =
  TransformedDatastore with properties:

    UnderlyingDatastore: [1x1 audioDatastore]
             Transforms: {@extractMelSpectrogram}
            IncludeInfo: 1

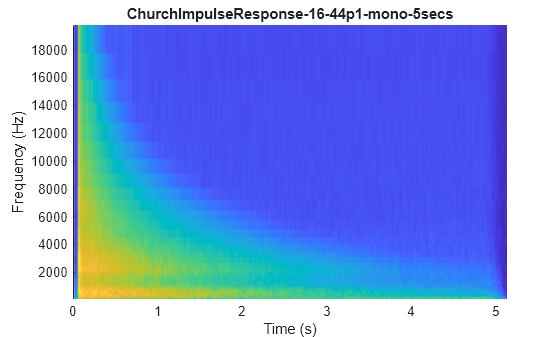

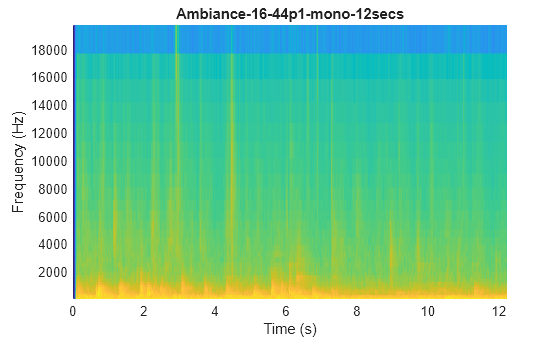

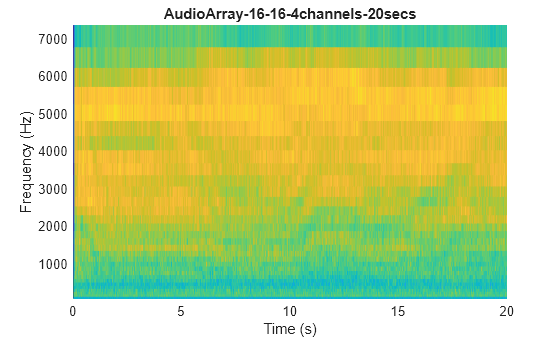

Read the first three audio files and plot the log mel spectrograms. If there are multiple channels, plot only the first channel.

for i = 1:3
    [melSpec,info] = read(ADSnew);

    figure(i)
    surf(info.TimeInstants,info.CenterFrequencies,melSpec(:,:,1),'EdgeColor','none');
    xlabel('Time (s)')
    ylabel('Frequency (Hz)')
    [~,name] = fileparts(info.FileName);
    title(name)
    axis([0 info.TimeInstants(end) info.CenterFrequencies(1) info.CenterFrequencies(end)])
    view([0,90])
end

Use transform to create an audio datastore that returns feature vectors.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function, extractFeatureVector, that transforms the audio data from a time-domain representation to feature vectors.

function [dataOut,info] = extractFeatureVector(audioIn,info)

    % Convert to frequency-domain representation
    windowLength = 256;
    overlapLength = 128;
    [~,f,~,S] = spectrogram(mean(audioIn,2), ...
                            hann(windowLength,"Periodic"), ...
                            overlapLength, ...
                            windowLength, ...
                            info.SampleRate, ...
                            "power", ...
                            "onesided");

    % Extract features
    [kurtosis,spread,centroid] = spectralKurtosis(S,f);
    skewness = spectralSkewness(S,f);
    crest    = spectralCrest(S,f);
    decrease = spectralDecrease(S,f);
    entropy  = spectralEntropy(S,f);
    flatness = spectralFlatness(S,f);
    flux     = spectralFlux(S,f);
    rolloff  = spectralRolloffPoint(S,f);
    slope    = spectralSlope(S,f);

    % Concatenate to create feature vectors
    dataOut = [kurtosis,spread,centroid,skewness,crest,decrease,entropy,flatness,flux,rolloff,slope];

end

Call transform to create a TransformedDatastore with Transforms set to extractFeatureVector.

ADSnew = transform(ADS,@extractFeatureVector,'IncludeInfo',true)
ADSnew =

  TransformedDatastore with properties:

    UnderlyingDatastore: [1x1 audioDatastore]
             Transforms: {@extractFeatureVector}
            IncludeInfo: 1

Call read to return the feature vectors for the audio over time.

featureMatrix = read(ADSnew);
[numFeatureVectors,numFeatures] = size(featureMatrix)
numFeatureVectors =

        4215


numFeatures =

    11

Use transform to create an audio datastore that applies bandpass filtering before returning audio from the read function.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function, applyBandpassFilter, that applies a bandpass filter with a passband between 1 and 15 kHz.

function [audioOut,info] = applyBandpassFilter(audioIn,info)

    audioOut = bandpass(audioIn,[1e3,15e3],info.SampleRate);

end

Call transform to create a TransformedDatastore with Transforms set to applyBandpassFilter.

ADSnew = transform(ADS,@applyBandpassFilter,'IncludeInfo',true)
ADSnew =

  TransformedDatastore with properties:

    UnderlyingDatastore: [1x1 audioDatastore]
             Transforms: {@applyBandpassFilter}
            IncludeInfo: 1

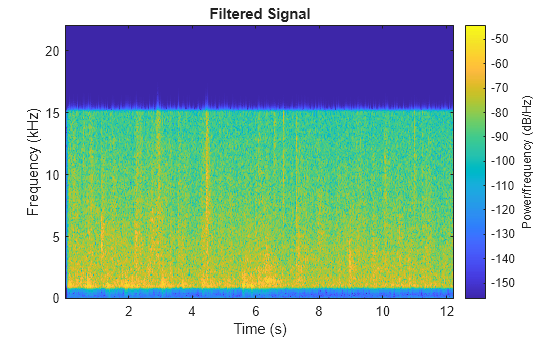

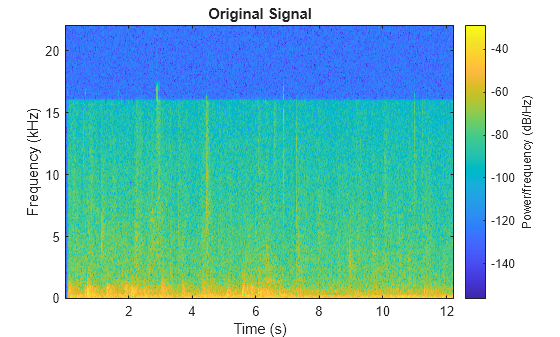

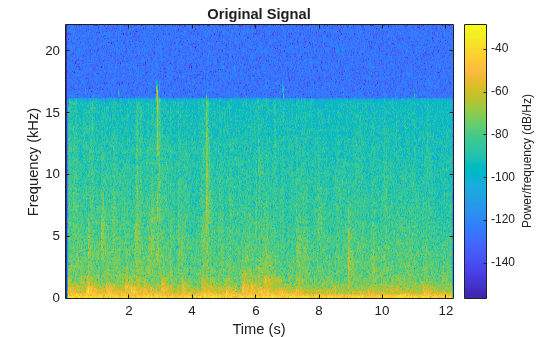

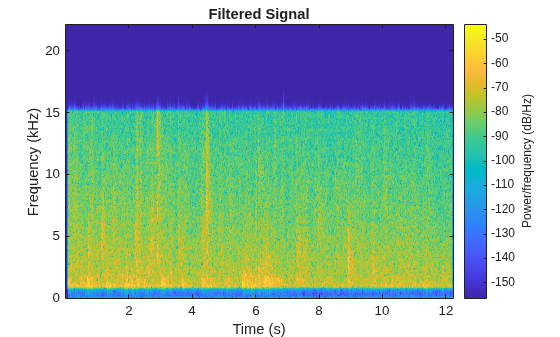

Call read to return the bandpass filtered audio from the transform datastore. Call read to return the bandpass filtered audio from the original datastore. Plot the spectrograms to visualize the difference.

[audio1,info1] = read(ADS);
[audio2,info2] = read(ADSnew);


figure(1)
spectrogram(audio1,hann(512),256,512,info1.SampleRate,'yaxis')
title('Original Signal')

figure(2)
spectrogram(audio2,hann(512),256,512,info2.SampleRate,'yaxis')
title('Filtered Signal')

Input Arguments

collapse all

Audio datastore, specified as an audioDatastore object.

Function that transforms data, specified as a function handle. The signature of the function depends on the IncludeInfo parameter.

  • If IncludeInfo is set to false (default), the function transforms the audio output from read. The info output from read is unaltered.

    The transform function must have this signature:

    function dataOut = fcn(audio)
    ...
    end

  • If IncludeInfo is set to true, the function transforms the audio output from read, and can use or modify the information returned from read.

    The transform function must have this signature:

    function [dataOut,infoOut] = fcn(audio,infoIn)
    ...
    end

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'IncludeInfo',tf

Pass info through the customized read function, specified as true or false. If true, the transform function can use or modify the information it gets from read. If unspecified, IncludeInfo defaults to false.

Data Types: logical

Output Arguments

collapse all

New datastore with customized read, returned as a TransformedDatastore with UnderlyingDatastore set to ADS, Transforms set to fcn, and IncludeInfo set to true or false.

Introduced in R2019a
