openl3Features

(Removed) Extract OpenL3 features

Since R2021a

collapse all in page

    The openl3Features function has been removed. Use openl3Embeddings instead. For more information, see Version History.

    Syntax

    embeddings = openl3Features(audioIn,fs)
    embeddings = openl3Features(audioIn,fs,Name,Value)

    Description

    embeddings = openl3Features(audioIn,fs) returns OpenL3 feature embeddings over time for audio input audioIn with sample rate fs. Columns of the input are treated as individual channels.

    example

    embeddings = openl3Features(audioIn,fs,Name,Value) specifies options using one or more Name,Value arguments. For example, embeddings = openl3Features(audioIn,fs,'OverlapPercentage',75) applies a 75% overlap between consecutive frames used to create the audio embeddings.

    This function requires both Audio Toolbox™ and Deep Learning Toolbox™.

    example

    Examples

    collapse all

    This example uses:

    Open Live Script

    Download and unzip the Audio Toolbox™ model for OpenL3.

    Type openl3Features at the command line. If the Audio Toolbox model for OpenL3 is not installed, the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB® path.

    Alternatively, execute the following commands to download and unzip the OpenL3 model to your temporary directory.

    downloadFolder = fullfile(tempdir,'OpenL3Download');
loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/openl3.zip');
OpenL3Location = tempdir;
unzip(loc,OpenL3Location)
addpath(fullfile(OpenL3Location,'openl3'))

    This example uses:

    Open Live Script

    Read in an audio file.

    [audioIn,fs] = audioread('MainStreetOne-16-16-mono-12secs.wav');

    Call the openl3Features function with the audio and sample rate to extract OpenL3 feature embeddings from the audio.

    featureVectors = openl3Features(audioIn,fs);

    The openl3Features function returns a matrix of 512-element feature vectors over time.

    [numHops,numElementsPerHop,numChannels] = size(featureVectors)
    numHops = 111

    numElementsPerHop = 512

    numChannels = 1

    This example uses:

    Open Live Script

    Create a 10-second pink noise signal and then extract OpenL3 features. The openl3Features function extracts features from mel spectrograms with 90% overlap.

    fs = 16e3;
dur = 10;
audioIn = pinknoise(dur*fs,1,'single');
features = openl3Features(audioIn,fs);

    Plot the OpenL3 features over time.

    surf(features,'EdgeColor','none')
view([30 65])
axis tight
xlabel('Feature Index')
ylabel('Frame')
xlabel('Feature Value')
title('OpenL3 Features')

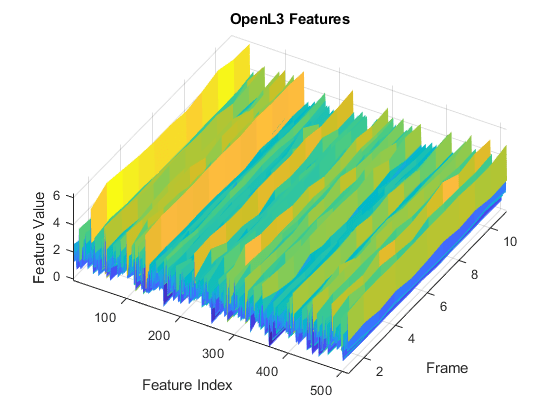

    To decrease the resolution of OpenL3 features over time, specify the percent overlap between mel spectrograms. Plot the results.

    overlapPercentage = 10;
features = openl3Features(audioIn,fs,'OverlapPercentage',overlapPercentage);
surf(features,'EdgeColor','none')
view([30 65])
axis tight
xlabel('Feature Index')
ylabel('Frame')
zlabel('Feature Value')
title('OpenL3 Features')

    Input Arguments

    collapse all

    Input signal, specified as a column vector or matrix. If you specify a matrix, openl3Features treats the columns of the matrix as individual audio channels.

    Data Types: single | double

    Sample rate of the input signal in Hz, specified as a positive scalar.

    Data Types: single | double

    Name-Value Arguments

    collapse all

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: openl3Features(audioIn,fs,'SpectrumType','mel256')

    Percentage overlap between consecutive spectrograms, specified as a scalar in the range [0,100).

    Data Types: single | double

    Spectrum type generated from audio and used as input to the neural network, specified as 'mel128', 'mel256', or 'linear'.

    Note

    The SpectrumType that you select controls the spectrogram used in the network. See openl3 or openl3Preprocess for more details.

    Data Types: char | string

    Length of the output audio embedding, specified as '512' or '6144'.

    Data Types: single | double

    Audio content type the neural network is trained on, specified as 'env' or 'music'.

    Set ContentType to:

    • 'env' when you want to use a model trained on environmental data.

    • 'music' when you want to use a model trained on musical data.

    Data Types: char | string

    Output Arguments

    collapse all

    Compact representation of audio data, returned as an N-by-L-by-C array, where:

    • N –– Represents the number of buffered frames the audio signal is partitioned into and depends on the length of audioIn and the 'OverlapPercentage'.

    • L –– Represents the audio embedding length.

    • C –– Represents the number of input channels.

    Data Types: single

    References

    [1] Cramer, Jason, et al. "Look, Listen, and Learn More: Design Choices for Deep Audio Embeddings." In ICASSP 2019 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2019, pp. 3852-56. DOI.org (Crossref), doi:/10.1109/ICASSP.2019.8682475.
