Electric Vehicle Reference Application

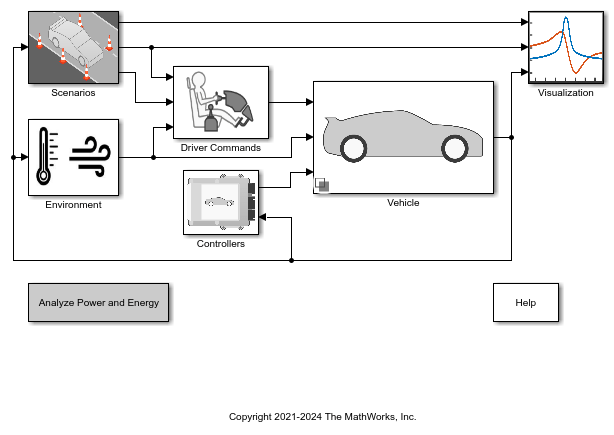

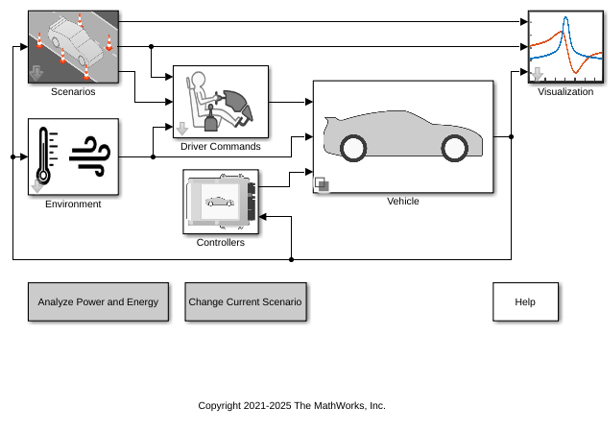

The electric vehicle (EV) reference application represents a full electric vehicle model with a motor-generator, battery, direct-drive transmission, and associated powertrain control algorithms. Use the electric vehicle reference application for powertrain matching analysis and component selection, control and diagnostic algorithm design, and hardware-in-the-loop (HIL) testing.

Open the Electric Vehicle Reference Application Project

Run the following command to create and open a working copy of the project files:

autoblkEvStart

For more information, see Explore the Electric Vehicle Reference Application.

helpview('autoblks','ev_refapp')
