Bluetooth transmitter and receiver testing, support for software-defined radio (SDR)

Bluetooth^® Toolbox provides features and reference examples to perform verification, performance analysis, radio frequency (RF) testing of the Bluetooth basic rate/enhanced data rate (BR/EDR), and RF physical layer (RF-PHY) testing of low energy (LE) communication systems. The examples featured here also show you how to connect a software-defined radio (SDR) with Bluetooth Toolbox.

Use the test and measurement and SDR capabilities of the toolbox to:

Generate and configure Bluetooth LE RF-PHY test parameters.
Generate Bluetooth BR/EDR and LE test waveforms.
Perform Bluetooth BR/EDR RF and Bluetooth LE RF-PHY transmitter and receiver testing.

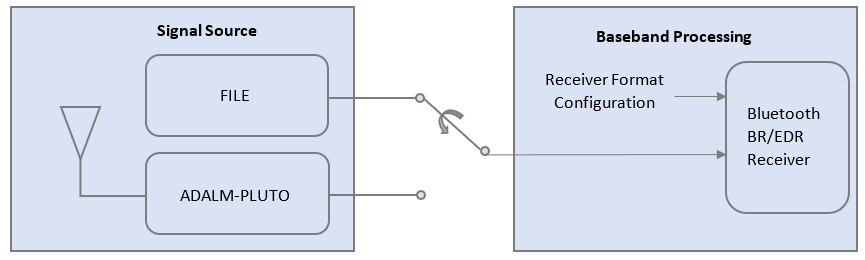

Generate, transmit, and receive Bluetooth BR/EDR and LE waveforms by using the ADALM-PLUTO radio.

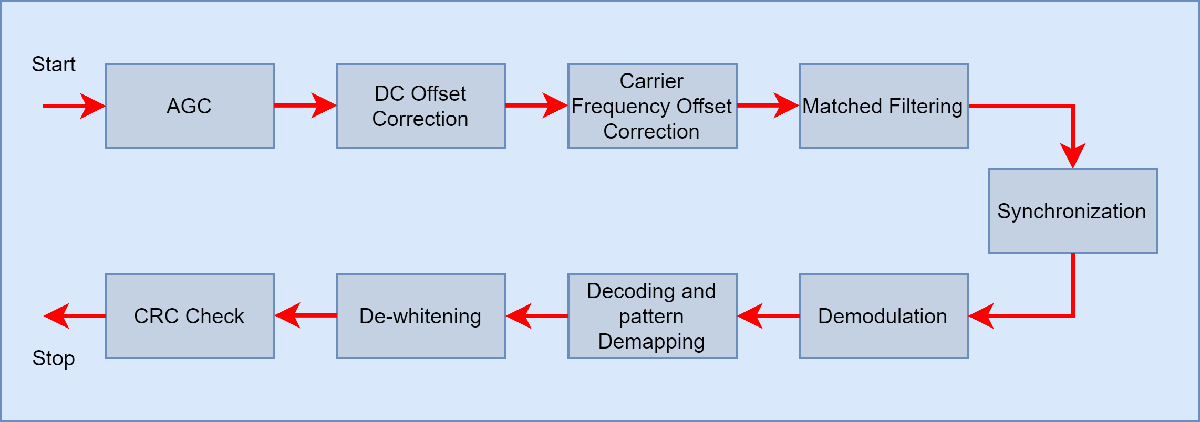

Block diagram showing how to perform radio frequency (RF) physical layer (PHY) receiver tests specific to blocking, intermodulation and carrier-to-interference (C/I)

Functions

bluetoothTestWaveform Generate Bluetooth BR/EDR or LE test waveform

Objects

`bluetoothTestWaveformConfig`	Bluetooth BR/EDR or LE test waveform configuration parameters
`bluetoothRFPHYTestConfig`	Bluetooth LE RF-PHY test configuration parameters

Featured Examples

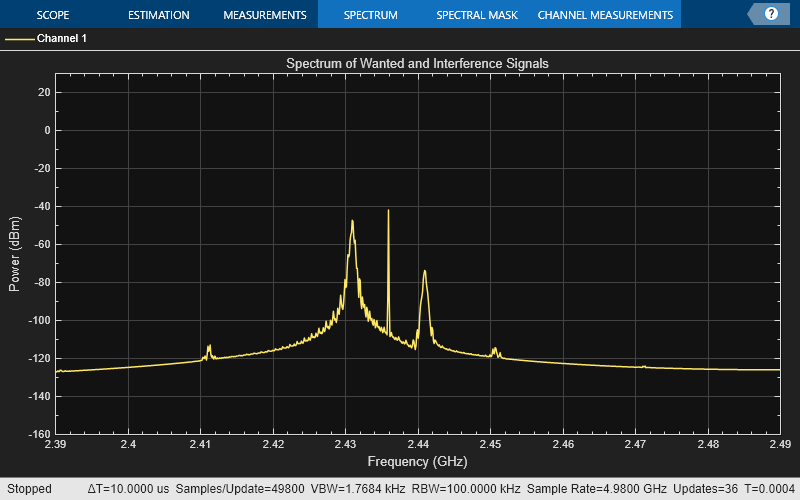

Bluetooth BR Blocking, Intermodulation, and Carrier-to-Interference Performance Tests

Perform receiver RF-PHY tests specific to blocking, intermodulation, and carrier-to-interference on Bluetooth BR waveforms.

Open Live Script

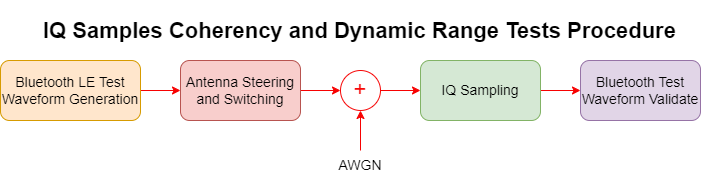

Bluetooth LE IQ samples Coherency and Dynamic Range Tests

Perform receiver RF-PHY test measurements specific to in-phase quadrature samples coherency (IQC) and IQ samples dynamic range (IQDR) on Bluetooth LE waveforms.

Open Live Script

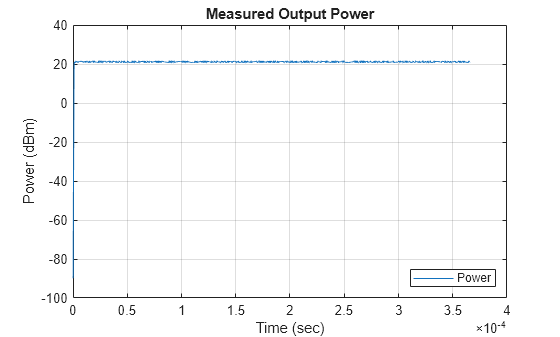

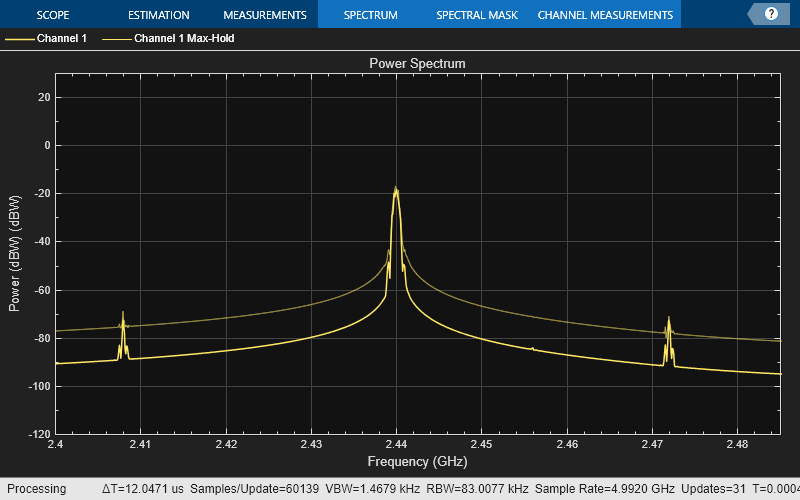

Bluetooth BR/EDR Power and Spectrum Tests

Perform transmitter RF-PHY test measurements specific to power and spectrum on Bluetooth BR/EDR waveforms.

Open Live Script

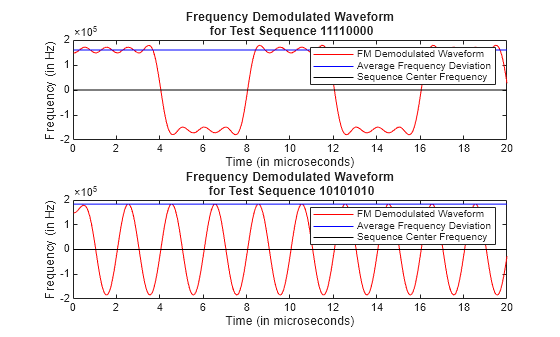

Bluetooth BR RF-PHY Transmitter Tests for Modulation Characteristics, Carrier Frequency Offset, and Drift

Perform transmitter RF-PHY test measurements specific to modulation characteristics, carrier frequency offset, and drift on Bluetooth BR waveforms.

Open Live Script

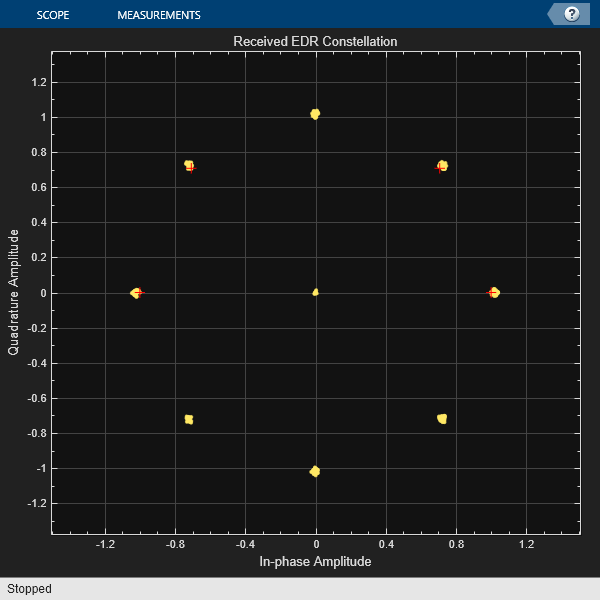

Bluetooth EDR RF-PHY Transmitter Tests for Modulation Accuracy and Carrier Frequency Stability

Perform transmitter RF-PHY test measurements specific to modulation accuracy and carrier frequency stability on Bluetooth EDR waveforms.

Open Live Script

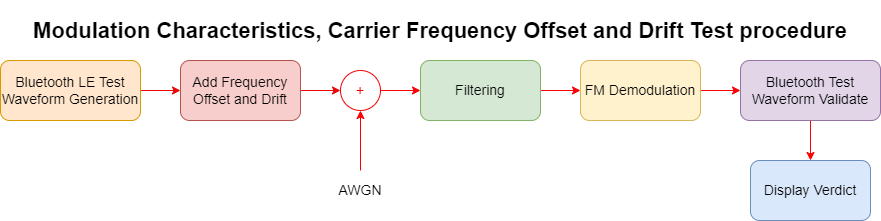

Bluetooth LE Modulation Characteristics, Carrier Frequency Offset and Drift Tests

Perform transmitter RF-PHY test measurements specific to modulation characteristics, carrier frequency offset, and drift on Bluetooth LE waveforms.

Open Live Script

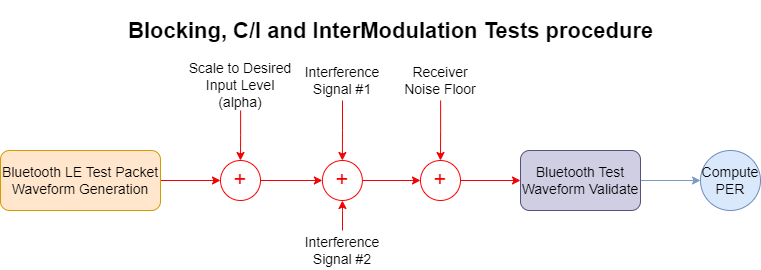

Bluetooth LE Blocking, Intermodulation and Carrier-to-Interference Performance Tests

Perform receiver RF-PHY test measurements specific to blocking, intermodulation and carrier to interference (C/I) performance on Bluetooth LE waveforms.

Open Live Script
