plotperform

Plot network performance

Description

example

plotperform(TR) plots error vs. epoch for the training, validation, and test performances of the training record TR returned by the function train.

Examples

collapse all

This example shows how to use plotperform to obtain a plot of training record error values against the number of training epochs.

[x,t] = bodyfat_dataset;
net = feedforwardnet(10);
[net,tr] = train(net,x,t);
plotperform(tr)

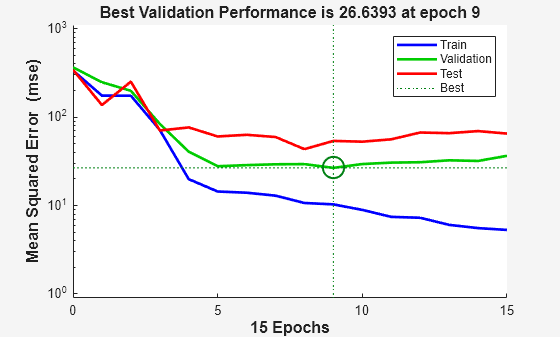

Figure Performance (plotperform) contains an axes object. The axes object with title Best Validation Performance is 26.6393 at epoch 9 contains 6 objects of type line. These objects represent Train, Validation, Test, Best.

Generally, the error reduces after more epochs of training, but might start to increase on the validation data set as the network starts overfitting the training data. In the default setup, the training stops after six consecutive increases in validation error, and the best performance is taken from the epoch with the lowest validation error.

Input Arguments

collapse all

Training record (epoch and perf), returned as a structure whose fields depend on the network training function (net.NET.trainFcn). It can include fields such as:

  • Training, data division, and performance functions and parameters

  • Data division indices for training, validation and test sets

  • Data division masks for training validation and test sets

  • Number of epochs (num_epochs) and the best epoch (best_epoch)

  • A list of training state names (states)

  • Fields for each state name recording its value throughout training

  • Performances of the best network (best_perf, best_vperf, best_tperf)

Introduced in R2008a
