plottrainstate

Plot training state values

collapse all in page

Syntax

plottrainstate(tr)

Description

plottrainstate(tr) plots the training state from a training record tr returned by train.

Examples

collapse all

Open Live Script

This example shows how to plot training state values using plottrainstate.

[x, t] = bodyfat_dataset;
net = feedforwardnet(10);
[net, tr] = train(net, x, t);

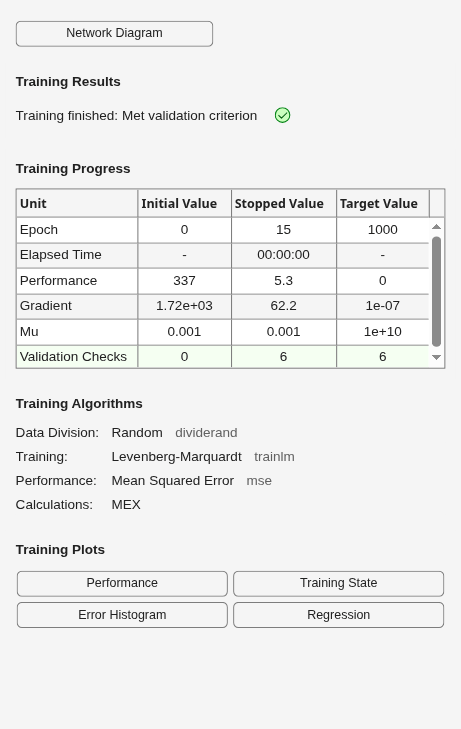

Figure Neural Network Training (03-Mar-2023 09:08:07) contains an object of type uigridlayout.

plottrainstate(tr)

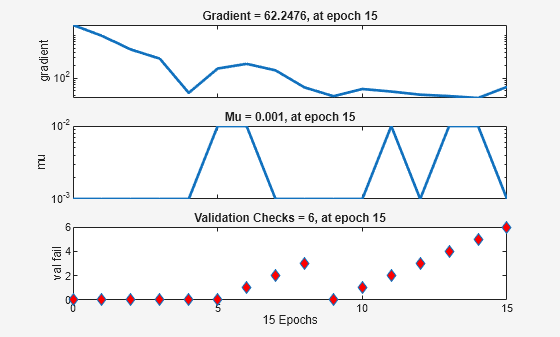

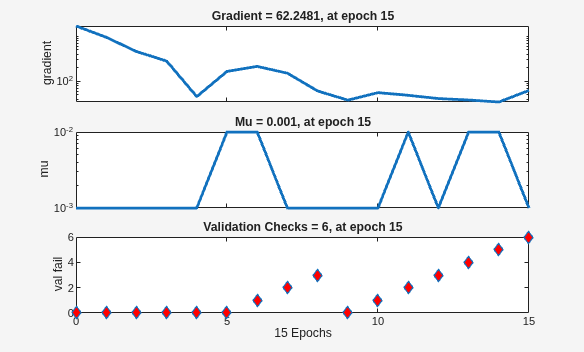

Figure Training State (plottrainstate) contains 3 axes objects. Axes object 1 with title Gradient = 62.2474, at epoch 15, ylabel gradient contains an object of type line. Axes object 2 with title Mu = 0.001, at epoch 15, ylabel mu contains an object of type line. axes object 3 with title Validation Checks = 6, at epoch 15, xlabel 15 Epochs, ylabel val fail contains a line object which displays its values using only markers.

Version History

Introduced in R2008a
