This example shows how to train a deep learning network on out-of-memory sequence data using a custom mini-batch datastore.
A mini-batch datastore is an implementation of a datastore with support for reading data in batches. Use mini-batch datastores to read out-of-memory data or to perform specific preprocessing operations when reading batches of data. You can use a mini-batch datastore as a source of training, validation, test, and prediction data sets for deep learning applications.
This example uses the custom mini-batch datastore
sequenceDatastore.m. You can adapt this datastore to your data by customizing the datastore functions. For an example showing how to create your own custom mini-batch datastore, see Develop Custom Mini-Batch Datastore.
Load the Japanese Vowels data set as described in  and . The zip file
japaneseVowels.zip contains sequences of varying length. The sequences are divided into two folders,
Test, which contain training sequences and test sequences, respectively. In each of these folders, the sequences are divided into subfolders, which are numbered from
9. The names of these subfolders are the label names. A MAT file represents each sequence. Each sequence is a matrix with 12 rows, with one row for each feature, and a varying number of columns, with one column for each time step. The number of rows is the sequence dimension and the number of columns is the sequence length.
Unzip the sequence data.
filename = "japaneseVowels.zip"; outputFolder = fullfile(tempdir,"japaneseVowels"); unzip(filename,outputFolder);
Create a custom mini-batch datastore. The mini-batch datastore
sequenceDatastore reads data from a folder and gets the labels from the subfolder names. To use this datastore, first save the file
sequenceDatastore.m to the path.
Create a datastore containing the sequence data using
folderTrain = fullfile(outputFolder,"Train"); dsTrain = sequenceDatastore(folderTrain)
dsTrain = sequenceDatastore with properties: Datastore: [1×1 matlab.io.datastore.FileDatastore] Labels: [270×1 categorical] NumClasses: 9 SequenceDimension: 12 MiniBatchSize: 128 NumObservations: 270
Define the LSTM network architecture. Specify the sequence dimension of the input data as the input size. Specify an LSTM layer with 100 hidden units and to output the last element of the sequence. Finally, specify a fully connected layer with output size equal to the number of classes, followed by a softmax layer and a classification layer.
inputSize = dsTrain.SequenceDimension; numClasses = dsTrain.NumClasses; numHiddenUnits = 100; layers = [ sequenceInputLayer(inputSize) lstmLayer(numHiddenUnits,'OutputMode','last') fullyConnectedLayer(numClasses) softmaxLayer classificationLayer];
Specify the training options. Specify
'adam' as the solver and
'GradientThreshold' as 1. Set the mini-batch size to 27 and set the maximum number of epochs to 75. To ensure that the datastore creates mini-batches of the size that the
trainNetwork function expects, also set the mini-batch size of the datastore to the same value.
Because the mini-batches are small with short sequences, the CPU is better suited for training. Set
'cpu'. To train on a GPU, if available, set
'auto' (the default value).
miniBatchSize = 27; options = trainingOptions('adam', ... 'ExecutionEnvironment','cpu', ... 'MaxEpochs',75, ... 'MiniBatchSize',miniBatchSize, ... 'GradientThreshold',1, ... 'Verbose',0, ... 'Plots','training-progress'); dsTrain.MiniBatchSize = miniBatchSize;

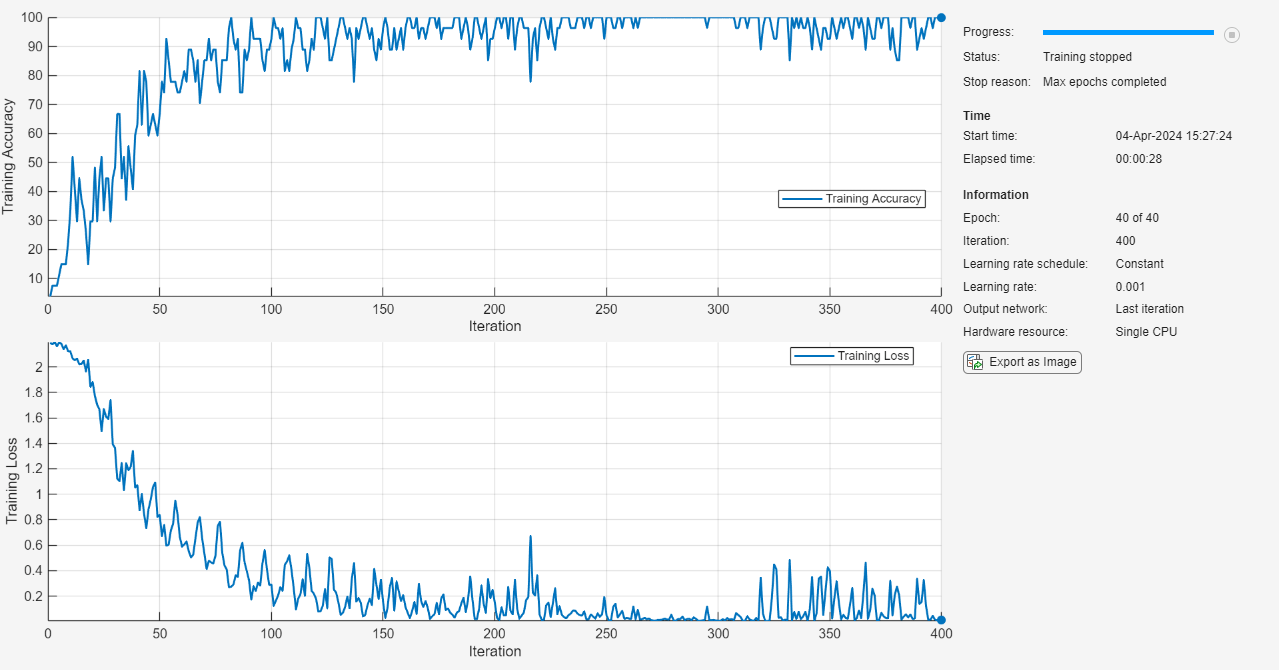

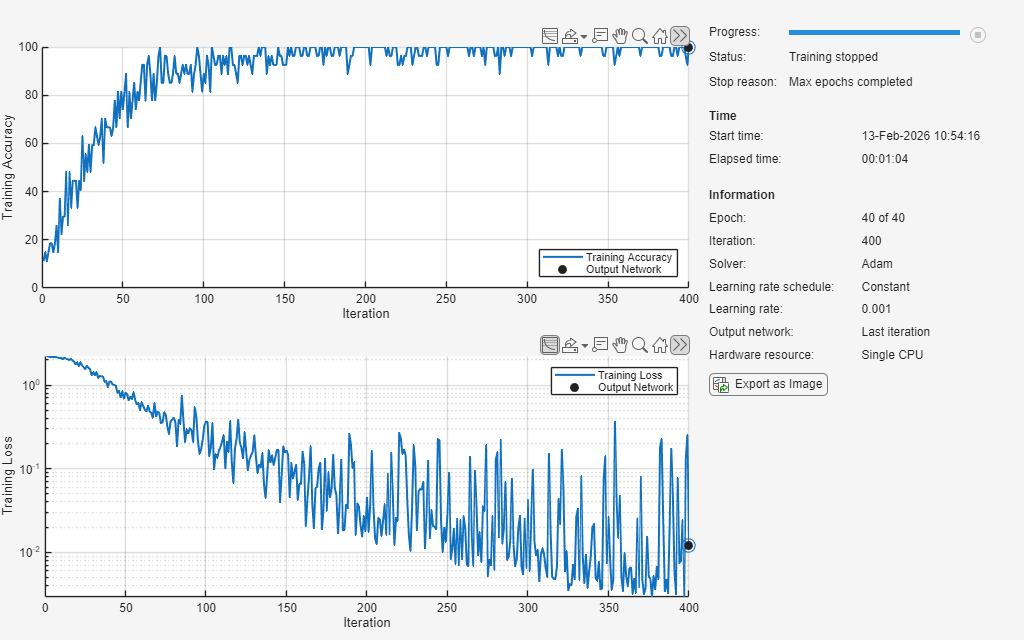

Train the LSTM network with the specified training options.
net = trainNetwork(dsTrain,layers,options);
Create a sequence datastore from the test data.
folderTest = fullfile(outputFolder,"Test"); dsTest = sequenceDatastore(folderTest);
Classify the test data. Specify the same mini-batch size as for the training data. To ensure that the datastore creates mini-batches of the size that the
classify function expects, also set the mini-batch size of the datastore to the same value.
dsTest.MiniBatchSize = miniBatchSize; YPred = classify(net,dsTest,'MiniBatchSize',miniBatchSize);
Calculate the classification accuracy of the predictions.
YTest = dsTest.Labels; acc = sum(YPred == YTest)./numel(YTest)
acc = 0.9432
 Kudo, M., J. Toyama, and M. Shimbo. "Multidimensional Curve Classification Using Passing-Through Regions." Pattern Recognition Letters. Vol. 20, No. 11–13, pp. 1103–1111.
 Kudo, M., J. Toyama, and M. Shimbo. Japanese Vowels Data Set. https://archive.ics.uci.edu/ml/datasets/Japanese+Vowels
