restart

Restart driving scenario simulation from beginning

Description

example

restart(scenario) restarts the simulation of the driving scenario, scenario, from the beginning. The function sets the SimulationTime property of the driving scenario to 0.

Examples

collapse all

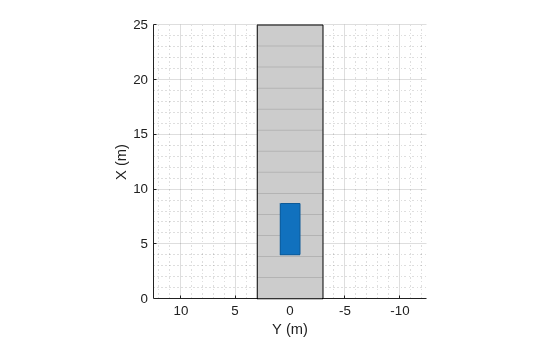

Create a driving scenario in which a vehicle travels down a straight, 25-meter road at 20 meters per second. Plot the scenario.

scenario = drivingScenario('SampleTime',0.1);

roadcenters= [0 0 0; 25 0 0];
road(scenario,roadcenters)

v = vehicle(scenario);

waypoints = [5 0 0; 20 0 0];
speed = 20; % m/s
trajectory(v,waypoints,speed)

plot(scenario)

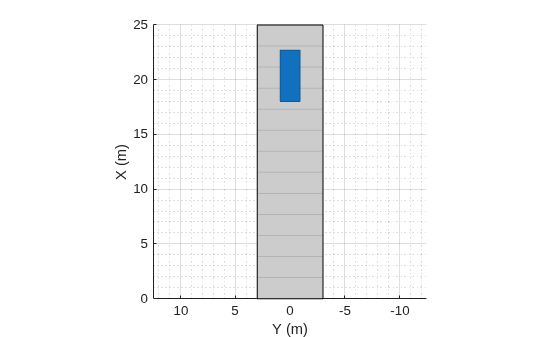

Run the simulation and display the location of the vehicle at each time step.

while advance(scenario)
    fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ...
            v.Position(1), ...
            scenario.SimulationTime * 1000)
end
Vehicle location: 7.00 meters at t = 100 ms
Vehicle location: 9.00 meters at t = 200 ms
Vehicle location: 11.00 meters at t = 300 ms
Vehicle location: 13.00 meters at t = 400 ms
Vehicle location: 15.00 meters at t = 500 ms
Vehicle location: 17.00 meters at t = 600 ms
Vehicle location: 19.00 meters at t = 700 ms

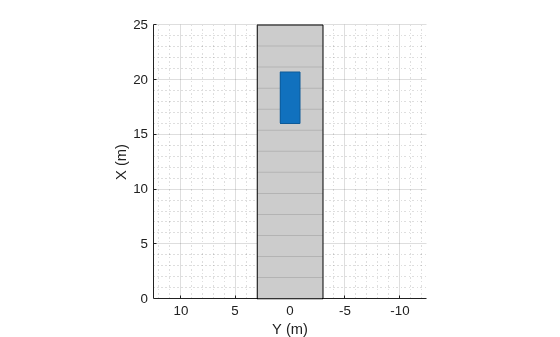

Restart the simulation. Increase the sample time and rerun the simulation.

restart(scenario);
scenario.SampleTime = 0.2;

while advance(scenario)
    fprintf('Vehicle location: %0.2f meters at t = %0.0f ms\n', ...
            v.Position(1), ...
            scenario.SimulationTime * 1000)
end
Vehicle location: 9.00 meters at t = 200 ms
Vehicle location: 13.00 meters at t = 400 ms
Vehicle location: 17.00 meters at t = 600 ms

Input Arguments

collapse all

Driving scenario, specified as a drivingScenario object.

Introduced in R2017a
