record
Run driving scenario and record actor states
Syntax
Description
Examples
Record Actor Poses from Driving Scenario

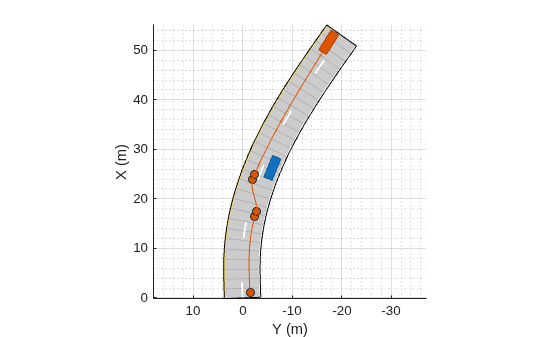

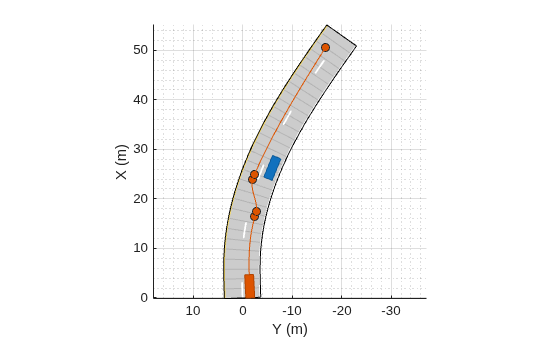

Create a driving scenario in which one car passes a stationary car on a two-lane road.
scenario = drivingScenario; road(scenario,[0 0; 10 0; 53 -20],'lanes',lanespec(2)); plot(scenario,'Waypoints','on'); stationaryCar = vehicle(scenario,'ClassID',1,'Position',[25 -5.5 0],'Yaw',-22); passingCar = vehicle(scenario,'ClassID',1); waypoints = [1 -1.5; 16.36 -2.5; 17.35 -2.765; ... 23.83 -2.01; 24.9 -2.4; 50.5 -16.7]; speed = 15; % m/s smoothTrajectory(passingCar,waypoints,speed);
Record the driving scenario simulation.
rec = record(scenario);
Compare the recorded poses of the passing car at the start and end of the simulation.
rec(1).ActorPoses(2)
ans = struct with fields:
ActorID: 2
Position: [1 -1.5000 0]
Velocity: [14.9816 0.7423 0]
Roll: 0
Pitch: 0
Yaw: 2.8367
AngularVelocity: [0 0 1.2537e-05]
rec(end).ActorPoses(2)
ans = struct with fields:
ActorID: 2
Position: [50.4717 -16.6823 0]
Velocity: [12.7171 -7.9546 0]
Roll: 0
Pitch: 0
Yaw: -32.0261
AngularVelocity: [0 0 -0.0099]
Input Arguments
scenario
— Driving scenario
drivingScenario
object
Driving scenario, specified as a drivingScenario
object.
Output Arguments
rec
— Recording of actor states during simulation
M-by-1 vector of structures
Recording of actor states during simulation, returned as an M-by-1 vector of structures. M is the number of time steps in the simulation. Each structure corresponds to a simulation time step.
The rec
structure has these fields:
Field | Description | Type |
---|---|---|
SimulationTime | Simulation time at each time step | Real scalar |
ActorPoses | Actor poses in scenario coordinates | N-by-1 vector of
ActorPoses structures, where
N is the number of actors,
including vehicles. |
Each ActorPoses
structure has these fields.
Field | Description |
---|---|
ActorID | Scenario-defined actor identifier, specified as a positive integer. |
In R2024b:
| Front-axle position of the vehicle, specified as a three-element row vector in the form [x y z]. Units are in meters. Note If the driving scenario does not contain a
front-axle trajectory for at least one vehicle,
then the
|
Position | Position of actor, specified as a real-valued vector of the form [x y z]. Units are in meters. |
Velocity | Velocity (v) of actor in the x- y-, and z-directions, specified as a real-valued vector of the form [vx vy vz]. Units are in meters per second. |
Roll | Roll angle of actor, specified as a real-valued scalar. Units are in degrees. |
Pitch | Pitch angle of actor, specified as a real-valued scalar. Units are in degrees. |
Yaw | Yaw angle of actor, specified as a real-valued scalar. Units are in degrees. |
AngularVelocity | Angular velocity (ω) of actor in the x-, y-, and z-directions, specified as a real-valued vector of the form [ωx ωy ωz]. Units are in degrees per second. |
For full definitions of these structure fields, see the actor
and vehicle
functions.
Data Types: struct
Version History
Introduced in R2017aR2024b: Output ActorPoses
structure contains front-axle position information
If a driving scenario contains a front-axle trajectory for at least one vehicle,
the ActorPoses
structure in the output rec
structure now returns the front-axle position in the form [x
y
z] for vehicles specified with front-axle steering.
