Model biquadratic IIR (SOS) filters
DSP System Toolbox / Filtering / Filter Implementations
The Biquad Filter block independently filters each channel of the input signal with the specified biquadratic infinite impulse response (IIR) filter. When you specify the filter coefficients in the dialog box, the block implements static filters with fixed coefficients. When you provide the filter coefficients through an input port, you can tune the coefficients during simulation.
The Biquad Filter block supports the Simulink^{®} state logging feature. See States (Simulink) for more information.
In
— Data inputData input to the block, specified as a vector or a matrix. This block supports variablesize input signals, enabling you to change the input frame size (number of rows) during simulation. However, the number of channels (number of columns) must remain constant.
If the input is fixedpoint, it must be signed fixedpoint with binary point scaling.
This port is unnamed unless you set the Coefficient source to
Input port(s)
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 fixed point
Complex Number Support: Yes
Num
— Numerator coefficientsNumerator coefficients of the biquad filter, specified as a 3byN matrix, where N is the number of biquad filter sections.
If Num is fixedpoint, it must be signed fixedpoint with binary point scaling.
This port appears only when you set the Coefficient source to
Input port(s)
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 fixed point
Den
— Denominator coefficientsDenominator coefficients of the biquad filter, specified as a 2byN matrix, where N is the number of biquad filter sections.
If Den is fixedpoint, it must be signed fixedpoint with binary point scaling.
This port appears only when you set the Coefficient source to
Input port(s)
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 fixed point
g
— Scale valuesScale values of the biquad filter, specified as a 1by(N+1) vector, where N is the number of biquad filter sections.
If g is fixedpoint, it must be signed fixedpoint with binary point scaling.
This port appears only when you set the Coefficient source to
Input port(s)
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 fixed point
Out
— Filtered outputFiltered output, returned as a vector or a matrix.
The output dimensions always equal the dimensions of the input signal. The output of
this block numerically matches the outputs of the dsp.BiquadFilter
System
object™.
If Out is fixedpoint, it must be signed fixedpoint with binary point scaling.
This port is unnamed unless you set the Coefficient source to
Input port(s)
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 fixed point
Complex Number Support: Yes
Coefficient source
— Mode of operationDialog parameters
(default)  Input port(s)
 Filter object
The Biquad Filter block can operate in three different modes:
Dialog parameters
— Enter information about the
filter, such as structure and coefficients, in the block mask.
Input port(s)
— Enter information about the filter
structure in the block mask using the Filter structure parameter. The
filter coefficients come into the block through additional input ports that appear on the
block icon:
Num
— Specify numerator coefficients.
Den
— Specify denominator coefficients.
g
— Specify scale values.
The block assumes the first denominator coefficients and of each section to be 1.
This configuration is applicable when the SOSMatrixSource
property is
'Input port'
and the ScaleValuesInputPort
property is true
. The reason you would need to specify Num and Den
instead of the SOSMatrix, is that in FixedPoint operation, the numerators, and
denominators can have different fraction lengths. Therefore, there is a need to be able to
pass the data of the numerator with a fixedpoint type different from that of the
denominator.
Filter object
— Specify the filter using a dsp.BiquadFilter
System
object.
Filter
— Name of filter objectBQF
(default)  dsp.BiquadFilter
System
object
nameSpecify the name of the discretetime filter that you want the block to implement. You
must specify the filter as a dsp.BiquadFilter
System
object.
You can define the System object in the block mask or in a MATLAB^{®} workspace variable.
For information on creating System objects, see Define Basic System Objects (MATLAB).
This parameter is visible only when Coefficient source is set to
Filter object
.
Filter structure
— Filter structureDirect form II transposed
(default)  Direct form I
 Direct form I transposed
 Direct form II
Specify the filter structure.
This parameter is visible only when Coefficient source is set to
Dialog parameters
or Input
port(s)
.
SOS Matrix (Mx6)
— SOS matrix[1 0.3 0.4 1 0.1 0.2]
(default)  Mby6 matrixSpecify an Mby6 matrix, where M is the number of sections in the secondorder section filter. Each row of the SOS matrix contains the numerator and denominator coefficients (b_{ik} and a_{ik}) of the corresponding section in the filter.
$$\left[\begin{array}{cccccc}{b}_{01}& {b}_{11}& {b}_{21}& {a}_{01}& {a}_{11}& {a}_{21}\\ {b}_{02}& {b}_{12}& {b}_{22}& {a}_{02}& {a}_{12}& {a}_{22}\\ \vdots & \vdots & \vdots & \vdots & \vdots & \vdots \\ {b}_{0M}& {b}_{1M}& {b}_{2M}& {a}_{0M}& {a}_{1M}& {a}_{2M}\end{array}\right]$$
The leading denominator coefficients [a_{01} a_{02} ... a_{0N}] are treated as 1s, regardless of their actual values. No scaling is applied to the SOS matrix when a0 is not 1.
The ss2sos
and tf2sos
functions convert a statespace or transfer function description of your
filter into the secondorder section description used by this block.
This parameter is visible only when Coefficient source is set to
Dialog parameters
.
Scale values
— Scale values1
(default)  scalar  vectorSpecify scale values to be used between SOS sections. You can specify a realvalued scalar or a vector of length M+1:
When you enter a scalar, the value specifies the gain value before the first section of the secondorder filter. The rest of the gain values default to 1.
When you enter a vector of M+1 values, each value specifies a separate section of the filter. For example, the first element is the first gain value, the second element is the second gain value, and so on.
Select the Optimize unity scale values check box to optimize your simulation when one or more scale values equal 1. Selecting this option removes the unity gains so that the values are treated like Simulink lines or wires. In some fixedpoint cases when there are unity scale values, selecting this parameter also omits certain casts. Refer to the FixedPoint Conversion section under Extended Capabilities for more information.
This parameter is visible only when Coefficient source is set to
Dialog parameters
.
Initial conditions
— Initial conditions0
(default)  scalar  vectorSpecify the initial conditions of the filter states.
The Biquad Filter block initializes the internal filter states to zero by default. Optionally, use the Initial conditions parameter to specify nonzero initial states for the filter delays.
To determine the number of initial conditions you must specify and how to specify them, see the following table on valid initial conditions.
Valid Initial Conditions
Initial Condition  Description

Scalar  The block initializes all delay elements in the filter to the scalar value.
Vector or matrix  Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel. M is the number of sections, and N is the number of input channels:

This parameter is only visible when Coefficient source is set to
Dialog parameters
or Input port(s)
and the Filter structure is set to Direct form
II
or Direct form II transposed
.
Initial conditions on zeros side
— Initial conditions on zeros side0
(default)  scalar  vectorSpecify the initial conditions for the filter states on the side of the filter structure with the zeros (b_{0}, b_{1},b_{2}, ...).
The Biquad Filter block initializes the internal filter states to zero by default. Optionally, use the Initial conditions on zeros side parameter to specify nonzero initial states for the filter delays. For an example, see ex_biquad_filter_ref.
To determine the number of initial conditions you must specify and how to specify them, see the following table on valid initial conditions.
Valid Initial Conditions
Initial Condition  Description

Scalar  The block initializes all delay elements in the filter to the scalar value.
Vector or matrix  Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel. Where M is the number of sections and N is the number of input channels:

This parameter is visible only when Coefficient source is set to
Dialog parameters
or Input port(s)
and the Filter structure is set to Direct form
I
or Direct form I transposed
.
Initial conditions on poles side
— Initial conditions on poles side0
(default)  scalar  vectorSpecify the initial conditions for the filter states on the side of the filter structure with the poles (a_{0}, a_{1}, a_{2}, ...).
The Biquad Filter block initializes the internal filter states to zero by default. Optionally, use the Initial conditions on poles side parameter to specify nonzero initial states for the filter delays. For an example, see ex_biquad_filter_ref.
To determine the number of initial conditions you must specify and how to specify them, see the following table on valid initial conditions.
Valid Initial Conditions
Initial Condition  Description

Scalar  The block initializes all delay elements in the filter to the scalar value.
Vector or matrix  Each vector or matrix element specifies a unique initial condition for a corresponding delay element in a corresponding channel. Where M is the number of sections and N is the number of input channels:

This parameter is visible only when Coefficient source is set to
Dialog parameters
or Input port(s)
and the Filter structure is set to Direct form
I
or Direct form I transposed
.
Scale values mode
— Mode to specify scale valuesSpecify via input port (g)
(default)  Assume all are unity and optimize
Choose how to specify the scale values to use between filter sections. When you select
Specify via input port (g)
, you enter the scale values as a 2D
vector at port g. When you select Assume all are unity and
optimize
, all scale values are removed and treated like Simulink lines or
wires.
This parameter is visible only when Coefficient source is set to
Input port(s)
.
Action when the a0 values of the SOS matrix are not one
— Action when a0 values of SOS matrix are not oneWarning
(default)  None
 Error
Specify the action the block should perform when the SOS matrix
a_{0j} values do not equal one. The action can be
Warning
, Error
, or
None
.
When you choose None
, the leading coefficients
a_{0j} are treated as 1's, regardless of their
actual values. No scaling is applied on the SOS matrix when a0 is not
1.
This parameter is visible only when Coefficient source is set to
Dialog parameters
.
Optimize unity scale values
— Optimize unity scale valueson
(default)  off
Select this check box to optimize your simulation when one or more scale values equal 1. Selecting this option removes the unity gains so that the values are treated like Simulink lines or wires. In some fixedpoint cases when there are unity scale values, selecting this parameter also omits certain casts. See the Fixed Point section under Extended Capabilities for more information.
This parameter is visible only when Coefficient source is set to
Dialog parameters
.
Input processing
— Input processingColumns as channels (frame based)
(default)  Elements as channels (sample based)
Specify how the block should process the input. If the input is an MbyN matrix, you can set this parameter to:
Columns as channels (frame based)
(default) — The
block treats each column as a separate channel. In this mode, the block creates
M instances of the same filter, each with its own independent state
buffer. Each of the M filters process N input samples
at every Simulink time step.
Elements as channels (sample based)
— The block
treats each element as a separate channel. In this mode, the block creates
MN instances of the same filter, each with its own
independent state buffer. Each filter processes one input sample at every Simulink time step.

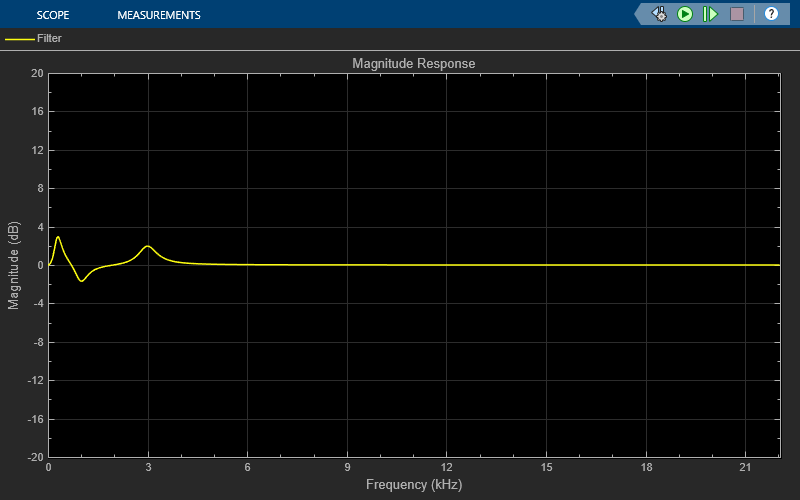

View Filter Response
— View filter responseThis button opens the Filter Visualization Tool (fvtool
) and displays the filter response of the filter specified in the
dialog.
When you make changes to the filter parameters on the block dialog, you must click the Apply button before using the View Filter Response button.
This tab appears only when you set Coefficient source to either
Dialog parameters
or Input port(s)
. When
the Coefficient source is set to Filter object
,
the data types specified in the filter object properties are used by the block.
Rounding mode
— Rounding modeFloor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Simplest
 Zero
Specify the rounding mode for fixedpoint operations.
For more details, see rounding mode. The filter
coefficients do not obey this parameter; instead, they always round to
Nearest
.
Saturate on integer overflow
— Method of overflow actionoff
(default)  on
When you select this parameter, the block saturates the result of its fixedpoint
operation. When you clear this parameter, the block wraps the result of its fixedpoint
operation. For details on saturate
and wrap
, see overflow mode for fixedpoint operations.
The filter coefficients are always saturated and do not obey this parameter.
Section input
— Section input data typeSame as input
(default)  Binary point scaling
Choose how you specify the word and fraction lengths of the fixedpoint data type going into each section of a biquadratic filter. See the FixedPoint Conversion section under Extended Capabilities for illustrations depicting the use of the section input data type in this block. When you select:
Same as input
— Word length and fraction length
characteristics of the Section input data type match those of the
input to the block.
Binary point scaling
— Enter the word and fraction
lengths of the section input, in bits.
Section output
— Section output data typeSame as section input
(default)  Binary point scaling
Choose how you specify the word and fraction lengths of the fixedpoint data type coming out of each section of a biquadratic filter. See the FixedPoint Conversion section under Extended Capabilities for illustrations depicting the use of the section output data type in this block. When you select:
Same as section input
— Word length and fraction
length characteristics of the Section output data type match with
those of the input to the block.
Binary point scaling
— Enter the word and fraction
lengths of the section output, in bits.
Multiplicand
— Multiplicand data typeSame as output
(default)  Binary point scaling

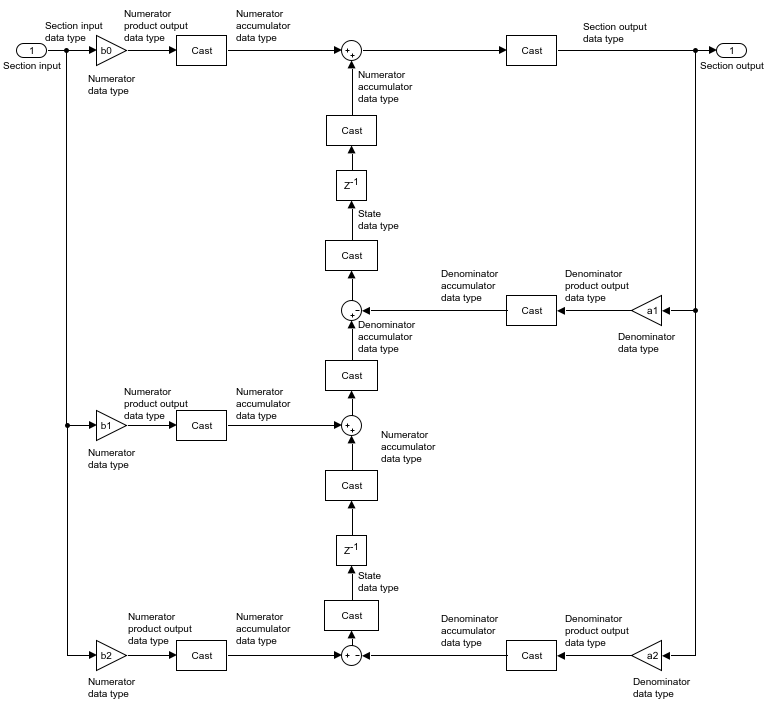

Choose how you specify the word and fraction lengths of the multiplicand data type of a

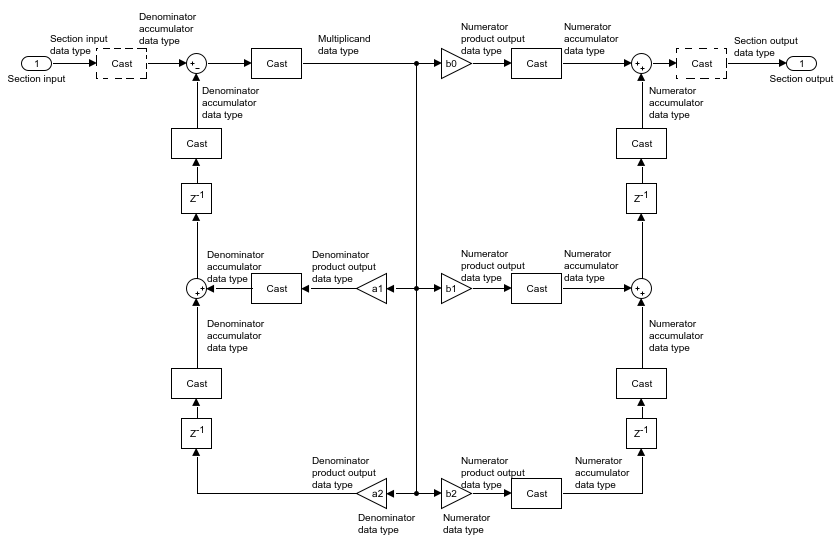

Direct form I transposed
filter structure. See the
FixedPoint Conversion section under Extended
Capabilities for illustrations depicting the use of the multiplicand data type in
this block.
When you select:
Same as output
— Word length and fraction length
characteristics of the Multiplicand data type match with those of the
output of the block.
Binary point scaling
— Enter the word length and the
fraction length of the multiplicand, in bits.
This parameter is visible only when the Filter structure parameter
is set to Direct form I transposed
.
Coefficients
— Coefficients data typeSame word length as input
(default)  Specify word length
 Binary point scaling
Choose how you specify the word and fraction lengths of the filter coefficients
(numerator, denominator, and scale value) when Coefficient source is set
to Dialog parameters
. See the FixedPoint
Conversion section under Extended Capabilities for
illustrations depicting the use of the coefficient data types in this block. When you select:
Same word length as input
— Word length of the
filter coefficients matches that of the input to the block. In this mode, the block
automatically sets the fraction length of the coefficients to the binary pointonly scaling
that provides the best precision possible given the value and word length of the
coefficients.
Specify word length
— Enter the word length of the
coefficients, in bits. In this mode, the block automatically sets the fraction length of
the coefficients to the binary pointonly scaling that provides the best precision possible
given the value and word length of the coefficients.
Binary point scaling
— Enter the word length and the
fraction length of the coefficients, in bits. If applicable, enter separate fraction
lengths for the numerator and denominator coefficients.
The filter coefficients do not obey the Rounding mode and the
Overflow mode parameters; instead, they are always saturated and
rounded to Nearest
.
This parameter is visible only when Coefficient source is set to
Dialog parameters
.
Product output
— Product output data typeSame as input
(default)  Inherit via internal rule
 Binary point scaling
Specify how to designate the product output word and fraction lengths. See Multiplication Data Types and the FixedPoint Conversion section under Extended Capabilities for illustrations depicting the use of the product output data type in this block. When you select:
Same as input
— Product output word length and
fraction length characteristics match those of the input to the block.
Inherit via internal rule
— Product output word
length and fraction lengths are computed based on fullprecision rules. These rules prevent
quantization from occurring within the block. Bits are added, as needed, so that no
roundoff or overflow occurs. For more details, see Inherit via Internal Rule.
Binary point scaling
— Enter the word length and the
fraction length of the product output, in bits. If applicable, enter separate fraction
lengths for the numerator and denominator product output data type.
Accumulator
— Accumulator data typeSame as product output
(default)  Same as input
 Binary point scaling
Specify how to designate the accumulator word and fraction lengths. See Multiplication Data Types and the FixedPoint Conversion section under Extended Capabilities for illustrations depicting the use of the accumulator data type in this block. When you select:
Same as input
— Accumulator word and fraction length
characteristics match those of the input to the block.
Same as product output
— Accumulator word and
fraction length characteristics match those of the product output.
Binary point scaling
— Enter the word length and the
fraction length of the accumulator, in bits. If applicable, enter separate fraction lengths
for the numerator and denominator accumulator data type.
States
— States data typeSame as accumulator
(default)  Same as input
 Binary point scaling
Specify how to designate the state word and fraction lengths when Coefficient
source is set to Dialog parameters
. See the
FixedPoint Conversion section under Extended
Capabilities for illustrations depicting the use of the state data type in this
block.
When you select:
Same as input
— State word and fraction length
characteristics match those of the input to the block.
Same as accumulator
— State word and fraction length
characteristics match those of the accumulator.
Binary point scaling
— Enter the word length and the
fraction length of the state, in bits. If applicable, enter separate fraction lengths for
the numerator and denominator state data type.
This parameter is visible only when Filter structure is set to
Direct form II
or Direct form II
transposed
.
Output
— Output data typeSame as accumulator
(default)  Same as input
 Binary point scaling
Choose how you specify the output word length and fraction length. See the FixedPoint Conversion section under Extended Capabilities for illustrations depicting the use of the output data type in this block. When you select:
Same as input
— Output word and fraction length
characteristics match those of the input to the block.
Same as accumulator
— Output word and fraction
length characteristics match those of the accumulator.
Binary point scaling
— Enter the word length and the
fraction length of the output, in bits.
Lock data type settings against changes by the fixedpoint tools
— Lock data type settingsoff
(default)  on
Select this parameter to prevent the fixedpoint tools from overriding the data types you specify on the block mask.
Data Types

Multidimensional Signals

VariableSize Signals

This block supports HDL code generation using HDL Coder™. HDL Coder provides additional configuration options that affect HDL implementation and synthesized logic. For more information on implementations, properties, and restrictions for HDL code generation, see Biquad Filter.
If the input is fixedpoint, it must be signed integer or signed fixed point with poweroftwo slope and zero bias.
The diagrams in the following sections show the filter structures supported by the Biquad Filter block. They also show the data types used in the filter structures for fixedpoint signals. You can set the data types shown in these diagrams in the block dialog box.

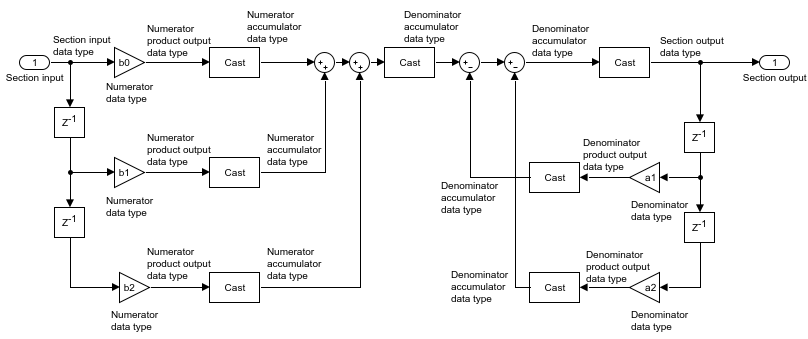

The following diagram shows the data types for one section of the filter for fixedpoint signals.
The following diagrams show the fixedpoint data types between filter sections.
When the data is not optimized:
When you select Optimize unity scale values and scale values equal 1:

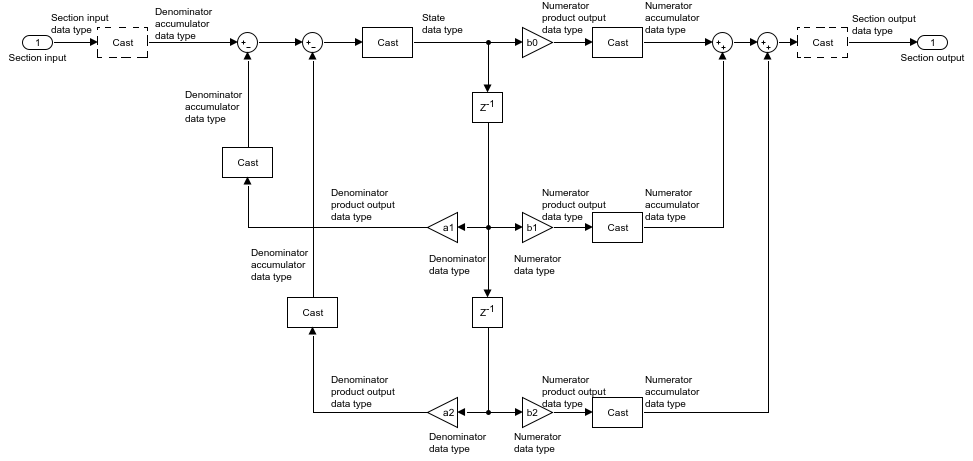

The following diagram shows the data types for one section of the filter for fixedpoint signals.
The dashed casts are omitted when Optimize unity scale values is selected and scale values equal one.
The following diagrams show the fixedpoint data types between filter sections.
When the data is not optimized:
When you select Optimize unity scale values and scale values equal 1:
The following diagram shows the data types for one section of the filter for fixedpoint signals.
The dashed casts are omitted when Optimize unity scale values is selected and scale values equal one.
The following diagrams show the fixedpoint data types between filter sections.
When the data is not optimized:
When you select Optimize unity scale values and scale values equal 1:
The following diagram shows the data types for one section of the filter for fixedpoint signals.
The following diagrams show the fixedpoint data types between filter sections.
When the data is not optimized:
When you select Optimize unity scale values and scale values equal 1:
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
