Fuzzy C-Means Clustering

This example shows how to perform fuzzy c-means clustering on 2-dimensional data.

What Is Fuzzy C-Means Clustering?

Clustering of numerical data forms the basis of many classification and system modeling algorithms. The purpose of clustering is to identify natural groupings of data from a large data set to produce a concise representation of a system's behavior.

Fuzzy c-means (FCM) is a data clustering technique in which a dataset is grouped into n clusters with every datapoint in the dataset belonging to every cluster to a certain degree. For example, a certain datapoint that lies close to the center of a cluster will have a high degree of belonging or membership to that cluster and another datapoint that lies far away from the center of a cluster will have a low degree of belonging or membership to that cluster.

The Fuzzy Logic Toolbox™ function fcm performs FCM clustering. It starts with an initial guess for the cluster centers, which are intended to mark the mean location of each cluster. The initial guess for these cluster centers is most likely incorrect. Next, fcm assigns every data point a membership grade for each cluster. By iteratively updating the cluster centers and the membership grades for each data point, fcm iteratively moves the cluster centers to the right location within a data set. This iteration is based on minimizing an objective function that represents the distance from any given data point to a cluster center weighted by that data point's membership grade.

Interactive Fuzzy C-Means Clustering Example

Using the fcmdemo command, you can launch a GUI that lets you try out various parameter settings for the fuzzy c-means algorithm and observe the effect on the resulting 2-D clustering. You can choose a sample data set and an arbitrary number of clusters from the drop down menus on the right, and then click "Start" to start the fuzzy c-means clustering process. The clustering itself is performed by the fcm function.

Figure 1: GUI for Fuzzy C-Means Clustering.

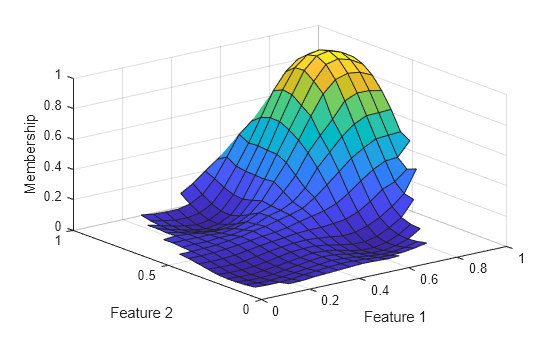

Once the clustering is done, you can select one of the clusters by clicking on it, and view the membership function surface by clicking the "Plot MF" button. To get a better viewing angle, click and drag inside the figure to rotate the MF surface.

You can also tune the 3 optional parameters for the FCM algorithm (exponent, maximum number of iterations and minimum amount of improvement) from the GUI and observe how the clustering process is consequently altered.

Performing Fuzzy C-Means Clustering on Your Own Data

The function fcm takes a data set and a desired number of clusters and returns optimal cluster centers and membership grades for each data point. You can use this information to build a fuzzy inference system by creating membership functions that represent the fuzzy qualities of each cluster.

Here is the underlying code that performs the clustering.

data = load('fcmdata.dat');  % load some sample data
n_clusters = 3;              % number of clusters
[center,U,obj_fcn] = fcm(data, n_clusters);
Iteration count = 1, obj. fcn = 6.379151
Iteration count = 2, obj. fcn = 4.907101
Iteration count = 3, obj. fcn = 4.847428
Iteration count = 4, obj. fcn = 4.447136
Iteration count = 5, obj. fcn = 3.306271
Iteration count = 6, obj. fcn = 2.422911
Iteration count = 7, obj. fcn = 2.180720
Iteration count = 8, obj. fcn = 2.109423
Iteration count = 9, obj. fcn = 2.084711
Iteration count = 10, obj. fcn = 2.075537
Iteration count = 11, obj. fcn = 2.071419
Iteration count = 12, obj. fcn = 2.069188
Iteration count = 13, obj. fcn = 2.067795
Iteration count = 14, obj. fcn = 2.066845
Iteration count = 15, obj. fcn = 2.066166
Iteration count = 16, obj. fcn = 2.065670
Iteration count = 17, obj. fcn = 2.065304
Iteration count = 18, obj. fcn = 2.065032
Iteration count = 19, obj. fcn = 2.064830
Iteration count = 20, obj. fcn = 2.064679
Iteration count = 21, obj. fcn = 2.064567
Iteration count = 22, obj. fcn = 2.064482
Iteration count = 23, obj. fcn = 2.064419
Iteration count = 24, obj. fcn = 2.064372
Iteration count = 25, obj. fcn = 2.064337
Iteration count = 26, obj. fcn = 2.064310
Iteration count = 27, obj. fcn = 2.064291
Iteration count = 28, obj. fcn = 2.064276
Iteration count = 29, obj. fcn = 2.064265
Iteration count = 30, obj. fcn = 2.064256
