Estimate and validate nonlinear models from single-input/single-output (SISO) data to find the one that best represents your system dynamics.

After completing this tutorial, you will be able to accomplish
the following tasks using the **System Identification** app:

Import data objects from the MATLAB

^{®}workspace into the app.Estimate and validate nonlinear models from the data.

Plot and analyze the behavior of the nonlinearities.

This tutorial uses the data file
`twotankdata.mat`

, which contains
SISO time-domain data for a two-tank system, shown in the
following figure.

**Two-Tank System**

In the two-tank system, water pours through a pipe into Tank
1, drains into Tank 2, and leaves the system through a small
hole at the bottom of Tank 2. The measured input
*u(t)* to the system is the
voltage applied to the pump that feeds the water into Tank 1
(in volts). The measured output *y(t)* is
the height of the water in the lower tank (in
meters).

Based on Bernoulli's law, which states that water flowing through a small hole at the bottom of a tank depends nonlinearly on the level of the water in the tank, you expect the relationship between the input and the output data to be nonlinear.

`twotankdata.mat`

includes 3000 samples with
a sample time of 0.2 s.

You can estimate nonlinear discrete-time black-box models for both single-output and multiple-output time-domain data. You can choose from two types of nonlinear, black-box model structures:

Nonlinear ARX models

Hammerstein-Wiener models

**Note**

You can estimate Hammerstein-Wiener black-box models from input/output data only. These models do not support time-series data, where there is no input.

For more information on estimating nonlinear black-box models, see Nonlinear Model Identification.

A nonlinear ARX model consists of model regressors and an output function. The output function includes linear and nonlinear functions that act on the model regressors to give the model output and a fixed offset for that output. This block diagram represents the structure of a nonlinear ARX model in a simulation scenario.

The software computes the nonlinear ARX model output *y* in
two stages:

It computes regressor values from the current and past input values and the past output data.

In the simplest case, regressors are delayed inputs and outputs, such as

*u*(*t*–1) and*y*(*t*–3). These kind of regressors are called*linear regressors*. You specify linear regressors using the`linearRegressor`

object. You can also specify linear regressors by using linear ARX model orders as an input argument. For more information, see Nonlinear ARX Model Orders and Delay. However, this second approach constrains your regressor set to linear regressors with consecutive delays. To create*polynomial regressors*, use the`polynomialRegressor`

object. You can also specify*custom regressors*, which are nonlinear functions of delayed inputs and outputs. For example,*u*(*t*–1)*y*(*t*–3) is a custom regressor that multiplies instances of input and output together. Specify custom regressors using the`customRegressor`

object.You can assign any of the regressors as inputs to the linear function block of the output function, the nonlinear function block, or both.

It maps the regressors to the model output using an output function block. The output function block can include linear and nonlinear blocks in parallel. For example, consider the following equation:

$$F(x)={L}^{T}(x-r)+g\left(Q(x-r)\right)+d$$

Here,

*x*is a vector of the regressors, and*r*is the mean of*x*. $$F(x)={L}^{T}(x-r)+{y}_{0}$$ is the output of the linear function block. $$g\left(Q(x-r)\right)+{y}_{0}$$ represents the output of the nonlinear function block.*Q*is a projection matrix that makes the calculations well-conditioned.*d*is a scalar offset that is added to the combined outputs of the linear and nonlinear blocks. The exact form of*F*(*x*) depends on your choice of output function. You can select from the available mapping objects, such as tree-partition networks, wavelet networks, and multilayer neural networks. You can also exclude either the linear or the nonlinear function block from the output function.When estimating a nonlinear ARX model, the software computes the model parameter values, such as

*L*,*r*,*d*,*Q*, and other parameters specifying*g*.

The resulting nonlinear ARX models are `idnlarx`

objects that store all model data, including model regressors and
parameters of the output function. For more information about these objects, see Nonlinear Model Structures.

This block diagram represents the structure of a Hammerstein-Wiener model:

Where,

*f*is a nonlinear function that transforms input data*u*(*t*) as*w*(*t*) =*f*(*u*(*t*)).*w*(*t*), an internal variable, is the output of the Input Nonlinearity block and has the same dimension as*u*(*t*).*B/F*is a linear transfer function that transforms*w*(*t*) as*x*(*t*) = (*B/F*)*w*(*t*).*x*(*t*), an internal variable, is the output of the Linear block and has the same dimension as*y*(*t*).*B*and*F*are similar to polynomials in a linear Output-Error model. For more information about Output-Error models, see What Are Polynomial Models?.For

*ny*outputs and*nu*inputs, the linear block is a transfer function matrix containing entries:$$\frac{{B}_{j,i}(q)}{{F}_{j,i}(q)}$$

where

*j*=`1,2,...,ny`

and*i*=`1,2,...,nu`

.*h*is a nonlinear function that maps the output of the linear block*x*(*t*) to the system output*y*(*t*) as*y*(*t*) =*h*(*x*(*t*)).

Because *f* acts on the input port of the linear
block, this function is called the *input nonlinearity*.
Similarly, because *h* acts on the output port of
the linear block, this function is called the *output nonlinearity*.
If your system contains several inputs and outputs, you must define
the functions *f* and *h* for each
input and output signal. You do not have to include both the input
and the output nonlinearity in the model structure. When a model contains
only the input nonlinearity *f*, it is called a *Hammerstein* model.
Similarly, when the model contains only the output nonlinearity *h*,
it is called a *Wiener* model.

The software computes the Hammerstein-Wiener model output *y* in
three stages:

Compute

*w*(*t*) =*f*(*u*(*t*)) from the input data.*w*(*t*) is an input to the linear transfer function*B/F*.The input nonlinearity is a static (

*memoryless*) function, where the value of the output a given time*t*depends only on the input value at time*t*.You can configure the input nonlinearity as a sigmoid network, wavelet network, saturation, dead zone, piecewise linear function, one-dimensional polynomial, or a custom network. You can also remove the input nonlinearity.

Compute the output of the linear block using

*w*(*t*) and initial conditions:*x*(*t*) = (*B/F*)*w*(*t*).You can configure the linear block by specifying the orders of numerator

*B*and denominator*F*.Compute the model output by transforming the output of the linear block

*x*(*t*) using the nonlinear function*h*as*y*(*t*) =*h*(*x*(*t*)).Similar to the input nonlinearity, the output nonlinearity is a static function. You can configure the output nonlinearity in the same way as the input nonlinearity. You can also remove the output nonlinearity, such that

*y*(*t*) =*x*(*t*).

Resulting models are `idnlhw`

objects
that store all model data, including model parameters and nonlinearity
estimators. For more information about these objects, see Nonlinear Model Structures.

Load sample data in `twotankdata.mat`

by
typing the following command in the MATLAB Command Window:

```
load twotankdata
```

This command loads the following two variables into the MATLAB Workspace browser:

`u`

is the input data, which is the voltage applied to the pump that feeds the water into Tank 1 (in volts).`y`

is the output data, which is the water height in Tank 2 (in meters).

System Identification Toolbox™ data objects encapsulate both data values and data properties into a single entity. You can use the System Identification Toolbox commands to conveniently manipulate these data objects as single entities.

You must have already loaded the sample data into the MATLAB workspace, as described in Load Data into the MATLAB Workspace.

Use the following commands to create two `iddata`

data objects, `ze`

and
`zv`

, where `ze`

contains data for model estimation and `zv`

contains data for model validation. `Ts`

is
the sample time.

Ts = 0.2; % Sample time is 0.2 sec z = iddata(y,u,Ts); % First 1000 samples used for estimation ze = z(1:1000); % Remaining samples used for validation zv = z(1001:3000);

To view the properties of the `iddata`

object, use the `get`

command. For example:

get(ze)

MATLAB software returns the following data properties and values:

Domain: 'Time' Name: '' OutputData: [1000x1 double] y: 'Same as OutputData' OutputName: {'y1'} OutputUnit: {''} InputData: [1000x1 double] u: 'Same as InputData' InputName: {'u1'} InputUnit: {''} Period: Inf InterSample: 'zoh' Ts: 0.2000 Tstart: 0.2000 SamplingInstants: [1000x0 double] TimeUnit: 'seconds' ExperimentName: 'Exp1' Notes: {} UserData: []

To modify data properties, use dot notation. For example, to assign channel names and units that label plot axes, type the following syntax in the MATLAB Command Window:

% Set time units to minutes ze.TimeUnit = 'sec'; % Set names of input channels ze.InputName = 'Voltage'; % Set units for input variables ze.InputUnit = 'V'; % Set name of output channel ze.OutputName = 'Height'; % Set unit of output channel ze.OutputUnit = 'm'; % Set validation data properties zv.TimeUnit = 'sec'; zv.InputName = 'Voltage'; zv.InputUnit = 'V'; zv.OutputName = 'Height'; zv.OutputUnit = 'm';

To verify that the `InputName`

property of
`ze`

is changed, type the following
command:

ze.inputname

**Tip**

Property names, such as `InputName`

,
are not case sensitive. You can also abbreviate
property names that start with
`Input`

or
`Output`

by substituting
`u`

for `Input`

and `y`

for
`Output`

in the property name.
For example, `OutputUnit`

is
equivalent to `yunit`

.

To open the **System Identification** app, type the
following command in the MATLAB Command Window:

systemIdentification

The default session name, `Untitled`

, appears
in the title bar.

You can import the data objects into the app from the MATLAB workspace.

You must have already created the data objects, as described in Creating iddata Objects, and opened the app, as described in Start the System Identification App.

To import data objects:

In the

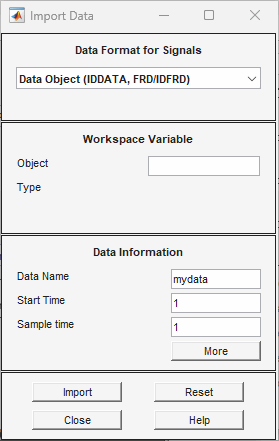

**System Identification**app, select**Import data**>**Data object**.This action opens the Import Data dialog box.

Enter

`ze`

in the**Object**field to import the estimation data. Press**Enter**.This action enters the object information into the Import Data fields.

Click

**More**to view additional information about this data, including channel names and units.Click

**Import**to add the icon named`ze`

to the**System Identification**app.In the Import Data dialog box, type

`zv`

in the**Object**field to import the validation data. Press**Enter**.Click

**Import**to add the icon named`zv`

to the**System Identification**app.In the Import Data dialog box, click

**Close**.In the

**System Identification**app, drag the validation data**zv**icon to the**Validation Data**rectangle. The estimation data**ze**icon is already designated in the**Working Data**rectangle.Alternatively, right-click the

`zv`

icon to open the Data/model Info dialog box. Select the**Use as Validation Data**check-box. Click**Apply**and then**Close**to add`zv`

to the**Validation Data**rectangle.The

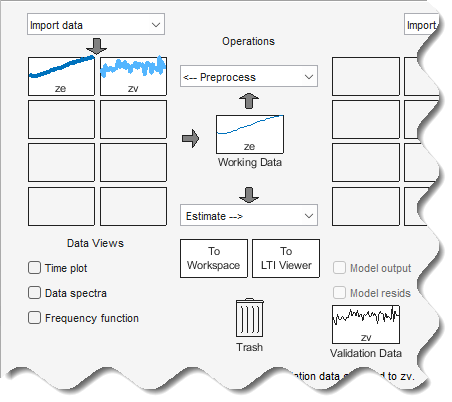

**System Identification**app now resembles the following figure.

In this portion of the tutorial, you estimate a nonlinear ARX model using default model structure and estimation options.

You must have already prepared the data, as described in Prepare Data. For more information about nonlinear ARX models, see What Is a Nonlinear ARX Model?.

**Note**

The illustrations in this tutorial represent a typical **System
Identification** app session. Your results may not precisely match the results in
the images.

In the

**System Identification**app, select**Estimate**>**Nonlinear models**.This action opens the

**Estimate Nonlinear ARX Models**dialog box.The dialog box contains two tabs —

**Model Structure**and**Estimation Options**.The

**Model Structure**tab contains parameters that configure the structure of the model, such as the choice of the regressors and the type of the output function. Specify the name of the model to be estimated in**Model name**. The default model name is`nlarx1`

.Use the

**Regressors**tab to create the regressor sets to use. By default, the app creates a linear regressor set with lags`[1 2]`

in each variable and stores the regressor as`Linear regressors #1`

in the**Regressor Sets**area. This panel contains a table that allows you to modify the lags to use for each variable.The configuration panel

**Configure: Linear regressors #1**contains a table that shows the lag values that the regressor set uses. You can modify these lags.The regressor assignment table

**Assign Regressors to Output Function**lists the regressor names and the regressor assignments to the output function components.The regressor assignments in the table produce a model for the output

`Height`

of:*Height*(*t*) =*f*(*Height*(*t*-1),*Height*(*t*-2),*Voltage*(*t*-1),*Voltage*(*t*-2))Here,

*f*(.) is a static nonlinear function that maps the regressors to the output. To choose*f*(.) and its associated parameters, use the**Output Function**tab.You can add more regressor sets, such as polynomials and custom formulas, by selecting a regressor type in

**Add regressors of type**.This example uses only

`Linear regressors #1`

.Select the

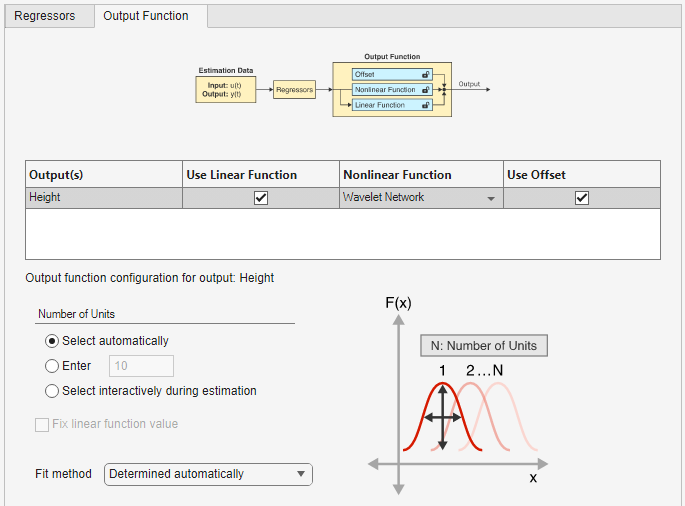

**Output Function**tab.The tab shows that the app selects

**Wavelet Network**as the default type of the output function*f*(.). This function uses a sum of a linear function, a nonlinear function (which is a sum of scaled wavelets), and an offset term to compute the output. The tab also shows a set of configuration parameters. The number of wavelets used by the function is configured to be chosen automatically during estimation. You can modify this selection. You can also modify the initial values of the linear coefficients and the offset. For the first estimate, keep the default choices.Click

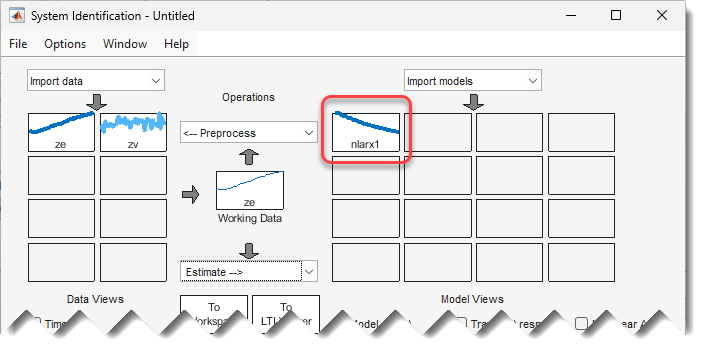

**Estimate**.This action adds the model

`nlarx1`

to the model board of the**System Identification**app, as shown in the following figure.Double click or right-click the model icon

`nlarx1`

The model board shows information about the estimated model. The top area describes the model structure and estimation results (data used, percent fit and other quality metrics). The bottom area (**Diary and Notes**) shows the MATLAB script that you can use to reproduce the estimation results at the command line.**Note****Fit (%)**is computed using the estimation data set with prediction focus. and not the validation data set. However, the model output plot in the next step compares the fit to the validation data set. To see how well the model can simulate the response of an independent validation dataset, use the**Model Output**plot, as discussed in the following step.In the

**Model Views**area of the**System Identification**app, select**Model output**. This action simulates the model using the input validation data as the input to the model and plots the simulated output on top of the output validation data.The

**Best Fits**area of the model output plot shows the agreement between the model output and the validation-data output using a normalized root mean squared (NRMSE) metric of goodness of fit. The agreement is poor in the 400-500 time span.

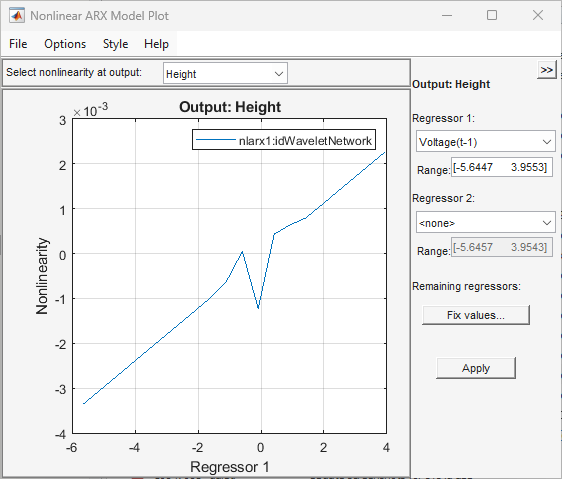

Perform the following procedure to view the shape of the nonlinearity as a function of regressors on a Nonlinear ARX Model plot.

In the

**System Identification**app, select the**Nonlinear ARX**check box to view the nonlinearity cross-sections.By default, the plot shows the relationship between the output regressors

`Height(t-1)`

and`Height(t-2)`

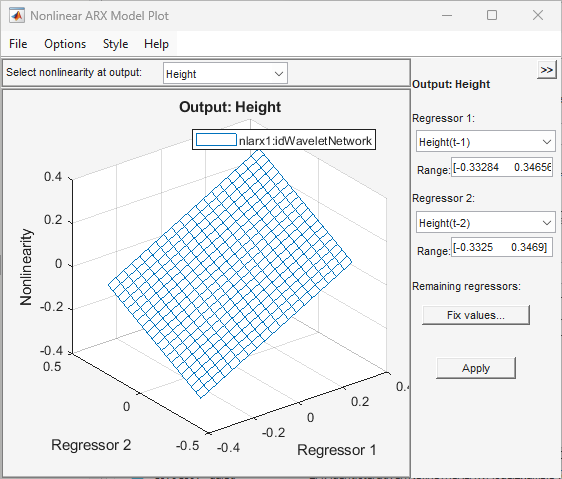

. This plot shows a regular plane in the following figure. Thus, the relationship between the regressors and the output is approximately a linear plane.In the Nonlinear ARX Model Plot window, set

**Regressor 1**to`Voltage(t-1)`

. Set**Regressor 2**to`Voltage(t-2)`

. Click**Apply**.The relationship between these regressors and the output is nonlinear, as shown in the following plot.

To rotate the nonlinearity surface, select

**Style**>**Rotate 3D**and drag the plot to a new orientation.To display a 1-D cross-section for Regressor 1, set Regressor 2 to

`none`

, and click**Apply**. The following figure shows the resulting nonlinearity magnitude for Regressor 1, which represents the time-shifted voltage signal,`Voltage(t-1)`

.

In this portion of the tutorial, you estimate a nonlinear ARX model with specific input delay and nonlinearity settings. Typically, you select model orders by trial and error until you get a model that produces an accurate fit to the data.

You must have already estimated the nonlinear ARX model with default settings, as described in Estimate Nonlinear ARX Model with Default Settings.

In the

**Estimate Nonlinear ARX Models**dialog box, select the**Model Structure**tab, and then select the**Regressors**tab.In the

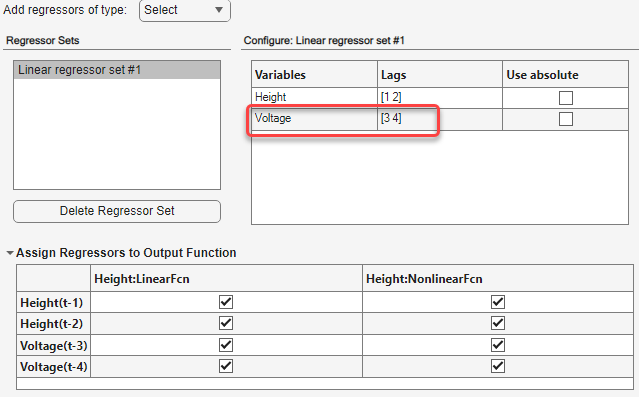

**Configure: Linear regressors #1**panel, change the`Voltage`

variable lags to`[3 4]`

. This is because the data suggests that there is a minimum of 3 sample lags between the input and the output.This action updates the regressors list to show

`Voltage(t-3)`

and`Voltage(t-4)`

—terms with a minimum delay of three samples.Click

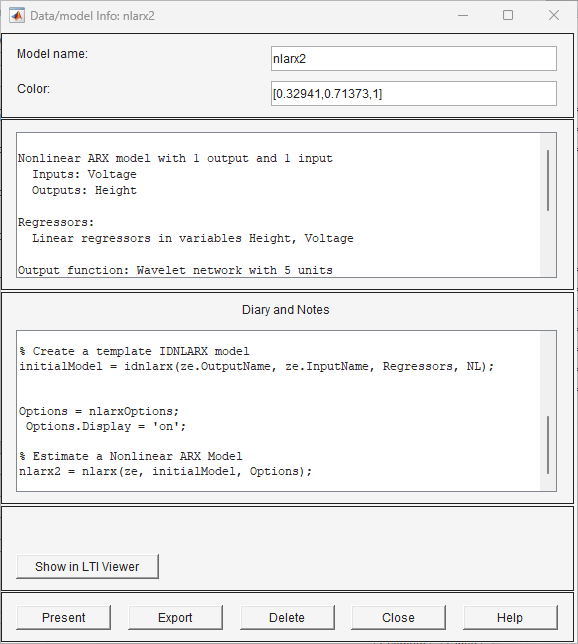

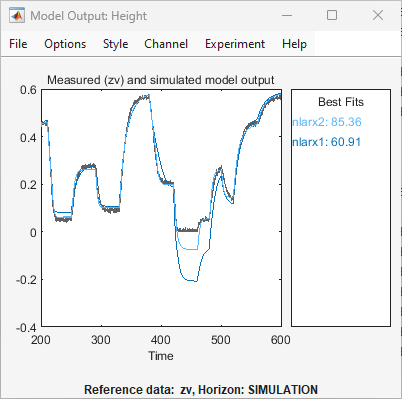

**Estimate**.This action adds the model

`nlarx2`

to the**System Identification**app and updates the**Model Output**window to include this model. Double-clicking on the`nlarx2`

icon in the model board of the main app window shows the estimation results.The app also updates the model output plot to display the fit of the model

`nlarx2`

to the validation dataset`zv`

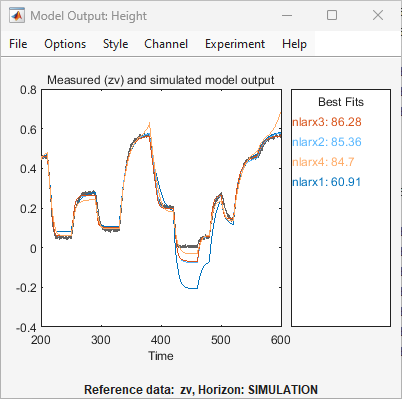

. The plot shows that the choice of correct input variable lags improves the fit.In the

**Estimate Nonlinear ARX Models**dialog box, select the**Model Structure**tab, and then select the**Regressors**tab.Select the

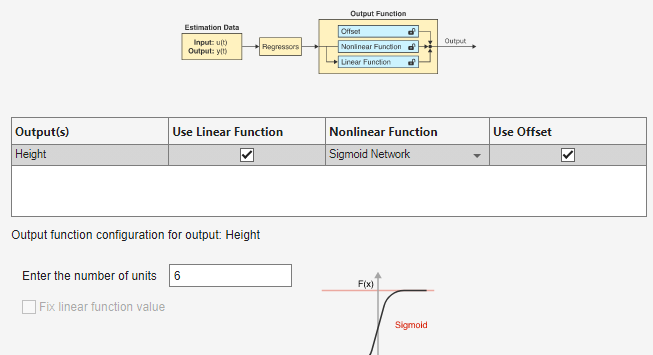

**Output Function**tab.For the

**Number of Units**, select**Enter**and enter`6`

. Setting a specific number controls the flexibility of the nonlinear function by directly specifying the number of wavelets that**Wavelet Network**uses.Click

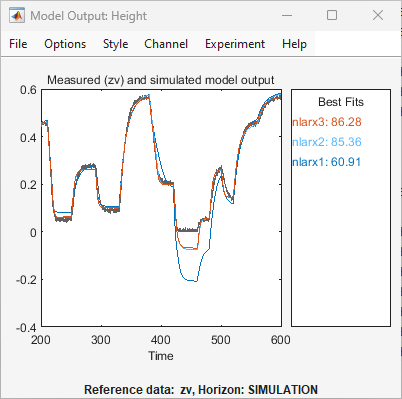

**Estimate**.This action adds the model

`nlarx3`

to the**System Identification**app. It also updates the**Model Output**window, as shown in the following figure.

You can estimate a nonlinear ARX model that use higher powers of lagged variables as regressors. In this example, you will add second-order polynomials of the lagged variables, including cross terms.

In the

**Estimate Nonlinear ARX Models**dialog, select the**Model Structure**tab and then select the**Regressors**tab.Expand

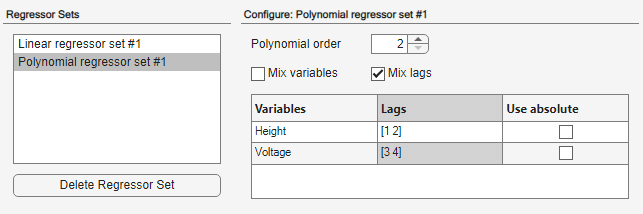

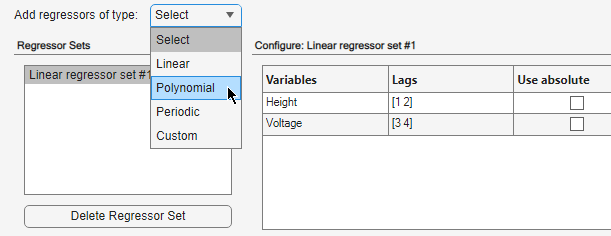

**Add regressors of type**and select**Polynomial**.This action adds a polynomial regressor set called

`Polynomial regressors #1`

to the list of regressor sets. By default, this set is configured to generate regressors of order 2, as shown in the configuration panel.Change the

`Voltage`

lags to`[3 4]`

.Select

**Include mix of variables**to include all cross terms. This action adds ten second-order regressors to the model, in addition to the four contributed by**Linear regressor #1**.Click

**Estimate**. This action adds the model`nlarx4`

to the app. The app updates the**Model Output**plot, as shown in the following figure.The plot shows that the addition of polynomial regressors has not improved the generalization ability of the model. That is, the model does not provide a better fit between the model output and the measured output for independent validation data. This result is typically the scenario with overfits, that is, when the model contains more regressors than absolutely required.

You can estimate a nonlinear ARX model that includes only a subset of regressors that enter as inputs to the nonlinear block. By default, all regressors are used in the nonlinear block. In this portion of the tutorial, you assign only a subset of the regressors to the nonlinear block.

You must have already specified the model structure, as described in Change Nonlinear ARX Model Structure.

In the

**Estimate Nonlinear ARX Models**dialog box, select the**Model Structure**tab, and then select the**Regressors**tab.If collapsed, expand the

**Assign Regressors to Output Function**panel.Clear the selections for all the second order regressors from the

**Height:NonlinearFcn**column of the table. Also, clear the selections for all the regressors with cross terms (that is, regressors composed of products of 2 terms) from**Height:LinearFcn**Click

**Estimate**.This action adds the model

`nlarx5`

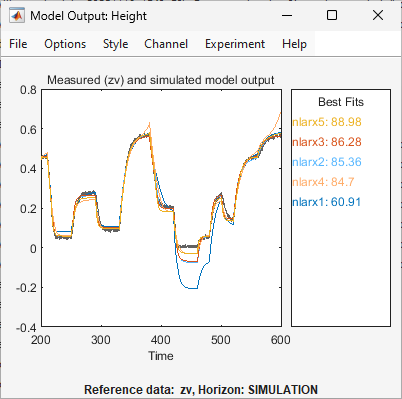

to the**System Identification**app. It also updates the**Model Output**window.

This model shows improved generalization ability.

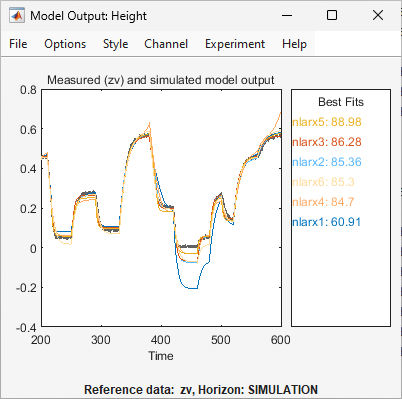

You can estimate a series of nonlinear ARX models by making systematic variations to
the model structure and base each new model on the configuration of a previously estimated
model. In this portion of the tutorial, you estimate a nonlinear ARX model that is similar
to an existing model (`nlarx3`

), but which has a different nonlinearity
in the output function.

In the

**Estimate Nonlinear ARX Models**dialog box, select the**Model Structure**tab.Select

`nlarx3`

from**Initial Model**. This sets the properties that are displayed in the**Regressors**and**Output Function**tabs to the values corresponding to`nlarx3`

.Select the

**Output Function**tab.In the table, change the choice of

**Nonlinear Function**to`Sigmoid Network`

. This sets the output function to a sigmoid network.In

**Enter the number of units**, enter`6`

.Click

**Estimate**.This action adds the model

`nlarx6`

to the**System Identification**app. It also updates the**Model Output**plot, as shown in the following figure.

The best model is the simplest model that accurately describes
the dynamics. The results indicate that model
`nlarx3`

is a candidate for
being the best idnlarx model for this data, based on the
various model structure choices that this example
explored.

Drag the `nlarx3`

icon to the
**To Workspace** box in the main **System Identification** app

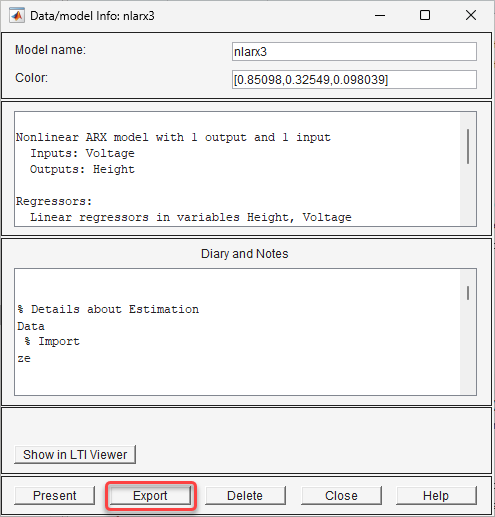

window. Alternatively, double click the `nlarx3`

icon to open its
information board. From there, click **Export** to export the model to
the base workspace.

In this portion of the tutorial, you estimate nonlinear Hammerstein-Wiener models using default model structure and estimation options.

You must have already prepared the data, as described in Prepare Data. For more information about nonlinear ARX models, see What Is a Hammerstein-Wiener Model?

**Note**

The illustrations in this tutorial represent a typical **System
Identification** app session. Your results may not precisely match the results in
the images.

In the

**System Identification**app, select**Estimate**>**Hammerstein-Wiener Models**to open the**Estimate Hammerstein-Wiener Models**dialog box. The dialog box contains two tabs —**Model Structure**and**Estimation Options**.Inspect the default model structure. The

**Model Structure**tab contains three tabs, one tab for each component of the model. These components are the input nonlinearity, the linear dynamic block, and the output nonlinearity.Select the

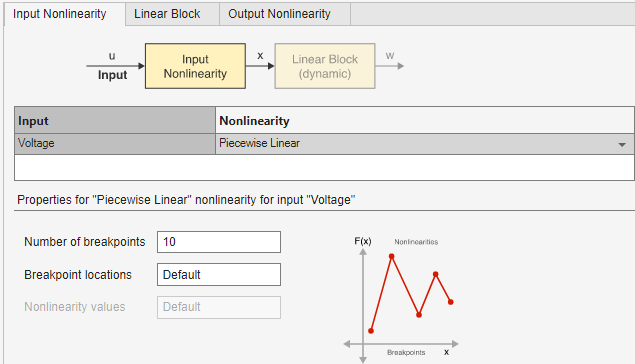

**Input Nonlinearity**tab. The default nonlinearity is a**Piecewise Linear**function with 10 breakpoints.Select the

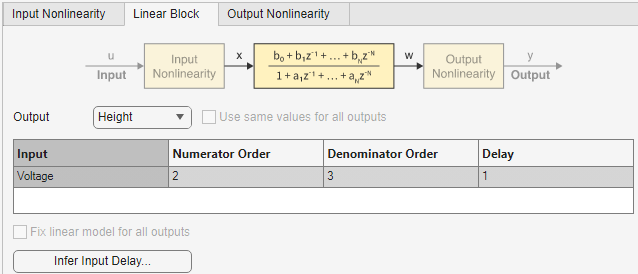

**Linear Block**tab. The linear transfer function has a numerator order of 2, which implies a second-order polynomial in*z*^{-1}, a denominator order of 3, and an input delay of 1 sample.Select the

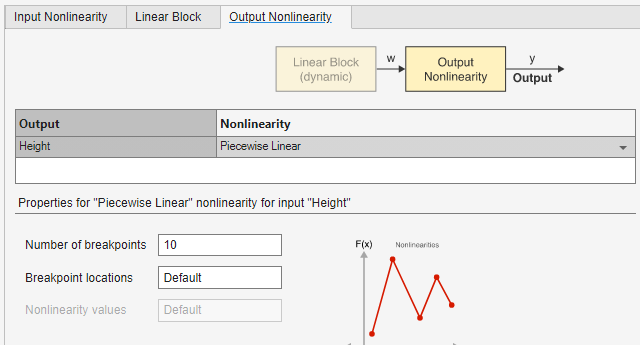

**Output Nonlinearity**tab. As with the**Input Nonlinearity**tab, the default nonlinearity is a**Piecewise Linear**function with 10 breakpoints.

Click

**Estimate**.This action estimates the parameters of the Hammerstein-Wiener model to minimize the difference between the model output and the measured output (

`ze.OutputData`

). The estimated parameters are:The breakpoint locations (x- and y-coordinates) of the input and output piecewise-linear functions.

The numerator and the denominator polynomial coefficients that compose the linear block transfer function.

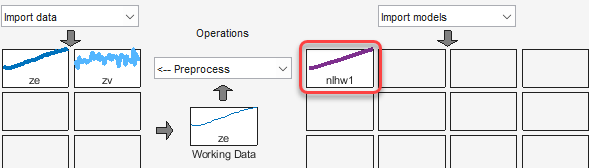

The software adds the estimated model

`nlhw1`

to the model board of the**System Identification**app.In the

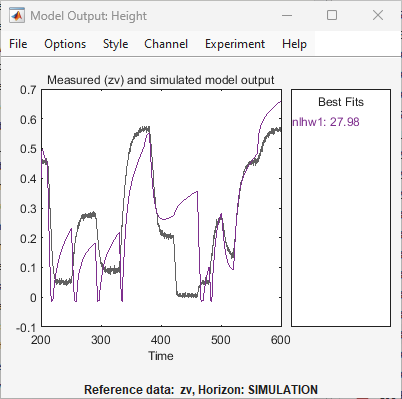

**System Identification**app, select the**Model output**check box.This action simulates the model using the input validation data as input to the model and plots the simulated output on top of the output validation data. Note that the validation data is set to

`zv`

.The

**Best Fits**area of the Model Output window shows the agreement between the model output and the validation-data output.The model

`nlhw1`

does not validate well. The fit to`zv.OutputData`

is poor.

You can plot the input/output nonlinearities and the linear transfer function of the model on a Hammerstein-Wiener plot.

In the

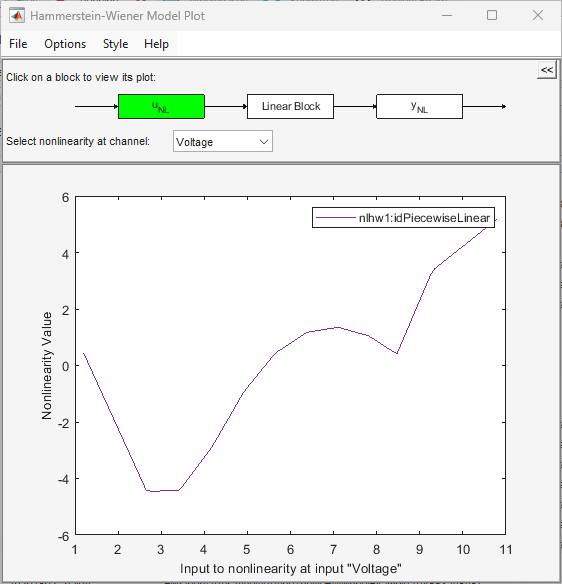

**System Identification**app, select**Hamm-Wiener**to view the Hammerstein-Wiener model plot.The plot displays the input nonlinearity, as shown in the following figure.

Click the

**y**rectangle in the top portion of the Hammerstein-Wiener Model Plot window._{NL}The plot updates to display the output nonlinearity.

Click the

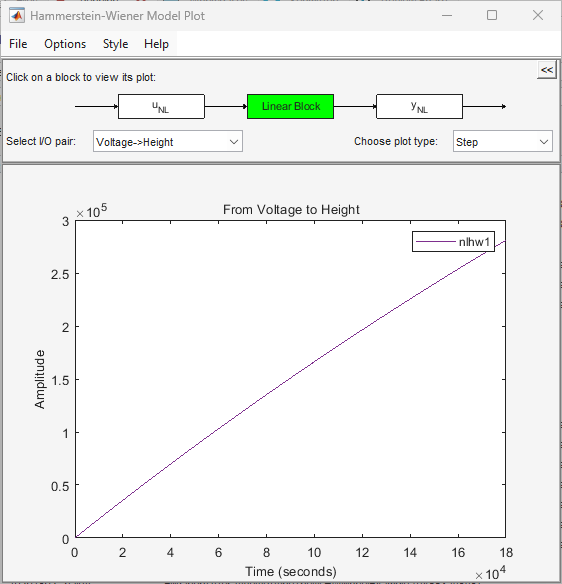

**Linear Block**rectangle in the top portion of the Hammerstein-Wiener Model Plot window.The plot updates to display the step response of the linear transfer function.

In the

**Choose plot type**list, select`Bode`

. This action displays a Bode plot of the linear transfer function.

In this portion of the tutorial, you estimate a Hammerstein-Wiener model with a specific model order and nonlinearity settings. Typically, you select model orders and delays by trial and error until you get a model that produces a satisfactory fit to the data.

You must have already estimated the Hammerstein-Wiener model with default settings, as described in Estimate Hammerstein-Wiener Models with Default Settings.

In the

**Estimate Hammerstein-Wiener**dialog box, select the**Model Structure**tab and then the**Linear Block**tab.For the

`Voltage`

input channel, double-click the corresponding**Input Delay (nk)**cell and enter the value`3`

.Click

**Estimate**.This action adds the model

`nlhw2`

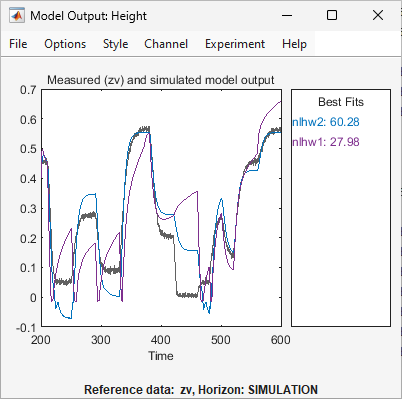

to the**System Identification**app and updates the**Model Output**plot, as shown in the following figure.The

**Best Fits**panel of the Model Output window shows the quality of the`nlhw2`

fit, which is an improvement over that of the model`nlhw1`

.

In this portion of the example, you modify the default Hammerstein-Wiener model structure by changing its nonlinearity estimator.

**Tip**

If you know that your system includes saturation or dead-zone nonlinearities, you
can specify these specialized nonlinearity estimators in your model.
`Piecewise Linear`

, ```
Wavelet
Network
```

, and `Sigmoid Network`

are
nonlinearity estimators for general nonlinearity approximation.

In the

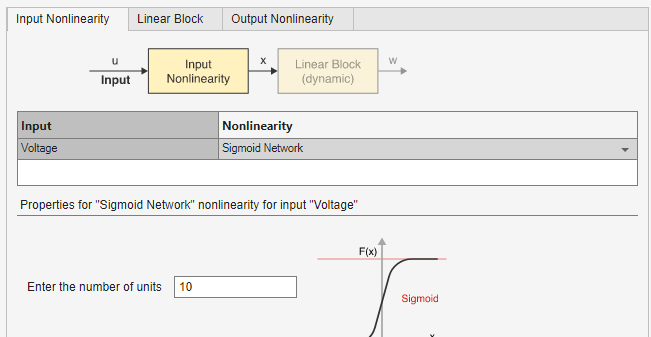

**Estimate Hammerstein-Wiener Models**dialog box, select the**Model Structure**tab and then the**Input Nonlinearity**tab.Click the

**Nonlinearity**cell for the`Voltage`

variable and select`Sigmoid Network`

from the list.In

**Enter the number of units**, set the value to`20`

.Click

**Estimate**.This action adds the model

`nlhw3`

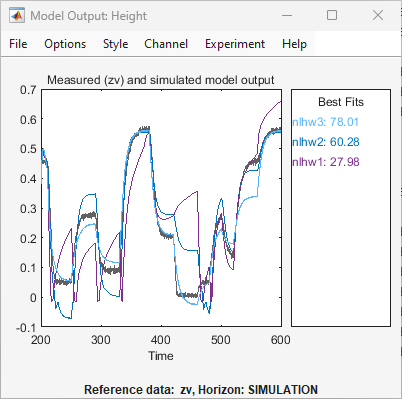

to the**System Identification**app. It also updates the**Model Output**window, as shown in the following figure.In the

**Estimate Hammerstein-Wiener Models**dialog box, select the**Input Nonlinearity**tab.For the

`Voltage`

input, set**Nonlinearity**to`Wavelet Network`

. The default value for**Number of Units**is**Select Automatically**.Select the

**Output Nonlinearity**tab.Set the

`Height`

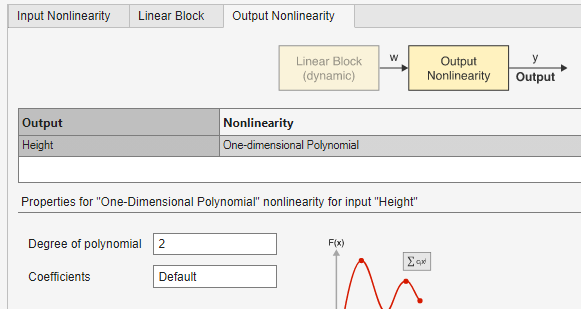

output**Nonlinearity**to`One-dimensional Polynomial`

. Set**Degree of polynomial**to`2`

.Click

**Estimate**.This action adds the model

`nlhw4`

to the**System Identification**app. It also updates the**Model Output**window, as shown in the following figure.

The best model is the simplest model that accurately describes the dynamics.

In this example, the models `nlhw3`

and `nlhw4`

are
good candidates.
