# procest

Estimate process model using time-domain or frequency-domain data

## Syntax

## Description

### Estimate Process Model

estimates the process model `sys`

= procest(`tt`

,`type`

)`sys`

using all the input and output
signals in the timetable `tt`

. `type`

defines the
structure of `sys`

. You can use this syntax for SISO and MISO systems.
The function assumes that the last variable in the timetable is the single output
signal.

A simple SISO process model has a gain, a time constant, and a delay:

$$sys=\frac{{K}_{p}}{1+{T}_{p1}s}{e}^{-{T}_{d}s}.$$

*K _{p}* is a proportional gain.

*T*

_{p}_{1}is the time constant of the real pole, and

*T*is the transport delay (dead time). More complex process models can include zeroes, additional time constants, complex poles, and integration. For more information on process models, see

_{d}`idproc`

.You cannot use `procest`

to estimate time-series models, which are
models that contain no inputs. Use `ar`

, `arx`

, or `armax`

for time-series models instead.

You cannot reliably estimate accurate process models from matrix-based data as you can with other model types. Process models are always continuous, and, because numeric matrices contain no sample time information, estimating continuous models from matrix-based data is generally not recommended. For information on converting matrices to timetables, see

uses the time-domain or frequency-domain data in `sys`

= procest(`data`

,`type`

)`data`

. Use this
syntax especially when you want to estimate a process model using frequency-domain or
frequency response data, or when you want to take advantage of the additional information,
such as intersample behavior, data sample time, or experiment labeling, that data objects
provide.

incorporates additional options specified by one or more name-value arguments. For
example, `sys`

= procest(___,`Name,Value`

)`sys = procest(tt,P1D,'InputDelay',2)`

specifies an input delay
of 2. You can use this syntax with any of the previous input-argument combinations

### Configure Initial Parameters

### Specify Additional Options

### Return Estimated Offset and Initial Conditions

`[`

returns the estimated value of the offset in input signal. `sys`

,`offset`

] = procest(___)`procest`

automatically estimates the input offset when the model contains an integrator or when you
set the `InputOffset`

estimation option to `'estimate'`

using `procestOptions`

.

`[`

returns the estimated initial conditions as an `sys`

,`offset`

,`ic`

] = procest(___)`initialCondition`

object. Use this syntax if you plan to simulate or predict the model response using the
same estimation input data and then compare the response with the same estimation output
data. Incorporating the initial conditions yields a better match during the first part of
the simulation.

## Examples

### Estimate and Refine Process Model

Estimate a process model and compare its response with the measured output.

Load the input/output data, which is stored in the timetable `tt1`

.

load sdata1 tt1

Estimate a first-order process model `sys`

that contains one pole and no zeroes or delays. This model structure has type `P1`

.

`sys = procest(tt1,'P1');`

Compare the simulated model response with the measured output.

compare(tt1,sys)

The fit percentage for the model is low. Add a delay to the model and compare the simulated and measured outputs.

```
sys = procest(tt1,'P1D');

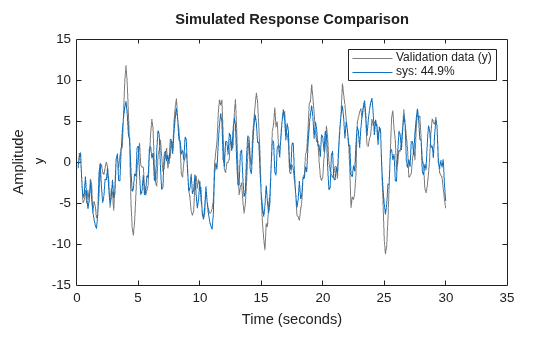

compare(tt1,sys)
```

The fit percentage has improved, but is still below 50%. The plot shows that the model output peaks do not attain the height of the measured output peaks, which indicates that the model needs to include more dynamics.

Create a second-order process model with complex (underdamped) poles.

```
sys = procest(tt1,'P2U');

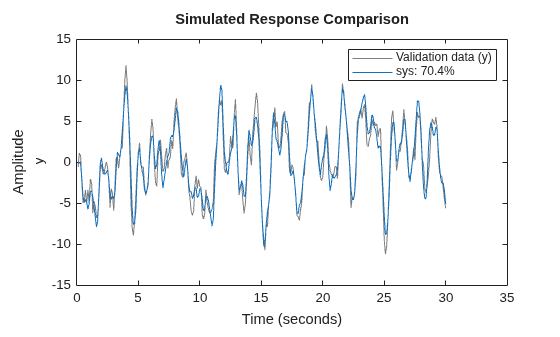

compare(tt1,sys)
```

The fit now exceeds 70%.

You can view more information about the estimation by exploring the `idproc`

property `sys.Report`

.

sys.Report

ans = Status: 'Estimated using PROCEST' Method: 'PROCEST' InitialCondition: 'zero' Fit: [1x1 struct] Parameters: [1x1 struct] OptionsUsed: [1x1 idoptions.procest] RandState: [] DataUsed: [1x1 struct] Termination: [1x1 struct]

View the estimated gain `Kp`

.

Kp = sys.Kp

Kp = 7.6818

### Specify Parameter Initial Values for Estimated Process Model

Estimate a process model after specifying initial guesses for parameter values and bounding them.

Obtain input/output data.

`data = idfrd(idtf([10 2],[1 1.3 1.2],'iod',0.45),logspace(-2,2,256));`

Specify the parameters of the estimation initialization model.

```
type = 'P2UZD';
init_sys = idproc(type);
init_sys.Structure.Kp.Value = 1;
init_sys.Structure.Tw.Value = 2;
init_sys.Structure.Zeta.Value = 0.1;
init_sys.Structure.Td.Value = 0;
init_sys.Structure.Tz.Value = 1;
init_sys.Structure.Kp.Minimum = 0.1;
init_sys.Structure.Kp.Maximum = 10;
init_sys.Structure.Td.Maximum = 1;
init_sys.Structure.Tz.Maximum = 10;
```

Specify the estimation options.

opt = procestOptions('Display','full','InitialCondition','Zero'); opt.SearchMethod = 'lm'; opt.SearchOptions.MaxIterations = 100;

Estimate the process model.

sys = procest(data,init_sys,opt);

Since the `'Display'`

option is specified as `'full'`

, the estimation progress is displayed in a separate **Plant Identification Progress** window.

Compare the data to the estimated model.

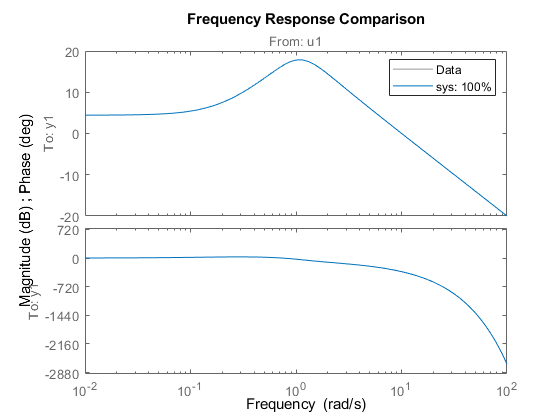

compare(data,sys);

### Return Input Offsets Estimated During Process Model Estimation

### Obtain Initial Conditions

Load the data.

load iddata1ic z1i

Estimate a first-order plus dead time process model `sys`

and return the initial conditions in `ic`

. First specify `'estimate'`

for `'InitialCondition'`

to force the software to estimate `ic`

. The default `'auto'`

setting uses the `'estimate' method`

only when the influence of the initial conditions on the overall model error exceed a threshold. When the initial conditions have a negligible effect on the overall estimation-error minimization process, the `'auto`

' setting uses `'zero'`

.

opt = procestOptions('InitialCondition','estimate'); [sys,offset,ic] = procest(z1i,'P1D',opt); ic

ic = initialCondition with properties: A: -3.8997 X0: -1.0871 C: 4.5652 Ts: 0

`ic`

is an `initialCondition`

object that encapsulates the free response of `sys`

, in state-space form, to the initial state vector in `X0`

. You can incorporate `ic`

when you simulate `sys`

with the `z1i`

input signal and compare the response with the `z1i`

output signal.

### Detect Overparameterization of Estimated Model

Obtain input/output data.

load iddata1 z1 load iddata2 z2 data = [z1 z2(1:300)];

`data`

is a data set with 2 inputs and 2 outputs. The first input affects only the first output. Similarly, the second input affects only the second output.

In the estimated process model, the cross terms, which model the effect of the first input on the second output and vice versa, should be negligible. If the estimation process instead assigns higher orders to the cross dynamics, the degrees of estimation uncertainty for those terms should be high.

Estimate the process model.

```
type = 'P2UZ';
sys = procest(data,type);
```

The `type`

variable denotes a model with complex-conjugate pair of poles, a zero, and a delay.

To evaluate the uncertainties, plot the frequency response.

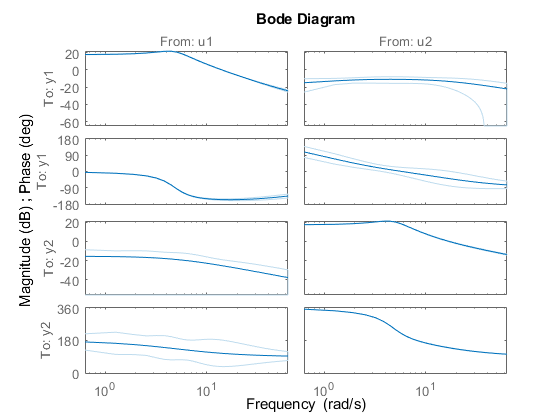

w = linspace(0,20*pi,100); h = bodeplot(sys,w); showConfidence(h);

The responses from the cross pairs show larger uncertainty, indicating that using a single `type`

for each input/output pair results in too much energy in the cross pairs.

### Estimate Overparameterized Process Model Using Regularization

Use regularization to estimate parameters of an overparameterized process model.

Load the data.

load iddata1 z1;

Construct an initial system `sysi`

by specifying parameter values for a model that includes three poles, one zero, and underdamped modes. Assume that gain `Kp`

is known with a higher degree of confidence than the other model parameters.

sysi = idproc('P3UZ','Kp',7.5,'Tw',0.25,'Zeta',0.3,'Tp3',20,'Tz',0.02);

Estimate an unregularized process model `sys1 `

using `sysi`

to initialize the estimation model.

sys1 = procest(z1,sysi);

Estimate a regularized process model `sys2`

from `sysi`

. Because `K`

has a higher level of confidence, set the regularization constant `R`

higher than for the other model parameters. This setting causes the estimation process to place more emphasis on maintaining the initial value of `K`

.

```
opt = procestOptions;
opt.Regularization.Nominal = 'model';
opt.Regularization.R = [100;1;1;1;1];
opt.Regularization.Lambda = 0.1;
sys2 = procest(z1,sysi,opt);
```

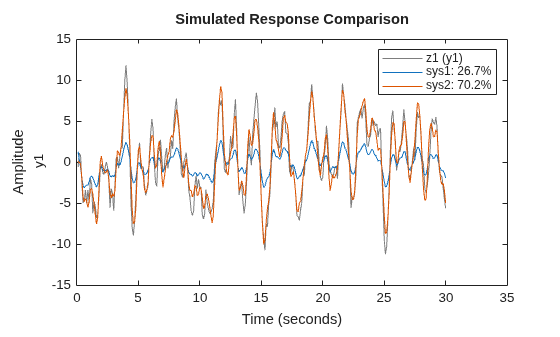

Compare the model outputs with data.

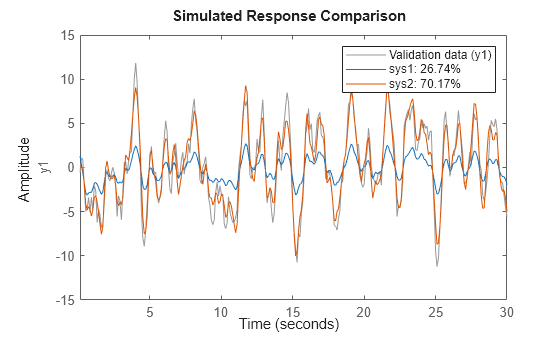

compare(z1,sys1,sys2);

Regularization helps steer the estimation process towards the correct parameter values, as the better fit for `sys2`

shows.

Compare the estimated gain values for `sys1`

and `sys2`

.

g1 = sys1.Kp

g1 = -0.2320

g2 = sys2.Kp

g2 = 6.6236

The `Kp`

value for the regularized system is much closer to the initial value than for the unregularized system.

### Estimate a First Order Plus Dead Time Model

Obtain the measured input-output data.

load iddemo_heatexchanger_data; data = iddata(pt,ct,Ts); data.InputName = '\Delta CTemp'; data.InputUnit = 'C'; data.OutputName = '\Delta PTemp'; data.OutputUnit = 'C'; data.TimeUnit = 'minutes';

Estimate a first-order plus dead time process model.

```
type = 'P1D';
sysP1D = procest(data,type);
```

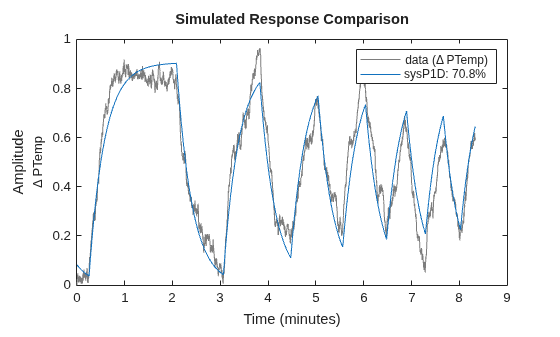

Compare the model with the data.

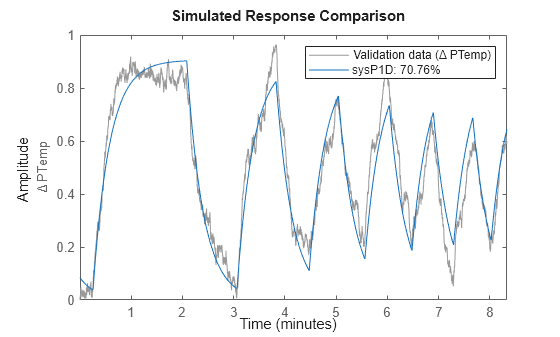

compare(data,sysP1D)

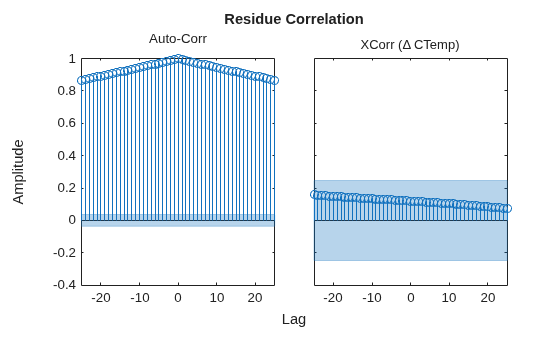

Plot the model residuals.

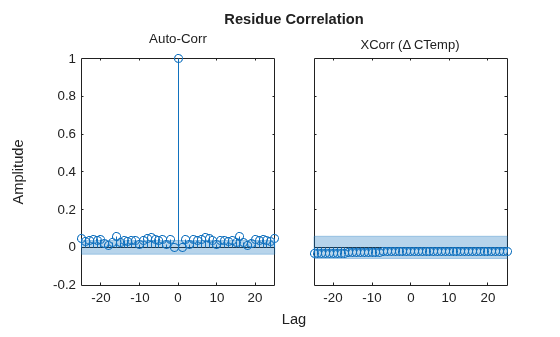

figure resid(data,sysP1D);

The figure shows that the residuals are correlated. To account for that, add a first order ARMA disturbance component to the process model.

opt = procestOptions('DisturbanceModel','ARMA1'); sysP1D_noise = procest(data,'p1d',opt);

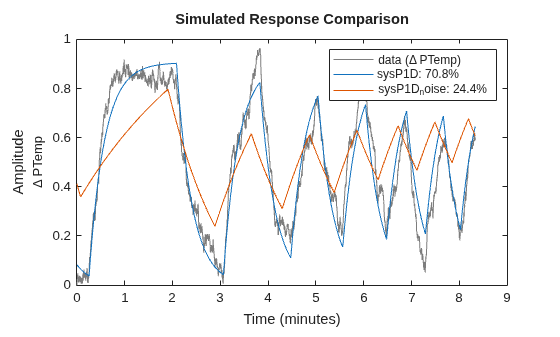

Compare the models.

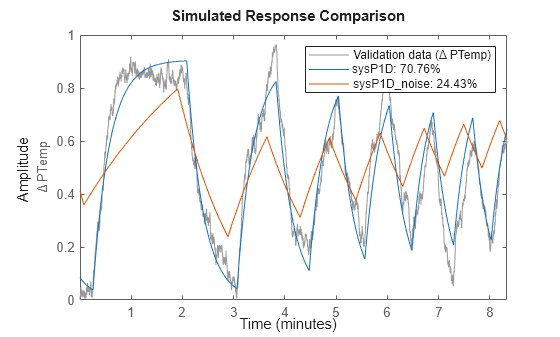

compare(data,sysP1D,sysP1D_noise)

Plot the model residuals.

figure resid(data,sysP1D_noise);

The residues of `sysP1D_noise`

are uncorrelated.

## Input Arguments

`tt`

— Timetable-based estimation data

`timetable`

| cell array of `timetables`

Estimation data, specified as a uniformly sampled `timetable`

that contains both input and output signal variables
or, for multiexperiment data, a cell array of
timetables.

#### Use Entire Timetable

If you want to use all the input and output variables in `tt`

, and the
variables are organized so that the set of input
variables is followed by the set of output
variables, then:

For SISO systems, specify

`tt`

as an*N*-by-2_{s}`timetable`

, where*N*is the number of samples and the two_{s}`timetable`

variables represent the measured input signal and output signal respectively.For MIMO systems, specify

`tt`

as an*N*-by-(_{s}*N*+_{u}*N*)_{y}`timetable`

, where*N*is the number of inputs and_{u}*N*is the number of outputs. The first_{y}*N*variables must contain the input signals and the remaining_{u}*N*variables must contain the output signals._{y}When you are estimating state space or transfer function models, you must also explicitly specify the input and output channels, as the following section describes.

For multiexperiment data, specify data as an

*N*-by-1 cell array of timetables, where_{e}*N*is the number of experiments. The sample times of all the experiments must match._{e}

#### Use Selected Variables from Timetable

If you want to use a subset of variables from the `timetable`

, or if the input
and output variables are intermixed, use the
`'InputName'`

and
`'OutputName'`

name-value
arguments to specify which variables to
use.

For example, suppose that `tt`

contains six variables:
`"u1"`

, `"u2"`

, `"u3"`

, and
`"y1"`

, `"y2"`

, `"y3"`

. For estimation,
you want to use the variables `"u1"`

and `"u2"`

as the
inputs and the variables `"y1"`

and `"y3"`

as the outputs.
Use the following command to perform the estimation:

```
sys = procest(tt,__,'InputName',["u1" "u2"],'OutputName',["y1"
"y3"])
```

For more information about working with estimation data types, see Data Domains and Data Types in System Identification Toolbox.

`data`

— Estimation data object

`iddata`

object | `frd`

object | `idfrd`

object

Estimation data object, specified as an `iddata`

object, an
`frd`

object, or an `idfrd`

object that contains
uniformly sampled input and output values. By default, the software sets the sample time
of the model to the sample time of the estimation data.

For multiexperiment data, the sample times and intersample behavior of all the experiments must match.

For time-domain estimation, `data`

must be an `iddata`

object containing the input and output signal values.

For frequency-domain estimation, `data`

can be one of the
following:

#### Limitations

You cannot estimate continuous-time models using discrete-time frequency-domain data.

`type`

— Process model structure

character vector | string | cell array of character vectors | string array

Process model structure, specified for SISO models as a string or character vector
that represents an acronym for the model structure, such as `'P1D'`

or
`'P2DZ'`

. The acronym starts with `P`

and can
contain any combination of the other following components:

`P`

— Poles. All`'Type'`

acronyms start with`P`

, because all process modes must have at least one pole.`0`

,`1`

,`2`

, or`3`

— Number of time constants (poles) to be modeled. This number does not include possible integrations (poles in the origin).`I`

— Integration is enforced (self-regulating process).`D`

— Time delay (dead time).`Z`

— Extra numerator term, a zero.`U`

— Underdamped modes (complex-valued poles) permitted. If`U`

is not included in`type`

, all poles must be real. The number of poles must be 2 or 3.

For MIMO models, specify `type`

as an
*Ny*-by-*Nu* cell array of character vectors or
string array, with one entry for each input-output pair. Here *Ny* is
the number of inputs and *Nu* is the number of outputs.

For information regarding how `type`

affects the structure of a
process model, see `idproc`

.

`init_sys`

— Process model that configures initial parameterization of ` sys`

`idproc`

object

Process model that configures initial parameterization of `sys`

,
specified as an `idproc`

object. You obtain `init_sys`

by either performing an estimation using measured data or by direct construction using
`idproc`

. The software uses the parameters
and constraints defined in `init_sys`

as the initial guess for
estimating `sys`

.

Use the `Structure`

property of `init_sys`

to
configure initial guesses and constraints for
*K _{p}*,

*T*,

_{p1}*T*,

_{p2}*T*,

_{p3}*T*,

_{w}*ζ*,

*T*, and

_{d}*T*. For example:

_{z}To specify an initial guess for the

*T*parameter of_{p1}`init_sys`

, set`init_sys.Structure.Tp1.Value`

as the initial guess.To specify constraints for the

*T*parameter of_{p2}`init_sys`

:Set

`init_sys.Structure.Tp2.Minimum`

to the minimum*T*value._{p2}Set

`init_sys.Structure.Tp2.Maximum`

to the maximum*T*value._{p2}Set

`init_sys.Structure.Tp2.Free`

to indicate if*T*is a free parameter for estimation._{p2}

If you do not specify `opt`

, and `init_sys`

was obtained by estimation rather than construction, then the software uses estimation
options from `init_sys.Report.OptionsUsed`

`opt`

— Estimation options

`procestOptions`

option set

Estimation options, specified as an `procestOptions`

option set. The estimation options include:

Estimation objective

Handling on initial conditions and disturbance component

Numerical search method to be used in estimation

Intersample behavior

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **
`sys = procest(tt,'P1D,'InputDelay',2)`

`InputName`

— Input channel names

string | character vector | string array | cell array of character vectors

Input channel names, specified as a string, character vector, string array, or cell array of character vectors.

If you are using a timetable for the data source, the names in
`InputName`

must be a subset of the timetable variables.

**Example: **`sys = procest(tt,__,'InputName',["u1" "u2"])`

selects
the variables `u1`

and `u2`

as the input channels from
the timetable `tt`

to use for the estimation.

`OutputName`

— Output channel names

string | character vector | string array | cell array of character vectors

Output channel names, specified as a string, character vector, string array, or cell array of character vectors.

If you are using a timetable for the data source, the names in
`OutputName`

must be a subset of the timetable variables.

**Example: **`sys = procest(tt,__,'OutputName',["y1" "y3"])`

selects
the variables `y1`

and `y3`

as the output channels
from the timetable `tt`

to use for the estimation.

`InputDelay`

— Input delays

`0`

for all input channels (default) | numeric vector

Input delays, specified as a numeric vector specifying a time delay for each input
channel. Specify input delays in the time unit stored in the
`TimeUnit`

property.

For a system with *Nu* inputs, set `InputDelay`

to an *Nu*-by-1 vector. Each entry of this vector is a numerical
value that represents the input delay for the corresponding input channel. You can
also set `InputDelay`

to a scalar value to apply the same delay to
all channels.

The software treats `InputDelay`

as a fixed delay that is
separate from any transport delay that the `Td`

property of the
model introduces.

## Output Arguments

`sys`

— Identified process model

`idproc`

model

Identified process model, returned as an `idproc`

model of a structure defined by `type`

.

Information about the estimation results and options used is stored in the
model's `Report`

property.
`Report`

has the following fields:

Report Field | Description | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

`Status` | Summary of the model status, which indicates whether the model was created by construction or obtained by estimation. | ||||||||||||||||||

`Method` | Estimation command used. | ||||||||||||||||||

`InitialCondition` | Handling of initial conditions during model estimation, returned as one of the following values: `'zero'` — The initial conditions were set to zero.`'estimate'` — The initial conditions were treated as independent estimation parameters.`'backcast'` — The initial conditions were estimated using the best least squares fit.
This field is especially useful to view
how the initial conditions were handled when the | ||||||||||||||||||

`Fit` | Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:
| ||||||||||||||||||

`Parameters` | Estimated values of model parameters. | ||||||||||||||||||

`OptionsUsed` | Option set used for estimation. If no custom options were configured,
this is a set of default options. See | ||||||||||||||||||

`RandState` | State of the random number stream at the start of estimation. Empty,
| ||||||||||||||||||

`DataUsed` | Attributes of the data used for estimation. Structure with the following fields:
| ||||||||||||||||||

`Termination` | Termination conditions for the iterative search used for prediction error minimization, returned as a structure with the following fields:
For estimation methods that do not require numerical search optimization,
the |

For more information on using `Report`

, see Estimation Report.

`offset`

— Estimated value of input offset

vector

Estimated value of input offset, returned as a vector. When
`data`

has multiple experiments, `offset`

is a
matrix where each column corresponds to an experiment.

`ic`

— Initial conditions

`initialCondition`

object | object array of `initialCondition`

values

Estimated initial conditions, returned as an `initialCondition`

object or an object array of
`initialCondition`

values.

For a single-experiment data set,

`ic`

represents, in state-space form, the free response of the process model (*A*and*C*matrices) to the estimated initial states (*x*)._{0}For a multiple-experiment data set with

*N*experiments,_{e}`ic`

is an object array of length*N*that contains one set of_{e}`initialCondition`

values for each experiment.

If `procest`

returns `ic`

values of
`0`

and the you know that you have non-zero initial conditions, set
the `'InitialCondition'`

option in `procestOptions`

to `'estimate'`

and pass the updated
option set to `procest`

. For
example:

opt = procestOptions('InitialCondition','estimate') [sys,offset,ic] = procest(data,type,opt)

`'auto'`

setting of `'InitialCondition'`

uses
the `'zero'`

method when the initial conditions have a negligible
effect on the overall estimation-error minimization process. Specifying
`'estimate'`

ensures that the software estimates values for
`ic`

.
For more information, see `initialCondition`

. For an example of using this argument, see Obtain Initial Conditions.

## Version History

**Introduced in R2012a**

### R2022b: Time-domain estimation data is accepted in the form of timetables and matrices

Most estimation, validation, analysis, and utility functions now accept time-domain
input/output data in the form of a single timetable that contains both input and output data
or a pair of matrices that contain the input and output data separately. These functions
continue to accept `iddata`

objects as a data source as well, for
both time-domain and frequency-domain data.

### R2018a: Advanced Options are deprecated for `SearchOptions`

when `SearchMethod`

is `'lsqnonlin'`

Specification of `lsqnonlin`

- related advanced options are deprecated,
including the option to invoke parallel processing when estimating using the
`lsqnonlin`

search method, or solver, in Optimization Toolbox™.

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
