imabsdiff

Absolute difference of two images

Description

example

Z = imabsdiff(X,Y) subtracts each element in array Y from the corresponding element in array X and returns the absolute difference in the corresponding element of the output array Z.

Examples

collapse all

Read image into workspace.

I = imread('cameraman.tif');

Filter the image.

J = uint8(filter2(fspecial('gaussian'), I));

Calculate the absolute difference of the two images.

K = imabsdiff(I,J);

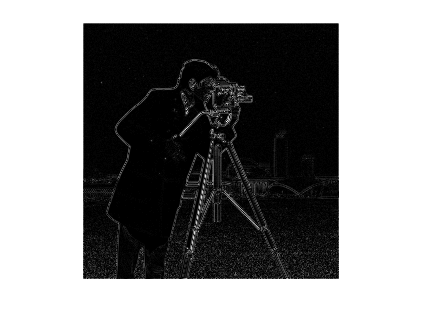

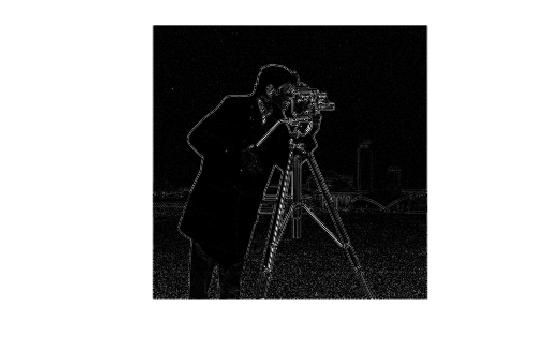

Display the absolute difference image.

figure
imshow(K,[])

Input Arguments

collapse all

Input image, specified as a numeric array of any dimension.

Example: x = imread('cameraman.tif');

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Input image, specified as a numeric array. Y must be the same size and class as X.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Output Arguments

collapse all

Difference image, returned as a numeric array. Z has the same class and size as X and Y. If X and Y are integer arrays, then imabsdiff truncates elements in the output that exceed the range of the integer type.

Tips

  • If X is of class double, then use the expression abs(X-Y) instead of this function.

  • If X is of class logical, then use the expression XOR(X,Y) instead of this function.

  • When X and Y are of class uint8, int16, or single, then imabsdiff can use hardware optimization to run faster.

Extended Capabilities

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Introduced before R2006a
