rgb2lab

Convert RGB to CIE 1976 L*a*b*

Syntax

lab = rgb2lab(rgb)
lab = rgb2lab(rgb,Name,Value)

Description

example

lab = rgb2lab(rgb) converts sRGB values to CIE 1976 L*a*b* values.

example

lab = rgb2lab(rgb,Name,Value) specifies additional conversion options, such as the color space of the RGB image, using one or more name-value pair arguments.

Examples

collapse all

Use rgb2lab to convert the RGB white value to L*a*b.

rgb2lab([1 1 1])
ans = 1×3

   100     0     0

Convert an Adobe RGB (1998) color value to L*a*b* using the ColorSpace parameter.

rgb2lab([.2 .3 .4],'ColorSpace','adobe-rgb-1998')
ans = 1×3

   30.1783   -5.6902  -20.8223

Use rgb2lab to convert an RGB color to L*a*b using the D50 reference white.

rgb2lab([.2 .3 .4],'WhitePoint','d50')
ans = 1×3

   31.3294   -4.0732  -18.1750

Read RGB image into the workspace.

rgb = imread('peppers.png');

Convert the RGB image to the L*a*b* color space.

lab = rgb2lab(rgb);

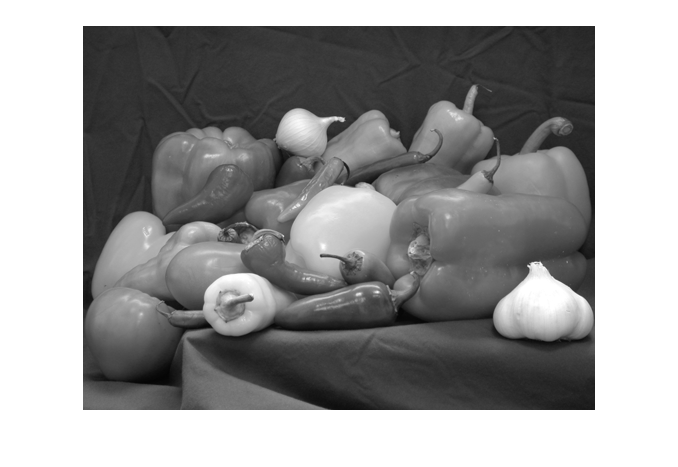

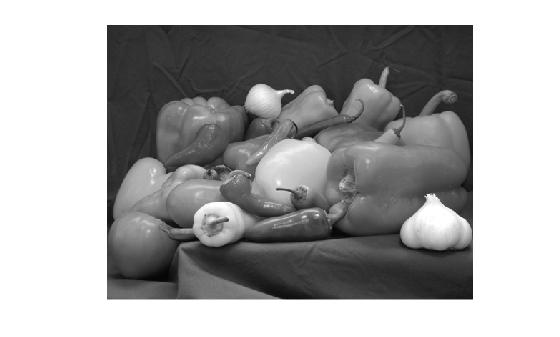

Display the L* component of the L*a*b* image.

imshow(lab(:,:,1),[0 100])

Input Arguments

collapse all

RGB color values to convert, specified as a numeric array in one of the following formats.

  • c-by-3 colormap. Each row specifies one RGB color value.

  • m-by-n-by-3 image

  • m-by-n-by-3-by-p stack of images

Data Types: single | double | uint8 | uint16

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: rgb2lab([0.25 0.40 0.10],'WhitePoint','d50')

Color space of the input RGB values, specified as the comma-separated pair consisting of 'ColorSpace' and one of 'srgb', 'adobe-rgb-1998', or 'linear-rgb'. If you specify 'linear-rgb', then rgb2lab assumes the input RGB values are linearized sRGB values.

Data Types: char

Reference white point, specified as the comma-separated pair consisting of 'WhitePoint' and a 1-by-3 vector or one of the CIE standard illuminants listed in the following table.

ValueWhite Point
'a'

CIE standard illuminant A, [1.0985, 1.0000, 0.3558]. Simulates typical, domestic, tungsten-filament lighting with correlated color temperature of 2856 K.

'c'CIE standard illuminant C, [0.9807, 1.0000, 1.1822]. Simulates average or north sky daylight with correlated color temperature of 6774 K. Deprecated by CIE.
'e'Equal-energy radiator, [1.000, 1.000, 1.000]. Useful as a theoretical reference.
'd50'CIE standard illuminant D50, [0.9642, 1.0000, 0.8251]. Simulates warm daylight at sunrise or sunset with correlated color temperature of 5003 K. Also known as horizon light.

'd55'

CIE standard illuminant D55, [0.9568, 1.0000, 0.9214]. Simulates mid-morning or mid-afternoon daylight with correlated color temperature of 5500 K.

'd65'CIE standard illuminant D65, [0.9504, 1.0000, 1.0888]. Simulates noon daylight with correlated color temperature of 6504 K.
'icc'Profile Connection Space (PCS) illuminant used in ICC profiles. Approximation of [0.9642, 1.000, 0.8249] using fixed-point, signed, 32-bit numbers with 16 fractional bits. Actual value: [31595,32768, 27030]/32768.

Data Types: single | double | char

Output Arguments

collapse all

Converted L*a*b* color values, returned as a numeric array of the same size as the input. The output type is double unless the input type is single, in which case the output type is also single.

Tips

  • If you specify the input RGB color space as 'linear-rgb', then rgb2lab assumes the input values are linearized sRGB values. If instead you want the input color space to be linearized Adobe RGB (1998), then you can use the lin2rgb function.

    For example, to convert linearized Adobe RGB (1998) image RGBlinadobe to the CIE 1976 L*a*b* color space, perform the conversion in two steps:

    RGBadobe = lin2rgb(RGBlinadobe,'ColorSpace','adobe-rgb-1998');
    LAB = rgb2lab(RGBadobe,'ColorSpace','adobe-rgb-1998');


Extended Capabilities

See Also

| |

Introduced in R2014b
