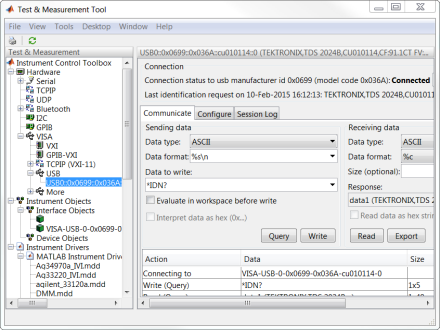

Test and Measurement Tool

Control oscilloscopes and other instruments

Description

The Test & Measurement Tool enables you to configure and control resources, such as instruments, serial devices, drivers, and interfaces, through Instrument Control Toolbox™ without having to write a MATLAB® script.

Use the Test & Measurement Tool to manage your session with the toolbox. You can:

  • Detect available hardware and drivers.

  • Connect to an instrument or device.

  • Configure instrument or device settings.

  • Read and write data.

  • Automatically generate the MATLAB script.

  • Visualize acquired data.

  • Export acquired data to the MATLAB workspace.

Open the Test and Measurement Tool App

  • MATLAB Toolstrip: On the Apps tab, under Test and Measurement, click the app icon.

  • MATLAB command prompt: Enter tmtool.

Examples

Related Examples

Programmatic Use

expand all

tmtool opens the Test & Measurement Tool, which enables you to configure and control resources, such as instruments, serial devices, drivers, and interfaces, accessible through the Instrument Control Toolbox.

Introduced before R2006a
