getframe

Capture axes or figure as movie frame

Description

example

F = getframe captures the current axes as it appears on the screen as a movie frame. F is a structure containing the image data. getframe captures the axes at the same size that it appears on the screen. It does not capture tick labels or other content outside the axes outline.

example

F = getframe(ax) captures the axes identified by ax instead of the current axes.

example

F = getframe(fig) captures the figure identified by fig. Specify a figure if you want to capture the entire interior of the figure window, including the axes title, labels, and tick marks. The captured movie frame does not include the figure menu and tool bars.

F = getframe(___,rect) captures the area within the rectangle defined by rect. Specify rect as a four-element vector of the form [left bottom width height]. Use this option with either the ax or fig input arguments in the previous syntaxes.

Examples

collapse all

Plot two lines. Capture the axes and return the image data. getframe captures the interior of the axes and the axes outline. It does not capture content that extends beyond the axes outline.

plot([0 1; 1 2])
F = getframe;

Line plot in a figure

F is a structure with the field cdata that contains the captured image data.

Display the captured image data using imshow.

figure
imshow(F.cdata)

Copy of the line plot

Create a surface plot. Capture the interior of the figure window, excluding the menu and tool bars.

surf(peaks)
F = getframe(gcf);

Surface plot in a figure that has a light gray background

F is a structure with the field cdata that contains the captured image data.

Display the captured image data in a figure with a darker background using imshow, so you can see captured area.

figure('Color',[0.5 0.5 0.5])
imshow(F.cdata)

Copy of the surface plot displayed in a larger figure. The background color of the larger figure is darker than the background color of the original figure.

Capture the interior of an axes plus a margin of 30 pixels in each direction. The added margin is necessary to include the tick labels in the capture frame. Depending on the size of the tick labels, the margin might need to be adjusted.

Plot two lines.

plot([0 1; 1 2])

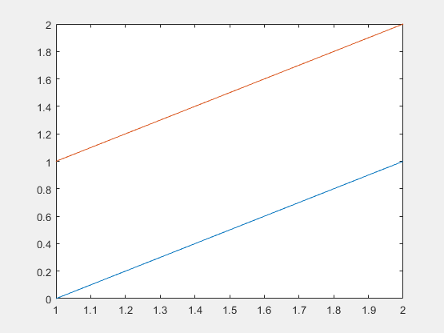

Line plot in a figure that has a light gray background

Change the axes units to pixels and return the current axes position. The third and fourth elements of the position vector specify the axes width and height in pixels.

drawnow
ax = gca;
ax.Units = 'pixels';
pos = ax.Position
pos =

   73.8000   47.2000  434.0000  342.3000

Create a four-element vector, rect, that defines a rectangular area covering the axes plus the desired margin. The first two elements of rect specify the lower left corner of the rectangle relative to the lower left corner of the axes. The last two elements of rect specify the width and height of the rectangle. Reset the axes units to the default value of 'normalized'.

marg = 30;
rect = [-marg, -marg, pos(3)+2*marg, pos(4)+2*marg];
F = getframe(gca,rect);
ax.Units = 'normalized';

Display the captured image data in a figure with a darker background using imshow, so you can see captured area.

figure('Color',[0.5 0.5 0.5])
imshow(F.cdata)

Copy of the line plot displayed in a larger figure. The copy is tightly cropped around the axes to include the tick labels. The background color of the larger figure is darker than the background color of the original figure.

Calculate a margin around the axes so that the captured image data includes the title, axis labels, and tick labels.

Create a plot with a title and an x-axis label.

plot([0 1; 1 2])
xlabel('x values')
title('Plot of Two Lines')

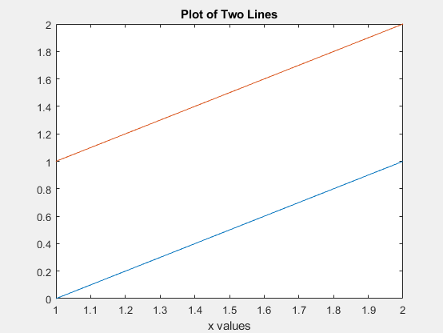

Line plot in a figure that has a light gray background

Change the axes units to pixels and store the Position and TightInset property values for the axes. The TighInset property is a four-element vector of the form [left bottom right top]. The values are the margins used around the axes for the tick values and text labels.

drawnow
ax = gca;
ax.Units = 'pixels';
pos = ax.Position;
ti = ax.TightInset;

Create a four-element vector, rect, that defines a rectangular area covering the axes plus the automatically calculated margin. The first two elements of rect specify the lower left corner of the rectangle relative to the lower left corner of the axes. The last two elements of rect specify the width and height of the rectangle.

rect = [-ti(1), -ti(2), pos(3)+ti(1)+ti(3), pos(4)+ti(2)+ti(4)];
F = getframe(ax,rect);

Display the captured image data in a figure with a darker background using imshow, so you can see captured area.

figure('Color',[0.5 0.5 0.5])
imshow(F.cdata)

Copy of the line plot displayed in a larger figure. The copy is tightly cropped around the axes to include the tick labels, the x-axis label, and the plot title. The background color of the larger figure is darker than the background color of the original figure.

Call the tiledlayout function to create a 2-by-1 tiled chart layout. Call the nexttile function to create the axes objects ax1 and ax2. Plot a line in each axes.

tiledlayout(2,1)
ax1 = nexttile;
plot(1:10,'b')
ax2 = nexttile;
plot(1:10,'r')

Two vertically stacked line plots in a figure. The upper plot displays a blue line, and the lower plot displays a red line. Both plots display x-axis and y-axis tick labels.

Capture the contents of the lower axes. getframe captures the interior and border of the plot. It does not capture tick values or labels that extend beyond the outline of the plot.

F = getframe(ax2);

Display the captured image data using imshow.

figure
imshow(F.cdata)

Copy of the lower plot, which contains the border around the plot and the tick marks but not the tick labels

Record frames of the peaks function vibrating by using  getframe  in a loop. Preallocate an array to store the movie frames.

Z = peaks;
surf(Z)
axis tight manual
ax = gca;
ax.NextPlot = 'replaceChildren';

loops = 40;
F(loops) = struct('cdata',[],'colormap',[]);
for j = 1:loops
    X = sin(j*pi/10)*Z;
    surf(X,Z)
    drawnow
    F(j) = getframe(gcf);
end

Playback the movie two times.

fig = figure;
movie(fig,F,2)

Input Arguments

collapse all

Axes to capture, specified as an Axes object or a GeographicAxes object. Use this option if you want to capture an axes that is not the current axes.

getframe captures the content within the smallest rectangle that encloses the axes outline. If you want to capture all the tick values and labels, then use the fig input argument instead.

Example: F = getframe(ax);

Figure to capture, specified as a Figure object.

Rectangular area to capture, specified as a four-element vector of the form [left bottom width height] in pixels. The left and bottom elements define the position of the lower left corner of the rectangle. The position is relative to the figure or axes that is specified as the first input argument to getframe. The width and height elements define the dimensions of the rectangle.

Specify a rectangle that is fully contained within the figure window.

Note

In a future release, the rect argument will no longer capture the figure toolbar, menu bar, or the border around the figure. You will still be able to define a subsection of the figure to capture, but the toolbar, menu bar, and borders will not be included. As an alternative, you can use the exportapp function to capture the toolbar and menu bar, but not the borders.

Output Arguments

collapse all

Movie frame, returned as a structure with two fields:

  • cdata — The image data stored as an array of uint8 values. The size of the image data array depends on your screen resolution.

  • colormap — The colormap. On true color systems, this field is empty.

Note

These are some important considerations about the size of cdata:

  • If you query the size of the region that getframe captures (either the figure, the axes, or the region specified by rect), the size in pixels might not match the number of elements in cdata. This difference is because the number of elements in cdata depends on your screen resolution (and operating system settings), but pixels in MATLAB® might not correspond to the actual pixels on your screen.

  • Starting in R2015b, if you are using a high-resolution system, then the size of cdata might be larger than in previous releases or on other systems.

Limitations

  • getframe does not support the following functionality in MATLAB Online™ or in Web Apps (MATLAB Compiler):

    • Capturing the contents of a figure created with the uifigure function or any axes in the figure.

    • Capturing the contents of an app created with App Designer or any axes in the app.

More About

collapse all

Pixels

Distances in pixels are independent of your system resolution on Windows® and Macintosh systems:

  • On Windows systems, a pixel is 1/96th of an inch.

  • On Macintosh systems, a pixel is 1/72nd of an inch.

On Linux® systems, the size of a pixel is determined by your system resolution.

Tips

  • For the fastest performance when using getframe, make sure that the figure is visible on the screen. If the figure is not visible, getframe can still capture the figure, but performance can be slower.

  • For more control over the resolution of the image data, use the print function instead. The cdata output argument with print returns the image data. The resolution input argument controls the resolution of the image.

  • To ensure that colorbars and legends displayed next to 3-D plots are captured, specify the fig argument when you call getframe.

Version History

Introduced before R2006a
