degree

Degree of graph nodes

Syntax

D = degree(G)

D = degree(G,nodeIDs)

Description

D = degree(G) returns the degree of each node in graph G. The degree is the number of edges connected to each node.

D = degree(G,nodeIDs) returns the degree of the nodes specified by nodeIDs.

Examples

Degree of All Graph Nodes

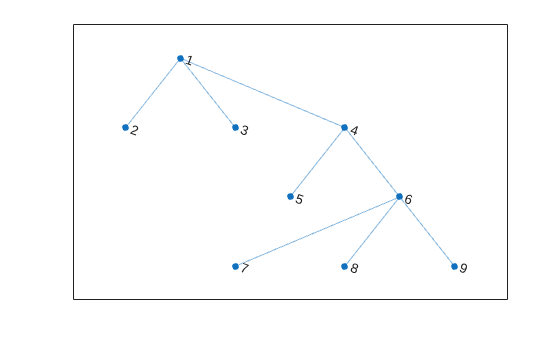

Create and plot a graph, and then use degree to find the degree of each node in the graph.

s = [1 1 1 4 4 6 6 6];
t = [2 3 4 5 6 7 8 9];
G = graph(s,t);
plot(G)

deg = degree(G)

deg = 9×1

     3
     1
     1
     3
     1
     4
     1
     1
     1

deg(j) indicates the degree of node j.

Degree of Subset of Graph Nodes

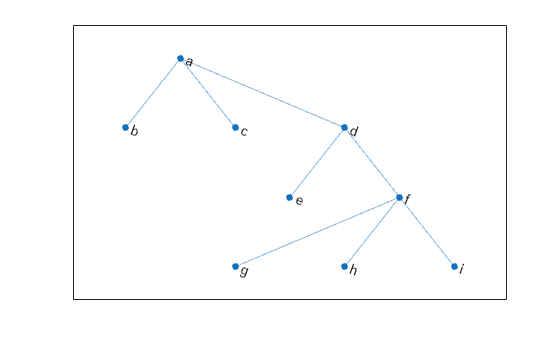

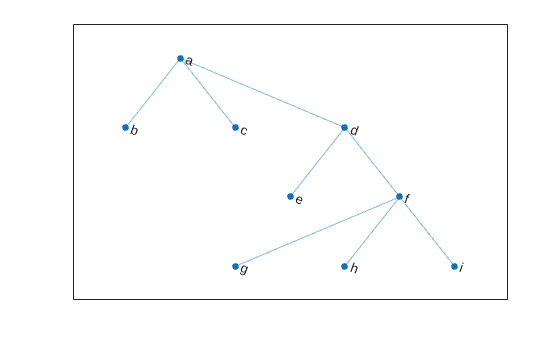

Create and plot a graph, and then find the degree of the first, third, and fifth nodes.

s = {'a' 'a' 'a' 'd' 'd' 'f' 'f' 'f'};
t = {'b' 'c' 'd' 'e' 'f' 'g' 'h' 'i'};
G = graph(s,t);
plot(G)

nodeIDs = {'a' 'c' 'e'}';
deg = degree(G,nodeIDs)

deg = 3×1

     3
     1
     1

deg(j) indicates the degree of node nodeIDs(j).

Input Arguments

G — Input graph

graph object

Input graph, specified as a graph object. Use graph to create an undirected graph object.

Example: G = graph(1,2)

nodeIDs — Node identifiers

node indices | node names

Node identifiers, specified as one or more node indices or node names.

This table shows the different ways to refer to one or more nodes either by their numeric node indices or by their node names.

Form	Single Node	Multiple Nodes
Node index	Scalar Example: 1	Vector Example: [1 2 3]
Node name	Character vector Example: 'A'	Cell array of character vectors Example: {'A' 'B' 'C'}
	String scalar Example: "A"	String array Example: ["A" "B" "C"]

Example: D = degree(G,[3 4])

Example: D = degree(G,{'LAX','ALB'})

Output Arguments

D — Degree of nodes

array

Degree of nodes, returned as a numeric array. D is a column vector unless you specify nodeIDs, in which case D has the same size as nodeIDs.

A node that is connected to itself by an edge (a self-loop) is listed as its own neighbor only once, but the self-loop adds 2 to the total degree of the node.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• The node identifiers nodeIDs must be one or more node indices of the input graph G. Node names are not supported.

Version History

Introduced in R2015b
