E = edges( returns the triangulation
edges as a two-column matrix of vertex identification numbers. Vertex
identifications are the row numbers of the triangulation vertices in
TR.Points. The first column of
the starting vertex identification of each edge, and the second column contains the
ending vertex identification.
Find Edges of 2-D Triangulation
Load 2-D triangulation data and create a triangulation representation.
P = [2.5 8.0; 6.5 8.0; 2.5 5.0; 6.5 5.0; 1.0 6.5; 8.0 6.5]; T = [5 3 1; 3 2 1; 3 4 2; 4 6 2]; TR = triangulation(T,P);
Find the starting and ending vertex identification numbers of the edges in the triangulation.
E = edges(TR)
E = 9×2 1 2 1 3 1 5 2 3 2 4 2 6 3 4 3 5 4 6
Define the coordinates of the first point in the triangulation. Then define the coordinates of the three vertices sharing an edge with the first point (the second, third, and fifth).
startVert = TR.Points(1,:); endVert = TR.Points([2 3 5],:);

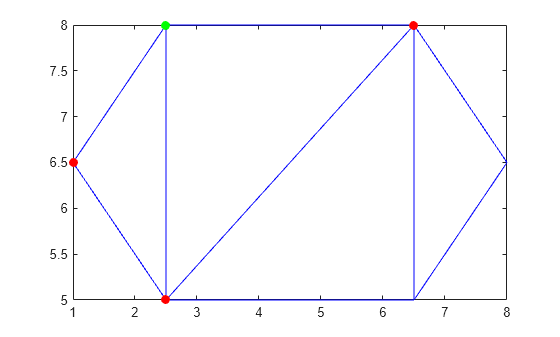

Plot the triangulation. Plot the first vertex in green, and plot the connecting points along an edge in red.
triplot(TR) hold on plot(startVert(1,1),startVert(1,2),'g.','MarkerSize',20) plot(endVert(:,1),endVert(:,2),'r.','MarkerSize',20) hold off
Run code in the background using MATLAB®
backgroundPool or accelerate code with Parallel Computing Toolbox™
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
Introduced in R2013a
