TriScatteredInterp

Class: TriScatteredInterp

(Not recommended) Interpolate scattered data

Compatibility

Note

TriScatteredInterp is not recommended. Use scatteredInterpolant instead.

Syntax

F = TriScatteredInterp()
F = TriScatteredInterp(X, V)
F = TriScatteredInterp(X, Y, V)
F = TriScatteredInterp(X, Y, Z, V)
F = TriScatteredInterp(DT, V)
F = TriScatteredInterp(..., method)

Description

F = TriScatteredInterp() creates an empty scattered data interpolant. This can subsequently be initialized with sample data points and values (Xdata, Vdata) via F.X = Xdata and F.V = Vdata.

F = TriScatteredInterp(X, V) creates an interpolant that fits a surface of the form V = F(X) to the scattered data in (X, V). X is a matrix of size mpts-by-ndim, where mpts is the number of points and ndim is the dimension of the space where the points reside (ndim is 2 or 3). The column vector V defines the values at X, where the length of V equals mpts.

F = TriScatteredInterp(X, Y, V) and F = TriScatteredInterp(X, Y, Z, V) allow the data point locations to be specified in alternative column vector format when working in 2-D and 3-D.

F = TriScatteredInterp(DT, V) uses the specified DelaunayTri object DT as a basis for computing the interpolant. DT is a Delaunay triangulation of the scattered data locations, DT.X. The matrix DT.X is of size mpts-by-ndim, where mpts is the number of points and ndim is the dimension of the space where the points reside, 2 <= ndim <= 3. V is a column vector that defines the values at DT.X, where the length of V equals mpts.

F = TriScatteredInterp(..., method) allows selection of the technique method used to interpolate the data.

Input Arguments

XMatrix of size mpts-by-ndim, where mpts is the number of points and ndim is the dimension of the space where the points reside. Input may also be specified as column vectors (X, Y) or (X, Y, Z)
VColumn vector that defines the values at X, where the length of V equals mpts.
DTDelaunay triangulation of the scattered data locations
methodnaturalNatural neighbor interpolation
linearLinear interpolation (default)
nearestNearest-neighbor interpolation

Output Arguments

F Creates an interpolant that fits a surface of the form V = F(X) to the scattered data.

Evaluation

To evaluate the interpolant, express the statement in Monge's form Vq = F(Xq), Vq = F(Xq,Yq), or Vq = F(Xq,Yq,Zq) where Vq is the value of the interpolant at the query location and Xq, Yq, and Zq are the vectors of point locations.

Examples

Create a data set:

x = rand(100,1)*4-2;
y = rand(100,1)*4-2;
z = x.*exp(-x.^2-y.^2);
Construct the interpolant:
F = TriScatteredInterp(x,y,z);

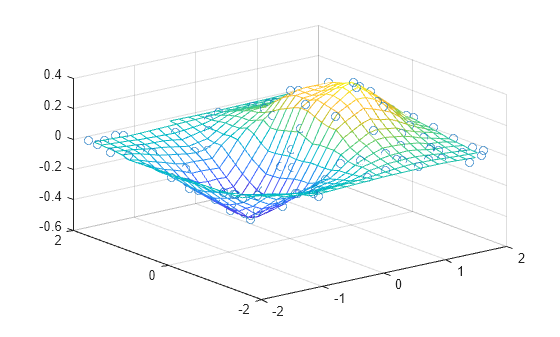

Evaluate the interpolant at the locations (qx, qy). The corresponding value at these locations is qz .
ti = -2:.25:2;
[qx,qy] = meshgrid(ti,ti);
qz = F(qx,qy);
mesh(qx,qy,qz);
hold on;
plot3(x,y,z,'o');
