Create container for tabbed panels


tg = uitabgroup
tg = uitabgroup(Name,Value)
tg = uitabgroup(parent)
tg = uitabgroup(parent,Name,Value)


tg = uitabgroup creates a tab group in the current figure and returns the TabGroup object. If there is no figure available, MATLAB® calls the figure function to create one. Tab groups are containers for tabs. They allow you to identify the selected tab, and detect when the user selects a different tab.

tg = uitabgroup(Name,Value) specifies tab group property values using one or more name-value pair arguments.

tg = uitabgroup(parent) creates the tab group in the specified parent container. The parent container can be a figure created with either the figure or uifigure function, or a child container such as a panel. Property values for uitabgroup vary slightly depending on whether the app is created with the figure or uifigure function. For more information, see Name-Value Pair Arguments.


tg = uitabgroup(parent,Name,Value) specifies the parent container and one or more properties values.


collapse all

Create a figure containing a tab group and two tabs.

f = figure;
tabgp = uitabgroup(f,'Position',[.05 .05 .3 .8]);
tab1 = uitab(tabgp,'Title','settings');
tab2 = uitab(tabgp,'Title','Options');

Get the currently selected tab.

currenttab = tabgp.SelectedTab
currenttab =

  Tab (settings) with properties:

              Title: 'settings'
    BackgroundColor: [0.9400 0.9400 0.9400]
           Position: [0.0119 0.0089 0.9702 0.9107]
              Units: 'normalized'

The Scrollable property enables scrolling within a tab that has components outside its borders. To use scrolling, the figure must be created with the uifigure function. App Designer uses this type of figure for creating apps.

Create a tab group containing one tab. Add six UI components to the tab, where the first three lye outside the upper border of the tab.

f = uifigure;
tg = uitabgroup(f,'Position',[20 20 196 145]);
t = uitab(tg,'Title','Member Informaion');
ef1 = uieditfield(t,'text','Position',[11 165 140 22],'Value','First Name');
ef2 = uieditfield(t,'text','Position',[11 140 140 22],'Value','Last Name');
ef3 = uieditfield(t,'text','Position',[11 115 140 22],'Value','Addess');
dd = uidropdown(t,'Position',[11 90 140 22],'Items',{'Male','Female'});
cb = uicheckbox(t,'Position',[11 65 140 22],'Text','Member');
b = uibutton(t,'Position',[11 40 140 22],'Text','Send');

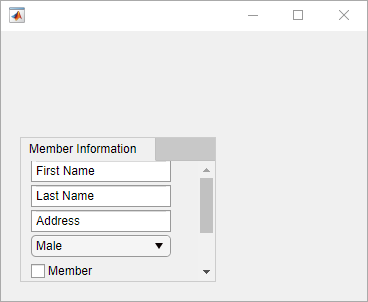

Enable scrolling by setting the Scrollable property of the tab to 'on'. By default, the scroll bar displays at the top.

t.Scrollable = 'on';

Input Arguments

collapse all

Parent container, specified as a figure created with either the figure or uifigure function, or a child container:

  • Panels, tabs and button groups can be containers in either type of figure.

  • Grid layouts can be containers only in figures created with the uifigure function.

Name-Value Pair Arguments

Example: 'TabLocation','bottom' specifies that the tab labels are at the bottom of the tab group.

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside single quotes (' '). You can specify several name and value pair arguments as Name1,Value1,...,NameN,ValueN.

  • For a list of properties available for GUIDE, or for creating apps with the figure function, see TabGroup Properties for GUIDE.

  • For a list of properties available for App Designer, or for creating apps with the uifigure function, see TabGroup Properties for App Designer.

See Also



Introduced in R2014b
