Visualize path metrics in map environment



show(pathMetricsObj) plots the path in the map environment with the minimum clearance.

show(pathMetricsObj,Name,Value) specifies additional options using one or more name-value pair arguments.

axHandle = show(pathMetricsObj) outputs the axes handle of the figure used to plot the path.


collapse all

Compute smoothness, clearance, and validity of a planned path based on a set of poses and the associated map environment.

Load and Assign Map to State Validator

Create an occupancy map from an example map and set the map resolution.

load exampleMaps.mat; % simpleMap
mapResolution = 1; % cells/meter
map = occupancyMap(simpleMap,mapResolution);

Create a Dubins state space.

statespace = stateSpaceDubins;

Create a state validator based on occupancy map to store the parameters and states in the Dubins state space.

statevalidator = validatorOccupancyMap(statespace);

Assign the map to the validator.

statevalidator.Map = map;

Set the validation distance for the validator.

statevalidator.ValidationDistance = 0.01;

Update the state space bounds to be the same as the map limits.

statespace.StateBounds = [map.XWorldLimits;map.YWorldLimits;[-pi pi]];

Plan Path

Create an RRT* path planner and allow further optimization.

planner = plannerRRTStar(statespace,statevalidator);
planner.ContinueAfterGoalReached = true;

Reduce the maximum number of iterations and increase the maximum connection distance.

planner.MaxIterations = 2500;
planner.MaxConnectionDistance = 0.3;

Define start and goal states for the path planner as [x, y, theta] vectors. x and y are the Cartesian coordinates, and theta is the orientation angle.

start = [2.5, 2.5, 0]; % [meters, meters, radians]
goal = [22.5, 8.75, 0];

Plan a path from the start state to the goal state. The plan function returns a navPath object.

rng(100,'twister') % repeatable result
[path,solutionInfo] = plan(planner,start,goal);

Compute and Visualize Path Metrics

Create a path metrics object.

pathMetricsObj = pathmetrics(path,statevalidator);

Check path validity. The result is 1 (true) if the planned path is obstacle free. 0 (false) indicates an invalid path.

ans = logical


Calculate the minimum clearance of the path.

ans =

Evaluate the smoothness of the path. Values close to 0 indicate a smoother path. Straight-line paths return a value of 0.

ans =

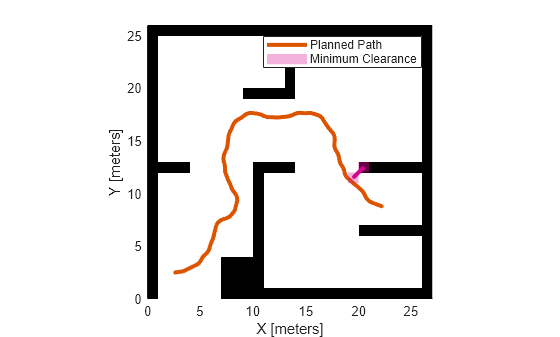

Visualize the minimum clearance of the path.

legend('Planned Path','Minimum Clearance')

Input Arguments

collapse all

Information for path metrics, specified as a pathmetrics object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'Parent',axHandle

Axes used to plot path, specified as the comma-separated pair consisting of 'Parent' and either an axes or uiaxes object. If you do not specify Parent, a new figure is created.

Example: show(pathMetricsObj,'Parent',axHandle)

Display metrics option, specified as the comma-separated pair consisting of 'Metrics' and a cell array with any combination of these values:

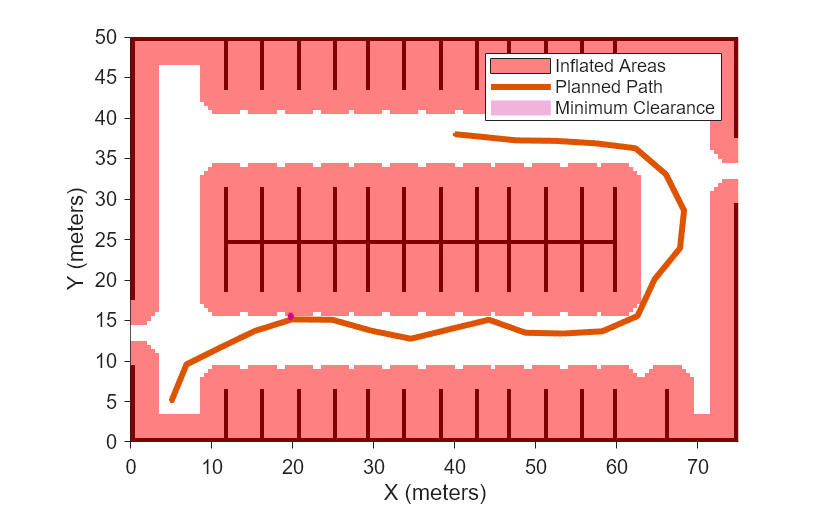

  • 'MinClearance' — Display minimum clearance of path.

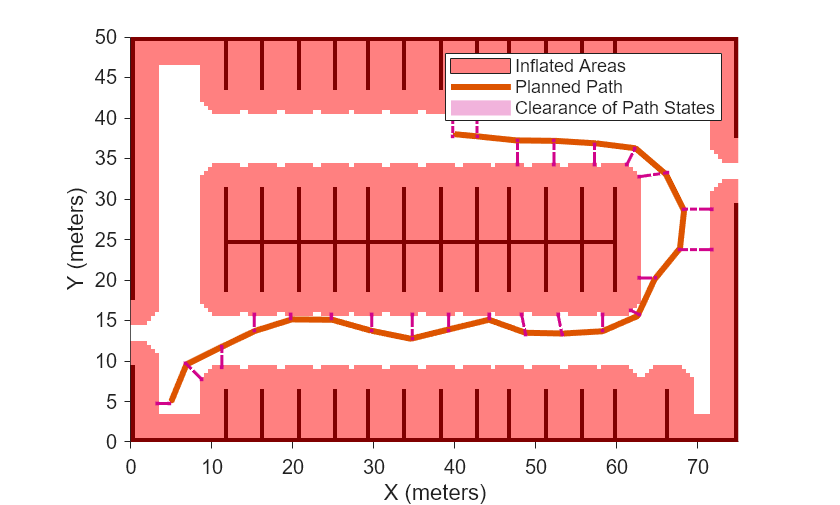

  • 'StatesClearance' — Display clearance of path states.

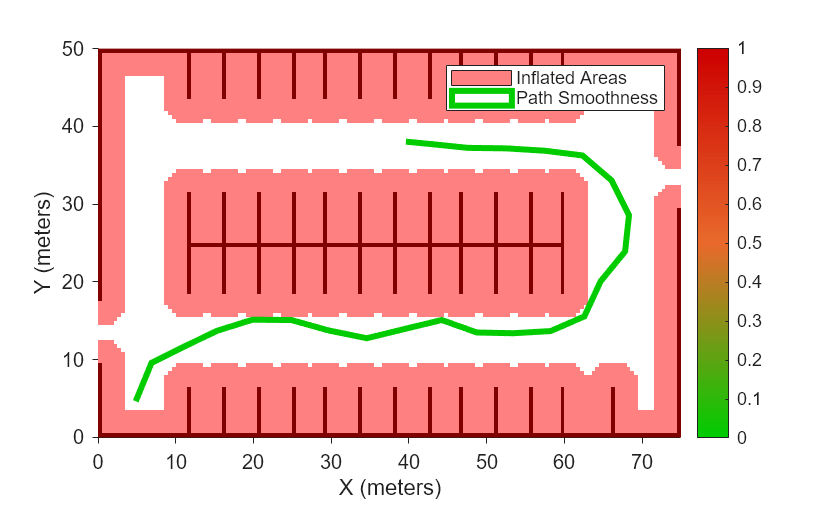

  • 'Smoothness' — Display path smoothness.

Example: show(pathMetricsObj,'Metrics',{'Smoothness','StatesClearance'})

Data Types: cell

Output Arguments

collapse all

Axes used to plot path, returned as either an axes or uiaxes object.

See Also



Introduced in R2019b
