nearestEdge

Find edges nearest to specified point

    Description

    example

    EdgeID = nearestEdge(g,Coords) finds edges nearest to the point with the coordinates Coords.

    Examples

    collapse all

    Find edges of a block nearest to the specified points.

    Create a block geometry.

    gm = multicuboid(3,2,1)
    gm =
      DiscreteGeometry with properties:

           NumCells: 1
           NumFaces: 6
           NumEdges: 12
        NumVertices: 8
           Vertices: [8x3 double]

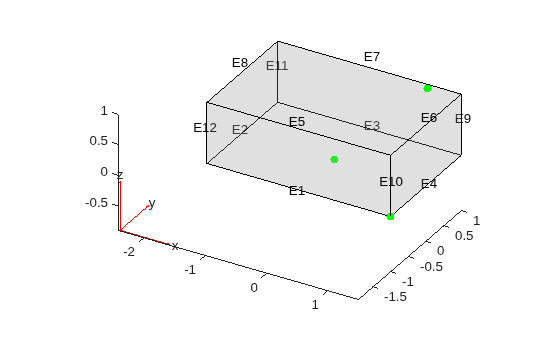

    Plot the geometry with the edge labels. Add the points with the coordinates (0 0 0), (1 0.9 1), and (1.5 -1 0) to the plot.

    pdegplot(gm,'EdgeLabels','on','FaceAlpha',0.2)
    hold on
    scatter3([0 1 1.5],[0 0.9 -1],[0 1 0],'filled','MarkerFaceColor','g')

    Figure contains an axes. The axes contains 4 objects of type quiver, patch, line, scatter.

    Find edges closest to the points with the coordinates (0 0 0), (1 0.9 1), and (1.5 -1 0). If several edges are equally close (within the tolerance) to the point, nearestEdge returns the ID of one of the edges.

    edgeIDs = nearestEdge(gm,[0 0 0; 1 0.9 1; 1.5 -1 0])
    edgeIDs = 1×3

         1     7     4



    Find edges of the L-shaped membrane nearest to the specified points.

    Create a model and include this geometry. The geometry of the L-shaped membrane is described in the file lshapeg.

    model = createpde();
    gm = geometryFromEdges(model,@lshapeg)
    gm =
      AnalyticGeometry with properties:

           NumCells: 0
           NumFaces: 3
           NumEdges: 10
        NumVertices: 8
           Vertices: [8x2 double]

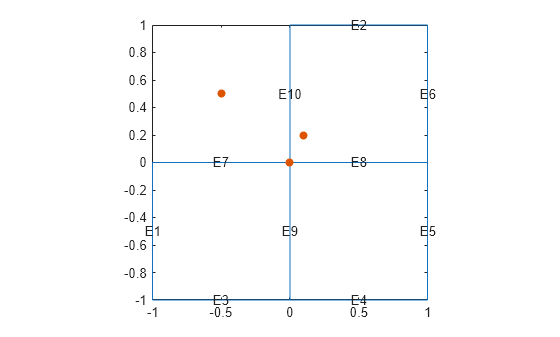

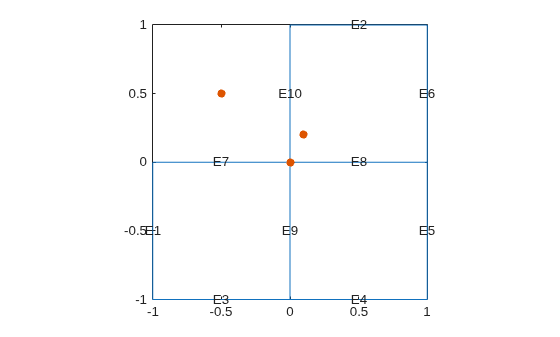

    Plot the geometry with the edge labels. Add the points with the coordinates (0 0), (0.1 0.2), and (-0.5 0.5) to the plot.

    pdegplot(gm,'EdgeLabels','on')
    hold on
    scatter([0 0.1 -0.5],[0 0.2 0.5],'filled')

    Figure contains an axes. The axes contains 12 objects of type line, text, scatter.

    Find edges closest to the points with the coordinates (0 0), (0.1 0.2), and (-0.5 0.5). If several edges are equally close (within the tolerance) to the point, nearestEdge returns the ID of one of the edges.

    edgeIDs = nearestEdge(gm,[0 0; 0.1 0.2; -0.5 0.5])
    edgeIDs = 1×3

         7    10    10



    Input Arguments

    collapse all

    Geometry, specified as a DiscreteGeometry or AnalyticGeometry object.

    Coordinates of the point, specified as a vector of 2 or 3 elements for a 2-D or 3-D geometry, respectively.

    Data Types: double

    Output Arguments

    collapse all

    IDs of edges nearest to the specified point, returned as a positive number or a vector of positive numbers.

    Introduced in R2021a
