# fegeometry

## Description

An `fegeometry`

object contains a geometry for use
in a finite element analysis with an `femodel`

object.

## Creation

### Syntax

### Description

creates an `gm`

= fegeometry(`geometry`

,`Name=Value`

)`fegeometry`

object using one or more name-value arguments.

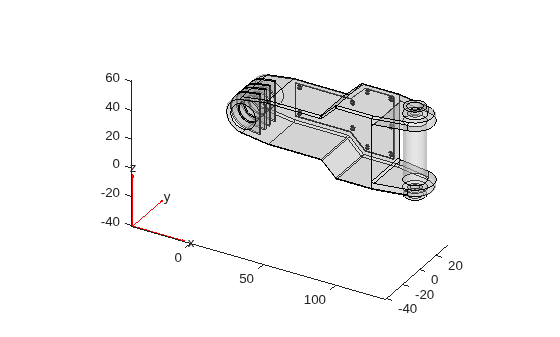

For this syntax, `geometry`

must specify a path to an STL or STEP
file.

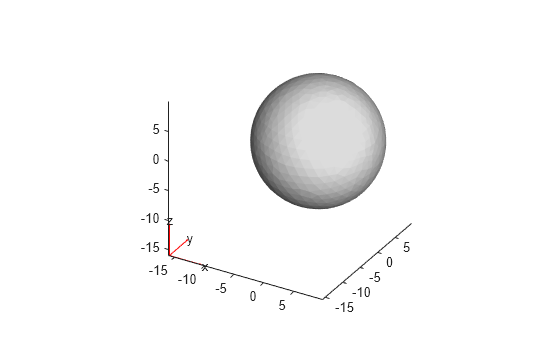

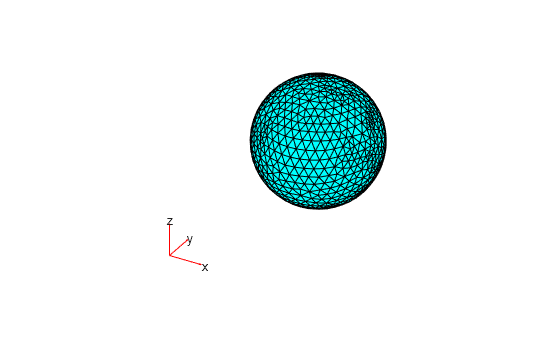

creates an `gm`

= fegeometry(`mesh`

)`fegeometry`

object from a mesh represented by an
`FEMesh`

object. If the mesh data identifies multiple faces for a 2-D
geometry or multiple cells for a 3-D geometry, the resulting geometry contains
corresponding multiple faces or cells.

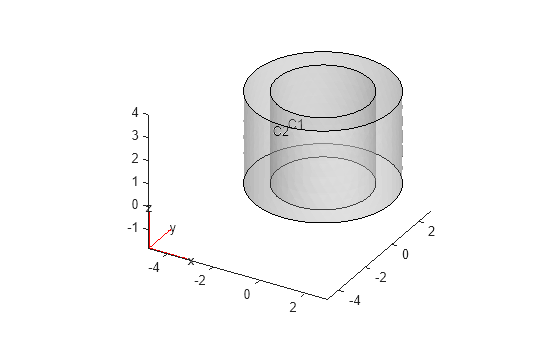

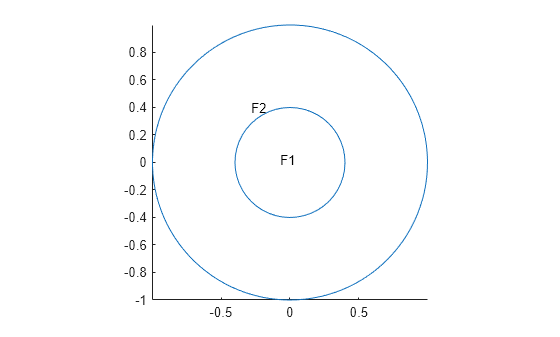

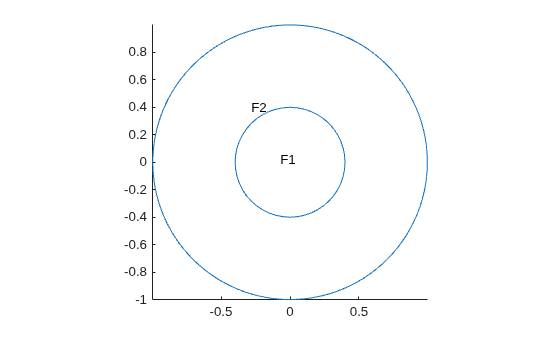

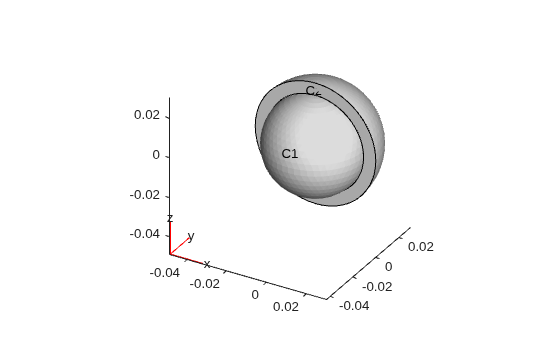

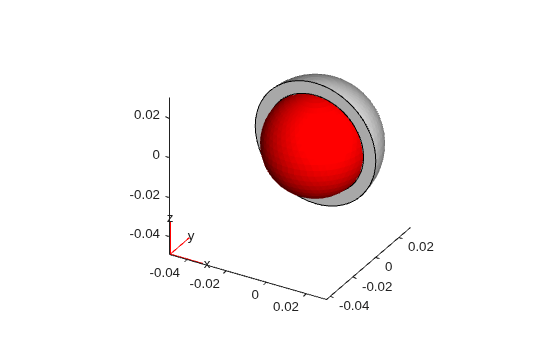

creates a multidomain geometry from a mesh represented by an `gm`

= fegeometry(___,`ElementIDToRegionID`

)`FEMesh`

object or by `nodes`

and `elements`

.
`ElementIDToRegionID`

specifies the domain IDs for each element of
the mesh.

### Input Arguments

## Properties

## Object Functions

`addCell` | Combine two geometries by adding one inside a cell of another |

`addFace` | Fill void regions in 2-D and split cells in 3-D geometry |

`addVertex` | Add vertex on geometry boundary |

`addVoid` | Create void regions inside 3-D geometry |

`cellEdges` | Find edges belonging to boundaries of specified cells |

`cellFaces` | Find faces belonging to specified cells |

`extrude` | Vertically extrude 2-D geometry or specified faces of 3-D geometry |

`faceEdges` | Find edges belonging to specified faces |

`facesAttachedToEdges` | Find faces attached to specified edges |

`generateMesh` | Create triangular or tetrahedral mesh |

`mergeCells` | Merge geometry cells |

`nearestEdge` | Find edges nearest to specified point |

`nearestFace` | Find faces nearest to specified point |

`pdegplot` | Plot PDE geometry |

`pdemesh` | Plot PDE mesh |

`rotate` | Rotate geometry |

`scale` | Scale geometry |

`translate` | Translate geometry |

`triangulation` | Create `triangulation` object from
`fegeometry` |

## Examples

## Tips

For 3-D geometries symmetrical around an axis of rotation, you can speed up computations by simplifying a 3-D geometry to a 2-D geometry and setting the

`PlanarType`

property of`femodel`

to`"axisymmetric"`

. The axis of rotation is the vertical axis,*x*= 0. The*x*–axis represents the radial component, and the*y*–axis represents the axial component.

## Version History

**Introduced in R2023a**
