phaseShifter

Create phase shifter in microstrip form

Description

Use the phaseShifter object to create a phase shifter in the microstrip form. Phase shifters change the phase of a signal using proper matching at the input and output ports and minimum insertion loss.

Creation

Description

example

ps = phaseShifter creates a phase shifter using Teflon as the default substrate.

example

ps = phaseShifter(Name=Value) sets Properties using one or more name-value arguments. For example, phaseShifter(NumSections=3) creates a phase shifter with 3 U-sections. Properties not specified retain their default values.

Properties

expand all

Number of U-sections, specified as a positive scalar.

Example: ps = phaseShifter(NumSections=3)

Data Types: double

Shape of the U-sections, specified as a ubendRightAngle, ubendMitered, or ubendCurved object.

Example: shape = ubendMitered; ps = phaseShifter(SectionShape=shape)

Data Types: double

Length of the port line in meters, specified as a positive scalar.

Example: ps = phaseShifter(PortLineLength=0.0400)

Data Types: double

Width of the port line in meters, specified as a positive scalar.

Example: ps = phaseShifter(PortLineWidth=0.0800)

Data Types: double

Height of the phase shifter from the ground plane in meters, specified as a positive scalar. For multilayer dielectrics, use the Height property to create the filter between the two dielectric layers.

Example: ps = phaseShifter(Height=0.0019)

Data Types: double

Width of the ground plane in meters, specified as a positive scalar.

Example: ps = phaseShifter(GroundPlaneWidth=0.0500)

Data Types: double

Type of dielectric material used as a substrate, specified as a dielectric object. The dielectric material in a phaseShifter object with default properties is Teflon.

Example: d = dielectric("FR4"); ps = phaseShifter(Substrate=d)

Data Types: string | char

Type of metal used in the conducting layers, specified as a metal object. The type of metal in a phaseShifter object with default properties is PEC.

Example: m = metal("Copper"); ps = phaseShifter(Conductor=m)

Data Types: string | char

Object Functions

currentCalculate and plot current distribution
chargeCalculate and plot charge distribution
designDesign phase shifter around specified frequency
feedCurrentCalculate current at feed port
layoutPlot all metal layers and board shape
meshChange and view mesh properties of metal or dielectric in PCB component
shapesExtract all metal layer shapes of PCB component
showDisplay PCB component structure or PCB shape
sparametersCalculate S-parameters for RF PCB objects

Examples

collapse all

Create a phase shifter with default values.

ps = phaseShifter
ps =
  phaseShifter with properties:

         NumSections: 1
        SectionShape: [1x1 ubendRightAngle]
      PortLineLength: 0.0100
       PortLineWidth: 0.0050
              Height: 0.0016
    GroundPlaneWidth: 0.0500
           Substrate: [1x1 dielectric]
           Conductor: [1x1 metal]

Visualize the phase shifter.

show(ps)

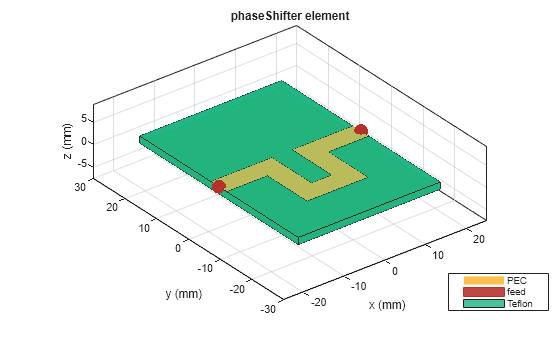

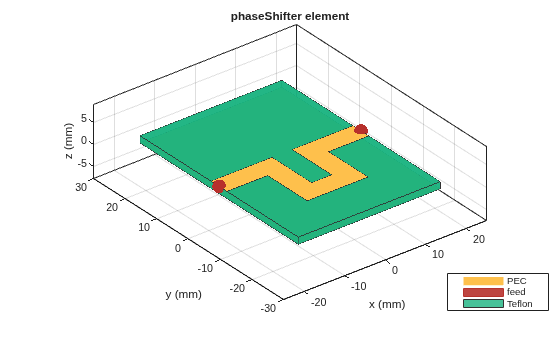

Figure contains an axes object. The axes object with title phaseShifter element contains 6 objects of type patch, surface. These objects represent PEC, feed, Teflon.

Create a phase shifter at the interface of a multilayered dielectric.

ps = phaseShifter;
ps.Substrate = dielectric(Name={'Teflon','Teflon'},EpsilonR=[2.1 2.1], ...
    LossTangent=[0 0],Thickness=[0.8e-3 0.8e-3]);
ps.Height = 0.8e-3;

Visualize the phase shifter.

show(ps)

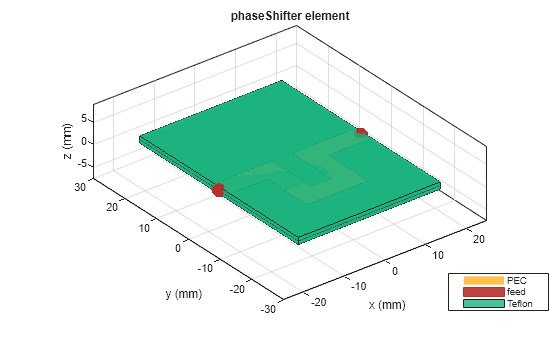

Figure contains an axes object. The axes object with title phaseShifter element contains 7 objects of type patch, surface. These objects represent PEC, feed, Teflon.
