rectwin

Rectangular window

Syntax

w = rectwin(L)

Description

example

w = rectwin(L) returns a rectangular window of length L.

Examples

collapse all

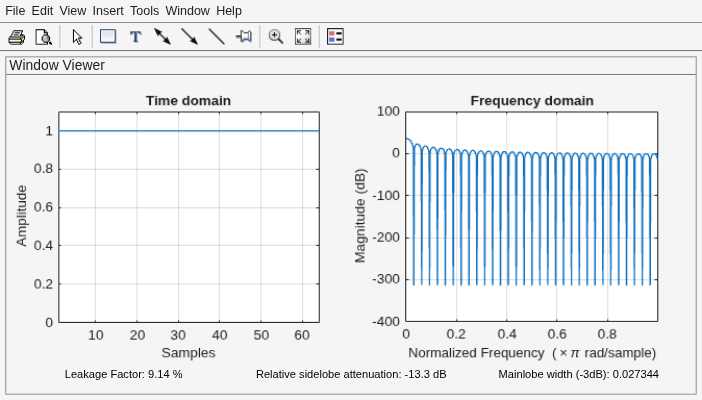

Create a 64-point rectangular window. Display the result using wvtool.

L = 64;
wvtool(rectwin(L))

Input Arguments

collapse all

Window length, specified as a positive integer.

Data Types: single | double

Output Arguments

collapse all

Rectangular window, returned as a column vector.

Algorithms

The output of the rectwin function with input L can also be created using the ones function.

w = ones(L,1);

References

[1] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999, pp. 468–471.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced before R2006a
