Resource Acquirer

Acquire entity resources

  • Library:
  • SimEvents

Description

The Resource Acquirer block acquires the use of resources for a passing entity. You can specify that the block acquire certain resource types.

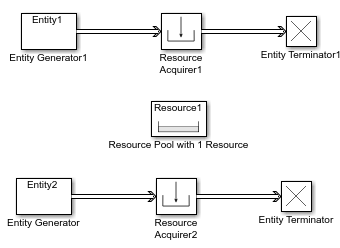

Initialize the block with a specified amount of available resources. Then:

  • Use one or more Resource Acquirer blocks to reserve the use of those resources.

  • Use a Resource Releaser block to return resources back to this block for future use.

Resources are visible to the current subsystem and its children. Resources are not visible to parent subsystems.

To customize actions when entities enter, exit, or are blocked, enter MATLAB® code in the Entry action, Exit action, or Blocked action field of the Event actions tab.

Available Resources

Use the Available Resources controls to:

  • Select the resources from the resources defined in all the Resource Pool blocks in the model.

  • Add the resources to the Selected Resources table, where you can configure resource acquisition details.

The list displays all the available resources in the model. (If there are no resources, the Available Attributes list is empty.)

If the resource list is long, you can type the resource name in the text box to filter the list.

Use the buttons in the Available Resources section to help build the resources table. The buttons perform these actions.

ButtonAction

Refresh the Available Resources list. The list updates with any upstream model changes you make while the block dialog box is open.

Add the selected resources to the Selected Resources table.

Move the selected resource from the Selected Resources table to the Available Resources list.

Note

If the selected resource is one you added manually, this button appears dimmed.

The message area below the available resources list displays additional messages about the resources, as they apply.

MessageMeaning

> Resource already selected

You have already added the resource to the Selected Resources table. You cannot add the resource to the table again.

Selected Resources

Use the controls under Selected Resources to build and manage the list of resources to attach to the entity. Each resource appears as a row in a table.

Using these controls, you can:

  • Add a resource manually.

  • Modify a resource that you added to the table from the Available Resources list to attach to the entity.

The buttons under Selected Resources perform these actions:

ButtonActionNotes

Add a template resource to the table.

Rename the resource and specify its properties.

Add a copy of the selected resource to the table to use as the basis of a new resource.

Rename the copy. Two resources cannot have the same name.

Remove the selected resource from the Selected Resources table.

When you delete a resource this way, no confirmation appears and you cannot undo the operation.

Move up the selected resource in order in the Selected Resources table.

N/A

Move the selected resource down in order in the Selected Resources table.

N/A

Note

If you delete a row and apply the change, the deletion can affect signal output ports corresponding to other attributes. For example, if the block has a signal output port A2 and you delete the attribute with a port marked A1, the block relabels A2 as A1. Verify that any signal that connects to the relabeled port is still connected as you expect.

PropertySpecifyUse

Name

The name of the resource. Each resource must have a unique name.

Double-click the existing name, and then type the new name.

Amount Source

Whether the resource amount, that an entity requests, comes from the dialog box or an attribute.

Select Dialog or Attribute. If you select Attribute, the source of the resource amount comes from the attribute of the entity. This option allows each entity to acquire varying amounts of resources. For more information, see Set Resource Amount with Attributes

Amount

The value to assign to the resource (when the resource comes from the dialog box).

Double-click the value, and then type the value you want to assign.

This value is the number of resources acquired per entity. For example, if Amount is 3, each entity that arrives at the Release Acquire must wait to acquire 3 resources before departing the block.

Ports

Input

expand all

Input entity port for entities entering the block.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | enumerated | bus

Output

expand all

Output entity port for entities exiting the block.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | enumerated | bus

Number of entities that have departed the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities departed, d.

Data Types: double

Number of entities that have not yet departed the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities in block, n.

Data Types: double

Average wait time for entities in the block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Average wait, w.

Data Types: double

Number of entities that are pulled out of this block.

Dependencies

To enable this port, click the Statistics tab and select the box labeled Number of entities extracted, ex.

Data Types: double

Parameters

expand all

Enter the maximum number of entities that can wait for a resource.

Programmatic Use

Block Parameter: NumberWaitingEntities
Type: character vector
Values: '1' | scalar
Default: '1'

Define the behavior in the Event actions. For example, the Entry action is called when an entity enters the block.

Programmatic Use

Block Parameter: EntryAction, ExitAction, BlockedAction
Type: character vector
Values: MATLAB code
Default: ''

Selecting this check box outputs the number of entities that have exited the block.

Programmatic Use

Block Parameter: NumberEntitiesDeparted
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Selecting this check box outputs the number of entities present in the block, which have yet to depart.

Programmatic Use

Block Parameter: NumberEntitiesInBlock
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Sum of the wait times for entities departing the block divided by their total number. Wait time is the duration between the entity's entry into and exit from the Resource Acquirer block. For more information, see Interpret SimEvents Models Using Statistical Analysis.

Programmatic Use

Block Parameter: AverageWait
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Outputs the number of extracted entities which are pulled out from this block by the Entity Find block. When an entity is extracted, its resource acquisition from the Resource Pool block is canceled and Number of entities departed, d, Number of entities in block, n, and Average wait, w statistics are updated accordingly. For more information about finding and extracting entities, see Find and Extract Entities in SimEvents Models.

Programmatic Use

Block Parameter: NumEntitiesExtracted
Type: character vector
Values: 'on' | 'off'
Default: 'off'

Introduced in R2016a
