# Spectrum Analyzer

Display frequency spectrum of time-domain signals

**Libraries:**

RF Blockset /
Circuit Envelope /
Utilities

## Description

**Note**

The Spectrum Analyzer block in RF Blockset™ provides a subset of the functionality provided by the DSP System Toolbox™ block with the same name. This page describes the block configuration and functionality available with a RF Blockset license. If you also have a DSP System Toolbox license, then the Spectrum Analyzer block in the RF Blockset > Utilities library is identical to the block in the DSP System Toolbox > Sinks library. For more information, see Spectrum Analyzer (DSP System Toolbox).

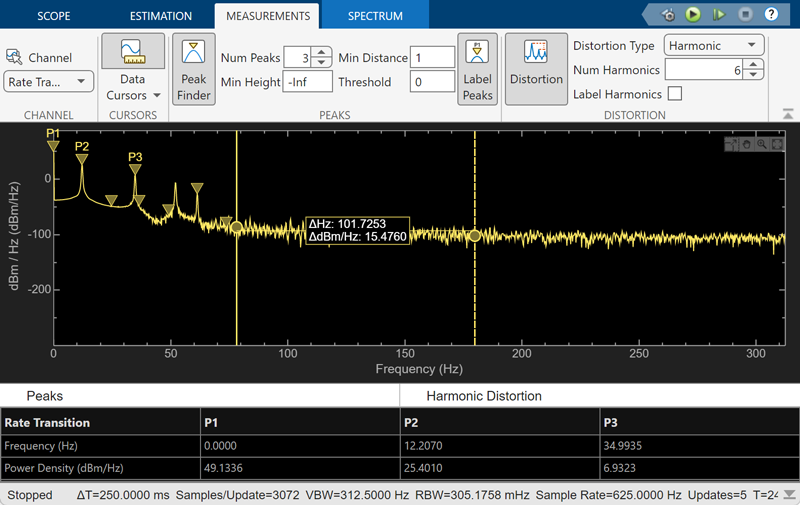

The Spectrum Analyzer block displays frequency spectra of input signals with discrete sample times.

In a RF Blockset model, to use a Spectrum Analyzer block instead of a regular scope:

Add a Spectrum Analyzer block to your block diagram.

If your model uses a variable-step solver, also add a Rate Transition block and connect it to the input port of the Spectrum Analyzer block. Set the

**Output port sample time**parameter to the sample time you want the Spectrum Analyzer to use.If your model uses a local solver, then it outputs physical signals with discrete sample times and you do not need to add a Rate Transition block. However, if you need to downsample from the solver fixed step size, you can use a Rate Transition block. For more information on using local solvers, see Making Optimal Solver Choices for Physical Simulation.

Use a PS-Simulink Converter block to connect the physical output signal of interest to the input port of the Spectrum Analyzer block (or to the input port of the Rate Transition block, if you are using one). For more information, see Connecting Simscape Diagrams to Simulink Sources and Scopes. You can also use additional signal processing blocks between the PS-Simulink Converter and the Spectrum Analyzer blocks to enhance signal quality.

Run the simulation. Once the simulation is complete, the Spectrum Analyzer, referred to here as the scope, opens and displays the frequency spectrum of the signal.

### Programmatic Control

You can configure and display the Spectrum Analyzer settings from the command line with
the `SpectrumAnalyzerBlockConfiguration`

object.

## Examples

## Ports

### Input

**u** — Signals to visualize

scalar | vector | matrix | array

Connect the signals you want to visualize. You can have up to 96 input ports. Input signals must have these characteristics:

**Signal Domain**— Frequency or time signals.**Type**— Discrete signals.**Data type**— Any data type that Simulink^{®}supports. See Data Types Supported by Simulink.**Dimension**— One dimensional (vector), two dimensional (matrix), or multidimensional (array) signals. Input signal must have a fixed number of channels. See Signal Dimensions and Determine Signal Dimensions.

The Spectrum Analyzer block supports variable-size input signals, that is, the frame size of the signals can change during simulation. When the signal frame size changes, the sample rate the scope uses changes accordingly, which in turn updates the frequency span of the spectrum display.

The Spectrum Analyzer block accepts fixed-point input, but
converts it to `double`

for display.

This
port is unnamed until you enable the **RBW** port.* (since R2024a)*

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `fixed point`

**Complex Number Support: **Yes

**RBW** — RBW Value

positive scalar

Specify the resolution bandwidth in Hz through this port. RBW defines the
smallest positive frequency that can be resolved by the scope. You can also
specify the RBW value using the **RBW (Hz)** parameter on
the **Estimation** tab.

#### Dependency

To enable this port, set the **RBW (Hz)** parameter
on the **Estimation** tab to ```
Input
port
```

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `Boolean`

| `fixed point`

## Parameters

This section lists the block parameters for the Spectrum Analyzer block in Simscape™ and RF Blockset. For a complete list of parameters, see Spectrum Analyzer (DSP System Toolbox).

### Scope Tab

**Views**

**Spectrum** — Type of spectrum to display

`Power`

(default) | `Power Density`

| `RMS`

Set the type of spectrum to display as one of these values:

`Power`

— Spectrum Analyzer shows the power spectrum.`Power Density`

— Spectrum Analyzer shows the power spectral density. The power spectral density is the squared magnitude of the spectrum normalized to a bandwidth of 1 Hz.`RMS`

— Spectrum Analyzer shows the root mean squared spectrum. Use this option to view the frequency of voltage or current signals.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`SpectrumType` |

Type: character vector or
string scalar |

**Data Types: **`char`

| `string`

**Bandwidth**

**Sample Rate (Hz)** — Sample rate the scope uses in Hz

`Inherited`

(default) | positive scalar

Specify the sample rate the scope uses in Hz as one of the following:

`Inherited`

–– Use this option to specify the same sample rate as the input signal.Positive scalar –– The sample rate you specify must be at least twice the sample rate of the input signal. Otherwise, you might see unexpected behavior when visualizing your signal in the scope due to aliasing.

When the signal frame size changes, the sample rate the scopes uses changes accordingly which in turn updates the frequency span of the spectrum display.

To display the sample rate on the status bar, click the icon in the status bar and select ```
Sample
Rate
```

.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`SampleRate` , `SampleRateSource` |

Type:
`double` |

**Offset (Hz)** — Offset to apply to frequency axis

`0`

(default) | scalar | vector

Specify the offset to apply to the frequency axis
(*x*-axis) in units of Hz as one of the
following:

Scalar — Apply the same frequency offset to all channels.

Vector — Apply a specific frequency offset for each channel. The vector length must be equal to the number of input channels.

The overall span must fall within the Nyquist Frequency Interval. You can control the overall span in different ways based on how you set the

**Span (Hz)**parameter.

**Tunable: **Yes

#### Programmatic Use

Block
Parameter:
`FrequencyOffset` |

Type:
`double` |

**Configuration > Spectrum Analyzer Settings ()**

**Num Inputs** — Number of input ports

1 (default) | integer between 1 and 96

The number of input ports to the block, specified as an integer between 1 and 96. To change the number of input ports, drag a new input signal line to the block and the block automatically creates new ports.

#### Programmatic Use

Block Parameter:
`NumInputPorts` |

Type: character vector or string
scalar |

Values: scalar between 1 and
96 |

**Open at Simulation Start** — Automatically open scope when simulation starts

on (default) | off

Select this parameter to automatically open the Spectrum Analyzer window when you run the simulation.

#### Programmatic Use

Block Parameter:
`OpenAtSimulationStart` |

Type: logical |

**Font Size** — Font size of labels

`Small`

(default) | `Medium`

| `Large`

| `Extra Large`

Specify the font size of labels in the display as `Small`

,
`Medium`

, `Large`

, and
`Extra Large`

.

**Tunable: **Yes

#### Programmatic Use

Block Parameter: `-` |

Type: character vector or string scalar |

**Plot Type** — Plot type

`Line`

(default) | `Stem`

Specify whether to display a `Line`

or
`Stem`

plot in the Spectrum display.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`PlotType` |

Type: character vector or
string scalar |

**Y-Label** — *y*-axis label

character vector | string scalar

Specify the *y*-axis label in the Spectrum display as a
character vector or a string scalar. To display signal units, add
`(%<SignalUnits>)`

to the label. When simulation
starts, Simulink replaces `(%SignalUnits)`

with the units
associated with the signals. For example, for a velocity signal with units
of m/s
enter:

Velocity (%<SignalUnits>)

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`YLabel` |

Type: character vector or
string scalar |

**Y-Axis Limits** — *y*-axis limits

[`−80`

`20`

] | [`ymin ymax`

]

Specify the *y*-axis limits in the Spectrum Analyzer
display as a two-element numeric vector of the form [```
ymin
ymax
```

]. The units of the *y*-axis limits
depend on the **Spectrum Unit** in the
**Spectrum** tab.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`YLimits` |

Type:
`double` |

**Title** — Display title

character vector | string

Specify the display title. Enter `%<SignalLabel>`

to use the signal labels in the Simulink model as the axes titles.

**Tunable: **Yes

#### Programmatic Use

Block
Parameter:
`Title` |

Type:
character vector or string |

**Show Grid** — Show internal grid lines

`on`

(default) | `off`

Select this check box to show the grid in the Spectrum Analyzer display.

**Tunable: **Yes

#### Programmatic Use

Block
Parameter:
`ShowGrid` |

Type:
`logical` |

**Preserve colors for copy to clipboard** — Preserve colors when copying to clipboard

`off`

(default) | `on`

When you select this parameter, the scope preserves the colors when you copy the
display to the clipboard using the **Copy Display** and the
**Print** options in the **Scope** tab >
**Share** section.

**Tunable: **Yes

**Background** — Window background

black (default) | color picker

Specify the background color in the scope figure.

**Tunable: **Yes

**Axes** — Axes background color

black (default) | color picker

Specify the background color of the axes.

**Tunable: **Yes

**Labels** — Color of labels

gray (default) | color picker

Specify the color of the labels, grid, and the channel names in the legend.

**Tunable: **Yes

**Line** — Channel for line property settings

channel names

Specify the channel for which you want to modify the visibility, line color, style, width, and marker properties.

**Tunable: **Yes

**Visible** — Channel visibility

`on`

(default) | `off`

Select this check box to display the channel you have selected. If you clear this check box, the selected channel is no longer visible. You can also click the signal name in the legend to control its visibility. For more details, see Legend.

**Tunable: **Yes

**Style** — Line style

`-`

(default) | `:`

| `-`

. | `--`

| `None`

Specify the line style for the selected channel.

**Tunable: **Yes

**Width** — Line width

`1.5`

(default) | `0.5`

| `1`

| `2`

| ...

Specify the line width for the selected channel.

**Tunable: **Yes

**Marker** — Data point markers

`None`

(default) | `+`

| `x`

| ...

Specify a data point marker for the selected channel. This parameter is similar to the Marker property for plots. You can choose any of the marker symbols from the drop-down list.

**Tunable: **Yes

**Color** — Line color

yellow (default) | color picker

Specify the line color for the selected channel.

**Tunable: **Yes

**Configuration**

**Legend** — Show or hide signal legend

button

Click the **Legend** button to enable the Spectrum
Analyzer to display. The legend displays the signal names from the model.
For signals with multiple channels, the scope appends a channel index after
the signal name. Continuous signals have straight lines before their names
and discrete signals have step-shaped lines.

You can control which signals are visible using the legend. To hide a
signal in the scope legend, click the signal name. To display the signal,
click the signal name again. Alternatively, you can control which signal is
visible using the **Visible** parameter in the
**Spectrum Analyzer Settings** ().

To display only one signal and hide all other signals, right-click the
name of the signal you want the scope to display. To show all signals, press
**Esc**.

**Note**

The legend displays only the first 20 signals. You cannot view or control any additional signals from the legend.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`ShowLegend` |

Type:
`logical` |

**Share**

**Copy Display** — Send display to clipboard

button

Click this button to copy the scope display to the clipboard. You can preserve the color in the display by selecting the Preserve colors for copy to clipboard parameter.

**Print** — Print display

button

Click this button to save the scope display as an image or a PDF or to print the display.

### Estimation Tab

**Frequency Resolution**

**RBW (Hz)** — Resolution bandwidth in Hz

`Auto`

(default) | `Input port`

| positive scalar

Specify the resolution bandwidth in Hz. This parameter defines the smallest positive frequency
that can be resolved by the scope. By default, this parameter is set to
`Auto`

. In this case, the spectrum analyzer determines the
appropriate value to ensure that there are 1024 RBW intervals over the specified
frequency span.

If you set this parameter to `Input port`

, you can specify
the RBW value through an input port on the block.

If you set this parameter to a numeric value, the value must allow at least two RBW intervals over the specified frequency span. In other words, the ratio of the overall frequency span to RBW must be greater than two:

$$\frac{span}{RBW}>2$$

To display this property on the status bar, click the icon in the status bar and select
`RBW`

.

**Tunable: **Yes

#### Programmatic Use

Block Parameter: `RBWSource` , `RBW` |

Type: character vector, string scalar, `double` |

**Averaging**

**Averaging Method** — Smoothing method

`Exponential`

(default) | `VBW`

Specify the smoothing method as one of the following:

`Exponential`

— The block computes the average over samples weighted by an exponentially decaying forgetting factor. Use the**Forgetting Factor**parameter to specify the weighted forgetting factor.`VBW`

— The block uses a lowpass filter to smooth the trace and decrease the noise. Use the**VBW (Hz)**parameter to specify the video bandwidth (VBW) value.

For more information on the averaging methods, see Averaging Method.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`AveragingMethod` |

Type: character vector or
string scalar |

**VBW (Hz)** — Video bandwidth

`Auto`

(default) | `Input port`

| positive scalar

Specify the video bandwidth as one of the following:

`Auto`

–– The Spectrum Analyzer adjusts the VBW such that the equivalent forgetting factor is 0.9.`Input port`

–– An input port appears on the scope and you can specify the VBW value through this port.Positive scalar –– You specify a positive scalar. The Spectrum Analyzer adjusts the VBW using this value. The value you specify must be less than or equal to

**Sample Rate (Hz)**/2.

For more details on the video bandwidth method, see Averaging Method.

The Spectrum Analyzer shows the VBW value in the status bar at the bottom
of the display. To display the VBW value, click the icon in the status bar and select
`VBW`

.

**Tunable: **Yes

#### Dependency

To enable this parameter, set **Averaging Method** to
`VBW`

.

#### Programmatic Use

Block Parameter:
`VBWSource` , `VBW` |

Type:
`double` |

**Forgetting Factor** — Forgetting factor of weighted average method

`0.9`

(default) | scalar in the range [0,1]

Specify the forgetting factor of the exponential weighted averaging method as a scalar in the range [0,1].

**Tunable: **Yes

#### Dependency

To enable this parameter, set **Averaging Method** to
`Exponential`

.

#### Programmatic Use

Block Parameter:
`ForgettingFactor` |

Type:
`double` |

**Window Options**

**Window** — Windowing method

`Hann`

(default) | `Rectangular`

Specify the windowing method to apply to the spectrum. Windowing is used to control the effect of sidelobes in spectral estimation. The window you specify affects the window length required to achieve a resolution bandwidth and the required number of samples per update. For more information about windowing, see Windows (Signal Processing Toolbox).

You can access additional windowing algorithms if you install DSP System Toolbox.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`Window` |

Type: character vector or
string scalar |

**Overlap (%)** — Percentage of overlap

`0`

(default) | scalar in the range [0 100)

Specify the percentage of overlap between the previous and the current buffered data segments as a scalar in the range [0 100). The overlap creates a window segment that the scope uses to compute a spectral estimate. The value must be greater than or equal to zero and less than 100.

**Tunable: **Yes

#### Programmatic Use

Block Parameter:
`OverlapPercent` |

Type:
`double` |

### Measurements Tab

**Channel**

**Channel** — Channel for which to obtain measurements

`1`

(default) | positive integer

The channel for which you need to obtain measurements, specified as a positive integer in the range [1 *N*], where *N* is the number of input channels.

**Tunable: **Yes

#### Dependency

To enable this parameter, pass some data through the scope.

#### Programmatic Use

See `MeasurementChannel`

.

**Cursors**

**Data Cursors** — Enable cursor measurements

button

Click the **Data Cursors** button to enable data cursor measurements. Each
cursor tracks a vertical line along the signal. The scope displays the difference
between *x*- and *y*-values of the signal at the two
cursors in the box between the cursors.

**Tunable: **Yes

#### Programmatic Use

See `Enabled`

.

**Snap to data** — Snap cursors to data

`off`

(default) | `on`

Select this parameter to position the cursors on the signal data points.

**Tunable: **Yes

#### Programmatic Use

See `SnapToData`

.

**Lock cursor spacing** — Lock cursor spacing

`off`

(default) | `on`

Select this parameter to lock the frequency difference between the two cursors.

**Tunable: **Yes

#### Programmatic Use

See `LockSpacing`

.

**Peaks**

**Peak Finder** — Enable peak finder measurements

button

Click the **Peak Finder** button to enable peak finder
measurements. An arrow appears on the plot at each maxima and a Peaks panel appears at
the bottom of the scope window.

**Tunable: **Yes

#### Programmatic Use

See `Enabled`

.

**Num Peaks** — Maximum number of peaks to show

`3`

(default) | positive integer less than 100

Specify the maximum number of peaks to show as a positive integer less than 100.

**Tunable: **Yes

#### Programmatic Use

See `NumPeaks`

.

**Min Height** — Level above which scope detects peaks

`-Inf`

(default) | real scalar value

Specify the level above which the scope detects peaks as a real scalar.

**Tunable: **Yes

#### Programmatic Use

See `MinHeight`

.

**Min Distance** — Minimum number of samples between adjacent peaks

`1`

(default) | positive integer

Specify the minimum number of samples between adjacent peaks as a positive integer.

**Tunable: **Yes

#### Programmatic Use

See `MinDistance`

.

**Threshold** — Minimum difference between height of peak and its neighboring samples

`0`

(default) | nonnegative scalar

Specify the minimum difference between the height of the peak and its neighboring samples as a nonnegative scalar.

**Tunable: **Yes

#### Programmatic Use

See `Threshold`

.

**Label Peaks** — Label peaks

button

Click the **Label Peaks** button to label the peaks. The scope displays the
labels (**P1**, **P2**, …)
above the arrows in the plot.

**Tunable: **Yes

#### Programmatic Use

See `LabelPeaks`

.

**Distortion**

**Distortion** — Enable distortion measurements

button

Click the **Distortion** button to enable distortion measurements. A
Distortion panel appears at the bottom of the scope window when you click this
button.

**Tunable: **Yes

#### Programmatic Use

See `Enabled`

.

**Distortion Type** — Type of measurement to display

`Harmonic`

(default) | `Intermodulation`

Specify the type of measurement data to display as `Harmonic`

or `Intermodulation`

. For more details, see Distortion Measurements.

**Tunable: **Yes

#### Programmatic Use

See `Type`

.

**Num Harmonics** — Number of harmonics to measure

`6`

(default) | positive integer

Specify the number of harmonics to measure as a positive integer less than or equal to 99.

**Tunable: **Yes

#### Dependency

To enable this parameter, set **Distortion Type** to `Harmonic`

.

#### Programmatic Use

See `NumHarmonics`

.

**Label Harmonics** — Label harmonics

`off`

(default) | `on`

When you select this parameter, the spectrum analyzer adds numerical labels to harmonics in the spectrum display.

**Tunable: **Yes

#### Programmatic Use

See `LabelValues`

.

**Label Frequencies** — Label frequencies

`off`

(default) | `on`

When you select this parameter, the spectrum analyzer adds numerical labels to the first-order intermodulation product and third-order frequencies in the spectrum analyzer display.

**Tunable: **Yes

#### Programmatic Use

See `LabelValues`

.

### Spectrum Tab

**Trace Options**

**Two-Sided Spectrum** — Enable two-sided spectrum view

`on`

(default) | `off`

Select this check box to enable a two-sided spectrum view. In this view, the spectrum analyzer shows both negative and positive frequencies. When the input signal is complex-valued, you must select this parameter. If you clear this check box, the spectrum analyzer shows a one-sided spectrum with positive frequencies only. In this case, the input signal data must be real valued.

When you clear this check box, the spectrum analyzer uses power folding.
The *y*-axis values are twice the amplitude that they
would be if you were to select this parameter, except at
`0`

and the Nyquist frequency. A one-sided
power spectral density (PSD) contains the total power of the signal in
the frequency interval from DC to half the Nyquist rate. For more
information, see `pwelch`

(Signal Processing Toolbox).

**Tunable: **Yes

#### Programmatic Use

Block
Parameter:
`PlotAsTwoSidedSpectrum` |

Type:
`logical` |

**Scale**

**Frequency Scale** — Scale of frequency axis

`Linear`

(default) | `Log`

Specify the scale to display frequencies as
`Linear`

or `Log`

.
When the frequency span contains negative frequency values, you cannot
choose the logarithmic option.

**Tunable: **Yes

#### Dependency

To set the **Frequency Scale** to
`Log`

, clear the **Two-Sided
Spectrum** check box in the **Trace
Options** section in the **Spectrum**
tab. If you select the **Two-Sided Spectrum** check
box, then the **Frequency Scale** parameter is set to
`Linear`

.

#### Programmatic Use

Block Parameter:
`FrequencyScale` |

Type: character vector or
string scalar |

**Reference load (Ω)** — Reference load in Ω

`1`

(default) | positive real scalar

Specify the reference load in ohms that the Spectrum Analyzer uses as a reference to compute the power values.

**Tunable: **Yes

#### Dependency

To enable this parameter, set:

**Spectrum**type to`Power`

or`Power Density`

.

#### Programmatic Use

Block
Parameter:
`ReferenceLoad` |

Type:
`double` |

**Spectrum Unit** — Units of the spectrum

`dBm`

(default) | `dBm/Hz`

| `dBV`

| `dBuV`

* (since R2023b)* | `Vrms`

Specify the units in which the Spectrum Analyzer displays the power values as one of the following:

`dBm`

`dBV`

`dBuV`

*(since R2023b)*`Vrms`

`dBm/Hz`

**Tunable: **Yes

#### Dependency

The units available depend on the value you choose for the
**Spectrum** parameter in the
**Scope** tab.

Scope tab > Spectrum option | Available Units |
---|---|

`Power` | `dBm` |

`Power Density` | `dBm/Hz` |

`RMS` | `dBV` , `dBuV` (since R2023b),
`Vrms` |

#### Programmatic Use

Block Parameter:
`SpectrumUnits` |

Type: character vector or
string scalar |

### Property Inspector Only

**Channel Names** — Input channel names

`[]`

(default) | character vector | string | array of strings or character vectors.

Input channel names, specified as a character vector, string, or array. The names appear in
the legend, **Settings**, and **Measurements**
panels. If you do not specify the names, the scope labels the channels as
`Channel 1`

, `Channel 2`

, etc.

**Example: **["A","B"]

#### Dependency

To see channel names, select **Legend** in the **Scope**
tab.

#### Programmatic Use

Block Parameter: `ChannelNames` |

Type: cell array of character vectors or string array |

**Maximize Axes** — Maximize size of plots

`Auto`

(default) | `Off`

| `On`

`Auto`

— If you have not specified**Title**and**Y-Label**, the scope maximizes all plots.`On`

— The scope maximizes all plots and hides all values in**Title**and**Y-label**.`Off`

— The scope does not maximize plots.

Hover over the Spectrum Analyzer to see the maximize axes button .

**Tunable: **Yes

#### Programmatic Use

Block Parameter: `MaximizeAxes` |

Type: character vector or string scalar |

**Axes Scaling** — Y-axis scaling mode

`OnceAtStop`

(default) | `Manual`

| `Auto`

| `Updates`

`OnceAtStop`

— Scale*y*-axis after simulation completes.`Manual`

— Manually scale*y*-axis range with the**Scale Y-axis Limits**toolbar button.`Auto`

— Scale*y*-axis range during and after simulation.`Updates`

— Scale*y*-axis after the number of time steps specified in the Number of Updates text box (`100`

by default). Scaling occurs only once during each run.

**Tunable: **Yes

#### Programmatic Use

Block Parameter: `AxesScaling` |

Type: character vector or string scalar |

**Number of Updates** — Number of updates before scaling

`100`

(default) | integer

Set this property to delay auto scaling the y-axis.

**Tunable: **Yes

#### Dependency

To enable this property, set Axes Scaling to `Updates`

.

#### Programmatic Use

Block Parameter: `AxesScalingNumUpdates` |

Type: character vector or string scalar |

Values: scalar |

## More About

### Cursor Measurements

Measure signal values using vertical waveform cursors that track along the signal.

When you click the **Data Cursors** button in the
**Measurements** tab of the Spectrum Analyzer,
the spectrum display shows vertical cursors on each signal. Each cursor
tracks a vertical line along the signal. The scope displays the difference
between *x*- and *y*-values of the signal
at the two cursors in the box between the cursors.

To enable cursor measurements, click the **Data Cursors** button in the
**Measurements** tab. The cursors appear only
when the Spectrum Analyzer has at least one signal in its display.

You can use the mouse to move the vertical cursors left and right.

In the **Measurements** tab, click the **Data Cursors**
drop-down arrow to select one of these options:

**Snap to Data**— To position the cursors on the signal data points.**Lock Cursor Spacing**— To lock the frequency difference between the two cursors.

For modifying the cursor measurements programmatically, see the `CursorMeasurementsConfiguration`

object.

### Peak Finder Measurements

Compute and display peak values in the scope display.

When you click on the **Peak Finder** button in the **Measurements** tab of the Spectrum Analyzer, an arrow appears on the plot at each maxima and a **Peaks** panel appears at the bottom of the scope window. The Spectrum Analyzer computes peaks from the portion of the input signal that is currently on display in the scope, and the **Peaks** panel shows the peak values and the frequencies at which they occur.

The **Peaks** section in the **Measurements** tab allows you
to specify the number of peaks you want the scope to display, the minimum height above which
you want the scope to detect peaks, the minimum distance between peaks, and label the
peaks.

The Spectrum Analyzer algorithm defines a peak as a local maximum with lower values present on either side of the peak. It does not consider end points as peaks. For more information on the algorithm, see the `findpeaks`

(Signal Processing Toolbox) function.

The peaks are valid for any units of the input signal. The letter after the value associated with each measurement indicates the abbreviation for the appropriate International System of Units (SI) prefix, such as *m* for *milli-*. For example, if the input signal is measured in volts, an *m* next to a measurement value indicates that this value is in units of millivolts.

For modifying the peak finder measurements programmatically, see the `PeakFinderConfiguration`

object. For more information on these settings in the
UI, see Peaks.

### Distortion Measurements

Measure harmonic distortion and intermodulation distortion.

When you click the **Distortion** button in the
**Distortion** section of the **Measurements** tab, a
distortion panel opens at the bottom of the Spectrum Analyzer window. This panel shows the
harmonic and distortion measurement values for the input signal currently on display in the
scope. The **Distortion** section in the **Measurements**
tab allows you to specify the distortion type, number of harmonics, and even label the
harmonics.

**Note**

For an accurate measurement, ensure that the fundamental signal (for harmonics) or
primary tones (for intermodulation) is larger than any spurious or harmonic content. To
do so, you may need to adjust the resolution bandwidth (`RBW`

) of the
Spectrum Analyzer. Make sure that the bandwidth is low enough to isolate the signal and
harmonics from spurious noise content. In general, you should set the RBW value such
that there is at least a 10 dB separation between the peaks of the sinusoids and the
noise floor. You also might need to select a different spectral window to obtain a valid
measurement.

You can set the **Distortion Type** parameter to one of these values:

`Harmonic`

–– Select`Harmonic`

if your input is a single sinusoid.`Intermodulation`

–– Select`Intermodulation`

if your input is two equal-amplitude sinusoids. Intermodulation can help you determine distortion when the scope uses only a small portion of the available bandwidth.

See Distortion Measurements for information on how distortion measurements are calculated.

**Harmonic Distortion**

When you set the **Distortion Type** to `Harmonic`

,
these fields appear in the **Harmonic Distortion** panel at the bottom
of the Spectrum Analyzer window.

**H1**— Fundamental frequency in Hz and its power in decibels of the measured power referenced to 1 milliwatt (dBm).**H2, H3, ...**— Harmonics frequencies in Hz and their power in decibels relative to the carrier (dBc). If the harmonics are at the same level or exceed the fundamental frequency, reduce the input power.**THD**— Total harmonic distortion. This value represents the ratio of the power in the harmonics*D*to the power in the fundamental frequency*S*. If the noise power is too high in relation to the harmonics, the THD value is not accurate. In this case, lower the resolution bandwidth or select a different spectral window.$$THD=10\cdot {\mathrm{log}}_{10}(D/S)$$

**SNR**— Signal-to-noise ratio (SNR). This value represents the ratio of the power in the fundamental frequency*S*to the power of all nonharmonic content*N*, including spurious signals, in decibels relative to the carrier (dBc).$$SNR=10\cdot {\mathrm{log}}_{10}(S/N)$$

If you see

`––`

as the reported SNR, the total nonharmonic content of your signal is less than 30% of the total signal.**SINAD**— Signal-to-noise-and-distortion ratio. This value represents the ratio of the power in the fundamental frequency*S*to all other content (including noise*N*and harmonic distortion*D*) in decibels relative to the carrier (dBc).$$SINAD=10\cdot {\mathrm{log}}_{10}\left(\frac{S}{N+D}\right)$$

**SFDR**— Spurious-free dynamic range (SFDR). This value represents the ratio of the power in the fundamental frequency*S*to power of the largest spurious signal*R*regardless of where it falls in the frequency spectrum. The worst spurious signal might or might not be a harmonic of the original signal. SFDR represents the smallest value of a signal that can be distinguished from a large interfering signal. SFDR includes harmonics.$$SNR=10\cdot {\mathrm{log}}_{10}(S/R)$$

The harmonic distortion measurement automatically locates the largest sinusoidal component (fundamental signal frequency). It then computes the harmonic frequencies and power in each harmonic in your signal and ignores any DC component. The measurement does not include any harmonics that are outside the Spectrum Analyzer frequency span. Adjust your frequency span so that it includes all the desired harmonics.

**Note**

To view the best harmonics, make sure that your fundamental frequency is set high enough to resolve the harmonics. However, this frequency should not be so high that aliasing occurs. For the best display of harmonic distortion, your plot should not show skirts, which indicate frequency leakage. The noise floor should be visible.

For a better display, try a Kaiser window with a large sidelobe attenuation (e.g. between 100–300 db).

**Intermodulation Distortion**

When you set the **Distortion Type** to
`Intermodulation`

, the following fields appear in the
**Intermodulation Distortion** panel at the bottom of the Spectrum
Analyzer window.

**F1**— Lower fundamental first-order frequency.**F2**— Upper fundamental first-order frequency.**2F1 - F2**— Lower intermodulation product from third-order harmonics.**2F2 - F1**— Upper intermodulation product from third-order harmonics.**TOI**— Third-order intercept point. If the noise power is too high in relation to the harmonics, the TOI value will not be accurate. In this case, you should lower the resolution bandwidth or select a different spectral window. If the TOI has the same amplitude as the input two-tone signal, reduce the power of that input signal.

The intermodulation distortion measurement automatically locates the fundamental and
the first-order frequencies (*F1* and *F2*). It then
computes the frequencies of the third-order intermodulation products
(2*F1*−*F2* and
2*F2*−*F1*).

For modifying the distortion measurements programmatically, see the `DistortionMeasurementsConfiguration`

object. For more information on these
settings in the UI, see Distortion.

### Customize Visualization

Set configuration and style settings in the Spectrum Analyzer.

To control the settings of the display and labels, color and styling, click on
**Settings** () in the **Scope** tab of the Spectrum
Analyzer toolstrip.

In the dialog box that opens, you can customize the font size, plot type,
*y*-axis properties of the spectrum plot, and color map properties of the
spectrogram plot. You can change the color of the spectrum plot, background, axes, and
labels and also change the line properties.

When you view the spectrum or the spectrogram, you see only the relevant options. For more details about these options, see Configuration > Spectrum Analyzer Settings ().

### Display Controls

Zoom and pan axes using display controls.

To scale the plot axes, use the mouse to pan around the axes and the scroll button on your mouse to zoom in and out of the plot. Additionally, you can use the buttons that appear when you hover over the plot window.

— Maximize the axes, hide all labels and inset the axes values.

— Zoom in on the plot.

— Pan the plot.

— Autoscale the axes to fit the shown data.

## Algorithms

### Spectrum Estimation — Welch's Method

When you select the `Welch`

method, the power spectrum estimate is
the averaged modified periodograms.

The algorithm in the spectrum analyzer consists of these steps:

The block buffers the input into

*N*-point data segments. Each data segment is split into*P*overlapping data segments, each of length*M*, overlapping by*D*points. The data segments can be represented as:$$\begin{array}{l}{x}_{i}(n)=x(n+iD),\text{\hspace{1em}}\text{\hspace{0.05em}}n=0,1,\mathrm{...},M-1\\ \text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}i=0,1,\mathrm{...},P-1\end{array}$$

If

*D*=*M*/2, the overlap is 50%.If

*D*= 0, the overlap is 0%.

Apply a window to each of the

*P*overlapping data segments in the time domain.The spectrum analyzer uses

**RBW (Hz)**in the**Estimation**tab to determine the data window length internally.Then, it partitions the input signal into a number of windowed data segments.

Most window functions afford more influence to the data at the center of the set than to the data at the edges, which represents a loss of information. To mitigate that loss, the individual data sets are commonly overlapped in time. For each windowed segment, compute the periodogram by computing the discrete Fourier transform. Then compute the squared magnitude of the result and divide the result by

*M*.$${P}_{xx}^{i}(f)=\frac{1}{MU}{\left|{\displaystyle \sum _{n=0}^{M-1}{x}_{i}(n)w(n){e}^{-j2\pi fn}}\right|}^{2},\text{\hspace{1em}}\text{\hspace{1em}}i=0,1,\mathrm{...},P-1$$

where U is the normalization factor for the power in the window function and is given by

$$U=\frac{1}{M}{\displaystyle \sum _{n=0}^{M-1}{w}^{2}(n)}$$

You can specify the window using the

**Window**parameter in the**Estimation**tab of the spectrum analyzer toolstrip.The spectrum analyzer calculates and plots the power spectrum, power spectrum density, and RMS using the modified

*Periodogram*estimator. For more information about the Periodogram method, see`periodogram`

(Signal Processing Toolbox).To determine the power spectrum estimate for Welch's method, the spectrum analyzer averages the result of the periodograms for the last

*P*data segments. The averaging reduces the variance, compared to the original*N*-point data segment. For more details on the averaging, see Averaging Method.$$\mathrm{PSD}\left(f\right)=\frac{1}{P}{\displaystyle \sum _{i=0}^{P-1}{P}_{xx}^{i}(f)}$$

The spectrum analyzer computes the power spectral density using:

$$\mathrm{PSD}\left(f\right)=\frac{1}{P*{F}_{s}}{\displaystyle \sum _{i=0}^{P-1}{P}_{xx}^{i}(f)}$$

The power spectrum is the product of the power spectral density and the resolution bandwidth, as given by this equation.

$${P}_{spectrum}\left(f\right)=\mathrm{PSD}\left(f\right)\times RBW=\mathrm{PSD}\left(f\right)\times \frac{{F}_{s}\times NENBW}{{N}_{window}}$$

The spectrum analyzer requires a minimum number of samples to compute a spectral estimate. This value is directly related to the resolution bandwidth (RBW) using this equation, $${N}_{samples}=\frac{\left(1-\frac{{O}_{p}}{100}\right)\times NENBW\times {F}_{s}}{RBW}$$

where O_{p} is the overlap percentage, NENBW is the normalized
effective noise bandwidth, F_{s} is the input sample rate, and RBW is the resolution
bandwidth.

The spectrum analyzer shows the number of samples per update in the spectrum analyzer status bar.

The algorithm determines the window length using this equation:

$${N}_{window}=\frac{NENBW\times {F}_{s}}{RBW}$$

### Overlap Percentage (*O*_{p})

_{p}

The overlap percentage *O _{p}* is the value you
specify in the

**Overlap %**property. To view the

**Overlap %**in the scope, click the

**Estimation**tab on the spectrum analyzer toolstrip and navigate to the

**Window Options**section.

When you increase the overlap percentage, the spectrum analyzer needs fewer new input samples to compute a new spectral update.

O_{p} | N_{samples} |
---|---|

0% | 100 |

50% | 50 |

80% | 20 |

### Normalized Effective Noise Bandwidth (NENBW)

The normalized effective noise bandwidth *NENBW* is a window
parameter that measures the noise performance of the window. NENBW is determined using
the window length and the window coefficients, and is given by the following
equation:

$$NENBW={N}_{window}\times \frac{{\displaystyle \sum _{n=1}^{{N}_{window}}{w}^{2}(n)}}{{\left[{\displaystyle \sum _{n=1}^{{N}_{window}}w(n)}\right]}^{2}}$$

*w*(*n*) denotes the vector of window coefficients.
*N _{window}* is the window length. For more
information on how the algorithm determines the window length, see the Spectrum
Estimation –– Welch's Method section in Algorithms.

The rectangular window has the smallest NENBW, with a value of 1. All other windows have a larger NENBW value. For example, the Hann window has an NENBW value of approximately 1.5.

The spectrum analyzer shows the value of *NENBW* in the spectrum
analyzer status bar.

### Input Sample Rate (*Fs*)

*F _{s}* is the sample rate of the input signal.
To view the

**Sample Rate (Hz)**in the scope, click the

**Scope**tab on the spectrum analyzer toolstrip and navigate to the

**Bandwidth**section. You can enable this property in the status bar at the bottom of the spectrum analyzer window. Click the icon in the status bar and select

```
Sample
Rate
```

.### Resolution Bandwidth (RBW)

Resolution bandwidth controls the spectral resolution of the displayed signal. The RBW value determines the spacing between frequencies that the scope can resolve. A smaller value gives a higher spectral resolution and lowers the noise floor, that is, the spectrum analyzer can resolve frequencies that are closer to each other. However, this comes at the cost of a longer sweep time.

You can specify the resolution bandwidth using the **RBW (Hz)**
parameter.

When you set **RBW (Hz)** to:

`Auto`

–– The spectrum analyzer requires*N*to update the display. The spectrum analyzer determines the appropriate resolution bandwidth to ensure that there are 1024 RBW intervals over the specified frequency span. When you set_{samples}**RBW (Hz)**to`Auto`

, the spectrum analyzer calculates using this equation.$$RB{W}_{auto}=\frac{span}{1024}$$

scalar value –– Specify a value such that there are at least two RBW intervals over the specified frequency span. The ratio of the overall span to RBW must be greater than two:

$$\frac{span}{RBW}>2$$

*span* is the frequency span over which the spectrum analyzer
computes and plots the spectrum. Spectrum analyzer shows the span through the
**Span (Hz)** property. To view the **Span (Hz)**
in the scope, click the **Estimation** tab on the spectrum analyzer
toolstrip, navigate to the **Frequency Options** section, and set
**Frequency Span** to ```
Span and Center
Frequency
```

.

When the number of input samples is not sufficient to achieve the specified resolution bandwidth, the spectrum analyzer displays a message similar to this one.

The spectrum analyzer removes this message and displays a spectral estimate once you provide enough input samples.

You can enable this property in the status bar at the bottom of the spectrum analyzer
window. Click the icon in the status bar and select
`RBW`

.

### Nyquist Frequency Interval

When you plot the two-sided spectrum by selecting **Two-Sided Spectrum** in
the **Spectrum**
tab, the Nyquist
frequency interval is $$\left[-\frac{SampleRate}{2},\frac{SampleRate}{2}\right]+FrequencyOffset$$ Hz.

When you clear the **Two-Sided Spectrum**, the Nyquist frequency interval is $$\left[0,\frac{SampleRate}{2}\right]+FrequencyOffset$$ Hz.

### Frequency Vector

When you set **Frequency (Hz)** to `Auto`

, the software calculates the frequency vector for the frequency-domain input.

When you plot the two-sided spectrum by selecting **Two-Sided Spectrum** in
the **Spectrum** or **Spectrogram** tab, the frequency
vector is:

$$\left[-\frac{SampleRate}{2},\frac{SampleRate}{2}\right]$$

When you clear the **Two-Sided Spectrum**, the frequency vector is:

$$\left[0,\frac{SampleRate}{2}\right]$$

### Occupied BW

The spectrum analyzer calculates *Occupied BW* using these steps.

Calculate the total power in the measured frequency range.

Determine the lower frequency value. Starting at the lowest frequency in the range and moving upward, sum the power distributed in each frequency until the result is

$$\frac{100-OccupiedBW\%}{2}$$

of the total power.

Determine the upper frequency value. Starting at the highest frequency in the range and moving downward, sum the power distributed in each frequency until the result reaches

$$\frac{100-OccupiedBW\%}{2}$$

of the total power.

The bandwidth between the lower and upper power frequency values is the occupied bandwidth.

The frequency halfway between the lower and upper frequency values is the center frequency.

### Distortion Measurements

The spectrum analyzer calculates Distortion Measurements using these steps.

Estimate spectral content by finding peaks in the spectrum. When the algorithm detects a peak, it records the width of the peak and clears all monotonically decreasing values by treating all these values as if they belong to the peak. Using this method, the algorithm removes all spectral content centered at DC (0 Hz) from the spectrum and records the amount of bandwidth cleared (

*W*)._{0}Determine the fundamental power (

*P*) from the remaining maximum value of the displayed spectrum. Create a local estimate (_{1}*Fe*) of the fundamental frequency by computing the central moment of the power near the peak. Record the bandwidth of the fundamental power content (_{1}*W*). Then remove the power from the fundamental as in step 1._{1}Determine the power and width of the higher-order harmonics (

*P*,_{2}*W*,_{2}*P*,_{3}*W*, etc.) in succession by examining the frequencies closest to the appropriate multiple of the local estimate (_{3}*Fe*). Remove any spectral content that decreases monotonically about the harmonic frequency from the spectrum before proceeding to the next harmonic._{1}After removing the DC, fundamental, and harmonic content from the spectrum, examine the power of the remaining spectrum for its sum (

*P*), peak value (_{remaining}*P*), and median value (_{maxspur}*P*)._{estnoise}Compute the sum of all the removed bandwidth as

*W*=_{sum}*W*+_{0}*W*+_{1}*W*+...+_{2}*W*._{n}Compute the sum of powers of the second and higher-order harmonics as

*P*=_{harmonic}*P*+_{2}*P*+_{3}*P*+...+_{4}*P*._{n}Estimate the sum of the noise power as:

$${P}_{noise}=({P}_{remaining}\cdot dF+{P}_{est.noise}\cdot {W}_{sum})/RBW$$

Where

*dF*is the absolute difference between frequency bins, and*RBW*is the resolution bandwidth of the window.Then compute the metrics for THD, THD%, SINAD, SNR, and SFDR from the estimates.

$$\begin{array}{l}THD=10\cdot {\mathrm{log}}_{10}\left(\frac{{P}_{harmonic}}{{P}_{1}}\right)\\ THD\%={100.10}^{\left(THD/20\right)}\\ SINAD=10\cdot {\mathrm{log}}_{10}\left(\frac{{P}_{1}}{{P}_{harmonic}+{P}_{noise}}\right)\\ SNR=10\cdot {\mathrm{log}}_{10}\left(\frac{{P}_{1}}{{P}_{noise}}\right)\\ SFDR=10\cdot {\mathrm{log}}_{10}\left(\frac{{P}_{1}}{\mathrm{max}\left({P}_{maxspur},\mathrm{max}\left({P}_{2},{P}_{3},\mathrm{...},{P}_{n}\right)\right)}\right)\end{array}$$

### Harmonic Measurements

The harmonic distortion measurements use the spectrum trace shown in the display as the input to the measurements. The default

`Hann`

window setting of the spectrum analyzer might exhibit leakage that can completely mask the noise floor of the measured signal.The harmonic measurements attempt to correct for leakage by ignoring all frequency content that decreases monotonically away from the maximum of harmonic peaks. If the window leakage covers more than 70% of the frequency bandwidth in your spectrum, you may see a blank reading (–) reported for

**SNR**and**SINAD**. If your application can tolerate the increased equivalent noise bandwidth (ENBW), consider using a Kaiser window with a high attenuation (up to 330 dB) to minimize spectral leakage.Ignore the DC component.

After windowing, the width of each harmonic component masks the noise power in the neighborhood of the fundamental frequency and harmonics. To estimate the noise power in each region, the spectrum analyzer computes the median noise level in the nonharmonic areas of the spectrum. It then extrapolates that value into each region.

*N*^{th}order intermodulation products occur at*A***F1*+*B***F2*,where

*F1*and*F2*are the sinusoid input frequencies and |*A*| + |*B*| =*N*.*A*and*B*are integer values.For intermodulation measurements, compute the third-order intercept (TOI) point as follows.

*TOI*=_{lower}*P*+ (_{F1}*P*-_{F2}*P*)/2_{(2F1-F2)}*TOI*=_{upper}*P*+ (_{F2}*P*-_{F1}*P*)/2_{(2F2-F1)}*TOI*= + (*TOI*+_{lower}*TOI*)/2_{upper}

Where

*P*is power in decibels of the measured power referenced to 1 milliwatt (dBm).

### Averaging Method

The spectrum analyzer can calculate the moving average using two methods:

Video bandwidth — The spectrum analyzer uses a time-domain lowpass filter to smooth the noise in the signal. The video bandwidth (VBW) filter smoothes the trace and decreases noise, and the spectrum analyzer applies the filter to the data before displaying it.

Video bandwidth is the bandwidth of the lowpass filter that spectrum analyzer uses to average or smooth the noise in the signal before displaying it in the scope. The spectrum analyzer computes the video bandwidth using this equation:

$$VBW=\frac{(1-\lambda )RBW}{2\pi \lambda NENBW}$$

where,

Video bandwidth does not affect the level of the noise (noise floor), but only increases the signal-to-noise ratio and smoothes the trace of the noise. When you decrease the value of VBW, the signal-to-noise ratio improves.

The cutoff frequency of the video bandwidth filter is given by:

$${\omega}_{c}=\frac{2\pi VBW}{{F}_{s}/NFFT}$$

where

*Fs*is the input sample rate and NFFT is the number of FFT points.The spectrum analyzer shows the values of sample rate, VBW, and NFFT in the status bar at the bottom of the display. To enable, right-click the status bar and select

`Sample Rate`

,`VBW`

, and`NFFT`

.Exponential — The moving average algorithm uses the exponential weighting method to update the weights and compute the moving average recursively for each

*Z*vector that comes in by using the following recursive equations:$$\begin{array}{l}{w}_{N}=\lambda {w}_{N-1}+1\\ {\overline{z}}_{N}=\left(1-\frac{1}{{w}_{N}}\right){\overline{z}}_{N-1}+\left(\frac{1}{{w}_{N}}\right){z}_{N}\end{array}$$

λ — Forgetting factor

$${w}_{N}$$ — Weighting factor applied to the current

*Z*vector$${z}_{N}$$ — Current

*Z*vector$${\overline{z}}_{N-1}$$ — Moving average until the previous

*Z*vector$$\left(1-\frac{1}{{w}_{N}}\right){\overline{z}}_{N-1}$$ — Effect of the previous

*Z*vectors on the average$${\overline{z}}_{N}$$ — Moving average including the current

*Z*vector

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

This block can be used for simulation visibility in systems that generate code. However, the block is not included in the generated code.

## Version History

**Introduced in R2017b**

### R2024a: **Analyzer** tab has been renamed as **Scope** tab

The **Analyzer** tab in spectrum analyzer has been renamed as
**Scope** tab.

### R2023b: Spectrum Analyzer supports `dBuV`

units

You can set **Spectrum Unit** to `dBuV`

when
you set **Spectrum** to `RMS`

.

### R2023a: Spectrum Analyzer with improved responsiveness and toolstrip interface in Simulink

In R2023a, the Spectrum Analyzer block is more responsive and its
toolstrip interface is improved to provide you easy access to spectral analysis, estimation,
and measurements. You can configure and display Spectrum Analyzer settings from the command
line with the `SpectrumAnalyzerBlockConfiguration`

object.

## See Also

### Objects

`SpectrumAnalyzerBlockConfiguration`

|`spectrumAnalyzer`

(DSP System Toolbox)

### Blocks

- Spectrum Analyzer (DSP System Toolbox)

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
