jc_0624: Usage of Tapped Delay blocks/Delay blocks
Since R2020a
Guideline Publication
Control Algorithm Modeling Guidelines - Using MATLAB®, Simulink®, and Stateflow®
Sub ID Recommendations
NA-MAAB — No recommendations
JMAAB — a, b
MATLAB Versions
All
Rule
Sub ID a
When holding previous past values, Tapped Delay block shall be used to create a vector signal from all held values.
Custom Parameter
Not Applicable

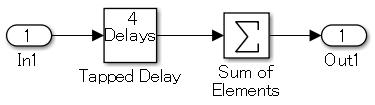

Example — Correct
Example — Incorrect
The Tapped Delay block is not used.
Rationale
Sub ID a:
Tapped Delay is set with arrays that hold past values, which improves code readability to assist code efficiency.
Sub ID b:
Improves model readability and code efficiency.
Verification
Model Advisor check: Check for cascaded Unit Delay blocks (Simulink Check)
Last Changed
R2020a
See Also
Version History
Introduced in R2020a
