Check Static Gap
Check that gap exists in signal's range of amplitudes
Libraries:
Simulink /
Model Verification
HDL Coder /
Model Verification
Description
The Check Static Gap block checks that an input signal is less than (or
optionally equal to) a static lower bound or greater than (or optionally equal to) a
static upper bound at the current time step. The Upper bound and
Lower bound parameters define the upper and lower bounds of the
gap. The block then executes an assertion after comparison. If the signal falls outside
of the gap, the assertion is true (1)
and the block does nothing. If
not, the block halts the simulation and returns an error message by default.
The input signal and bounds can be scalars, vectors, or matrices. The input and the bounds must be the same data type. The block compares the value of the input to the bounds differently depending on the signal.
When comparing scalars to vectors or matrices, the block compares the scalar to each element of the nonscalar input signal or bound.
When comparing vectors or matrix signals to other vectors or matrices, the block compares the input signal and the bounds elementbyelement.
For models with more than one vector or matrix as the input signal or bounds, the vectors or matrices must have the same dimensions.

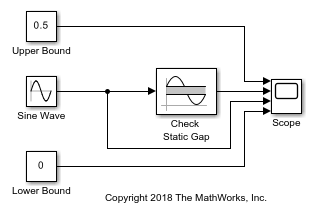

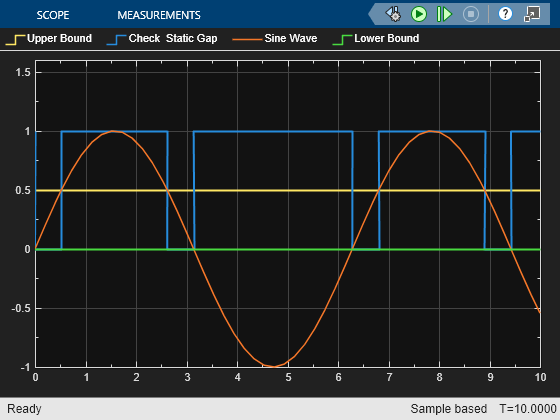

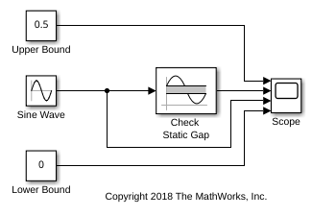

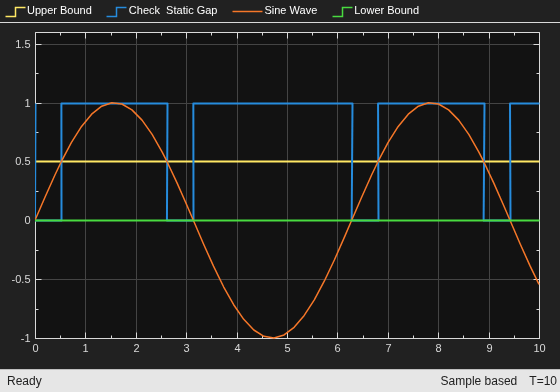

Examples
Ports
Input
Output
Parameters
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

Extended Capabilities
Version History
Introduced before R2006a
