Simulink Function Blocks in Referenced Models

You can place Simulink Function blocks and function callers (such as Function Caller blocks and Stateflow charts) in a referenced model, but doing so requires some special considerations:

  • The referenced model must follow export-function model rules. See Export-Function Models.

  • Sometimes, you must explicitly define the argument data types for a Function Caller block.

These examples show four relationships between Function Caller blocks, Simulink Function blocks, and referenced models.

Simulink Function Block in Referenced Model

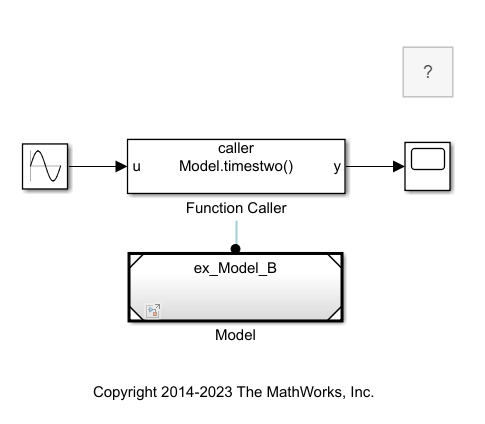

In this example, the parent model contains a Function Caller block, and the referenced model, Model_B, contains a Simulink Function block. Model_B must follow export-function model rules.

The Function Caller block can determine the argument data types of the function. In the Function Caller block, you do not need to define the Input argument specification and Output argument specification parameters.

But since, by default, the Simulink Function block is scoped to the model, you must qualify a call to the function name with the Model block name.

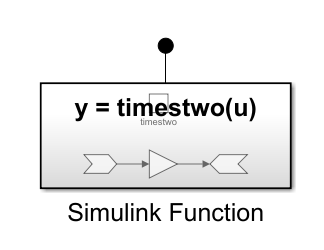

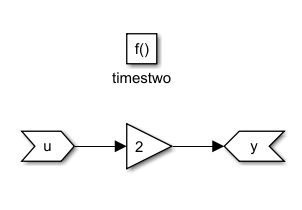

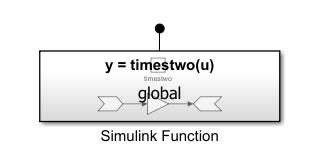

Model_B contains a Simulink Function block that defines a function for multiplying the input by 2. Because this model contains only a Simulink Function block, it satisfies export-function model rules. See Export-Function Models.

For Model_B, set the Configuration Parameters for the solver to satisfy export-function model rules:

  • Type: Fixed-step.

  • Solver: discrete (no continuous states).

Simulink Function in Referenced Model Placed in Subsystem

Once the Simulink Function block is identified as global by placing it at the root level of a referenced model, there are no limitations on where this referenced model can be placed.

For example, you could place Model_B with a Simulink Function block in a Subsystem block.

Function Caller Block in Referenced Model

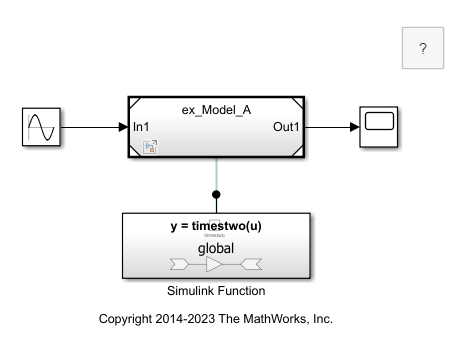

In this example, the parent model contains a Simulink Function block, and a referenced model, Model_A, contains a Function Caller block. If you want to use this modeling pattering, the Function visibility parameter for the Trigger port block in the Simulink Function block can be set to scoped or global.

For the parent model, set the solver type to Variable-step or Fixed-step.

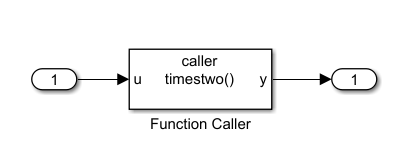

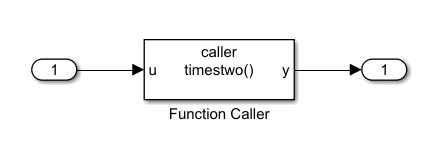

Model_A contains a Function Caller block.

Since the Function Caller block cannot find the function in Model_A, you must provide the argument specification in one of two ways. Set the Function visibility parameter for the Trigger block to:

(1) scoped and qualify the function name in the Function Caller block Function prototype parameter. Add the name of the model file (not the Model block name) where the function is expected to be resolved. For example,

y = ModelFileName.FunctionName(u)

(2) global and specify the Function Caller block argument parameters:

  • Input argument specification: Specify to match the Simulink Function block input argument data types, for example, double(1.0).

    Specify the argument specification for a Simulink Function block with the Data type parameter in the Input Argument and Output Argument blocks.

  • Output argument specification: Specify to match the Simulink Function block output argument data types, for example, double(1.0).

Function and Function Caller in Separate Models

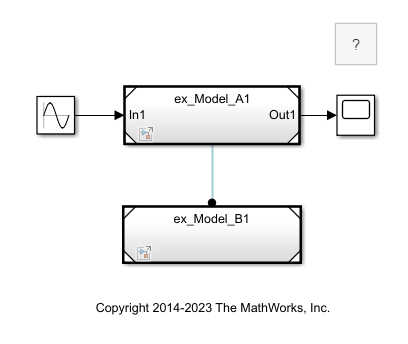

In this example, the parent model contains two referenced models. Model_A is a referenced model with a Function Caller block. Model_B is a referenced model with a scoped Simulink Function block. Only Model_B with a Simulink Function block must follow export-function rules.

For Model_A, provide the argument specification as you do for the referenced model in Function Caller Block in Referenced Model. For Model_B, specify parameters as you do for the referenced model in Simulink Function Block in Referenced Model.

Model_A contains a Function Caller block. If the function is set to global, define the Input and Output Argument Specification parameters. If the function is set to scoped, provide the file name of the model where the function is expected to be resolved to as y = Model_B.FunctionName(u).

Model_B contains a Simulink Function block that defines a function for multiplying the input by 2. Because this model contains only a Simulink Function block, it satisfies export-function model rules. See Export-Function Models.

Function and Function Caller in the Same Model

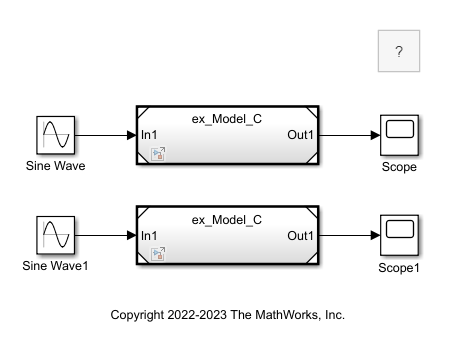

In this example, the parent model contains one referenced model, Model_C, with both a Function Caller block and a scoped Simulink Function block.

  • If the there is only one instance of Model_C, and the Configuration Parameter Total number of instances allowed per top model is set to One, the parent model simulates without error. Since Model_C does not export the function, it does not need to follow export-function rules.

  • If the Configuration Parameter Total number of instances allowed per top model is set to Multiple, Model_C exports the function regardless if there is a single instance or multiple instances of the model. In both cases, Simulink displays an error. The model needs to follow export-function rules, but it does not because a Function Caller block is not allowed at the root-level of an export-function model.

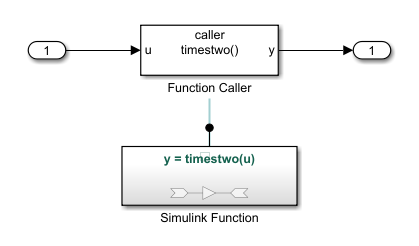

Model_C contains both a Function Caller block and a scoped Simulink Function block. If you want to use this modeling pattern, only one instance of Model_C is allowed in the parent model.
