Generate profiler report
report( generates a
report from the profiler data.

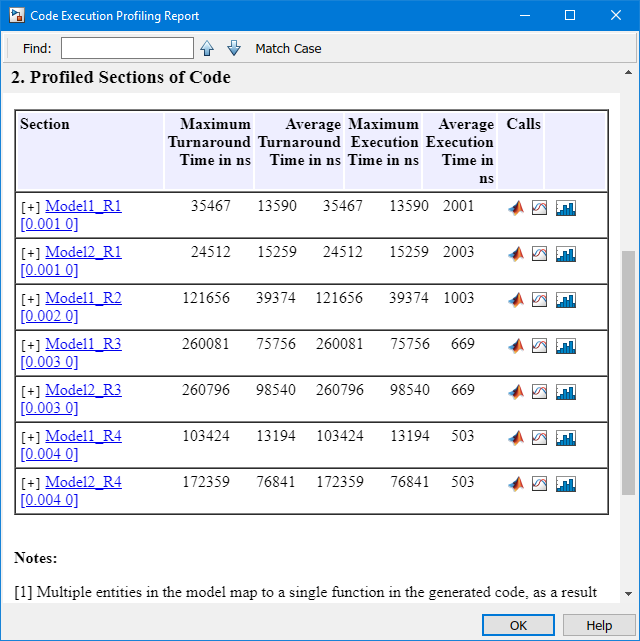

The Code Execution Profiling Report displays model execution profile results for each task.
To display the profile data for a section of the model, click the membrane button next to the section.
To display the TET data for the section in the Simulation Data Inspector, click the plot time series data button .
To view the section in Simulink® Editor, click the link next to the expand tree button .
To view the lines of generated code corresponding to the section, click the expand tree button , and then click the view source button .
Run Profiler and Report Profiler Data
The real-time application is already loaded. Start the profiler. Start the application.
tg = slrealtime('TargetPC1'); startProfiler(tg); start(tg);
Stop the profiler. Stop the application.
Retrieves profiler data.
profiler_object = getProfilerData(tg);
Processing data, please wait ...
reportfunction on the results data.
profiler_object — Object that contains profiler result
The structure has these fields:
TargetName— Name of target computer in target computer settings.
ModelInfo— Information about model on which profiler ran:
ModelName— Name of real-time application.
MATLABRelease— MATLAB release under which model was built.
You can access the data in the
profiler_object variable. To
access the profiler data, before running the profiler, open the Configuration
Parameters dialog box. In the Real-Time tab, click
Hardware Settings. Select the Code Generation > Verification > Workspace variable option and set the value to
Select the Save options option and set the value to
All data. After running the profiler, use the technique
described for the
Sections (Embedded Coder) function.
Introduced in R2020b
