Profiling and Optimization
Execution profiling, display, analysis, and optimization by using MATLAB® functions
Profile the task execution time and function execution time of the real-time application that is running on the target computer. Then, you can tune its performance.
|Represent real-time application and target computer status|
|Create real-time instrument object|
|Create real-time instrument LineStyle object|
|Data returned from profiler|
|Target computer model root inport stimulator object|
|Start profiling service on target computer|
|Stop profiling service on target computer|
|Retrieve profile data object|
|Reset profiling service state to |
|Open Simulink Real-Time task execution time (TET) monitor|

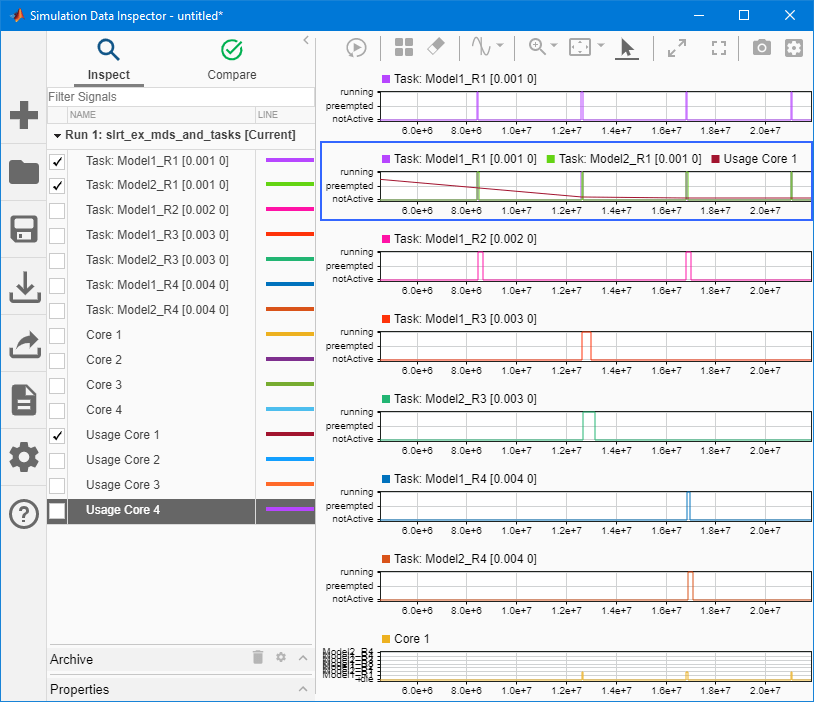

|Generate execution profiler plot|
|Generate profiler report|
|Downloads and decodes core files from target computer and opens these in MATLAB editor|
|Enable Profiler||Start and stop execution profiler on target computer|

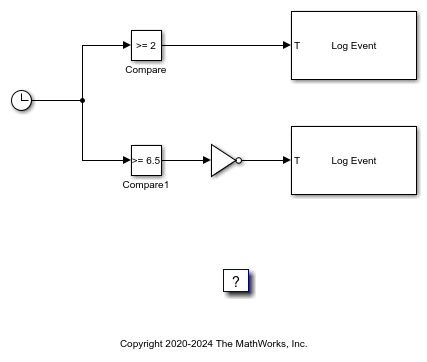

|Log Event||Log an execution profiling event|
- Execution Modes
Learn about the behavior of the interrupt and polling execution modes.
- Simulink Real-Time Options Pane
Configure initial values for real-time application options.
