Utilities and Shared Memory Blocks
R2026bData marshalling
To manage data flows at the bit and byte level, use the utilities blocks and shared memory blocks.
Blocks
 | Bit Packing | Construct data frames |
 | Bit Unpacking | Deconstruct data frames |
 | Byte Packing | Construct data frames |
 | Byte Unpacking | Deconstruct data frames |
 | Byte Reversal/Change Endianess | Reverse little-endian data for big-endian processor |
 | Protocol Decoder | Decode a uint8 byte stream by specifying the packet structure (Since R2023b) |
 | Protocol Encoder | Encode input data into a uint8 byte stream by specifying the packet structure (Since R2023b) |
 | Shared Memory Pack | Shared memory pack |
 | Shared Memory Unpack | Shared memory unpacking |
Featured Examples
Configure Input and Output Ports for Bit Packing and Unpacking
Configure the input and output ports of Bit Packing and Bit Unpacking blocks.

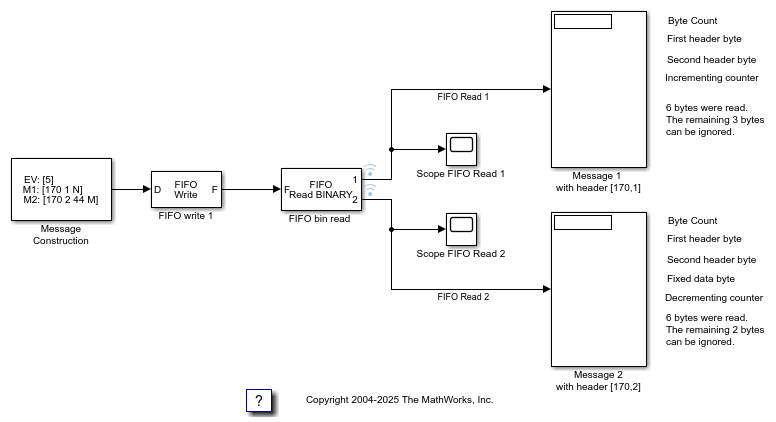

Binary Encoding/Decoding Loopback Test
Send Binary data over a serial link.

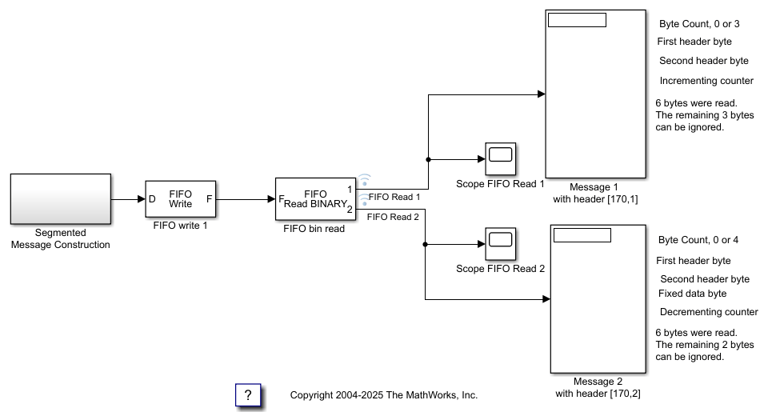

Binary Encoding/Decoding Resync Loopback Test
Use the ability of the FIFO Read BINARY block to handle messages that are interrupted and only partially complete.
