# margin

## Syntax

## Description

returns the Classification Margin (`m`

= margin(`Mdl`

,`Tbl`

,`ResponseVarName`

)`m`

)
for the generalized additive model `Mdl`

using the predictor data in
`Tbl`

and the true class labels in
`Tbl.ResponseVarName`

.

`m`

is returned as an *n*-by-1 numeric column
vector, where *n* is the number of observations in the predictor
data.

specifies whether to include interaction terms in computations. You can specify
`m`

= margin(___,'IncludeInteractions',`includeInteractions`

)`includeInteractions`

in addition to any of the input argument
combinations in the previous syntaxes.

## Examples

### Estimate Test Sample Classification Margins and Edge

Estimate the test sample classification margins and edge of a generalized additive model. The test sample margins are the observed true class scores minus the false class scores, and the test sample edge is the mean of the margins.

Load the `fisheriris`

data set. Create `X`

as a numeric matrix that contains two sepal and two petal measurements for versicolor and virginica irises. Create `Y`

as a cell array of character vectors that contains the corresponding iris species.

load fisheriris inds = strcmp(species,'versicolor') | strcmp(species,'virginica'); X = meas(inds,:); Y = species(inds,:);

Randomly partition observations into a training set and a test set with stratification, using the class information in `Y`

. Specify a 30% holdout sample for testing.

rng('default') % For reproducibility cv = cvpartition(Y,'HoldOut',0.30);

Extract the training and test indices.

trainInds = training(cv); testInds = test(cv);

Specify the training and test data sets.

XTrain = X(trainInds,:); YTrain = Y(trainInds); XTest = X(testInds,:); YTest = Y(testInds);

Train a GAM using the predictors `XTrain`

and class labels `YTrain`

. A recommended practice is to specify the class names.

Mdl = fitcgam(XTrain,YTrain,'ClassNames',{'versicolor','virginica'});

`Mdl`

is a `ClassificationGAM`

model object.

Estimate the test sample classification margins and edge.

m = margin(Mdl,XTest,YTest); e = edge(Mdl,XTest,YTest)

e = 0.8000

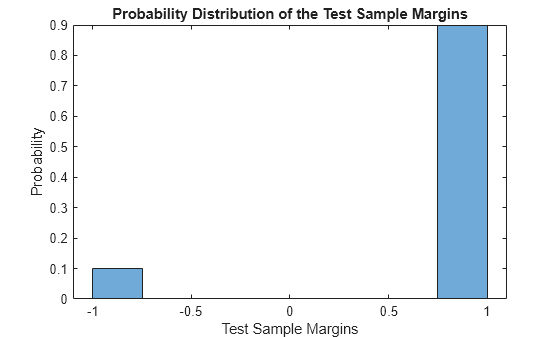

Display the histogram of the test sample classification margins.

histogram(m,length(unique(m)),'Normalization','probability') xlabel('Test Sample Margins') ylabel('Probability') title('Probability Distribution of the Test Sample Margins')

### Compare GAMs by Examining Test Sample Margins and Edge

Compare a GAM with linear terms to a GAM with both linear and interaction terms by examining the test sample margins and edge. Based solely on this comparison, the classifier with the highest margins and edge is the best model.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Randomly partition observations into a training set and a test set with stratification, using the class information in `Y`

. Specify a 30% holdout sample for testing.

rng('default') % For reproducibility cv = cvpartition(Y,'Holdout',0.30);

Extract the training and test indices.

trainInds = training(cv); testInds = test(cv);

Specify the training and test data sets.

XTrain = X(trainInds,:); YTrain = Y(trainInds); XTest = X(testInds,:); YTest = Y(testInds);

Train a GAM that contains both linear and interaction terms for predictors. Specify to include all available interaction terms whose *p*-values are not greater than 0.05.

Mdl = fitcgam(XTrain,YTrain,'Interactions','all','MaxPValue',0.05)

Mdl = ClassificationGAM ResponseName: 'Y' CategoricalPredictors: [] ClassNames: {'b' 'g'} ScoreTransform: 'logit' Intercept: 3.0398 Interactions: [561x2 double] NumObservations: 246

`Mdl`

is a `ClassificationGAM`

model object. `Mdl`

includes all available interaction terms.

Estimate the test sample margins and edge for `Mdl`

.

M = margin(Mdl,XTest,YTest); E = edge(Mdl,XTest,YTest)

E = 0.7848

Estimate the test sample margins and edge for `Mdl`

without including interaction terms.

M_nointeractions = margin(Mdl,XTest,YTest,'IncludeInteractions',false); E_nointeractions = edge(Mdl,XTest,YTest,'IncludeInteractions',false)

E_nointeractions = 0.7871

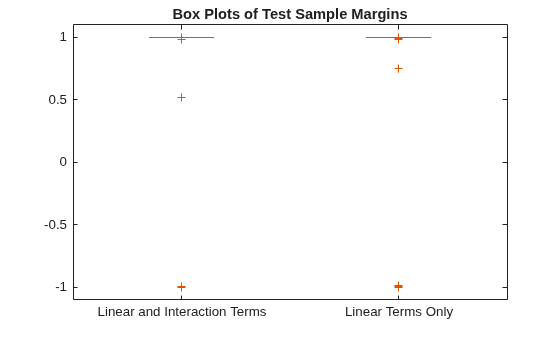

Display the distributions of the margins using box plots.

boxplot([M M_nointeractions],'Labels',{'Linear and Interaction Terms','Linear Terms Only'}) title('Box Plots of Test Sample Margins')

The margins `M`

and `M_nointeractions`

have a similar distribution, but the test sample edge of the classifier with only linear terms is larger. Classifiers that yield relatively large margins are preferred.

## Input Arguments

`Mdl`

— Generalized additive model

`ClassificationGAM`

model object | `CompactClassificationGAM`

model object

Generalized additive model, specified as a `ClassificationGAM`

or `CompactClassificationGAM`

model object.

`Tbl`

— Sample data

table

Sample data, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one predictor variable. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

`Tbl`

must contain all the predictors used to train
`Mdl`

. Optionally, `Tbl`

can contain a column
for the response variable and a column for the observation weights.

The response variable must have the same data type as

`Mdl.Y`

. (The software treats string arrays as cell arrays of character vectors.) If the response variable in`Tbl`

has the same name as the response variable used to train`Mdl`

, then you do not need to specify`ResponseVarName`

.The weight values must be a numeric vector. You must specify the observation weights in

`Tbl`

by using`'Weights'`

.

If you trained `Mdl`

using sample data contained in a table, then the input data for `margin`

must also be in a table.

**Data Types: **`table`

`ResponseVarName`

— Response variable name

name of variable in `Tbl`

Response variable name, specified as a character vector or string scalar containing the name
of the response variable in `Tbl`

. For example, if the response
variable `Y`

is stored in `Tbl.Y`

, then specify it as
`'Y'`

.

**Data Types: **`char`

| `string`

`Y`

— Class labels

categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Class labels, specified as a categorical, character, or string array, a logical or
numeric vector, or a cell array of character vectors. Each row of `Y`

represents the classification of the corresponding row of `X`

or
`Tbl`

.

`Y`

must have the same data type as `Mdl.Y`

. (The software treats string arrays as cell arrays of character
vectors.)

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `string`

| `cell`

`X`

— Predictor data

numeric matrix

Predictor data, specified as a numeric matrix. Each row of `X`

corresponds to one observation, and each column corresponds to one predictor variable.

If you trained `Mdl`

using sample data contained in a matrix, then the input data for `margin`

must also be in a matrix.

**Data Types: **`single`

| `double`

`includeInteractions`

— Flag to include interaction terms

`true`

| `false`

Flag to include interaction terms of the model, specified as `true`

or
`false`

.

The default `includeInteractions`

value is `true`

if `Mdl`

contains interaction terms. The value must be `false`

if the model does not contain interaction terms.

**Data Types: **`logical`

## More About

### Classification Margin

The *classification margin* for binary classification is, for each observation, the difference between the classification score for the true class and the classification score for the false class.

If the margins are on the same scale (that is, the score values are based on the same score transformation), then they serve as a classification confidence measure. Among multiple classifiers, those that yield greater margins are better.

## Version History

**Introduced in R2021a**

## See Also

`predict`

| `loss`

| `edge`

| `resubMargin`
