# CalinskiHarabaszEvaluation

Calinski-Harabasz criterion clustering evaluation object

## Description

CalinskiHarabaszEvaluation is an object consisting of sample data (X), clustering data (OptimalY), and Calinski-Harabasz criterion values (CriterionValues) used to evaluate the optimal number of clusters (OptimalK). The Calinski-Harabasz criterion is sometimes called the variance ratio criterion (VRC). Well-defined clusters have a large between-cluster variance and a small within-cluster variance. The optimal number of clusters corresponds to the solution with the highest Calinski-Harabasz index value. For more information, see Calinski-Harabasz Criterion.

## Creation

Create a Calinski-Harabasz criterion clustering evaluation object by using the evalclusters function and specifying the criterion as "CalinskiHarabasz".

You can then use compact to create a compact version of the Calinski-Harabasz criterion clustering evaluation object. The function removes the contents of the properties X, OptimalY, and Missing.

## Properties

expand all

### Clustering Evaluation Properties

Clustering algorithm used to cluster the sample data, returned as 'kmeans', 'linkage', 'gmdistribution', or a function handle. If you specify the clustering solutions as an input argument to evalclusters when you create the clustering evaluation object, then ClusteringFunction is empty.

ValueDescription
'kmeans'Cluster the data in X using the kmeans clustering algorithm, with EmptyAction set to "singleton" and Replicates set to 5.
'linkage'Cluster the data in X using the clusterdata agglomerative clustering algorithm, with Linkage set to "ward".
'gmdistribution'Cluster the data in X using the gmdistribution Gaussian mixture distribution algorithm, with SharedCov set to true and Replicates set to 5.

Data Types: double | char | function_handle

Name of the criterion used for clustering evaluation, returned as 'CalinskiHarabasz'.

Criterion values, returned as a numeric vector. Each value corresponds to a proposed number of clusters in InspectedK.

Data Types: double

List of the number of proposed clusters for which to compute criterion values, returned as a positive integer vector.

Data Types: double

Optimal number of clusters, returned as a positive integer scalar.

Data Types: double

Optimal clustering solution corresponding to OptimalK, returned as a positive integer column vector. Each row of OptimalY represents the cluster index of the corresponding observation (or row) in X. If you specify the clustering solutions as an input argument to evalclusters when you create the clustering evaluation object, or if the clustering evaluation object is compact (see compact), then OptimalY is empty.

Data Types: double

### Sample Data Properties

Excluded data, returned as a logical column vector. If an element of Missing is true, then the corresponding observation (or row) in the data matrix X is not used in the clustering solutions. If the clustering evaluation object is compact (see compact), then Missing is empty.

Data Types: double | logical

Number of observations in the data matrix X, ignoring observations with missing (NaN) values, returned as a positive integer scalar.

Data Types: double

Data used for clustering, returned as a numeric matrix. Rows correspond to observations, and columns correspond to variables. If the clustering evaluation object is compact (see compact), then X is empty.

Data Types: single | double

## Object Functions

 addK Evaluate additional numbers of clusters compact Compact clustering evaluation object plot Plot clustering evaluation object criterion values

## Examples

collapse all

Evaluate the optimal number of clusters using the Calinski-Harabasz clustering evaluation criterion.

Load the fisheriris data set. The data contains length and width measurements from the sepals and petals of three species of iris flowers.

Evaluate the optimal number of clusters using the Calinski-Harabasz criterion. Cluster the data using kmeans.

rng("default") % For reproducibility
evaluation = evalclusters(meas,"kmeans","CalinskiHarabasz","KList",1:6)
evaluation =
CalinskiHarabaszEvaluation with properties:

NumObservations: 150
InspectedK: [1 2 3 4 5 6]
CriterionValues: [NaN 513.9245 561.6278 530.4871 456.1279 469.5068]
OptimalK: 3

The OptimalK value indicates that, based on the Calinski-Harabasz criterion, the optimal number of clusters is three.

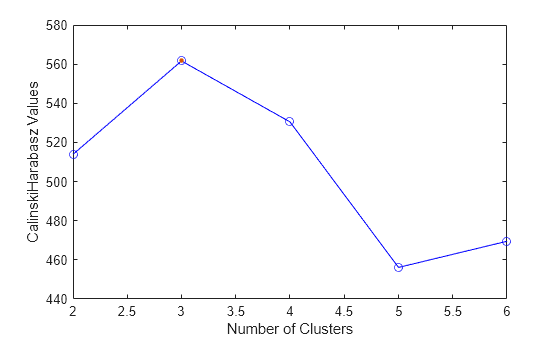

Plot the Calinski-Harabasz criterion values for each number of clusters tested.

plot(evaluation)

The plot shows that the highest Calinski-Harabasz value occurs at three clusters, suggesting that the optimal number of clusters is three.

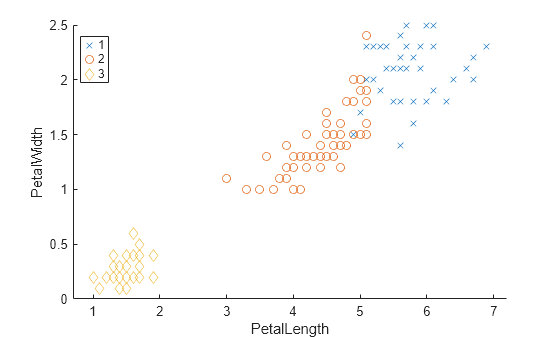

Create a grouped scatter plot to examine the relationship between petal length and width. Group the data by suggested clusters.

PetalLength = meas(:,3);
PetalWidth = meas(:,4);
clusters = evaluation.OptimalY;
gscatter(PetalLength,PetalWidth,clusters,[],"xod");

The plot shows cluster 3 in the lower-left corner, completely separated from the other two clusters. Cluster 3 contains flowers with the smallest petal widths and lengths. Cluster 1 is in the upper-right corner, and contains flowers with the largest petal widths and lengths. Cluster 2 is near the center of the plot, and contains flowers with measurements between these two extremes.
