This example shows how to use a Padé approximant in control system theory to model time delays in the response of a first-order system. Time delays arise in systems such as chemical and transport processes where there is a delay between the input and the system response. When these inputs are modeled, they are called dead-time inputs.
This example uses Symbolic Math Toolbox™ to solve for the transfer function of a first-order system and find the system response to dead-time step input using Padé approximant. This example performs calculations symbolically to obtain analytic results.
The Padé approximant of order
[m, n] approximates the function
f(x) around as
The Padé approximant is a rational function formed by a ratio of two power series. Because it is a rational function, it is more accurate than the Taylor series in approximating functions with poles. The Padé approximant is represented by the Symbolic Math Toolbox™ function
When a pole or zero exists at the expansion point , the accuracy of the Padé approximant decreases. To increase accuracy, use an alternative form of the Padé approximant which is
pade function returns the alternative form of the Padé approximant when you set the
OrderMode input argument to
The behavior of a first-order system is described by this differential equation
Enter the differential equation in MATLAB®.
syms tau a x(t) y(t) xS(s) yS(s) H(s) tmp F = tau*diff(y)+y == a*x;
Find the Laplace transform of
F = laplace(F,t,s)
Assume the response of the system at
t = 0 is
subs to substitute for
y(0) = 0.
F = subs(F,y(0),0)
To collect common terms, use
F = simplify(F)
For readability, replace the Laplace transforms of
F = subs(F,[laplace(x(t),t,s) laplace(y(t),t,s)],[xS(s) yS(s)])
The Laplace transform of the transfer function is
yS(s)/xS(s). Divide both sides of the equation by
xS(s) and use subs to replace
F = F/xS(s); F = subs(F,yS(s)/xS(s),H(s))
Solve the equation for
H(s). Substitute for
H(s) with a dummy variable, solve for the dummy variable using solve, and assign the solution to
F = subs(F,H(s),tmp); Hsol(s) = solve(F,tmp)
The input to the first-order system is a time-delayed step input. To represent a step input, use
heaviside. Delay the input by three time units. Find the Laplace transform using
step = heaviside(t - 3); step = laplace(step)
Find the response of the system, which is the product of the transfer function and the input.
y = Hsol(s)*step
To allow plotting of the response, set parameters
tau to specific values. For
tau, choose values
y = subs(y,[a tau],[1 3]); y = ilaplace(y,s);
Find the Padé approximant of order
[2 2] of the step input using the Order input argument to
stepPade22 = pade(step,'Order',[2 2])
Find the response to the input by multiplying the transfer function and the Padé approximant of the input.
yPade22 = Hsol(s)*stepPade22
Find the inverse Laplace transform of
yPade22 = ilaplace(yPade22,s)
To plot the response, set parameters
tau to their values of
yPade22 = subs(yPade22,[a tau],[1 3])
Plot the response of the system
y and the response calculated from the Padé approximant

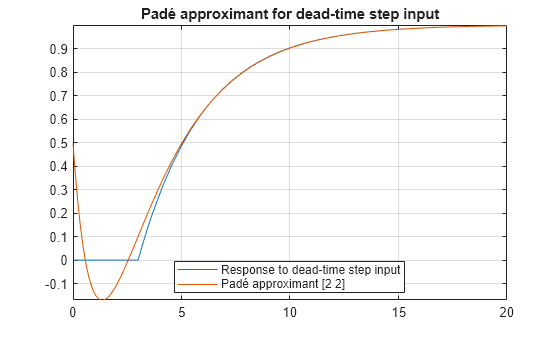

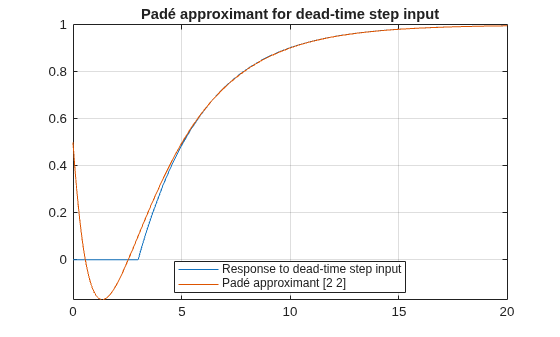

fplot(y,[0 20]) hold on fplot(yPade22, [0 20]) grid on title 'Padé approximant for dead-time step input' legend('Response to dead-time step input', 'Padé approximant [2 2]',... 'Location', 'Best');
[2 2] Padé approximant does not represent the response well because a pole exists at the expansion point of
0. To increase the accuracy of
pade when there is a pole or zero at the expansion point, set the
OrderMode input argument to Relative and repeat the steps. For details, see
stepPade22Rel = pade(step,'Order',[2 2],'OrderMode','Relative')
yPade22Rel = Hsol(s)*stepPade22Rel
yPade22Rel = ilaplace(yPade22Rel); yPade22Rel = subs(yPade22Rel,[a tau],[1 3])

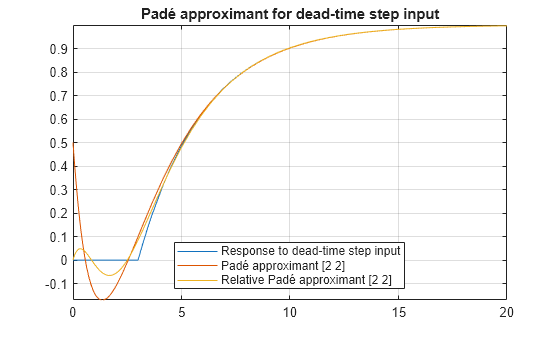

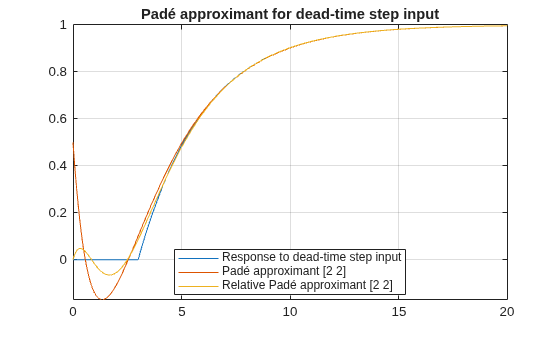

fplot(yPade22Rel, [0 20], 'DisplayName', 'Relative Padé approximant [2 2]')
You can increase the accuracy of the Padé approximant by increasing its order. Increase the order to
[4 5] and repeat the steps. The
[n-1 n] Padé approximant is better at approximating the response at
t = 0 than the
[n n] Padé approximant.
stepPade45 = pade(step,'Order',[4 5])
yPade45 = Hsol(s)*stepPade45
yPade45 = subs(yPade45,[a tau],[1 3])
Find the inverse Laplace transform of
yPade45 numerically using
vpa. Plot the response calculated from the Padé approximant
yPade45 = vpa(ilaplace(yPade45)); fplot(yPade45, [0 20], 'DisplayName', 'Padé approximant [4 5]')
The following points have been shown:
Padé approximants can model dead-time step inputs.
The accuracy of the Padé approximant increases with the increase in the order of the approximant.
When a pole or zero exists at the expansion point, the Padé approximant is inaccurate about the expansion point. To increase the accuracy of the approximant, set the
OrderMode option to
Relative. You can also use increase the order of the denominator relative to the numerator.
