Motor Control

Build and deploy motor control applications using PMSM

Implement open-loop or closed-loop FOC (field-oriented control) techniques for sensor-based and sensorless position applications using PMSM (permanent magnet synchronous motor).

The blockset includes reference examples that help you build and deploy motor control applications on C2000 MCUs (with Motor Control Blockset™ and Embedded Coder^®).

Topics

Hardware Connections
Connect motors, sensors, and power supply to hardware boards.
Hall Offset Calibration for PMSM Motor
Hall Offset Calibration for PMSM Motor using C2000.

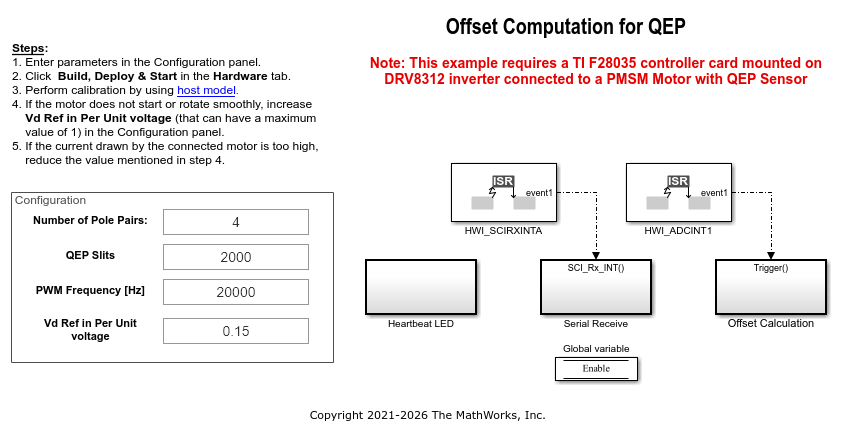

Quadrature Encoder Offset Calibration for PMSM Motor
Quadrature Encoder Offset Calibration for PMSM Motor using C2000.

Featured Examples

Field-Oriented Control of PMSM with Quadrature Encoder Using C2000 Processors

Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a quadrature encoder sensor. For details about FOC, see Field-Oriented Control (FOC) (Motor Control Blockset).

Open Model

Field-Oriented Control of PMSM with Hall Sensor Using C2000 Processors

Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a Hall sensor. For details about FOC, see Field-Oriented Control (FOC) (Motor Control Blockset).

Open Model

Sensorless Field-Oriented Control of PMSM Using C2000 Processors

Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). For details about FOC, see Field-Oriented Control (FOC) (Motor Control Blockset).

Open Model

Open-Loop Control of 3-Phase AC Motors Using C2000 Processors

Uses open-loop control (also known as scalar control or Volts/Hz control) to run a motor. This technique varies the stator voltage and frequency to control the rotor speed without using any feedback from the motor. You can use this technique to check the integrity of the hardware connections. A constant speed application of open-loop control uses a fixed-frequency motor power supply. An adjustable speed application of open-loop control needs a variable-frequency power supply to control the rotor speed. To ensure a constant stator magnetic flux, keep the supply voltage amplitude proportional to its frequency.

Open Model

Control PMSM Loaded with Dual Motor (Dyno) Using C2000 Processors

Uses field-oriented control (FOC) to control two three-phase permanent magnet synchronous motors (PMSM) coupled in a dyno setup. Motor 1 runs in the closed-loop speed control mode. Motor 2 runs in the torque control mode and loads Motor 1 because they are mechanically coupled. You can use this example to test a motor in different load conditions.

Open Model

Partition Motor Control for Multiprocessor MCUs

Partition real-time motor control application on to multiple processors to achieve design modularity and improved control performance.

Open Script

Permanent Magnet Synchronous Motor Field-Oriented Control Using Concerto Processors

Control the speed of a three-phase Permanent Magnet Synchronous Motor in a closed-loop fashion via Field-Oriented Control using the C28x peripherals and MCB blocks from Motor Control Blockset™ library. For the complete hardware in the loop (HIL) PMSM example, see Field-Oriented Control (FOC) of PMSM Using Hardware-In-The-Loop (HIL) Simulation (Motor Control Blockset).

Open Model

Integrate MCU Scheduling and Peripherals in Motor Control Application

Identify and resolve issues with respect to peripheral settings and task scheduling early during development.

Open Model

Schedule a Multi-Rate Controller for a Permanent Magnet Synchronous Machine

Create a real-time executable for a Texas Instruments™ F28335 embedded target. You will build upon the algorithm specified in the example Field-Oriented Control of Permanent Magnet Synchronous Machine (Embedded Coder) by adding timing and peripheral specifications. You will learn an advanced technique to schedule the algorithm based on the periodic end-of-conversion event of the ADC.

Open Model
