Straight Road

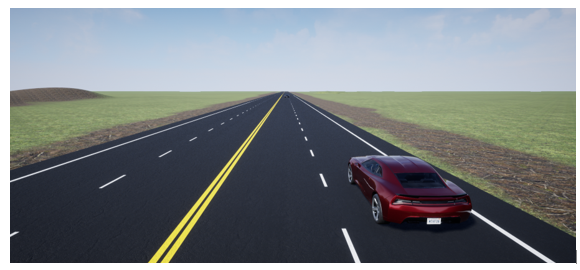

Straight road 3D environment

Description

The Straight Road scene is a 3D environment of a straight four-lane divided highway. The scene is rendered using the Unreal Engine® from Epic Games®.

Setup

To simulate a driving maneuver in this scene:

  1. Add a Simulation 3D Scene Configuration block to your Simulink® model.

  2. In this block, set the Scene source parameter to Default Scenes.

  3. Set the enabled Scene name parameter to Straight road.

Layout

The scene uses the world coordinate system to locate objects.

The active area of the scene contains the road.

OverallActive Area

Tips

  • If you have the Vehicle Dynamics Blockset™ Interface for Unreal Engine 4 Projects support package, then you can modify this scene. In the Unreal Engine project file that comes with the support package, this scene is named HwStrght.

    For more details on customizing scenes, see Customize 3D Scenes for Vehicle Dynamics Simulations.

Introduced in R2018b
