pcregisterndt

Register two point clouds using NDT algorithm

Syntax

tform = pcregisterndt(moving,fixed,gridStep)

[tform,movingReg] = pcregisterndt(___)

[tform,movingReg,rmse] = pcregisterndt(___)

[___] = pcregisterndt(___,Name=Value)

Description

tform = pcregisterndt(moving,fixed,gridStep) returns the rigid transformation that registers the moving point cloud with the fixed point cloud. The fixed point cloud is voxelized into cubes of size gridStep.

The registration algorithm is based on the normal-distributions transform (NDT) algorithm [1] [2]. Best performance of this iterative process requires adjusting properties for your data. To improve accuracy and efficiency of registration, consider downsampling the moving point cloud by using pcdownsample before using pcregisterndt.

[tform,movingReg] = pcregisterndt(___) also returns the transformed point cloud that aligns with the fixed point cloud.

[tform,movingReg,rmse] = pcregisterndt(___) also returns the root mean square error of the Euclidean distance between the aligned point clouds.

[___] = pcregisterndt(___,Name=Value) specifies options using one or more name-value arguments in addition to any combination of arguments from previous syntaxes. For example, MaxIterations=20 stops the NDT algorithm after 20 iterations.

Examples

Align Two Point Clouds Using NDT Algorithm

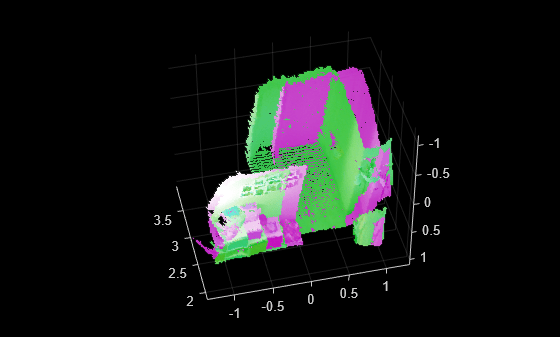

Load point cloud data.

ld = load('livingRoom.mat');
moving = ld.livingRoomData{1};
fixed = ld.livingRoomData{2};
figure
pcshowpair(moving,fixed,VerticalAxis='Y',VerticalAxisDir='Down')

To improve the efficiency and accuracy of the NDT registration algorithm, downsample the moving point cloud.

movingDownsampled = pcdownsample(moving,'gridAverage',0.1);

Voxelize the point cloud into cubes of sidelength 0.5. Apply the rigid registration using the NDT algorithm.

gridStep = 0.5;
tform = pcregisterndt(movingDownsampled,fixed,gridStep);

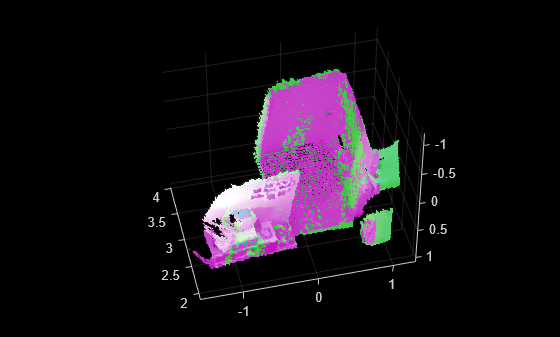

Visualize the alignment.

movingReg = pctransform(moving,tform);
figure
pcshowpair(movingReg,fixed,VerticalAxis='Y',VerticalAxisDir='Down')

Align Two Lidar Point Clouds

Construct a velodyneFileReader object.

veloReader = velodyneFileReader('lidarData_ConstructionRoad.pcap','HDL32E');

Read and visualize two lidar point clouds.

frameNumber = 1;
skipFrame = 5;
fixed = readFrame(veloReader,frameNumber);
moving = readFrame(veloReader,frameNumber + skipFrame);

Segment the ground plane and remove it from the fixed point cloud.

groundPtsIdxFixed = segmentGroundFromLidarData(fixed);
fixedSeg = select(fixed,~groundPtsIdxFixed,OutputSize='full');

Segment the ground plane and remove it from the moving point cloud.

groundPtsIdxMoving = segmentGroundFromLidarData(moving);
movingSeg = select(moving,~groundPtsIdxMoving,OutputSize='full');

Downsample the moving point cloud to improve accuracy and the efficiency of processing the points.

movingDownsampled = pcdownsample(movingSeg,gridAverage=0.2);

Register the moving point cloud with respect to the fixed point cloud.

gridStep = 5;
tform = pcregisterndt(movingDownsampled,fixedSeg,gridStep);

Transform the moving point cloud using an estimated rigid transformation.

movingReg = pctransform(moving,tform);

Visualize the alignment of the point clouds.

figure
pcshowpair(movingReg,fixed)

Input Arguments

moving — Moving point cloud

pointCloud object

Moving point cloud, specified as a pointCloud object.

fixed — Fixed point cloud

pointCloud object

Fixed point cloud, specified as a pointCloud object.

gridStep — Size of voxels

positive scalar

Size of the 3-D cube that voxelizes the fixed point cloud, specified as a positive scalar.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: MaxIterations=20 stops the NDT algorithm after 20 iterations.

InitialTransform — Initial rigid transformation

rigidtform3d object

Initial rigid transformation, specified as a rigidtform3d object. Set the initial transformation to a coarse estimate. If you do not provide a course or initial estimate, the function uses a rigidtform3d object that contains a translation that moves the center of the moving points to the center of the fixed points.

OutlierRatio — Percentage of outliers

0.55 (default) | scalar in the range [0, 1)

Expected percentage of outliers with respect to a normal distribution, specified as a scalar in the range [0, 1). The NDT algorithm assumes a point is generated by a mixture of a normal distribution for inliers and a uniform distribution for outliers. A larger value of OutlierRatio reduces the influence of outliers.

Data Types: single | double

MaxIterations — Maximum number of iterations

30 (default) | positive integer

Maximum number of iterations before NDT stops, specified as a positive integer.

Data Types: single | double

Tolerance — Tolerance between consecutive NDT iterations

[0.01 0.5] (default) | 2-element vector

Tolerance between consecutive NDT iterations, specified as a 2-element vector with nonnegative values. The vector, [Tdiff Rdiff], represents the tolerance of absolute difference in translation and rotation estimated in consecutive NDT iterations. Tdiff measures the Euclidean distance between two translation vectors. Rdiff measures the angular difference in degrees. The algorithm stops when the difference between estimated rigid transformations in the most recent consecutive iterations falls below the specified tolerance value.

Data Types: single | double

Verbose — Display progress information

false (default) | true

Display progress information, specified as a numeric or logical 0 (false) or 1 (true). To display the progress information, set Verbose to true.

Output Arguments

tform — Rigid transformation

rigidtform3d object

Rigid transformation, returned as a rigidtform3d object. tform describes the rigid 3-D transformation that registers the moving point cloud, moving, to the fixed point cloud, fixed.

movingReg — Transformed point cloud

pointCloud object

Transformed point cloud, returned as a pointCloud object. The transformed point cloud is aligned with the fixed point cloud, fixed.

rmse — Root mean square error

positive number

Root mean square error, returned as a positive number. rmse is the Euclidean distance between the aligned point clouds. A low rmse value indicates a more accurate registration.

Data Types: single | double

Algorithms

Tips

• For ground vehicle point clouds, you can improve performance and accuracy by removing the ground using pcfitplane or segmentGroundFromLidarData before registration. For details on how to do this, see the helper function, helperProcessPointCloud in the Build a Map from Lidar Data (Automated Driving Toolbox) example.

• To merge more than two point clouds, you can use pccat function instead of the pcmerge function.

• Prior to registration, the pcregisterndt function voxelizes the fixed point cloud using the specified gridStep. Decrease the grid step to capture distinct structures within the point cloud. However, decreasing this value can lead to an increase of the effect of the local noise from the sensor. Use the pcdownsample function to determine the effect of voxelization with this syntax:

  pcdownsample(fixed,"gridAverage",gridStep)

NDT Registration Overview

The NDT registration is based on normal distributions rather than other types of registration which match points or lines in order to find the transformation between two point clouds. The NDT approach uses statistical models with 3-D boxes, called voxels.

To register two point clouds, a moving point cloud and a fixed point cloud, using the NDT approach, the algorithm performs the following:

1. Computes the normal distributions for the fixed point cloud by dividing the area covered by the point cloud scan into 3-D boxes of constant size, referred to as "voxels". Each voxel contains a set of points. The algorithm computes the mean and covariance matrix for the points in each voxel.

2. Starting with an initial guess of the transformation, the algorithm aligns the moving point cloud to the fixed point cloud. It then finds the sum of the statistical likelihood of each aligned point to be located in the voxel that surrounds the point (in the moving point cloud), based on the normal distribution of the fixed point cloud.

3. To improve the registration, the algorithm maximizes the probability score of the moving point cloud on the normal distributions of the fixed point cloud. This is done by iteratively optimizing angular and translational estimations.

4. Repeats the alignment of the moving point cloud with the fixed piont cloud using the new transformation from the previous step and then repeats the optimization.

5. The algorithm stops once the maximum iterations or the tolerance parameters, are met. The tolerance is a measure of how much the angular and translational estimations change from one iteration to another.

References

[1] Biber, P., and W. Straßer. “The Normal Distributions Transform: A New Approach to Laser Scan Matching.” Proceedings of IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Las Vegas, NV. Vol. 3, November 2003, pp. 2743–2748.

[2] Magnusson, M. “The Three-Dimensional Normal-Distributions Transform — an Efficient Representation for Registration, Surface Analysis, and Loop Detection.” Ph.D. Thesis. Örebro University, Örebro, Sweden, 2013.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Version History

Introduced in R2018a

R2022b: Supports premultiply geometric transformation convention

Starting in R2022b, most Computer Vision Toolbox™ functions create and perform geometric transformations using the premultiply convention. Accordingly, the pcregisterndt function now returns the output argument tform as rigidtform3d object, which uses the premultiply convention. Before, the function returned tform as a rigid3d object, which uses the postmultiply convention.

You can now specify the InitialTransform name-value argument as a rigidtform3d object. Although you can still specify InitialTransform as a rigid3d object, this object is not recommended because it uses the postmultiply convention. You can streamline your geometric transformation workflows by switching to new premultiply geometric transformation objects. For more information, see Migrate Geometric Transformations to Premultiply Convention.

R2020a: Returns rigid3d object

Starting in R2020a, the pcregisterndt function returns a rigid3d object. Prior to R2020a, the function returned an affine3d object.
