Implement Point Cloud SLAM in MATLAB
A point cloud is a set of points in 3-D space. Point clouds are typically obtained from 3-D scanners, such as a lidar or Kinect® device. They have applications in robot navigation and perception, depth estimation, stereo vision, visual registration, and advanced driver assistance systems (ADAS).
Point cloud registration is the process of aligning two or more 3-D point clouds of the same scene into a common coordinate system. Mapping is the process of building a map of the environment around a robot or a sensor. You can use registration and mapping to reconstruct a 3-D scene or build a map of a roadway for localization. While registration commonly precedes mapping, there are other applications for registration, that may not require mapping, such as deformable motion tracking. Computer Vision Toolbox™ algorithms provide functions for performing point cloud registration and mapping. The workflow consists of preprocessing, registration, drift correction, and alignment of point clouds.
Simultaneous localization and mapping (SLAM) refers to the process of calculating the position and orientation of a vehicle, with respect to its surroundings, while simultaneously mapping the environment. The process uses only point cloud inputs from a sensor. Applications for point cloud SLAM include robotics and autonomous driving. For a general description on why SLAM matters and how it works for different applications, see What is SLAM?

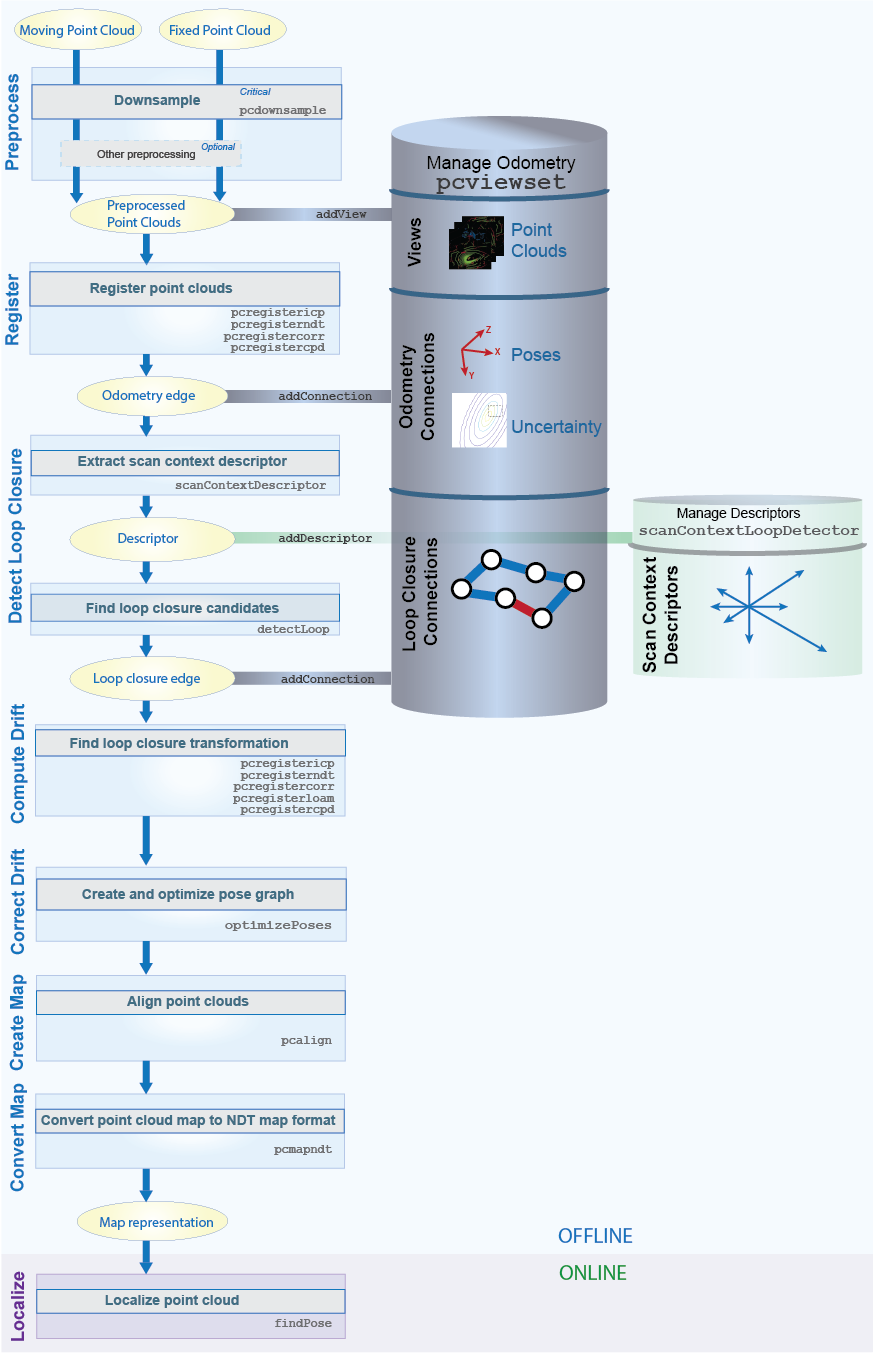

Mapping and Localization Workflow
Follow these steps to perform point cloud registration and mapping on a sequence of point clouds. Then you can localize the vehicle in the prebuilt map.
Preprocess Point Clouds — To prepare the point clouds for registration, downsample them and remove unwanted features and noise.
Register Point Clouds — Register each point cloud against the one preceding it. These registrations are used in odometry, which is the process of accumulating a registration estimate over successive frames. Using odometry alone can lead to drift between the measured and ground truth poses.
Detect Loops — Perform loop closure detection to minimize drift. Loop closure detection is the process of identifying the return of the sensor to a previously visited location, which forms a loop in the trajectory of the sensor.
Correct Drift — Use the detected loops to minimize drift through pose graph optimization, which consists of incrementally building a pose graph by adding nodes and edges, and then optimizing the pose graph once you have found sufficient loops. Pose graph optimization results in a set of optimized absolute poses.
Assemble Map — Assemble a point cloud map by aligning the registered point clouds using their optimized absolute poses. You can use such a prebuilt point cloud map for Localization, which is the process of locating the vehicle within the map.
Localize — Find the pose of the vehicle based on the assembled map.
Manage Data for Mapping and Localization
Use these objects to manage data associated with the point cloud registration and mapping workflow:
pointCloudobject — The point cloud object stores a set of points located in 3-D space. It uses efficient indexing strategies to accomplish nearest neighbor searches, which are leveraged by point cloud preprocessing and registration functions.
rigid3dobject — The rigid 3-D object stores a 3-D rigid geometric transformation. In this workflow, it represents the relative and absolute poses.
pcviewsetobject — The point cloud view set object manages the data associated with the odometry and mapping process. It organizes data as a set of views and pairwise connections between views. It also builds and updates a pose graph.
Each view consists of a point cloud and the associated absolute pose transformation. Each view has a unique identifier within the view set and forms a node of the pose graph.
Each connection stores information that links one view to another view. This includes the relative transformation between the connected views and the uncertainty involved in computing the measurement. Each connection forms an edge in the pose graph.
pcmapndtobject — The NDT map object stores a compressed, memory-efficient map representation for localization. The object converts the point cloud map into a set of voxels (3-D boxes), each voxel represented by a 3-D normal distribution.
Preprocess Point Clouds
Preprocessing includes removing unwanted features and noise from the point clouds, and segmenting or downsampling them. Preprocessing can include these functions:
pcdownsample— Downsample the point cloud.
pcdenoise— Remove unwanted noise from the point cloud.
Register Point Clouds
You can use the
pcregisterloam (Lidar Toolbox), or
pcregistercpd function to register a moving point cloud to a fixed point
cloud. The registration algorithms used by these functions are based on the
normal-distributions transform (NDT) algorithm, the iterative closest point (ICP)
algorithm, a phase correlation algorithm, the lidar odometry and mapping (LOAM)
algorithm, and the coherent point drift (CPD) algorithm, respectively. For more
information on these algorithms, see References.
When registering a point cloud, choose the type of transformation that represents how objects in the scene change between the fixed and moving point clouds.
|Rigid||The rigid transformation preserves the shape and size of objects in the scene. Objects in the scene can undergo translations, rotations, or both. The same transformation applies to all points.|
|Affine||The affine transformation allows the objects to shear and change scale in addition to undergoing translations and rotations.|
|Nonrigid||The nonrigid transformation allows the shape of objects in the scene to change. Points undergo distinct transformations. A displacement field represents the transformation.|
This table compares the point cloud registration function options, their transformation types, and their performance characteristics. Use this table to help you select the appropriate registration function for your use case.
|Registration Method (function)||Transformation Type||Description||Performance Characteristics|
||Provide an initial estimate to enable the algorithm to converge faster.|
||Decrease the size of the occupancy grids to decrease the computational requirements of the function.|
Provides increased control between the processing speed versus registration accuracy
|Rigid, affine, and nonrigid||
||Slowest registration method. Not recommended for map building.|
Registering the current (moving) point cloud against the previous
(fixed) point cloud returns a
transformation that represents the estimated relative pose of the moving point cloud in
the frame of the fixed point cloud. Composing this relative pose transformation with all
previously accumulated relative pose transformations gives an estimate of the absolute
Add the odometry edge, an edge defined by the connection
between successive views, formed by the relative pose transformation between the fixed
and moving point clouds to the
object using the
Tips for Registration
Local registration methods, such as those that use NDT or ICP (
pcregistericp, respectively), require initial estimates for better performance. To obtain an initial estimate, use another sensor such as an inertial measurement unit (IMU) or other forms of odometry.
For increased accuracy in registration results, increase the value for the
'MaxIterations'argument or decrease the value for the
'Tolerance'argument. Changing these values in this way consequently slows registration speed.
pcdenoisebefore registration can improve registration accuracy, but it can slow down the execution time of the map building workflow.
Using odometry alone leads to drift due to accumulation of errors. These errors can result in severe inaccuracies over long distances. Using graph-based simultaneous localization and mapping (SLAM) corrects the drift. To do this, detect loop closures by finding a location visited in a previous point cloud using descriptor matching. Use loop closures to correct for accumulated drift. Follow these steps to detect loop closures:
scanContextDescriptorfunction to extract scan context descriptors, which capture the distinctiveness of a point cloud.
detectLoopfunction to find potential loop closures.
Register the point clouds to determine the relative pose transformation between the views and the root mean square error (RMSE) of the Euclidean distance between the aligned point clouds. Use the RMSE to filter invalid loop closures. The relative pose transformation represents a connection between the two views. An edge formed by a connection between nonsuccessive views is called a loop closure edge. You can add the connection to the
pcviewsetobject using the
For an alternative approach to loop closure detection based on segment matching, refer
findPose (Lidar Toolbox)
object internally updates the pose graph as views and connections are added. To minimize
drift, perform pose graph optimization by using the
optimizePoses function, once sufficient loop closures are detected. The
optimizePoses function returns a
object with the optimized absolute pose transformations for each view.
You can use the
createPoseGraph function to return the pose graph as a MATLAB®
digraph object. You can use graph algorithms in MATLAB to inspect, view, or modify the pose graph. Use the
optimizePoseGraph (Navigation Toolbox) function to optimize the modified pose graph, and then
updateView function to update the poses in the view set.
function to build a point cloud map using the point clouds from the view set and their
optimized absolute pose transformations. This point cloud map can now be used for online
localization using the NDT localization algorithm.
Localize Vehicle in Map
Convert the prebuilt point cloud map to the NDT map format using the
object stores the map in a compressed voxel representation that can be saved to disk and
used for online localization. Use the
function to localize in the map.
Alternative workflows for map building and localization are available in Computer Vision Toolbox, Navigation Toolbox™, and Lidar Toolbox™.
Visual SLAM using Computer Vision Toolbox features — Calculate the position and orientation of a camera with respect to its surroundings, while simultaneously mapping the environment. For more details, see Implement Visual SLAM in MATLAB.
Build an occupancy map using Navigation Toolbox features — Build an occupancy map from point clouds. For details, see Perform SLAM Using 3-D Lidar Point Clouds (Navigation Toolbox).
Segment matching using Lidar Toolbox features — Build a map representation of segments and features using the
pcmapsegmatch(Lidar Toolbox) object. Use the
findPose(Lidar Toolbox) function for loop closure detection and localization. This approach is robust to dynamic obstacles and is recommended for large scale environments. For an example of this approach, see the Build Map and Localize Using Segment Matching (Lidar Toolbox) example. The table highlights the similarities and differences between the
pcmapsegmatch(Lidar Toolbox) map representations.
Algorithm Normal distributions transform (NDT) SegMatch — segment matching approach Mapping Build the map first — Incrementally build the map using
pcviewset. Then, use
pcalignto assemble the map and convert the prebuilt map to an NDT map representation.
Build the map incrementally using
pcmapsegmatch(Lidar Toolbox) — Add views to
addView) and to
pcmapsegmatch(Lidar Toolbox) (using
addView(Lidar Toolbox)) for each point cloud scan. Detect loop closures using
findPose(Lidar Toolbox) and correct for accumulated drift with
Select a submap for localization, and then find the pose for localization using one set of the following options:
Localization Difference Relies on a pose estimate. Does not rely on a pose estimate. Visualization Visualize the map or selected submap using the
showfunction of the
pcmapndtobject or the
show(Lidar Toolbox) function of the
pcmapsegmatch(Lidar Toolbox) object.
 Myronenko, Andriy, and Xubo Song. “Point Set Registration: Coherent Point Drift.” IEEE Transactions on Pattern Analysis and Machine Intelligence 32, no. 12 (December 2010): 2262–75. https://doi.org/10.1109/TPAMI.2010.46
 Chen, Yang, and Gérard Medioni. “Object Modelling by Registration of Multiple Range Images.” Image and Vision Computing 10, no. 3 (April 1992): 145–55. https://doi.org/10.1016/0262-8856(92)90066-C.
 Besl, P.J., and Neil D. McKay. “A Method for Registration of 3-D Shapes.” IEEE Transactions on Pattern Analysis and Machine Intelligence 14, no. 2 (February 1992): 239–56. https://doi.org/10.1109/34.121791.
 Biber, P., and W. Strasser. “The Normal Distributions Transform: A New Approach to Laser Scan Matching.” In Proceedings 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS 2003) (Cat. No.03CH37453), 3:2743–48. Las Vegas, Nevada, USA: IEEE, 2003. https://doi.org/10.1109/IROS.2003.1249285.
 Magnusson, Martin. “The Three-Dimensional Normal-Distributions Transform: An Efficient Representation for Registration, Surface Analysis, and Loop Detection.” PhD thesis, Örebro universitet, 2009. http://urn.kb.se/resolve?urn=urn:nbn:se:oru:diva-8458 urn:nbn:se:oru:diva-8458
 Dimitrievski, Martin, David Van Hamme, Peter Veelaert, and Wilfried Philips. “Robust Matching of Occupancy Maps for Odometry in Autonomous Vehicles.” In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications, 626–33. Rome, Italy: SCITEPRESS - Science and and Technology Publications, 2016. https://doi.org/10.5220/0005719006260633.
 Zhang, Ji, and Sanjiv Singh. “LOAM: Lidar Odometry and Mapping in Real-Time.” In Robotics: Science and Systems X. Robotics: Science and Systems Foundation, 2014. https://doi.org/10.15607/RSS.2014.X.007.
