R2026b

New Features, Bug Fixes, Compatibility Considerations
expand all

Ground Truth Images and Video

Create instance segmentation training data from labeled ground truth

Use the new instanceSegmentationTrainingData function to create training data for instance segmentation networks directly from polygon ROI labels in a groundTruth object. The instanceSegmentationTrainingData function converts polygon annotations into a training-ready datastore that provides images, bounding boxes, class labels, and binary instance masks.

The instanceSegmentationTrainingData function supports labeled ground truth exported from the Image Labeler and Video Labeler apps, as well as COCO JSON annotations imported using the groundTruthFromCOCO function.

Label images and videos using numeric and string scene labels

You can now define scene labels in the Image Labeler and Video Labeler apps using numeric and string values. In previous releases, scene labels supported only logical values.

Detect and Segment Objects

Segment objects across video frames using SAM 2

Segment objects across video frames from minimal point or bounding box prompts using the new sam2VideoObjectSegmenter object and its object functions. The object uses the Segment Anything Model 2 (SAM 2) to propagate object segmentation masks with consistent identity across all frames of a video or image sequence.

The sam2VideoObjectSegmenter object has these object functions:

  • addObjectsToSegment — Specify objects to segment by providing point or bounding box prompts on one or more frames.

  • removeObjectsToSegment — Remove objects from segmentation dynamically during processing.

  • segmentObjects — Obtain per-object binary masks and pixel-wise confidence scores on any frame.

  • releaseGPUMemory — Free GPU memory allocated during model initialization and inference.

The sam2VideoObjectSegmenter object requires the Image Processing Toolbox™ Model for Segment Anything Model 2 add-on. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons. For best performance, use a CUDA® enabled NVIDIA® GPU with Parallel Computing Toolbox™.

Release GPU Memory Used by groundingDINOObjectDetector Object

Starting in R2026b, the groundingDinoObjectDetector object includes the releaseGPUMemory object function. Use this function to release GPU memory used by the detector when the execution environment is GPU.

Automated Visual Inspection Library for Computer Vision Toolbox has transitioned into Visual Inspection Toolbox

Starting in R2026b, the Automated Visual Inspection Library for Computer Vision Toolbox™ has transitioned into Visual Inspection Toolbox.

Improve DATA-MATRIX barcode detection using Gaussian filtering

The readBarcode now provides the GaussianSigma name-value argument to apply 2-D Gaussian filtering as a preprocessing step when detecting "DATA-MATRIX" barcodes. Smoothing can improve detection for barcodes with circular markers, such as dot peen marking (DPM).

 Functionality being removed or changed

Parallel computing preference replaced by UseParallel name-value argument

Behavior change

Starting in R2026b, the Computer Vision Toolbox parallel computing preference has been removed. Instead, individual functions now provide a UseParallel name-value argument that you can set to "on", "off", or "auto" to control parallel execution. The default value is "off".

To update your code, specify UseParallel="on" or UseParallel="auto" directly in the function call instead of enabling parallel computing through preferences.

The following functions and object functions now support the UseParallel argument:

Note

The balancePixelLabels and writeFrames functions previously accepted logical (true/false) values for the UseParallel argument. Starting in R2026b, these functions use the new "off", "auto", "on" syntax. Using logical true or false values is not recommended. Use "on", "off", or "auto" instead.

Five semantic segmentation network creation functions have been removed

These semantic segmentation network creation functions have been removed. Attempting to run them in your code results in an error.

  • fcnLayers

  • segnetLayers

  • unetLayers

  • unet3dLayers

  • deeplabv3plusLayers

For the list of supported semantic segmentation network creation functions, see Semantic Segmentation.

vision.AlphaBlender System object has been removed

Errors

The vision.AlphaBlender System object™ has been removed. Calling this object returns an error. To blend images, use the imblend function instead.

3-D Vision

Estimate depth from monocular images using Depth Pro

Estimate scene depth from a single image using the depthpro object and the estimateDepth object function. These functions use a pretrained Depth Pro model to generate metric depth maps from grayscale or RGB images. For an example that uses the depthpro object to estimate depth from a monocular RGB image and compute 3-D human body keypoints, see 3-D Human Pose Estimation from Monocular Images.

This functionality requires the Computer Vision Toolbox Model for Apple Depth Pro Network add-on. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Reconstruct sparse 3-D scenes from images using structure-from-motion

The sfm object provides a ready-to-run structure-from-motion (SfM) pipeline for reconstructing 3-D scenes from a set of 2-D images captured by a single calibrated monocular camera. Create an sfm object with your images and camera intrinsics, then call these object functions to run the full reconstruction pipeline:

Use the poses, pointCloud, and plot object functions to retrieve and visualize the sparse 3-D scene point cloud and camera poses. For an example showing the end-to-end SfM pipeline, see Structure from Motion from Multiple Views.

For an example that shows how to perform dense 3-D reconstruction using the camera poses and the sparse 3‑D point cloud obtained from SfM, see Dense 3-D Reconstruction of Asteroid Surface from Image Sequence.

For best practices on using the SfM pipeline, see Best Practices for 3-D Reconstruction Using Structure from Motion.

Perform 3-D reconstruction using MapAnything model

The mapanything object and its object functions enable you to reconstruct a 3-D representation of a scene from 2-D images using the pretrained MapAnything model. Use the reconstruct object function to perform 3-D scene reconstruction from multi-view images using the MapAnything model, and estimate the camera poses, intrinsic parameters, depth maps, and point clouds for the input images. The function supports GPU acceleration for faster processing. For an example that generates point cloud using the MapAnything model, see Generate Point Cloud Using MapAnything Model.

This functionality requires the Computer Vision Toolbox Interface for MapAnything Network add-on. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons. For best performance, use a CUDA enabled NVIDIA GPU with Parallel Computing Toolbox.

Use SIFT features to create bag of words visual vocabulary and compute similarity matrix for a set of images

You can now use the bagOfFeaturesDBoW object to create a bag of words vocabulary using SIFT features by specifying the FeatureType name-value argument as "SIFT".

You can also compute a self-similarity matrix for a set of image features using the similarityMatrix object function, which represents visual similarity scores among all the images in the data set. Use the similarity matrix to identify loop closures in visual SLAM, or to find image views that share covisible points.

Robust loss control for bundle adjustment functions

The bundleAdjustment, bundleAdjustmentMotion, and bundleAdjustmentStructure functions now support these name‑value arguments that improve robustness when optimizing camera poses and 3‑D structure.

  • LossFunction — Choose the "squared-euclidean", "huber", or "cauchy" loss function to control how the function weights residual errors.

  • TransitionPoint — Adjust the transition behavior of the robust loss functions. Larger values make the loss behave more like least squares, while smaller values increase outlier suppression. This argument applies only when using a robust loss.

Specify larger disparity ranges in disparitySGM function

The disparitySGM function now supports specifying larger disparity ranges using the DisparityRange name, value argument. Previously, the difference between the minimum and maximum disparity values was limited to 128.

Input arrays to pose2extr and extr2pose functions

The pose2extr and extr2pose functions now support arrays of rigidtform3d or se3 objects as inputs, which is useful for multi-camera setups. In previous releases, these functions accept only scalar inputs.

Calibrate Cameras

Improved Checkerboard Detection in Cluttered Scenes

The detectCheckerboardPoints function now provides improved detection of checkerboard patterns in cluttered scenes, reducing false detections of checkerboards in textured backgrounds.

 Functionality being removed or changed

Specify HighDistortion name-value argument for fisheye lens checkerboard detection

Behavior change

To ensure accurate detection of checkerboard patterns in images captured with a fisheye lens, you must now specify the HighDistortion name-value argument as true. In previous releases, the detectCheckerboardPoints function did not require this argument for fisheye lens images.

Calibrate Multi-Sensor Systems

Multi-Camera Calibration app

The Multi-Camera Calibrator app provides an interactive process for calibrating the extrinsic parameters of two or more cameras. You can use the app to estimate the relative poses of cameras in systems with overlapping cameras, non‑overlapping cameras, or a mix of both, and to visually verify and refine calibration results before exporting them for use in your algorithms. For more details on how to use the app, see Using the Multi-Camera Calibrator App.

To use this feature, first install the Multi-Sensor Calibration Tools library by using the installMultiSensorCalibrationTools function.

For more information about the process of multi-camera calibration, see What Is Multi-Camera Calibration?.

Manage Sensor Poses and Intrinsic Parameters Using the multiSensorParameters Object

The multiSensorParameters object provides a unified object for managing multiple sensor types, such as cameras, lidar sensors, radars, IMUs, and GPS units, in a shared reference frame. It supports adding sensors using absolute or relative poses, storing mounting angles and locations, managing camera and IMU intrinsic parameters, computing transformations between sensor frames, changing reference frames, selecting sensor subsets, combining sensor sets, and visualizing sensor mounting geometry and coordinate frames. Use this object as a container for storing pairwise calibration results in a unified multi‑sensor representation.

For an example showing intrinsic and extrinsic parameter calibration of a camera-IMU-lidar system, see Calibrate a Multi-Sensor System Using MUN-FRL Dataset.

 Functionality being removed or changed

Use installation function to install multi-sensor calibration features

Behavior change

Use the installMultiSensorCalibrationTools function to install these multi‑sensor calibration tools:

Attempting to use these multi-sensor calibration tools without first installing them returns an error.

Point Cloud Processing

Migration of point cloud functionality to Point Cloud Toolbox

Point cloud processing functionality has transitioned to the new Point Cloud Toolbox™. Many general‑purpose point cloud functions and objects previously included in Computer Vision Toolbox have been moved to the new product to provide a more specialized and scalable foundation for point‑cloud workflows.

Computer Vision Toolbox continues to include point‑cloud capabilities that are integral to vision‑specific tasks, such as 3‑D reconstruction and stereo vision pipelines. These features remain fully supported, and existing workflows that depend on them continue to function without modification.

This migration enables clearer separation between general 3‑D point cloud processing and vision‑focused functionality while maintaining full compatibility for existing Computer Vision Toolbox workflows. For more information, see the Point Cloud Toolbox product page.

Vision-Language Models

Perform zero‑shot object detection, optical character recognition, and visual question answering using Moondream vision-language model

Use the Moondream vision-language model to perform zero‑shot object detection, optical character recognition (OCR), and visual question answering (VQA) using the detectObjects, ocrMoondream, and queryImage object functions, respectively.

The moondream object now supports an additional Moondream vision‑language model with 1.6 billion parameters. In comparison to the model introduced in a previous release, this model offers faster performance and a higher level of accuracy.

The moondream object requires the Computer Vision Toolbox Model for Moondream™ Vision Language Model add-on. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Code Generation, GPU, and Third-Party Support

MATLAB Coder Support: Generate C and C++ code using additional functions

The opticalFlowRAFT object supports C/C++ code generation for host target platforms.

R2026a

New Features, Compatibility Considerations
expand all

Ground Truth Images and Video

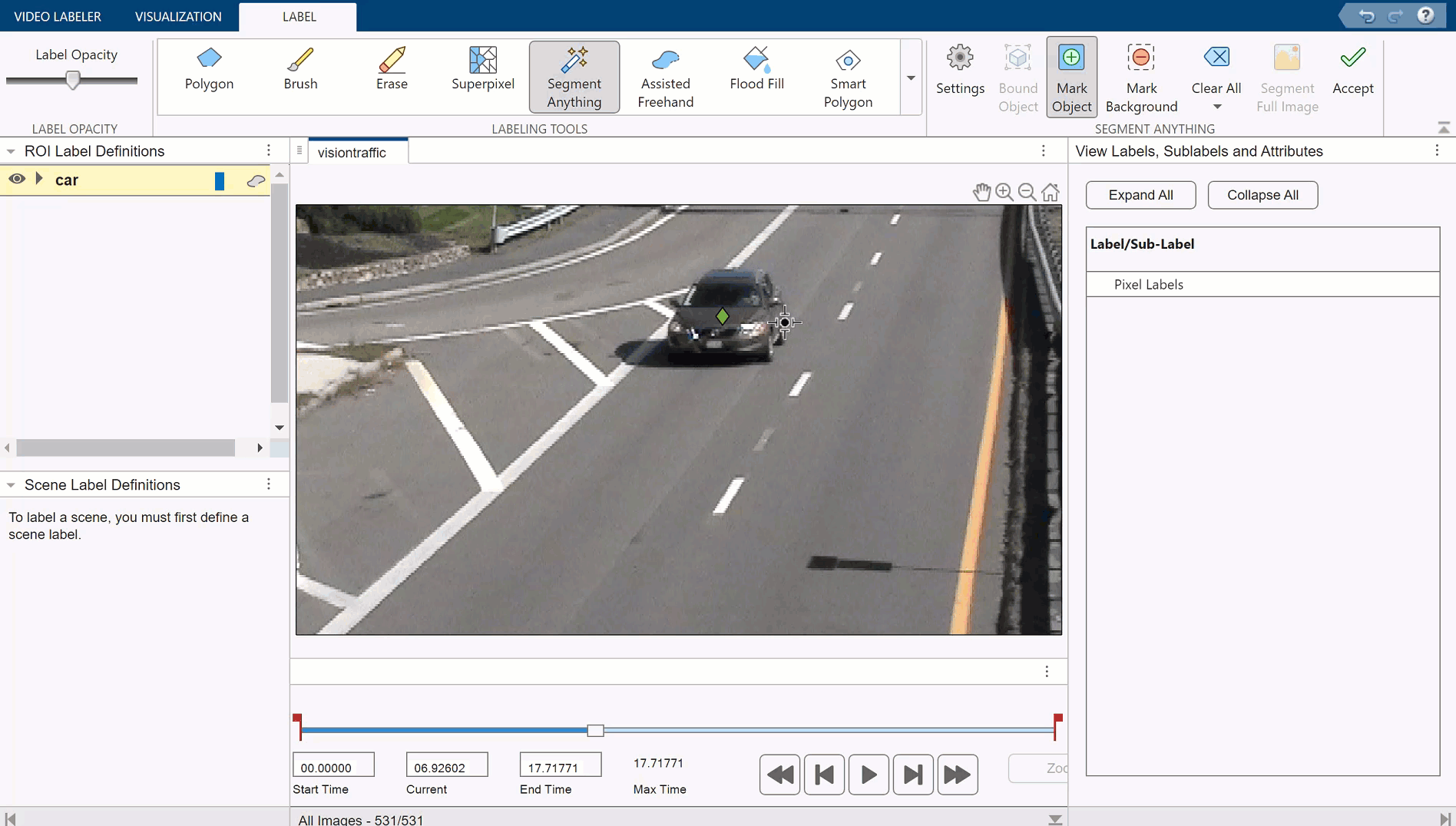

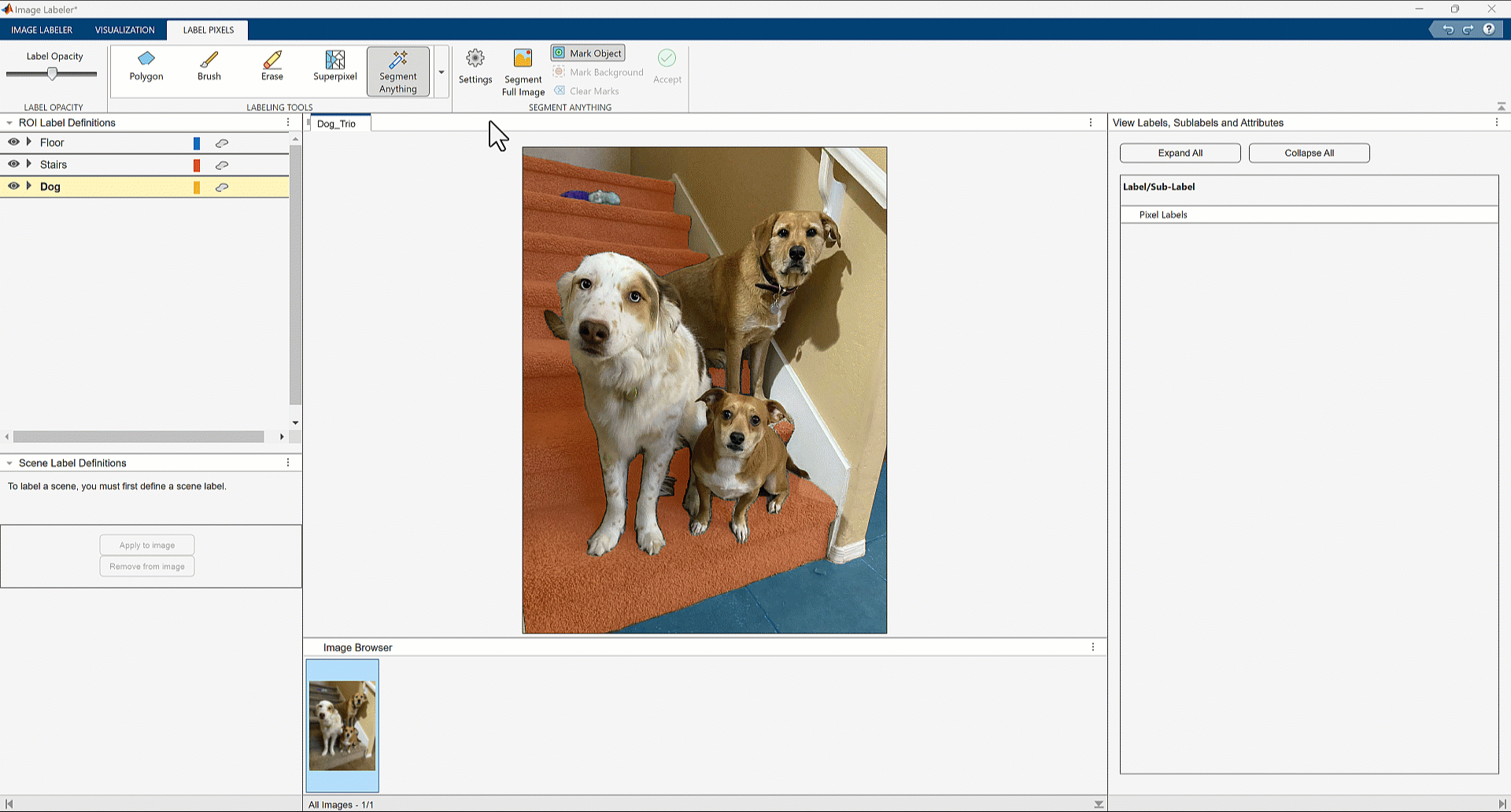

Automatically label ground truth using Segment Anything Model 2

Automatically label ground truth in the Video Labeler and the Image Labeler apps using the Segment Anything Model 2 (SAM 2). Use the SAM 2-based Segment Anything tool for improved performance and faster computing speed compared to the initial version of SAM. You can use the Segment Anything tool to rapidly label ground truth for object detection, semantic segmentation, and instance segmentation.

To learn more about labeling ground truth using SAM 2 in video or image sequences, see Automatically Label Ground Truth Using Segment Anything Model.

This functionality requires the Image Processing Toolbox Model for Segment Anything Model 2 add-on and a Deep Learning Toolbox™ license. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automatically label ground truth using Grounding DINO vision-language model

Using the Grounding DINO vision-language model in the Image Labeler app, you can now automatically create rectangle ground truth ROI labels for object detection by specifying descriptive text. To use Grounding DINO for rectangle ROI labeling, select the Grounding DINO tool on the Label tab of the app toolstrip. For an example, see Automatically Label Ground Truth Using Vision-Language Model.

This functionality requires the Computer Vision Toolbox Model for Grounding DINO Object Detection add-on and a Deep Learning Toolbox license. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Image Labeler available in MATLAB Online

The Image Labeler app is now available in MATLAB® Online™.

Identify unresolved folder paths in ground truth data

The changeFilePaths object function of the groundTruth object can now also return unresolved folder paths. Use this output to identify which folders contain unresolved files when the list of unresolved file paths is large.

Application examples

Detect, Extract, and Match Features

Optionally output linear indices for selected feature points

The selectUniform and selectStrongest object functions can now optionally return the linear indices of selected points for the SIFTPoints, SURFPoints, ORBPoints, KAZEPoints, BRISKPoints, and cornerPoints objects.

 Functionality being removed or changed

Change in default font value of inserted text

Behavior change

Starting in R2026a, the default font for the insertText, insertObjectKeypoints, insertObjectAnnotation functions and the Insert Text block has changed.

For the insertText, insertObjectKeypoints, and insertObjectAnnotation functions, the default value of the Font name-value argument is now "Roboto-Regular". In previous releases, the default value is "LucidaSansRegular".

For the Insert Text block, the default value of the Font face parameter is now "Roboto-Regular". In previous releases, the default value is "LucidaSansRegular".

Detect and Segment Objects

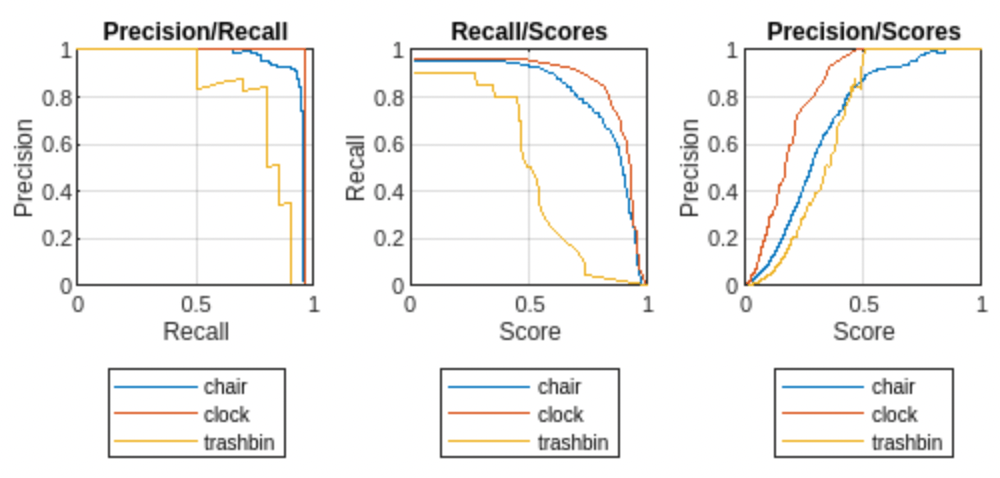

 Analyze and visualize object detector performance using the Object Detector Analyzer app

Use the Object Detector Analyzer app to visualize and analyze object detector performance. Using the app, you can:

  • Run a supported object detector in the app, or import object detection results from the workspace.

  • Interactively visualize and compare detections and ground truth annotations.

  • Compute and display evaluation metrics, including average precision (AP), precision-recall plots, and confusion matrices.

  • Inspect individual detection types, such as false positives and false negatives, overlaid on images.

  • Interactively adjust the detection threshold and overlap (IoU) threshold to analyze how stricter or more lenient thresholds impact detector performance.

  • Filter and sort results by class, confidence score, or error type.

  • Export all detections or filtered results to the workspace for further analysis.

  • Export computed performance metrics as an objectDetectionMetrics object for further analysis.

To get started, see Get Started with Object Detector Analyzer.

For examples that use the app, see:

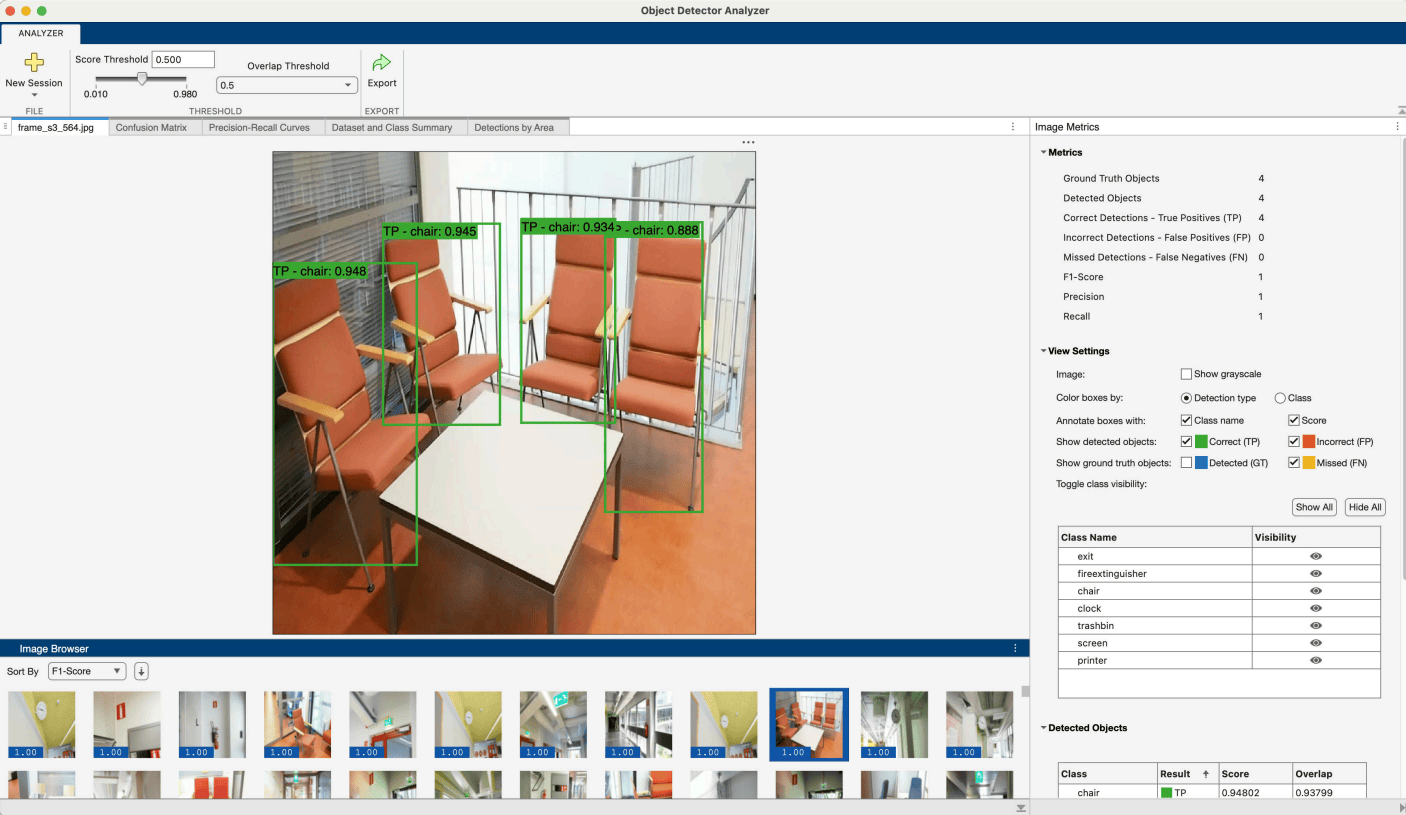

Visualize and evaluate object detector results using the Object Detector Analyzer app.

Evaluate per-image object detector performance metrics

To evaluate the per-image object detection metrics for all images, or a subset of images, in a data set, use the imageMetrics object function of the objectDetectionMetrics object.

To learn more about object detection performance metrics, see Evaluate Object Detector Performance.

Automated Visual Inspection: Select bounding boxes and extract exemplar patches from images

Use the uiselectboxes function to interactively select rectangular bounding box ROIs in an image. Use the extractpatches function to extract exemplar patches from the image at the selected ROI locations.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Specify class weights for loss function in YOLOX object detection

Specify class weights for the loss function using the new ClassWeights name-value argument of the trainYOLOXObjectDetector function.

showShape Function: Specify striped line color

Use the new LineStripeColor name-value argument of the showShape function to specify the color for a striped line. You can use this feature in objection detection to display a predicted object bounding box.

hrnetObjectKeypointDetector Object: Specify threshold for detecting keypoints using the detect object function

Use the new Threshold name-value argument of the detect object function to specify the threshold for detecting keypoints when using the hrnetObjectKeypointDetector object. Use this name-value argument to vary the threshold for detecting keypoints without recreating the hrnetObjectKeypointDetector object.

Application examples

 Functionality being removed or changed

Five semantic segmentation network creation functions have been removed

Errors

Starting with R2026a, these semantic segmentation network creation functions have been removed. Attempting to run them in your code results in an error.

vision.AlphaBlender System object will be removed

Warns

The vision.AlphaBlender System object will be removed in a future release. When you call this object, it issues a warning that it will be removed. To blend images, use the imblend function instead.

Vision-Language Models

Perform zero-shot and open-vocabulary object detection using Grounding DINO object detector

Use natural language queries with the detect object function of the groundingDinoObjectDetector object to identify a wide range of objects.

This functionality requires the Computer Vision Toolbox™ Model for Grounding DINO Object Detection add-on and a Deep Learning Toolbox license. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Perform image classification and retrieval using CLIP network

Use the clipNetwork object to configure a pretrained Contrastive Language—Image Pre-training (CLIP) network, which is a vision-language model. Use the classify object function for zero-shot image classification without retraining. Use the extractImageEmbeddings and extractTextEmbeddings object functions to perform image retrieval based on text queries.

This functionality requires Deep Learning Toolbox and the Computer Vision Toolbox Model for OpenAI CLIP Network. You can install the Computer Vision Toolbox Model for OpenAI CLIP Network from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Caption images using Moondream vision-language model

Use the moondream object and the captionImage object function to quickly generate descriptive captions for images using the Moondream model. These captions provide a summary of the image content, which you can then use for tasks such as searching images by description or comparing the captions of different images.

Calibrate Cameras

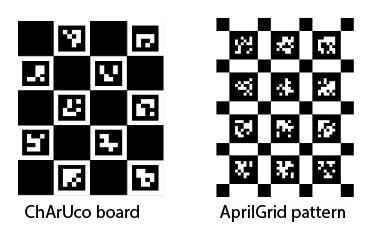

 Multi-camera calibration support for multiple calibration patterns and for cameras with non-overlapping fields of view

Computer Vision Toolbox now has enhanced multi-camera calibration features, including support for multiple calibration patterns for cameras with non-overlapping fields of view.

  • The estimateMultiCameraParameters function now has the ReferenceCameraPose name-value argument, which enables you to specify a reference camera pose as a rigidtform3d object. The imagePoints input argument has also been expanded to support multiple calibration patterns from multiple cameras, with or without overlapping fields of view.

  • Use the new detectMultiPatternPoints function to detect multiple calibration keypoints in images from multiple cameras.

  • Use the new MinMarkerID name-value argument of the detectPatternPoints function to specify the minimum marker ID for ChArUco or AprilGrid patterns.

  • The multiCameraParameters object has these new properties to support multiple calibration patterns:

    • PatternCount — Number of unique calibration patterns captured in images.

    • PatternPoses — Poses of calibration patterns relative to the reference pattern.

    • MeanReprojectionErrorPerView — Average reprojection error of each view.

    • MeanReprojectionErrorPerImage — Average reprojection error of each image.

    • ReprojectedPoints — World points reprojected onto calibration images.

  • The showExtrinsics function now has the ViewIndex and PatternIndex name-value arguments. Specify them to select the camera views and patterns to display, respectively.

  • The plotCamera function now enables you to specify camera poses in world coordinates by using the camPoses argument. The Label name-value argument has also been enhanced to support multiple camera poses.

For more information about the process of multi-camera calibration, see What Is Multi-Camera Calibration?.

3-D Vision

 Perform dense reconstruction and novel view synthesis using Nerfacto NeRF model

The nerfacto object and supporting object functions enable you to reconstruct a 3-D representation of a scene from 2-D images using the Nerfacto Neural Radiance Field (NeRF) model. To train a nerfacto object on a collection of 2-D images from different camera poses, use the trainNerfacto function.

For an example that trains a NeRF model on 2-D images of a scene, uses the trained model to synthesize novel views of the scene, and generates a dense, colored point cloud of the scene, see the Reconstruct 3-D Scenes and Synthesize Novel Views Using Neural Radiance Field Model example.

This functionality requires the Computer Vision Toolbox Interface for Nerfstudio Library add-on, a Deep Learning Toolbox license, a Parallel Computing Toolbox license, and a CUDA enabled NVIDIA GPU with at least 16 GB of available GPU memory. You can install the add-on from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

SE3 transformations in SLAM

The se3 transform object eliminates the need for format conversions between rigidtform3d and se3 when using the Computer Vision Toolbox and the Navigation Toolbox™ in visual SLAM and visual-inertial SLAM workflows. se3 also simplifies common operations such as concatenating transforms, calculating distances between transforms, and interpolating transforms. These features now support se3 objects:

  • The se3 object now supports the rigidtform3d object function, which you can use to create se3 objects.

  • The imageviewset object and its object functions now support using se3 objects for properties and arguments that specify or return the absolute camera poses.

  • The compareTrajectories function now supports se3 objects for the estimatedPoses argument.

  • The pose2extr function now supports se3 objects for the cameraPose input argument and camExtrinsics output argument.

  • The extr2pose function now supports se3 objects for the camExtrinsics input argument and cameraPose output argument.

monovslam object adds IMU alignment status, gravity rotation, and scale properties

The monovslam object now includes these read-only properties for IMU alignment status, rotation, and scale:

  • IsIMUAligned — Indicates whether IMU alignment has been successfully completed.

  • GravityRotation — Stores the rotation transform that aligns the IMU gravity vector to the pose reference frame.

  • IMUScale — Provides the scale factor applied to input poses to match IMU measurement units.

The monovslam object now generates detailed diagnostic messages related to IMU alignment and fusion in verbose logs.

Application examples

This release introduces new application examples for these areas:

Track Objects and Estimate Motion

Application examples

This release introduces new application examples on object tracking and motion estimation:

Point Cloud Processing

Store Color property of pointCloud object using additional data types

You can now store the Color property of a pointCloud object using the single or double data type. The pcread and pcwrite functions also support pointCloud objects with Color properties stored as these additional data types.

pcsegdist Function: Support for NumClusterPoints in GPU code generation

The pcsegdist function now supports the NumClusterPoints name-value argument for GPU code generation.

pcwrite Function: Improved performance

The pcwrite function shows improved performance when you use it with the default encoding type. This improvement is due to a change in the default encoding, which now uses "binary" for PLY files and "compressed" for PCD files instead of "ascii" for both. Writing data with these encoding types significantly reduces execution time. Consequently, when you use the pcread function to read a file generated by the pcwrite function, the pcread function also shows improved performance. The performance improvement increases as the number of points stored in the point cloud increases. For example, writing and then reading a point cloud using this code is about 17x and 11x faster, respectively, than in the previous release.

function [tWrite,tRead] = timingTest
    % Create a large point cloud
    rng("default");
    N = 1e6; % Number of points

    x = -50 + 100*rand(N,1);        % range [-50, 50]
    y = -50 + 100*rand(N,1);        % range [-50, 50]
    z = 10*rand(N,1);               % range [0, 10]

    ptCloud = pointCloud([x y z]);

    % Measure execution time of the operations
    tWrite = timeit(@()pcwrite(ptCloud,"temp.ply"));
    tRead = timeit(@()pcread("temp.ply"));
end

This table shows the approximate execution times required to write and read point cloud data to and from a PLY file.

Releasepcwrite Execution Timepcread Execution Time
R2025b2.19 s0.56 s
R2026a0.13 s0.05 s

The code was timed on a Debian® 12, Intel® Xeon® CPU W-2133 @ 3.60 GHz test system by calling the timingTest function.

 Functionality being removed or changed

pcwrite Function: Change in default encoding type

Behavior change

The default value of the encodingType argument of the pcwrite function is now "binary" for PLY files and "compressed" for PCD files. Before R2026a, the default value is "ascii" for both file formats.

In most cases, you do not need to make any changes to your code. However, if you specifically want to write point cloud data to a PLY or PCD file with ASCII encoding, you must specify the encodingType argument as "ascii", as shown in this command: pcwrite(ptCloud,"sample.ply",Encoding="ascii").

R2025b

Bug Fixes
expand all

Quality and stability improvements

R2025b delivers quality and stability improvements, building on the new features introduced in R2025a.

R2025a

New Features, Compatibility Considerations
expand all

Ground Truth Images and Video

 Video Labeler App: Label ground truth using Segment Anything Model (SAM)

Interactively label ground truth in the Video Labeler app using the Segment Anything Model (SAM). Use the SAM-based Segment Anything tool in the Video Labeler app to perform these tasks:

  • Create pixel labels for semantic segmentation by clicking on a region or drawing an ROI around it.

  • Perform automatic full image segmentation to create pixel labels for many or all regions in the image.

  • Create polygon labels for instance segmentation by clicking an object or drawing an ROI around the region containing it.

  • Create rectangle labels for object detection by clicking an object or drawing an ROI around the region containing it.

To learn more about labeling ground truth using the SAM in video or image sequences, see Automatically Label Ground Truth Using Segment Anything Model.

This functionality requires the Image Processing Toolbox Model for Segment Anything Model add-on and a Deep Learning Toolbox license. You can install the support package from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

In a Video Labeler app window, the pointer selects a car in an image frame of a video, segmenting the car with one click.

Create rectangle and polygon ROI labels, and ROI-based pixel labels, using Segment Anything Model (SAM)

Using the Segment Anything Model (SAM) in the Video Labeler and the Image Labeler apps, you can now interactively:

  • Create rectangle ROI labels for object detection.

  • Create polygon ROI labels for instance segmentation.

  • Create pixel labels by drawing an ROI around an area to segment. For an example, see Label Pixels for Semantic Segmentation.

To use the SAM for pixel labeling, select the Segment Anything tool on the Label tab of the Image Labeler or Video Labeler app toolstrip.

This functionality requires the Image Processing Toolbox Model for Segment Anything Model support package and a Deep Learning Toolbox license. You can install the support package from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Write frames from groundTruth object to specified image file location

Use the new writeFrames object function to write frames from a groundTruth object to image files in a disk location that you specify. For an example, see Reidentify People Throughout a Video Sequence Using ReID Network.

Import COCO-formatted JSON files to groundTruth object

Use the new groundTruthFromCOCO function to convert data stored in the COCO JSON format into a groundTruth object.

Image Labeler Enhancements: Display labeled image tags and use keyboard shortcuts for scene labeling

The Image Labeler app includes these enhancements for scene labels.

  • The app interface has been updated. You can now apply a scene label to an image by selecting the check box after that scene label in the Scene Label Definitions pane.

  • You can distinguish between labeled and unlabeled images. In the Image Browser pane, image thumbnails of labeled images display an SL tag in their bottom-left corners. The Scene Label Definitions pane shows how many images have been labeled out of the total number of images, and each scene label indicates the number of images that have been labeled with that specific scene label.

  • You can show or hide the SL tag on image thumbnails for a specific type of scene label by selecting the Eye icon icon in front of that scene label in the Scene Label Definitions pane.

  • Use these new keyboard shortcuts for scene labeling tasks:

    TaskKeyboard Shortcut
    Navigate to the next scene-labeled image.K
    Navigate to the previous scene-labeled image.J
    Hide the selected scene label.W
    Show the selected scene label.Shift+W
    Show only the selected scene label and hide all others.Ctrl+W
    Show all scene labels.Ctrl+Shift+W

To learn more about the various apps for labeling ground truth data, see Choose an App to Label Ground Truth Data.

Image Labeler app highlighting new features for scene labeling

Detect and Segment Objects

Face Detector: Detect faces using pretrained RetinaFace face detection network

Use the faceDetector object to create a face detector from a pretrained RetinaFace deep learning network. Then, use the detect object function to detect faces in an image. The RetinaFace face detector is trained on the WIDER FACE data set.

This functionality requires Deep Learning Toolbox and the Computer Vision Toolbox Model for RetinaFace Face Detection. You can install the Computer Vision Toolbox Model for RetinaFace Face Detection from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Segment images using the BiSeNet v2 semantic segmentation network

Use the bisenetv2 function to semantically segment images using the BiSeNet v2 convolutional neural network. You can use the pretrained network to perform inference on a generic test image. To perform semantic segmentation on a custom data set, train the network on your data set using the trainnet (Deep Learning Toolbox) function.

This functionality requires the Computer Vision Toolbox Model for BiSeNet v2 Semantic Segmentation Network and a Deep Learning Toolbox license. You can install the Computer Vision Toolbox Model for BiSeNet v2 Semantic Segmentation Network from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Select image block locations that contain bounding box ROIs

When working with blocked images for object detection, use the blockLocationsWithROI function to select image block locations that contain entire or partial bounding box ROIs. You can additionally use the blockLocationsWithROI function to select image block locations that contain only the background with zero or minimal bounding box ROIs.

Automated Visual Inspection: Interactively perform distance measurements in image data using a caliper tool

Interactively perform distance measurements in image data using the uicaliper object. To use the caliper tool for automated measurements or code deployment, use the caliper function.

For an example, see Perform Metrology Edge Measurements and Alignment.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Count objects in images using CounTR object counter model

Count objects in images using the CounTR object counter model, without training the model. Configure the CounTR model by specifying exemplar image data to the counTRObjectCounter object, and then count objects using the countObjects object function. Additionally, you can create an object count density map to overlay on the image in which you count objects by using the densityMap object function.

For an example, see Count Objects Using CounTR Model.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Insert labeled foreground objects into background images and create synthetic data sets

To create a synthetic labeled datastore for training an instance segmentation or object detection network, blend labeled images of foreground objects with background images using the objectInsertionDatastore object. To insert a foreground object into a single background image at a randomized or specified location, use the insertObjectInImage function.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Specify EfficientAD anomaly detection network to optimize anomaly score for logical anomalies

To configure the EfficientAD detector to optimize the anomaly score for logical anomaly detection, specify the OptimizeScoreForLogicalAnomalies name-value argument as true when you create an efficientADAnomalyDetector object.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

New Example: Detect anomalies in audio spectrograms

The Identify Defects in Air Compressors Using Spectrogram Images example shows how to detect localized defects in acoustic recordings using an EfficientAD anomaly detector. This example preprocesses audio files into Mel spectrogram images for use with an efficientADAnomalyDetector object, and shows how to train the detector by using the trainEfficientADAnomalyDetector function. The example also provides a pretrained detector that you can calibrate and use to detect anomalies in the spectrogram images.

This example requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Spacecraft Pose Estimation Example: Estimate the keypoints and pose of a spacecraft

The Spacecraft Pose Estimation Using HRNet Keypoint Detector and PnP Solver example shows how to estimate keypoints of a spacecraft and use the keypoints to compute the pose of the spacecraft. This example uses:

  • A pretrained HRNet deep learning network to compute the keypoints of the spacecraft.

  • A PnP solver to estimate the pose of the spacecraft using the computed keypoints.

People Detection Example: Generate CUDA code for people detection

The Code Generation for People Detection Using Deep Learning example shows how to generate CUDA® executable code to perform people detection using a pretrained deep learning network. The generated code is plain CUDA code that does not depend on the NVIDIA cuDNN or TensorRT deep learning libraries.

Refine pose rotation predictions of Pose Mask R-CNN network using ShapeMatch loss

Refine 6-degree-of-freedom pose rotation predictions by using the ShapeMatch loss in the third stage of training a Pose Mask R-CNN network. To refine the rotation predictions of the Pose Mask R-CNN network, specify the trainingStage input argument of the trainPoseMaskRCNN function as "pose-refinement". The trainingMode input argument has been renamed to trainingStage.

For an example of the three-stage training of a Pose Mask R-CNN network, see the Perform 6-DoF Pose Estimation for Bin Picking Using Deep Learning example.

This functionality requires the Computer Vision Toolbox Model for Pose Mask R-CNN 6-DoF Pose Estimation and a Deep Learning Toolbox license. You can install the Computer Vision Toolbox Model for Pose Mask R-CNN 6-DoF Object Pose Estimation from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

 Functionality being removed or changed

yolov2Layers and yolov2OutputLayer functions will be removed

Warns

The yolov2Layers and yolov2OutputLayer functions will be removed in a future release. When you call these functions, they issue a warning that they will be removed. Create a YOLO v2 object detection network by using the yolov2ObjectDetector object instead.

pixelLabelImageDatastore object will be removed

Warns

The pixelLabelImageDatastore object will be removed in a future release. When you call the pixelLabelImageDatastore function, it issues a warning that it will be removed. Create a datastore for semantic segmentation networks by using the imageDatastore and pixelLabelDatastore objects and the combine function, instead.

Calibrate Cameras

 Perform multiple camera calibration

Use these functions and objects for multiple camera calibration.

  • estimateMultiCameraParameters function — Calibrate multiple cameras with overlapping views to estimate extrinsic parameters.

  • multiCameraParameters object — Store multi-camera system parameters.

  • detectPatternPoints function — Detect calibration pattern keypoints in images from multiple cameras. You can use this function for ChArUco boards, AprilGrid patterns, checkerboard patterns, circle asymmetric circle patterns, and custom calibration patterns.

The 3-D Motion Reconstruction Using Multiple Cameras example shows how to reconstruct the 3-D motion of an object for use in a motion capture system containing multiple cameras.

Estimate pose of camera relative to robot gripper using hand-eye calibration

Use the estimateCameraRobotTransform function to determine the pose of a camera relative to robot using hand-eye calibration. For details about robot hand-eye calibration, see What Is Robot Hand-Eye Calibration?

New Example: Calibrate a stereo fisheye camera

The Stereo Fisheye Camera Calibration example provides a step-by-step guide showing you how to calibrate a stereo fisheye camera. This example uses the estimateFisheyeParameters and estimateStereoBaseline functions.

Key highlights of the example include:

  • Intrinsic Fisheye Parameter Estimation — Determine the intrinsics parameters, which describe the lens properties, for each camera.

  • Distortion Correction — Convert fisheye intrinsic parameters to pinhole camera intrinsic parameters by effectively removing image distortion.

  • Baseline Estimation — Use the resulting virtual pinhole camera parameters to accurately estimate the baseline of the stereo fisheye camera setup.

3-D Vision

 Stereo SLAM and RGB-D SLAM capabilities incorporate IMU input to perform visual-inertial SLAM

The rgbdvslam and stereovslam objects now support inertial measurement unit (IMU) sensors. This support enables you to:

  • Add IMU parameters when constructing the vSLAM objects using their imuParameters input arguments

  • Use the new CameraToIMUTransform, NumPosesThreshold, and AlignmentFraction properties of the vSLAM objects to tune both the initial IMU-camera alignment and the main IMU-camera fusion

  • Add IMU gyroscope and accelerometer measurements to the vSLAM objects by using their respective addFrame object functions

New Example: Perform viSLAM by integrating images from monocular camera with IMU data

The Performant Monocular Visual-Inertial SLAM example shows you how to perform Visual Inertial SLAM (viSLAM) in real-time by integrating images from a monocular camera with data from an Inertial Measurement Unit (IMU) sensor.

MATLAB Coder support added for monocular visual-inertial SLAM IMU sensor support

MATLAB Coder™ now includes C/C++ support for visual-inertial sensor fusion using the monovslam object.

Quaternion Object: Use interp1 to interpolate quaternions

Use the interp1 object function of the quaternion object to interpolate quaternions using interpolation methods such as SQUAD and SLERP.

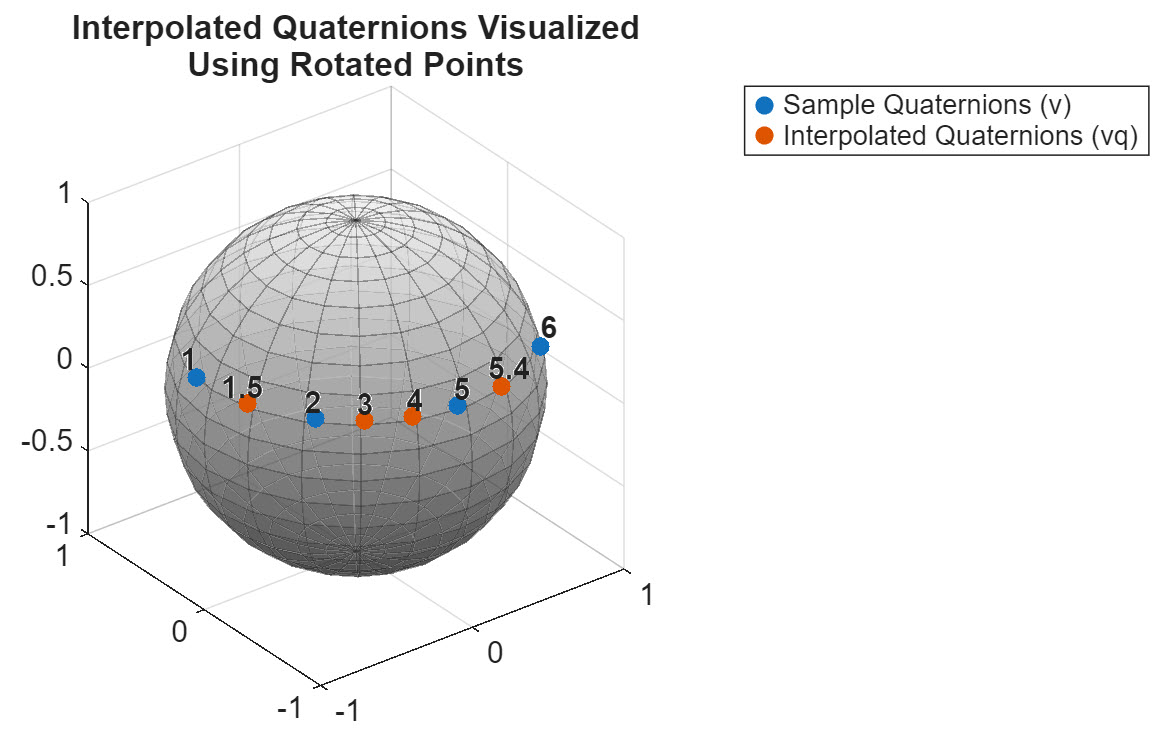

This figure visualizes interpolated quaternions on a unit sphere by using the sample and interpolated quaternions to rotate a 3-D point. The annotated numbers on the points are the sample points and query points that correspond to v and vq, respectively.

Interpolated quaternions visualized using rotated points on a unit sphere.

Quaternion Object: slerp function supports natural interpolation

The slerp object function of the quaternion object now supports spherical interpolation using the "natural" path option, which avoids the shortest path optimization, resulting in a longer path around the unit sphere that respects the orientation of the start and end quaternions.

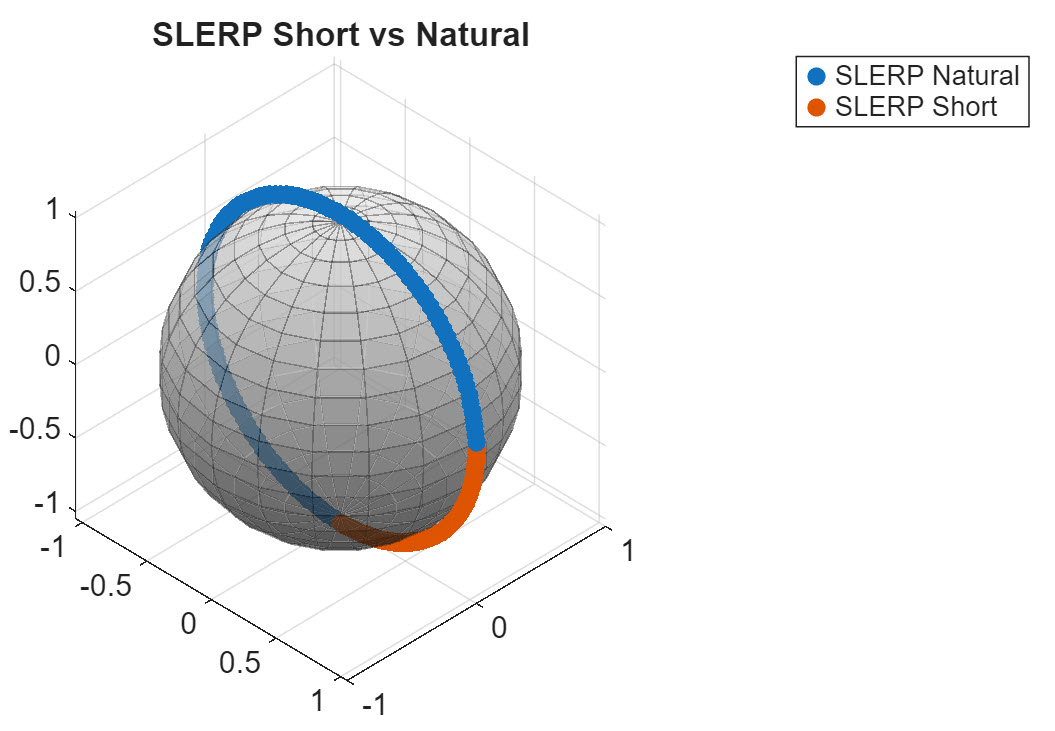

This figure visualizes the difference between the "short" and "natural" interpolation methods by rotating a point using the interpolated quaternions on a unit sphere.

Visualization of the difference between the "short" and "natural" interpolation methods by rotating a point using the interpolated quaternions on a unit sphere.

Point Cloud Processing

Combine point clouds using voxel grid filter

The pcalign and pcmerge functions now support additional downsample options using a voxel grid filter.

  • pcalign — Specify the GridFilter name-value argument to select whether to downsample the aligned point cloud by an averaging process or by selecting the nearest point to the centroid of the voxel.

  • pcmerge — Specify the GridFilter name-value argument to select whether to downsample the region of overlap between the merged point clouds by an averaging process or by selecting the nearest point to the centroid of the voxel.

pcviewer: Visualize very large point clouds using an optimized octree structure, and support for LAS and LAZ files

The pcviewer object now has a display that is optimized for visualizing very large point clouds containing more than 10 million points, using an octree structure. Specify the OptimizeForDisplay name-value argument to enable the object to optimize the point cloud display for performance. Creating an octree structure requires a Point Cloud Toolbox license. If Point Cloud Toolbox is not available, the object displays all points, which can decrease interaction performance.

The pcviewer object also supports visualizing LAS and LAZ files. Use the pcviewer object to efficiently load LAZ files that you create using the lasFileWriter (Lidar Toolbox) object or LAZ files stored in the Cloud Optimized Point Cloud (COPC) format. For more information on the COPC format, see the COPC website. LAS and LAZ file support requires a Point Cloud Toolbox license.

Find nearest neighbors of multiple query points in point cloud

You can now find the nearest neighbors of multiple query points in the input point cloud by using the findNearestNeighbors or findNeighborsInRadius object functions of the pointCloud object. The findNeighborsInRadius function now also returns the number of neighbors found within the specified radius of each query point.

 Functionality being removed or changed

Extrapolate name-value argument of the pcregistericp function has been removed

Errors

The Extrapolate name-value argument of the pcregistericp function has been removed.

Code Generation, GPU, and Third-Party Support

MATLAB Coder Support: Generate C and C++ code using additional functions

These functions and objects now support C/C++ code generation for both host and non-host target platforms.

The detectCharucoBoardPoints object supports C/C++ code generation for only host platforms.

GPU Coder Support: Generate CUDA code using additional functions

These functions now support code generation using GPU Coder™.

Point Cloud Viewer block enhancements

You can now visualize streaming point cloud data using intensity values. The Point Cloud Viewer block now supports an Intensity input port. To enable this port, select the File > Location and Intensity Port parameter.

The block now adjusts the default axes limits based on the input point cloud data.

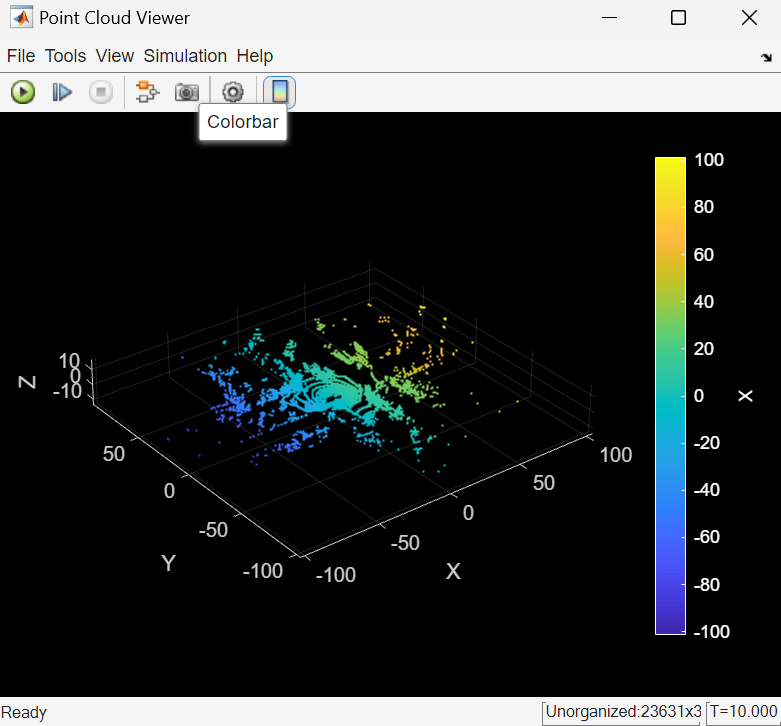

You can view the color bar by selecting the Colorbar button, as shown in this image. This button is available when you select the File > Location Port or File > Location and Intensity Port parameter.

Visualization of colorbar in the Point Cloud Viewer block

R2024b

New Features, Compatibility Considerations
expand all

Detect, Extract, and Match Features

Select features during code generation

Use the select object function to select a set of point or region features during code generation. You can use the select object function with the BRISKPoints, cornerPoints, KAZEPoints, MSERRegions, ORBPoints, SIFTPoints, and SURFPoints objects.

Ground Truth Images and Video

 Label ground truth using Segment Anything Model (SAM)

Label ground truth for semantic segmentation in the Image Labeler app, using the Segment Anything Model (SAM). Use the SAM-based Segment Anything tool in the Image Labeler app to rapidly label some or all objects in an image without defining rectangle ROI labels. Interactively segment and label individual objects, or perform automatic full image segmentation and create label pixels for many or all objects in the image. For an example, see Automatically Label Ground Truth Using Segment Anything Model.

This functionality requires the Image Processing Toolbox Model for Segment Anything Model support package and a Deep Learning Toolbox license. You can install the support package from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Screenshot animation of a portion of the Image Labeler app showing three dogs sitting on house steps. The animation shows the pointer clicking on a different areas of the image where each selection segments the object it relates to.

Convert ASAM OpenLABEL format file to ground truth object

Use the groundTruthFromOpenLabel function to convert an ASAM OpenLABEL® format JavaScript Object Notation (JSON) file to a groundTruth object.

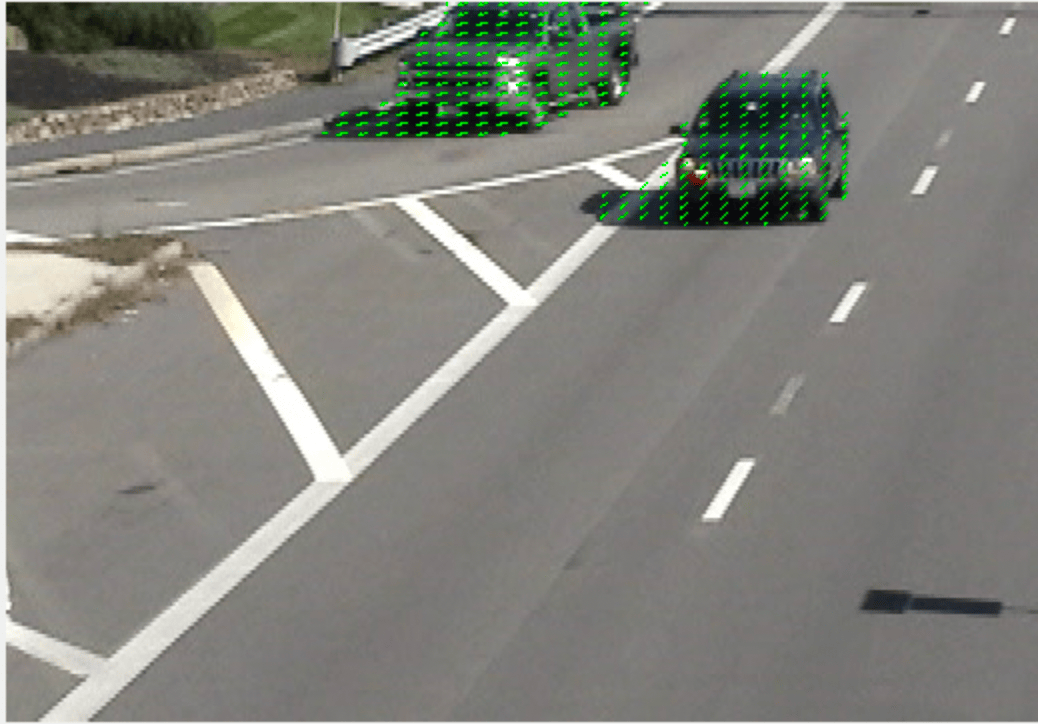

Use RAFT Optical Flow to automatically transfer ROI annotations to subsequent image frames

The Automate Labeling of Objects in Video Using RAFT Optical Flow example demonstrates how to automatically transfer polygon region-of-interest (ROI) annotations from one labeled frame to subsequent frames using the recurrent all-pairs field transforms (RAFT) deep learning-based optical flow algorithm.

Video Labeler enhancements

The Video Labeler app, designed for labeling video ground truth, has a new interface. For more details on using the Video Labeler app, see Get Started with the Video Labeler.

You can now use the merge object function of the groundTruth object to merge two or more ground truth objects exported from the Video Labeler.

To learn more about the various apps for labeling ground truth data, see Choose an App to Label Ground Truth Data.

Detect and Segment Objects

Object Detection and Instance Segmentation Quality Metrics: Evaluate average precision, precision recall, confusion matrix, and metrics summary

Use these object functions of the objectDetectionMetrics and instanceSegmentationMetrics objects to evaluate the quality of object detection results and instance segmentation results, respectively.

objectDetectionMetrics Object FunctioninstanceSegmentationMetrics Object FunctionUsage

averagePrecision

averagePrecision

Compute average precision (AP) for all classes and overlap thresholds in your data set, or specify the classes and overlap thresholds for which to compute AP.

precisionRecall

precisionRecall

Compute precision, recall, and confidence scores for all classes in the data set, or for specified classes and overlap thresholds.

confusionMatrix

confusionMatrix

Compute the confusion matrix and normalized confusion matrix at specified confidence score threshold or overlap threshold values.

summarize

summarize

Compute the summary of metrics over the entire data set, or over each class.

For an example that uses this functionality to evaluate object detection metrics, see the Multiclass Object Detection Using YOLO v2 Deep Learning example. Use the objectDetectionMetrics object functions to compute metrics for a variety of classes and overlap (IoU) thresholds to select an optimal detection threshold. This image shows the precision-recall metric and precision and recall metrics as functions of confidence score, for multiple classes in a data set.

This image shows the precision-recall plots for selected classes, at a single overlap threshold, to determine the optimal detection threshold.

Improve AprilTag detection using Gaussian smoothing and downsampling scale

The readAprilTag function now provides the GaussianSigma and DecimationFactor name-value arguments to improve AprilTag detections.

Draw ellipses on image or video data

Use the ellipse shape option of the showShape, insertObjectAnnotation, and the insertShape functions to visualize one or more ellipses on top of an image or on video data.

Renamed Support Package: Computer Vision Toolbox Automated Visual Inspection Library has been renamed

The Computer Vision Toolbox Automated Visual Inspection Library has been renamed to Automated Visual Inspection Library for Computer Vision Toolbox.

You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Train EfficientAD anomaly detection network

Use the efficientADAnomalyDetector object to detect anomalies using an EfficientAD model. You can train the detector using the trainEfficientADAnomalyDetector function.

The Detect Defects Using Tiled Training of EfficientAD Anomaly Detector example shows how to use a pretrained EfficientAD anomaly detector to detect industrial defects in a sample image and configure an EfficientAD anomaly detector to perform transfer learning.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Normalize anomaly score maps

Use the percentileNormalizer object to create an anomaly score map normalizer for a specified anomaly detector using the computed percentile statistics of non-anomalous images. Use the normalize object function to normalize an anomaly score map using the percentile normalizer. You can normalize the anomaly scores of an anomaly map computed using different detectors, or normalize anomaly scores to a specified range for a set of anomaly maps.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Train YOLOX object detector on tiled full-resolution images to detect small objects

The Detect Small Objects Using Tiled Training of YOLOX Network example demonstrates how to train a YOLOX object detection network on a tiled image data set, and use it to detect very small objects in full-resolution images.

Automated Visual Inspection: Specify YOLOX-nano, YOLOX-medium, or YOLOX-large base networks for YOLOX object detector

The yoloxObjectDetector object now enables you to specify a YOLOX-nano, YOLOX-medium, or YOLOX-large deep learning network as the base network of the pretrained detector by using the name input argument.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

RTMDet Object Detector: Detect objects using pretrained RTMDet deep learning network

Use the rtmdetObjectDetector object to create an object detector from a pretrained real-time object detector (RTMDet) deep learning network. Then, use the detect object function to detect objects in an image.

This functionality requires the Computer Vision Toolbox Model for RTMDet Object Detection support package and a Deep Learning Toolbox license. You can install the Computer Vision Toolbox Model for RTMDet Object Detection from the Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

People Detector: Detect people in image using pretrained deep learning network

Use the peopleDetector object to create a people detector from a pretrained deep learning network. Then, use the detect object function to detect people in an image.

Monitor and track metrics while training YOLO v3 and YOLO v4 object detectors

You can use an mAPObjectDetectionMetric object to track the mean average precision (mAP) metric while you train YOLO v3 and YOLO v4 object detectors. To use the metric, specify it to the Metrics (Deep Learning Toolbox) name-value argument of the trainingOptions (Deep Learning Toolbox) function.

 YOLO v2 Object Detector: Support for dlnetwork objects and new training process

The yolov2ObjectDetector object offers new ways to create and customize a YOLO v2 object detector. You can now:

  • Perform transfer learning using pretrained a YOLO v2 network trained on the COCO data set.

  • Specify a custom YOLO v2 network formatted as a dlnetwork (Deep Learning Toolbox) object. The YOLO v2 network can be pretrained or untrained.

  • Specify a base feature extraction network formatted as a dlnetwork (Deep Learning Toolbox) object. The YOLO v2 object detector adds a detection head to the base network. The base network can be pretrained or untrained.

  • For transfer learning and training, specify class names and anchor boxes when you create the yolov2ObjectDetector object.

  • You can set these new properties of the YOLO v2 object detector using name-value arguments: InputSize, ReorganizeLayerSource, and LossFactors.

The trainYOLOv2ObjectDetector supports a new process to train YOLO v2 object detectors specified as yolov2ObjectDetector objects. The function now uses:

  • Class names specified by the ClassNames property of the yolov2ObjectDetector object. The function no longer uses the class names from the trainingData table.

  • Anchor boxes specified by the AnchorBoxes property of the yolov2ObjectDetector object.

  • MSE loss weights specified by the LossFactors property of the yolov2ObjectDetector object.

 Compatibility Considerations

The Network property of the yolov2ObjectDetector object now returns a dlnetwork object instead of a DAGnetwork object.

When you create a yolov2ObjectDetector object, DAGNetwork input networks are not recommended.

When you train a YOLO v2 object detector by using the trainYOLOv2ObjectDetector function, DAGNetwork input networks and the TrainingImageSize name-value argument are not recommended.

 SSD Object Detector: Support for dlnetwork objects

When you create an ssdObjectDetector object, specify the single shot detector (SSD) deep learning network or the base feature extraction network as a dlnetwork (Deep Learning Toolbox) object.

 Compatibility Considerations

When you create an ssdObjectDetector object, LayerGraph input networks are not recommended.

The Network property of the ssdObjectDetector object now returns a dlnetwork object instead of a DAGNetwork object.

 Functionality being removed or changed

ssdObjectDetector and yolov2ObjectDetector functions return a dlnetwork object

Behavior change

The Network property of ssdObjectDetector and yolov2ObjectDetector functions now returns a dlnetwork object instead of a DAGNetwork object.

R-CNN, Fast R-CNN, and Faster R-CNN are not recommended

Still runs

These objects and functions for creating and training networks based on R-CNN are no longer recommended:

Instead, use a different type of object detector, such as a yoloxObjectDetector or yolov4ObjectDetector detector. These object detectors are faster than R-CNN-based object detectors. For more information, see Choose an Object Detector.

ConfusionMatrix, NormalizedConfusionMatrix, and DatasetMetrics properties of objectDetectionMetrics and instanceSegmentationMetrics objects have been removed

Behavior change

The ConfusionMatrix, NormalizedConfusionMatrix, and DatasetMetrics properties of the objectDetectionMetrics and instanceSegmentationMetrics objects have been removed.

To update your code to compute the confusion matrix, replace instances of the ConfusionMatrix and NormalizedConfusionMatrix properties with the confusionMatrix object function of the corresponding object.

To compute the summary of the object detection or instance segmentation quality metrics over the entire data set, or over each class, use the summarize object function of the corresponding object.

To compute precision, recall, and confidence scores for all classes in the data set, or at specified classes and overlap thresholds, use the precisionRecall object function of the corresponding object.

To compute average precision (AP) for all classes and overlap thresholds in your data set, or specify the classes and overlap thresholds for which to compute AP, use the averagePrecision object function of the corresponding object.

Table columns of ClassMetrics and ImageMetrics properties of objectDetectionMetrics and instanceSegmentationMetrics objects have been renamed

Behavior change

These table columns of the ClassMetrics and ImageMetrics properties of the objectDetectionMetrics and the instanceSegmentationMetrics objects have been renamed.

PropertyRenamed Columns

ClassMetrics

  • mAP, or the average precision (AP) averaged over all overlap thresholds for each class, has been renamed to APOverlapAvg.

  • mLAMR, or the log-average miss rate for each class averaged over all specified overlap thresholds, has been renamed to LAMROverlapAvg.

  • mAOS, or the average orientation similarity for each class averaged over all the specified overlap thresholds, has been renamed to AOSOverlapAvg.

ImageMetrics

  • AP, or the AP across all classes at each overlap threshold, has been renamed to mAP.

  • mAP, or the AP averaged across all classes and all overlap thresholds, has been renamed to mAPOverlapAvg.

  • mLAMR, or the log-average miss rate for each class averaged over all specified overlap thresholds, has been renamed to LAMROverlapAvg.

  • mAOS, or the average orientation similarity for each class averaged over all the specified overlap thresholds, has been renamed to AOSOverlapAvg.

Some semantic segmentation network creation functions will be removed in future release

Warns

The fcnLayers and segnetLayers functions issue a warning that they will be removed in a future release. To update your code, create a dlnetwork instead.

The unetLayers, unet3dLayers, and deeplabv3plusLayers functions issue a warning that they will be removed in a future release. To update your code, replace these functions with the corresponding new unet, unet3d, and deeplabv3plus functions, each of which returns a dlnetwork object.

Discouraged UsageRecommended Replacement

This example uses the unetLayers function to create a U-Net network, returned as a LayerGraph object.

imageSize = [480 640 3];
numClasses = 5;
encoderDepth = 3;
lgraph = unetLayers(imageSize,numClasses, ...
	EncoderDepth=encoderDepth)

Here is equivalent code that instead uses the unet function to create a U-Net network, which is returned as a dlnetwork object. To set a custom or pretrained encoder network, you must specify the EncoderNetwork name-value argument.

imageSize = [480 640 3];
numClasses = 5;
encoderDepth = 3;
unetNetwork = unet(imageSize,numClasses, ...
	EncoderDepth=encoderDepth);

This example uses the unet3dLayers function to create a 3-D U-Net network, returned as a LayerGraph object.

imageSize = [128 128 128 3];
numClasses = 5;
encoderDepth = 2;
lgraph = unet3dLayers(imageSize,numClasses, ...
	EncoderDepth=encoderDepth,NumFirstEncoderFilters=16)

Here is equivalent code that instead uses the unet3d function to create a U-Net network, is returned as a dlnetwork object. To set a custom or pretrained encoder network, you must specify the EncoderNetwork name-value argument.

imageSize = [128 128 128 3];
numClasses = 5;
encoderDepth = 2;
unet3dNetwork = unet3d(imageSize,numClasses, ...
	EncoderDepth=encoderDepth,NumFirstEncoderFilters=16);

This example uses the deeplabv3plusLayers function to create a DeepLab v3+ network, returned as a LayerGraph object.

imageSize = [480 640 3];
numClasses = 5;
network = "resnet18";
lgraph = deeplabv3plusLayers(imageSize,numClasses,network, ...
	DownsamplingFactor=16);

Here is equivalent code that instead uses the deeplabv3plus function to create a DeepLab v3+ network, returned as a dlnetwork object.

imageSize = [480 640 3];
numClasses = 5;
network = "resnet18";
deepLabNetwork = deeplabv3plus(imageSize,numClasses,network, ...
	DownsamplingFactor=16);

yolov2Layers and yolov2OutputLayer functions will be removed

Still runs

The yolov2Layers and yolov2OutputLayer functions will be removed in a future release. Create a YOLO v2 object detection network by using the yolov2ObjectDetector object instead.

ssdLayers function has been removed

Errors

The ssdLayers function has been removed. Create an SSD object detection network by using the ssdObjectDetector object instead.

anchorBoxLayer function has been removed

Errors

The anchorBoxLayer function has been removed. Specify the anchor boxes for training an SSD object detection network by using the ssdObjectDetector object instead.

pixelLabelImageSource function has been removed

Errors

The pixelLabelImageSource function has been removed. Create a datastore for semantic segmentation networks by using the ImageDatastore and PixelLabelDatastore objects and the combine function, instead.

imageSet object has been removed

Errors

The imageSet object has been removed. Use the ImageDatastore object instead.

Eleven System objects have been removed

Errors

Starting with R2024b, these System objects are no longer supported. Attempting to run them in your code results in an error.

  • vision.GeometricShearer

  • vision.LocalMaximaFinder

  • vision.MarkerInserter

  • vision.Maximum

  • vision.Mean

  • vision.Median

  • vision.Minimum

  • vision.PeopleDetector

  • vision.ShapeInserter

  • vision.StandardDeviation

  • vision.Variance

vision.AlphaBlender System object will be removed

Still runs

The vision.AlphaBlender system object will be removed in a future release. To blend images, use imblend instead.

Calibrate Cameras

 ChArUco board and AprilGrid pattern calibration support

Use the generateCharucoBoard function to generate a ChArUco board image to print as a calibration target. Use the detectCharucoBoardPoints function to detect a ChArUco board in a calibration image. The ChArUco board combines a checkerboard pattern, which helps in precise corner detection, with ArUco markers.

Use the detectAprilGridPoints function to detect an AprilGrid pattern in a calibration image.

You can now calibrate cameras using the ChArUco board or AprilGrid pattern by using the Camera Calibrator or Stereo Camera Calibrator app.

ChArUco board and AprilGrid pattern

Generate locations of a camera calibration pattern in world coordinates

Use the patternWorldPoints function to generate the locations, in world coordinates, for camera calibration pattern points. The patternWorldPoints function can generate points for all supported calibration patterns, and you can use it in place of the generateCheckerboardPoints and gernerateCircleGridPoints functions.

New calibration pattern detection options added to calibration apps

The Camera Calibrator and Stereo Camera Calibrator apps include these enhancements:

  • Support for detecting white-circle grid patterns, commonly used for thermal cameras.

  • New Minimum Corner Metric parameter to control the quality of corner detections.

  • Calibrate stereo cameras using partial pattern detections by using the newly supported ChArUco board and AprilGrid patterns.

    For more details on using these apps, see Using the Single Camera Calibrator App and Using the Stereo Camera Calibrator App.

Import OpenCV pinhole camera model with six radial distortion coefficients

The cameraIntrinsics and cameraParameters objects, and the cameraIntrinsicsFromOpenCV and stereoParametersFromOpenCV functions, now support the OpenCV pinhole camera model with six radial distortion coefficients.

Perform and verify hand-eye calibration for a robot arm equipped with a camera

The Estimate Pose of Moving Camera Mounted on a Robot example demonstrates how to perform and verify hand-eye calibration for a robot arm or manipulator equipped with a camera in the eye-in-hand configuration.

3-D Vision

 Perform monocular visual-inertial SLAM

The monovslam object now has fusion support for inertial measurement unit (IMU) sensors. This support enables you to:

  • Add IMU parameters when constructing the new SLAM-fusion object

  • Use the new CameraToIMUTransform, NumPosesThreshold, and AlignmentFraction name-value arguments of the monovslam object to tune both the initial IMU-camera alignment and the main IMU-camera fusion

  • Add IMU gyro and accelerometer measurements to the monovslam object by using the addFrame object function

The fusion support for IMU sensor arguments for the monovslam object do not support C/C++ code generation.

Evaluate accuracy metrics of estimated trajectory from SLAM

Use the compareTrajectories function to calculate error metrics by comparing the estimated poses from an odometry or SLAM system against the true poses from a ground truth trajectory, as measured by an external ground truth system.

The compareTrajectories function returns a trajectoryErrorMetrics object that stores accuracy metrics for the absolute and relative trajectory error for a sequence of poses.

Set disparity map for stereo vSLAM

To add a disparity map for stereo images when adding them to a stereovslam object, use the DisparityMap name-value argument of the addFrame object function.

Create customized bag of features to perform loop closure detection in vSLAM

Create a bag of words (BoW) using the bagOfFeaturesDBoW object, and then use the feature descriptors in the bag to perform SLAM loop closure detection for ORB features using the dbowLoopDetector object. The bagOfFeaturesDBoW object enables you to create a custom bag of words (BoW) from feature descriptors, alongside options to utilize a built-in vocabulary or load a custom one from a specified file.

Specify a custom bag of features by using the bagOfFeaturesDBoW for loop detection with the rgbdvslam, monovslam, and stereovslam vSLAM objects.

Set level of information to display during vSLAM

Set the Verbose property of the monovslam, stereovslam, and rgbdvslam vSLAM objects to one of three levels to display varying amounts of information.

Verbose ValueDisplay DescriptionDisplay Location
0 or falseDisplay is turned off.N/A
1 or trueStages of vSLAM execution.Command Window
2Stages of vSLAM execution, with details on how the frame is processed, such as the artifacts used to initialize the map. Log file in a temporary folder
3Stages of vSLAM, artifacts used to initialize the map, poses and map points before and after bundle adjustment, and loop closure optimization data.Log file in a temporary folder

Simulate RGB-D visual SLAM with Gazebo and Simulink

The Simulate RGB-D Visual SLAM System with Cosimulation in Gazebo and Simulink (ROS Toolbox) example uses a Gazebo world with a Pioneer robot mounted with an RGB-D camera in cosimulation with Simulink®. It shows how to use the RGB and depth images from the robot to simulate an RGB-D visual SLAM system in Simulink. Cosimulation enables you to control Gazebo time stepping using Simulink and provides time-synchronized RGB and depth images, which is crucial for the accuracy of RGB-D vSLAM. Because this is an indoor scene, it is a good candidate for RGB-D cameras, which have limited depth perception and are sensitive to lighting conditions.

Point Cloud Processing

Downsample point cloud using grid nearest filter method

When using the pcdownsample function to downsample point clouds, you can specify the "gridNearest" downsampling method, which selects the nearest point to the centroid of each grid. This method maintains the integrity of the color and intensity information from the input point cloud.

Segment point cloud using exhaustive or approximate method

Choose between exhaustive and approximate clustering when using the pcsegdist function by specifying the Method name-value argument. The "exhaustive" method ensures that all points within a cluster maintain a minimum distance from points outside the cluster, controlled by the minDistance input. The "approximate" method is less accurate, but produces faster results.

Track Objects and Estimate Motion

 Estimate optical flow using RAFT deep learning algorithm

Use the opticalFlowRAFT object to estimate the motion of objects across frames in a video. The opticalFlowRAFT object uses the recurrent all-pairs field transforms (RAFT) optical flow algorithm with a deep neural network to evaluate all pairs of pixels in consecutive frames to predict their motion. The algorithm enables you to capture complex motion patterns, and provides high accuracy in tracking objects through conditions such as camera motion, blurry frames, and texture-less scenes.

The Automate Labeling of Objects in Video Using RAFT Optical Flow example demonstrates how to automatically transfer polygon region-of-interest (ROI) annotations from one labeled frame to subsequent frames using the RAFT deep learning-based optical flow algorithm.

Cars traveling on a highway with overlaid optical flow vectors.

Code Generation, GPU, and Third-Party Support

MATLAB Coder Support: Generate C and C++ code using additional functions

These functions and objects now support C/C++ code generation for both host and non-host target platforms.

GPU Coder Support: Generate CUDA code using additional functions

These functions now support code generation using GPU Coder.

Embedded Coder Support: Generate optimized C/C++ code for ARM processors using additional functions

These functions now supports code generation using Embedded Coder™.

R2024a

New Features, Compatibility Considerations
expand all

Ground Truth Images and Video

 Convert Image Labeler ground truth data to the OpenLABEL Format

Use the groundTruthToOpenLabel function to convert groundTruth object data exported from the Image Labeler app to the ASAM OpenLABEL® format and return it as a JavaScript Object Notation (JSON) file.

Labeler enhancements

This table describes enhancements for these labeling apps:

FeatureImage Labeler Video Labeler Ground Truth Labeler Lidar Labeler Medical Image Labeler
Convert groundTruth object data to ASAM OpenLABEL® format.YesNoNoNoNo
Use Erase tool to remove the labels from superpixel grids.YesNoNoNoNo
Turn the superpixel grid layout on or off.YesNoNoNoNo
Customize superpixel edge color.NoNoNoNoYes
Option to turn off autosave.NoNoNoNoYes
Toggle a drawing tool between active and inactive by clicking the button for the tool in the toolstrip.NoNoNoNoYes

Improved playback speed for high-resolution videos.

NoYesNoNoNo
Import point cloud data from a Hesai® PCAP file, Ouster® PCAP file, or E57 file.NoNoNoYesNo
Use the Brush and Brush Erase tools to label voxel regions on a point cloud.NoNoNoYesNo
Show or hide data in voxel regions on a labeled point cloud.NoNoNoYesNo
Undo or redo semantic labels for voxel regions on a point cloud.NoNoNoYesNo
Improved interface to select, reset, and save an ROI view of a point cloud.NoNoNoYesNo
Get the status of the Snap to Cluster operation using a progress dialog.NoNoNoYesNo

Detect and Segment Objects

 Read and estimate ArUco marker pose in image

You can use the readArucoMarker function to detect ArUco markers in an image. The function enables you to restrict detections to specific marker families, and to specify the marker size to detect. It also provides several name-value arguments to adjust adaptive thresholding, contour filtering, bit extraction, and subpixel corner refinement.

Use the generateArucoMarker function to generate ArUco marker images.

Train 6-DoF pose estimation network using deep learning

Create a Pose Mask R-CNN network, a 6-degree-of-freedom (6-DoF) pose estimation network for intelligent bin-picking scenarios, using the posemaskrcnn object. This network is pretrained for pose estimation on images of variously oriented pipe connectors, or learns using weights from a network pretrained for instance segmentation on the COCO data set. You can predict object poses with the pretrained network using the predictPose object function, or configure the network for transfer learning.

To train the Pose Mask R-CNN network, use the trainPoseMaskRCNN function.

For an example of both inference using a pretrained Pose Mask R-CNN network and transfer learning on a custom data set, see the Perform 6-DoF Pose Estimation for Bin Picking Using Deep Learning example.

This functionality requires the Computer Vision Toolbox Model for Pose Mask R-CNN 6-DoF Pose Estimation and a Deep Learning Toolbox license. You can install the Computer Vision Toolbox Model for Pose Mask R-CNN 6-DoF Object Pose Estimation from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Specify arguments for PatchCore, FastFlow, and FCDD anomaly detectors

When configuring a patchCoreAnomalyDetector object, you can specify the backbone feature extraction network as a dlnetwork (Deep Learning Toolbox) object by using the backbone input argument.

When training a patchCoreAnomalyDetector object using the trainPatchCoreAnomalyDetector function, you can specify the subsampling method by using the SubsamplingStrategy name-value argument. For example, SubsamplingStrategy="greedycoreset" specifies the greedy coreset subsampling method.

When configuring a fastFlowAnomalyDetector object, specify the backbone feature extraction network as a dlnetwork (Deep Learning Toolbox) object by using the Backbone name-value argument. Specify the number of steps in the flow network by using the NumFlowSteps name-value argument. Specify the ratio of input channels to hidden channels in the input and output subnet layers of the FastFlow detector by using the FlowModelChannelRatio name-value argument.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Specify custom anomaly score function for FastFlow and FCDD detectors

When using the predict or classify object function with an fcddAnomalyDetector or fastFlowAnomalyDetector as your anomaly detector, you can specify the custom anomaly score function used to compute a scalar score from the 2-D anomaly map.

To specify the custom score function for the predict object function, use the corresponding ScoreFunction name-value argument. To specify the custom score function for the classify object function, use the corresponding ScoreFunction name-value argument.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Automated Visual Inspection: Monitor and track metrics during anomaly detector training

You can use an AUCMetric (Deep Learning Toolbox) object to track the area under the ROC curve (AUC) while you train an anomaly detector. To use the metric, specify it to the Metrics (Deep Learning Toolbox) name-value argument of the trainingOptions (Deep Learning Toolbox) function.

This functionality requires the Automated Visual Inspection Library for Computer Vision Toolbox and a Deep Learning Toolbox license. You can install the Automated Visual Inspection Library for Computer Vision Toolbox from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Monitor and track metrics during object detector training

You can use an mAPObjectDetectionMetric object to track the mean average precision (mAP) metric while you train an object detector. To use the metric, specify it to the Metrics (Deep Learning Toolbox) name-value argument of the trainingOptions (Deep Learning Toolbox) function. For an example, see the Train YOLOX Network for Vehicle Detection example.

Explain and visualize object detection network predictions using D-RISE

The detect object functions of the yolov2ObjectDetector, yolov3ObjectDetector, yolov4ObjectDetector, and yoloxObjectDetector (Computer Vision Toolbox Automated Visual Inspection Library) objects can now return the info output argument, which contains information about the class probability and objectness score for each detection.

Generate visual explanations for the prediction results returned by detect with the detector randomized input sampling for explanation (D-RISE) algorithm by using the drise (Deep Learning Toolbox) function. Use this function to generate a saliency map that indicates which regions of your input image have the strongest influence on the detector predictions. This function requires Deep Learning Toolbox and the Deep Learning Toolbox Verification Library.

Freeze subnetworks of YOLO v4 object detector

When training the deep learning YOLO v4 object detector, you can now freeze the subnetworks to increase training speed and reduce GPU memory consumption. The new FreezeSubNetwork name-value argument of the trainYOLOv4ObjectDetector function enables you to freeze the backbone or both the backbone and neck subnetworks during training.

Train YOLO v3 object detector

Train or fine-tune a YOLO v3 object detection network using the trainYOLOv3ObjectDetector function. The function supports includes support for subnetwork freezing and the Experiment Manager (Deep Learning Toolbox) app.

YOLO v3 Object Detector: Rotated rectangle bounding box support

The deep learning YOLO v3 object detector and supporting functionality now support rotated rectangle bounding boxes. These functions now support rotated rectangle bounding boxes as inputs:

The insertObjectAnnotation and showShape functions now support the ShowOrientation name-value argument, enabling you to specify whether to visually display the orientation of a rotated rectangle.

Train HRNet object keypoint detector

Train or fine-tune an HRNet object keypoint detection network using the trainHRNetObjectKeypointDetector function. The function includes support for the Experiment Manager (Deep Learning Toolbox) app.

Create a segmentation dlnetwork with U-Net, 3-D U-Net, or DeepLab v3+ architecture

Create a segmentation dlnetwork object that uses U-Net architecture by using the unet function, and optionally specify a custom or pretrained network to use as the encoder in the U-Net network. To use a pretrained encoder network, create the network using the pretrainedEncoderNetwork function.

Create a segmentation dlnetwork with the 3-D U-Net architecture by using the unet3d function, and optionally specify a custom or pretrained network to use as the encoder in the 3-D U-Net network. To use a pretrained encoder network, create the network using the pretrainedEncoderNetwork function.

Create a segmentation dlnetwork with the DeepLab v3+ architecture by using the deeplabv3plus function.

Specify spatial flattening mode of patch embedding layers

Specify the mode for flattening the output of convolution operations in patchEmbeddingLayer objects using the SpatialFlattenMode property. Set this property when creating or importing models that require this representation.

 Functionality being removed or changed

OCR Trainer app removed

Errors

The OCR Trainer app has been removed. Instead, use the Image Labeler app for labeling and the trainOCR function for training.

TextLayout and Language name-value arguments removed from ocr function

Errors

The Language and TextLayout name-value arguments have been removed from the ocr function. Use the Model and LayoutAnalysis name-value arguments instead.

unetLayers, unet3dLayers, and deeplabv3plusLayers functions will be removed in future release

Still runs

The unetLayers, unet3dLayers, and deeplabv3plusLayers functions will be removed in a future release. To update your code, replace these functions with the corresponding new unet, unet3d, and deeplabv3plus functions, each of which returns a dlnetwork object.

Discouraged UsageRecommended Replacement

This example uses the unetLayers function to create a U-Net network, returned as a LayerGraph object.

imageSize = [480 640 3];
numClasses = 5;
encoderDepth = 3;
lgraph = unetLayers(imageSize,numClasses, ...
	EncoderDepth=encoderDepth)

Here is equivalent code that instead uses the unet function to create a U-Net network, which is returned as a dlnetwork object. To set a custom or pretrained encoder network, you must specify the EncoderNetwork name-value argument.

imageSize = [480 640 3];
numClasses = 5;
encoderDepth = 3;
unetNetwork = unet(imageSize,numClasses, ...
	EncoderDepth=encoderDepth);

This example uses the unet3dLayers function to create a 3-D U-Net network, returned as a LayerGraph object.

imageSize = [128 128 128 3];
numClasses = 5;
encoderDepth = 2;
lgraph = unet3dLayers(imageSize,numClasses, ...
	EncoderDepth=encoderDepth,NumFirstEncoderFilters=16)

Here is equivalent code that instead uses the unet3d function to create a U-Net network, is returned as a dlnetwork object. To set a custom or pretrained encoder network, you must specify the EncoderNetwork name-value argument.

imageSize = [128 128 128 3];
numClasses = 5;
encoderDepth = 2;
unet3dNetwork = unet3d(imageSize,numClasses, ...
	EncoderDepth=encoderDepth,NumFirstEncoderFilters=16);

This example uses the deeplabv3plusLayers function to create a DeepLab v3+ network, returned as a LayerGraph object.

imageSize = [480 640 3];
numClasses = 5;
network = "resnet18";
lgraph = deeplabv3plusLayers(imageSize,numClasses,network, ...
	DownsamplingFactor=16);

Here is equivalent code that instead uses the deeplabv3plus function to create a DeepLab v3+ network, returned as a dlnetwork object.

imageSize = [480 640 3];
numClasses = 5;
network = "resnet18";
deepLabNetwork = deeplabv3plus(imageSize,numClasses,network, ...
	DownsamplingFactor=16);

fcnLayers and segnetLayers functions will be removed in future release

Still runs

The fcnLayers and segnetLayers functions will be removed in a future release. Create a dlnetwork (Deep Learning Toolbox) instead.

Output layers will be removed in future release

Still runs

The dicePixelClassificationLayer, pixelClassificationLayer, and focalLossLayer objects will be removed in a future release. Use the trainnet (Deep Learning Toolbox) function and specify the loss using a loss function instead.

yolov2ReorgLayer object has been removed

Errors

The yolov2ReorgLayer object has been removed. Use the spaceToDepthLayer object instead.

Calibrate Cameras

Import OpenCV fisheye camera model

Use the cameraIntrinsicsFromOpenCV function to import intrinsic calibration parameters for a fisheye lens that has been calibrated using OpenCV. The function returns the intrinsic parameters in a cameraIntrinsicsKB object.

These functions now support the cameraIntrinsicsKB object as a camera parameter input:

Get camera intrinsic parameters for undistorted image

The undistortImage function now returns a camera intrinsic parameters object corresponding to a virtual perspective camera that produces the image with lens distortion removed.

 Functionality being removed or changed

undistortImage function no longer returns new image origin

Behavior change

This release replaces the newOrigin output argument of the undistortImage function. The function now returns a cameraIntrinsics object as the second argument. Prior to this release, the function returned a two-element vector, newOrigin. You can still calculate the new origin by subtracting the principal point of the input camera intrinsic parameters from the principal point of the output camera intrinsic parameters using this code, where intrinsics is the input cameraInstrinsics object and newIntrinsics is the cameraIntrinsics object output by the undistortImage function.

newOrigin = intrinsics.PrincipalPoint - newIntrinsics.PrincipalPoint

vision.CameraParameters system object removed

Behavior change

The vision.CameraParameters System object has been removed. Use the cameraParameters object instead.

3-D Vision

 Implement complete feature-based RGB-D SLAM workflow with the rgbdvslam object

Use the rgbdvslam object and supporting object functions to implement a complete visual simultaneous localization and mapping (vSLAM) workflow with RGB-D camera data.

To use the rgbdvslam object, you must have a Navigation Toolbox license.

 Implement complete feature-based stereo vSLAM workflow with the stereovslam object

Use the stereovslam object and supporting object functions to implement a complete visual simultaneous localization and mapping (vSLAM) workflow with stereo camera data.

For an example, see Performant and Deployable Stereo Visual SLAM with Fisheye Images.

To use the stereovslam object, you must have a Navigation Toolbox license.

Performant and deployable monocular visual SLAM example

The Performant and Deployable Monocular Visual SLAM example uses the monovslam object, which contains a complete vSLAM workflow. You can use MATLAB Coder to generate multi-threaded C/C++ code from the monovslam object.

Specify and select world points using unique identifiers

Use the new selectWorldPoints object function to select world points from a worldpointset object. You can now also specify unique point IDs to manage world points. In prior releases, you could only save points to the worldpointset with sequential identifiers.

Perform translation using geometric transformation functions

The estgeotform2d and estgeotform3d functions now support the translation transformation type.

Generate C++ code for visual SLAM examples

The Stereo Visual Simultaneous Localization and Mapping and Visual SLAM with RGB-D Camera examples now show the C++ code generation process using MATLAB Coder.

Point Cloud Processing

Find points inside or on surface of geometric model in point cloud

Use the findPointsInModel object function to identify points in a point cloud that are located inside or on the surface of a sphereModel or cylinderModel geometric shape.

pcregistercpd Function: Improved performance

The pcregistercpd function shows improved runtime performance when registering non-rigid point clouds. For example, this code is about 2x faster than in the previous release:

handData = load("hand3d.mat");
moving = handData.moving;
fixed = handData.fixed;

tic
tform = pcregistercpd(moving,fixed);
toc

The approximate execution times are:

  • R2023b: 23.35 seconds

  • R2024a: 12.77 seconds

The code was timed on a Microsoft Windows® 10, AMD® EPYC™ 74F3 24-Core Processor @ 3.2 GHz test system using the tic and toc functions.

pcnormals Function: Improved performance

The pcnormals function shows improved runtime performance when you use a high number of points for local plane fitting. For example, this code is about 4.2x faster than in the previous release:

load("object3d.mat")

tic
normals = pcnormals(ptCloud,30);
toc

The approximate execution times are:

  • R2023b: 9.32 seconds

  • R2024a: 2.21 seconds

The code was timed on a Microsoft® Windows 10, Intel Xeon Gold 6240R CPU @ 2.4 GHz test system using the tic and toc functions.

pcsegdist Function: Improved performance

The pcsegdist function shows improved runtime performance when you use parallel neighbor search to segment point cloud data. For example, this code is about 2.1x faster than in the previous release:

ld = load("drivingLidarPoints.mat");
maxDistance = 0.9;
referenceVector = [0 0 1];
[~,inliers,outliers] = pcfitplane(ld.ptCloud,maxDistance,referenceVector);
distThreshold = 2;
ptCloudWithoutGround = select(ld.ptCloud,outliers);

tic
[labels,numClusters] = pcsegdist(ptCloudWithoutGround, ...
    distThreshold,NumClusterPoints=[10 Inf],ParallelNeighborSearch=true);
toc

The approximate execution times are:

  • R2023b: 0.13 seconds

  • R2024a: 0.06 seconds

The code was timed on a Microsoft Windows 10, Intel Xeon Gold 6240R CPU @ 2.4 GHz test system using the tic and toc functions.

pcregisterndt Function: Improved performance

The pcregisterndt function shows improved runtime performance when you use small sizes for the 3-D cube that voxelizes the fixed point cloud. For example, this code is about 1.4x faster than in the previous release:

veloReader = velodyneFileReader("lidarData_ConstructionRoad.pcap","HDL32E");
frameNumber = 1;
skipFrame = 5;
fixed = readFrame(veloReader,frameNumber);
moving = readFrame(veloReader,frameNumber + skipFrame);
groundPtsIdxFixed = segmentGroundFromLidarData(fixed);
fixedSeg = select(fixed,~groundPtsIdxFixed,OutputSize="full");
groundPtsIdxMoving = segmentGroundFromLidarData(moving);
movingSeg = select(moving,~groundPtsIdxMoving,OutputSize="full");
movingDownsampled = pcdownsample(movingSeg,gridAverage=0.2);
gridStep = 1;

tic
tform = pcregisterndt(movingDownsampled,fixedSeg,gridStep);
toc
movingReg = pctransform(moving,tform);

The approximate execution times are:

  • R2023b: 0.04 seconds

  • R2024a: 0.03 seconds

The code was timed on a Microsoft Windows 10, Intel Xeon Gold 6240R CPU @ 2.4 GHz test system using the tic and toc functions.

 Default value of InitialTransform changed for "pointToPlaneWithColor" metric

The pcregistericp function now uses a modified default value for the InitialTransform name-value argument when you specify the Metric name-value argument as "pointToPlaneWithColor". The default value is now an identity transformation represented as a rigidtform3d object.

 Functionality being removed or changed

pcregrigid function will be removed

Warns

The pcregrigid function will be removed in a future release. When you call the pcregrigid function, it issues a warning that it will be removed. Use the pcregistericp function instead.

Track Objects and Estimate Motion

 Reidentify and track objects using deep learning

Perform multi-object tracking using deep learning. Create a reidentificationNetwork object to configure a re-identification network for feature extraction and training. Extract object re-identification features from an image using the extractReidentificationFeatures object function. Train the re-identification network using the trainReidentificationNetwork function.

Use the evaluateReidentificationNetwork function to evaluate the re-identification network performance with the cumulative matching characteristic (CMC) and mean average precision (mAP) metrics. The reidentificationMetrics object stores the metrics. Use the plot object function to plot the CMC curve for the data set, the CMC curve per object class, or the precision-recall curve.

For an example, see the Reidentify People Throughout a Video Sequence Using ReID Network example, which now uses the reidentificationNetwork object and the associated training, evaluation, and feature extraction functions.

Tracking and Re-Identification Example: Automatically label data for object tracking and re-identification

The Automate Ground Truth Labeling for Object Tracking and Re-Identification example shows you how to create an automation algorithm to automatically label ground truth data for object tracking and re-identification.

Tracking and Human Pose Estimation Example: Track multiple people and estimate their body poses in a video

The Multi-Object Tracking and Human Pose Estimation example shows you how to track multiple people and estimate their body poses in a video by using multi-object tracking and object keypoint detection.

Code Generation, GPU, and Third-Party Support

Integrate OpenCV version 4.7.0 projects with MATLAB

Integrate OpenCV projects with MATLAB using OpenCV version 4.7.0.

MATLAB Coder Support: Generate C and C++ code using additional functions

These functions now support C/C++ code generation for both host and non-host target platforms.

This function now supports C/C++ code generation for host target platforms.

GPU Coder Support: Generate CUDA code using additional functions

These functions now support code generation using GPU Coder.
