## Share Results

### Export Analyses

You can export all decompositions and compressed signals from Wavelet Signal
Analyzer to the workspace. First select a decomposition in
**Scenarios**. The app displays the decomposition names in the
**Scenario** pane in the format *scenarioName*.

To export the decomposition of the original signal, click

**Export ▼**. Under**Decomposition Coefficients**, select**To Workspace**. The app creates the workspace variable

in the workspace.*scenarioName*DecompositionTo export the decomposition of the compressed signal, click

**Export ▼**. Under**Compressed Signal**, select**Coefficients to Workspace**. The app creates the workspace variable

in the workspace.*scenarioName*CompressedCoefficientsTo export the compressed signal, click

**Export ▼**. Under**Compressed Signal**, select**To Workspace**. The app creates the workspace variable

in the workspace.*scenarioName*Compressed

In all cases, text in the status bar confirms the export. If the variable already exists in the workspace, Wavelet Signal Analyzer gives you the option to cancel the export. You can then rename either the scenario or the variable. Otherwise, the app overwrites the existing variable.

### Generate Scripts

You can generate scripts to recreate all decompositions and compressed signals in your
workspace. First select a decomposition in **Scenarios**.

To recreate the decomposition of the original signal, click

**Export ▼**. Under**Decomposition Coefficients**, select**Generate MATLAB Script**.To recreate the compression workflow, click

**Export ▼**. Under**Compressed Signal**, select**Generate MATLAB Script**.

In both cases, an untitled script opens in your editor with executable code. You can then save the script.

### Example: Compress Signal and Generate Script

This example shows how to compress a signal and generate a script to recreate the compressed signal in the workspace.

**Import Data**

Load the electrical consumption signal.

`load nelec`

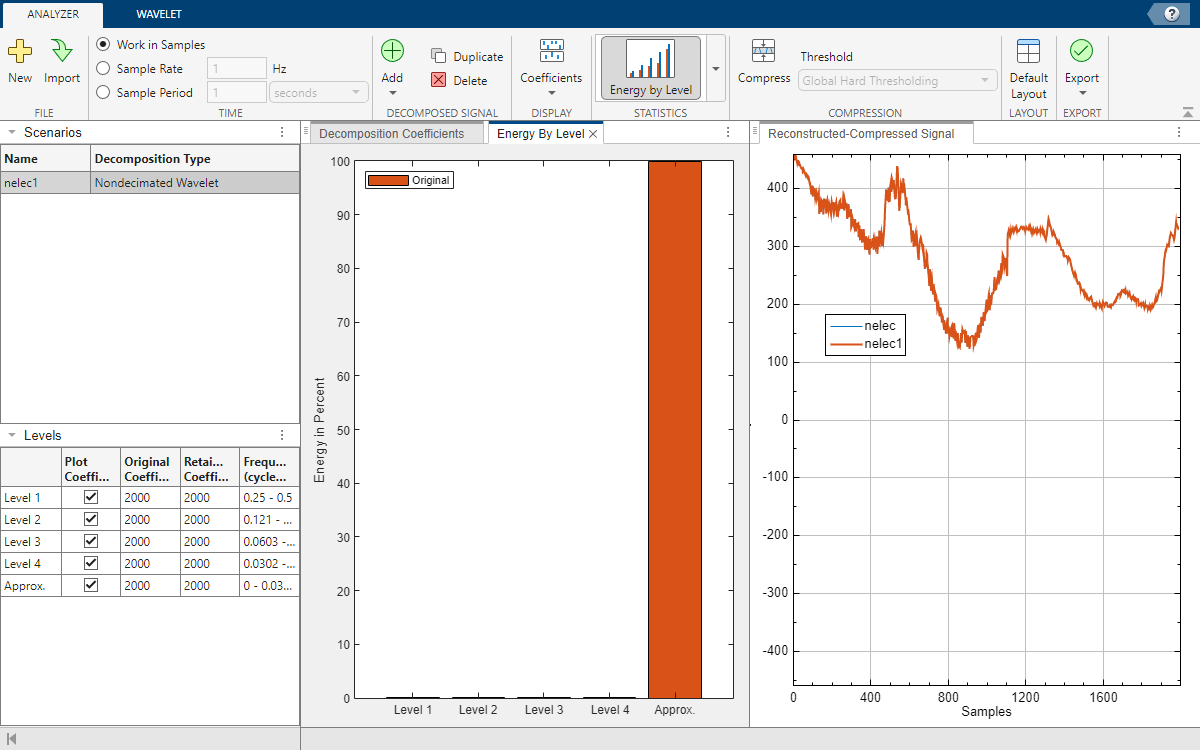

Open **Wavelet Signal Analyzer** and import the signal into the app. By default, a four-level nondecimated wavelet decomposition of the signal appears. The table in the **Levels** pane indicates that there are 2000 original and retained coefficients at all levels. Plot the relative energies of the decomposition. Most of the energy lies in the approximation coefficients.

**Compress Signal**

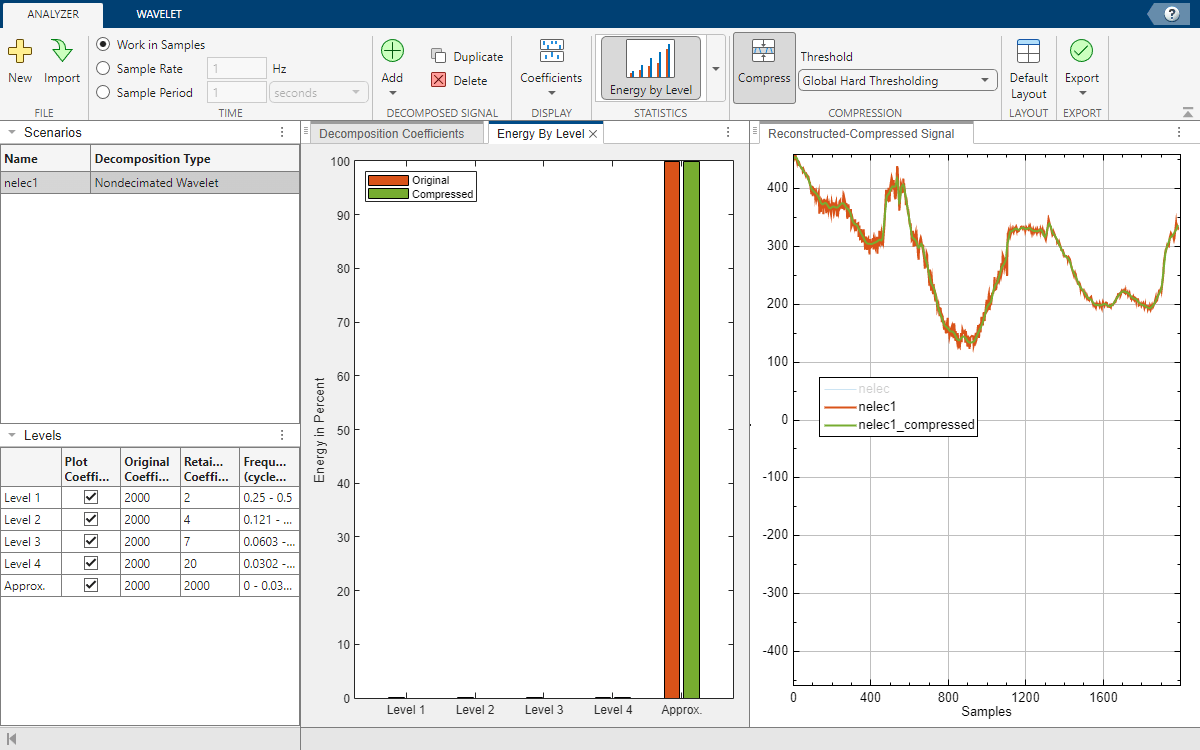

On the **Analyzer** tab, click **Compress**. The app applies the same default threshold *thr* to the coefficients using global hard thresholding. The app sets all coefficients that lie in the interval [–*thr*, *thr*] to 0.

The

**Levels**pane reports the number of coefficients retained at each level after thresholding.The

**Energy By Level**pane updates to include the retained coefficients.The

**Reconstructed-Compressed Signal**pane now includes a plot of the compressed signal,`nelec1_compressed`

. Click`nelec`

and`nelec1`

in the plot legend to show only the compressed signal.

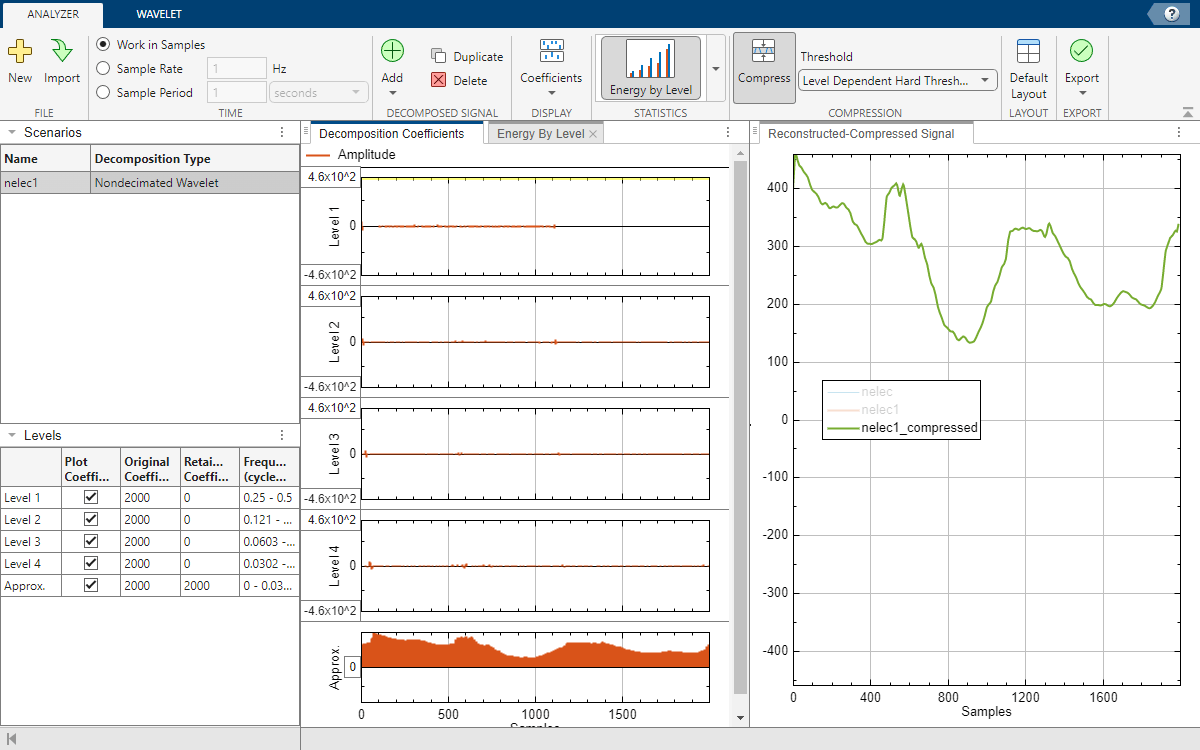

Switch to the **Decomposition Coefficients** pane. Compress the signal. Set 0 to all the detail coefficients. Use all the approximation coefficients to construct the compressed signal.

In any level coefficients plot, drag the horizontal cursor to the maximum threshold. The number of retained coefficients in the entire decomposition is 0.

Switch to level dependent hard thresholding. Then in the approximation coefficients plot, enter

`0`

in the text field to retain all the approximation coefficients.

**Generate Script**

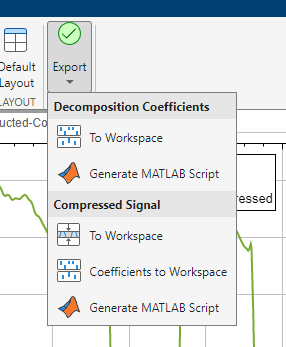

You have a number of export options available. You can export the original coefficients or generate a script to recreate the decomposition in your workspace. Because you have enabled compression, you can also export the compressed signal or thresholded coefficients, as well as generate a script to recreate the compressed signal in your workspace. To recreate the compressed signal in your workspace, in the **Export** ▼ menu, select **Generate MATLAB Script** under **Compressed Signal**.

An untitled script opens in your editor with the following executable code. You can save the script as is or modify it to apply the same compression to other signals. Run the code.

**Note**: The app uses time-aligned coefficients only when visualizing the decomposition. The generated script always uses the original coefficients. The state of the **Time Align** parameter has no impact on the generated script.

% Perform the decomposition using MODWT numberOfLevels = 4; wt = modwt(nelec,"sym4",numberOfLevels); % Compute the energy by level for the decomposition energyByLevel = 100*sum((wt.^2),2)/sum(wt.^2,"all"); % Thresholds for compressing the imported signal compressionThresholds = ... [464.1 464.1 464.1 464.1 0]'; % Duplicate coefficients for thresholding wc = wt; % Apply threshold to coefficients for idx = 1:numel(compressionThresholds) thr = abs(compressionThresholds(idx)); w = wc(idx,:); w = wthresh(w,"h",thr); wc(idx,:) = w; end % Energy by level for the compressed signal energyByLevelForCompressed = 100*sum((wc.^2),2)/sum(wc.^2,"all"); % Reconstruct the compressed signal using IMODWT nelec1_compressed = imodwt(wc,"sym4");

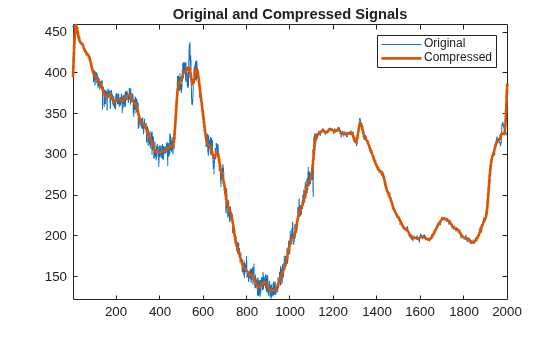

Plot the original signal, `nelec`

, and the compressed signal, `nelec1_compressed`

.

plot(nelec) hold on plot(nelec1_compressed,LineWidth=2) hold off axis tight title("Original and Compressed Signals") legend("Original","Compressed")

Compare the energies by level of the original and thresholded coefficients. Because you set all the wavelet (detail) coefficients to 0, all the energy in the thresholded coefficients is contained in the approximation level.

[energyByLevel energyByLevelForCompressed]

`ans = `*5×2*
0.0152 0
0.0124 0
0.0125 0
0.0260 0
99.9338 100.0000
