Arrays are several antennas connected and arranged in a regular structure to form a single antenna. Arrays produce radiation patterns that when combined have characteristics that individual antenna radiation patterns cannot produce.
|Antenna Array Designer||Design, visualize, and analyze arrays (Since R2019b)|
|Create linear antenna array|
|Create rectangular antenna array|
|Create conformal antenna array|
|Create circular antenna array|
|Create infinite array of 2-D custom antenna in xy-plane|

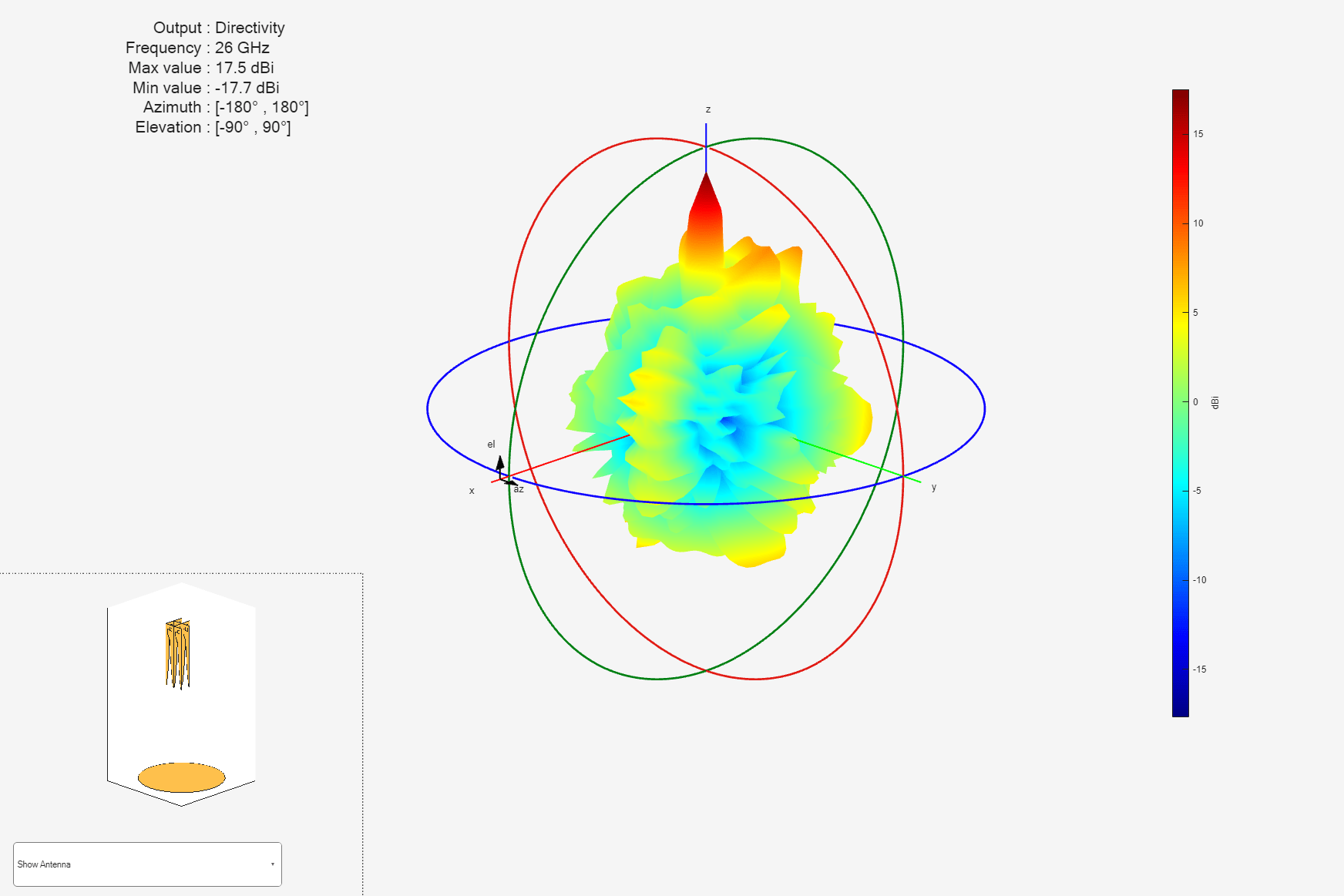

|Create egg crate array of Vivaldi antenna elements (Since R2021a)|
- Array Catalog Elements
Types of supported arrays in the toolbox.
- Mutual Coupling
Active or scan impedance, array factor and pattern multiplication, coupling matrix, isolated or embedded element pattern.
Side lobe control, beam scanning.
- Grating Lobes
Grating lobes are the maxima of the main beam, as predicted by the pattern multiplication theorem.
- Rotate Antennas and Arrays
Orient the antenna and array in 3-D space.
